| Hardware Specifications |
| Copper Ports,M12, 8-pin X-coded Female Connector |

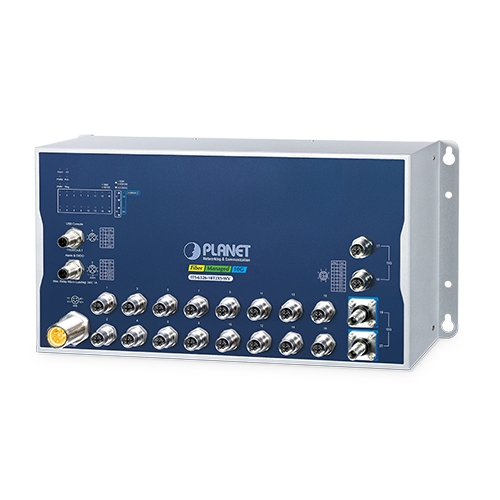

ITS-6326-18T2XS-WV：
16 x 10/100/1000BASE-T (Ports 1 to 16)
2 x 10GBASE-T (Ports 17 to 18) Supports 10G/ 5G/ 2.5G/ 1G/ 100Mbps data rate

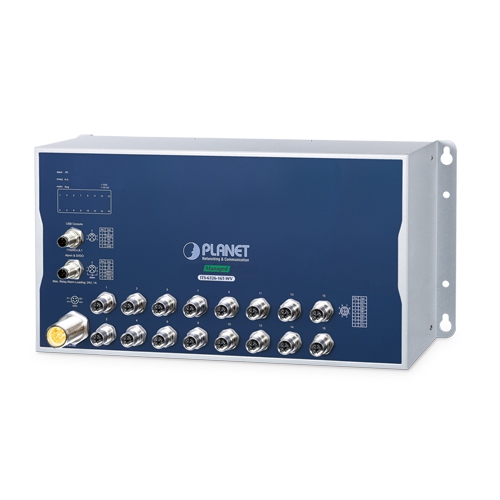

ITS-6326-16T-WV/ITS-6326-16T-LV：
16 x 10/100/1000BASE-T (Ports 1 to 16) |
| Q-ODC Fiber Ports |
ITS-6326-18T2XS-WV
2 x 10GBASE-X with single-mode fiber (Ports 19 to 20) |
| Console |
USB Data to RS232 serial port (115200, 8, N, 1)
1 x M12 A-coded 5-pin male connector |
| Reset Button |
< 5 sec.: System reboot
> 5 sec.: Factory default |
| Alarm & DI & DO Ports |
1 x M12 A-coded 5-pin male connector for DI/DO and alarm interface
Pin 1 for DI and Pin 2 for DO
Pin 3/4 for Alarm
Pin 5 for GND |
| Alarm |
One relay output for port breakdown and power failure.
Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
One digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
One digital output (DO)
Open collector to 24V DC, 100mA max. |
| Power Connector |
1 x M23 A-coded 5-pin male connector |
| Number of Power Input |
2 |
| Power Input |
Wide Voltage Input (WV Series):
24 to 110 VDC
Low Voltage Input (LV Series):
24 to 54 VDC |
| Operating Voltage |
Wide Voltage Input (WV Series):
16.8 to 137.5 VDC
Low Voltage Input (LV Series):
16.8 to 54 VDC |
| Power Consumption |
ITS-6326-18T2XS-WV:
Max. 36.04 watts / 122.97 BTU (system on)
Max. 43.57 watts / 147.47 BTU (Full loading)
ITS-6326-16T-WV/ ITS-6326-16T-LV:
Max. 23.3 watts / 79.5 BTU (system on)
Max. 29.34 watts / 100.11 BTU (Full loading) |
| LED |
System:
PWR1 (Green)
PWR2 (Green
Alarm (Red)
Ring (Green)
R.O. (Green)
I/O (Red)
10/100/1000T M12 Ports:
Up: 1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
100/1G/2.5G/5G/10GBASE-T M12 Ports:
Up: 1000 LNK/ACT (Green)
100/10G LNK/ACT (Amber)
Down: 2.5G/5G LNK/ACT (Amber)
10GBASE-X Q-ODC Fiber Port:
Up: LNK/ACT (Amber) |

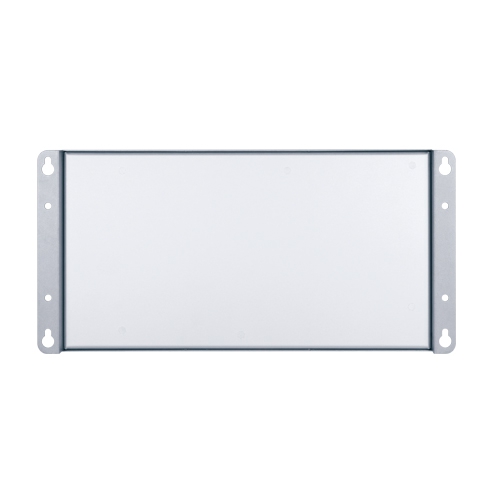

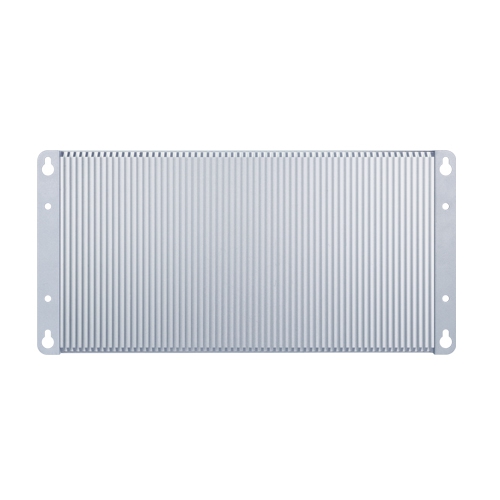

| Enclosure |
IP40 aluminum case |
| Installation |
Wall-mount design |
| Dimensions (W x D x H) |
400 x 74 x 195 mm |
| Weight |
ITS-6326-18T2XS-WV: 4650g
ITS-6326-16T-WV: 4450g
ITS-6326-16T-LV: 3250g |
| Switching Specifications |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
112Gbps/non-blocking
ITS-6326-18T2XS-WV
32Gbps/non-blocking
ITS-6326-16T-WV/ ITS-6326-16T-LV |
| Switch Throughput@64Bytes |
83.3Mpps @64 bytes
ITS-6326-18T2XS-WV
23.8Mpps @64 bytes
ITS-6326-16T-WV/ ITS-6326-16T-LV |
| Address Table |
16K entries, automatic source address learning and aging |
| Shared Data Buffer |
32M bits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
|
| Layer 3 Functions |
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries
Max. 4K H/W routing table entries |
| Routing Protocols |
IPv4 hardware static routing
IPv6 hardware static routing
IPv4 RIPv2
IPv4 OSPFv2 dynamic routing
IPv6 OSPFv3 dynamic routing |
| Layer 2 Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX / RX / Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions |
| VLAN |
EEE 802.1Q tag-based VLAN, up to 255 VLAN groups
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/Static Trunk Supports
Static Port Trucking, (20 ports/10 groups max.)
Dynamic LACP-(20 ports/10 groups max.) |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU Guard |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support
IPv4 IGMP Snooping port filtering
Multicast VLAN Registration |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support |
| Bandwidth Control |
Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps |
| Ring |
Support ERPS, complies with ITU-T G.8032v1 and v2
Recovery time < 50ms |
| Synchronization |
IEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet |
| Security Functions |
| Access Control List |
IP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries |
| Security |
Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries |
| AAA |
RADIUS client
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication |
| Management Functions |
| Basic Management Interfaces |
Console/ Telnet/ Web browser/ SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET NMS System, NMSViewerPro and CloudNMS App |
| Event Management |
Remote Syslog
System log
SMTP |
| ONVIF |
ONVIF device discovery
ONVIF device monitoring
Floor map |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
RFC 4292 IP Forward MIB
RFC 4293 IP MIB |
| Standards Conformance |
| Regulatory Compliance EMI & EMS |
FCC Part 15 Class A
Planning:
CE：EN 55032, EN 55035
EN 61000-6-2, EN 61000-6-4 |
| Stability Testing |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Planning:
IEC 61373, EN 50155 (Shock)
IEC 61373, EN 50155 (Vibration) |
| Railway (Planning) |
EN 50155, EN50121-4, IEC 60571 |
| Railway Fire Protection (Planning) |
EN 45545-2 |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10GBASE-X
IEEE 802.3an 10GBASE-T
IEEE 802.3bz 2.5/5GBASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management(CFM)
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring |
| Environment |
| Operating |
Temperature: -40 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
