| Hardware Specifications |
| Copper Ports |

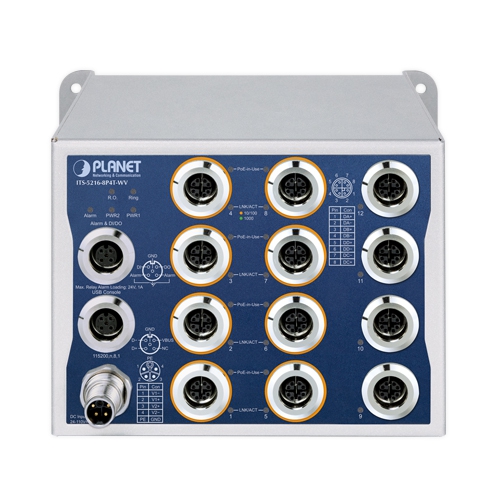

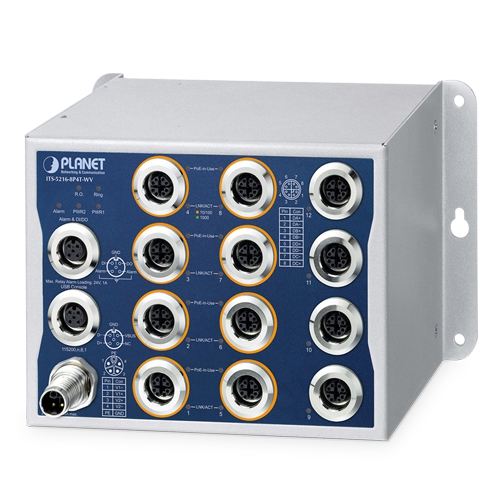

12 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports |
| PoE Inject Ports |
8 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports (Port-1 to Port-8) |
| Console |
USB Data to RS232 serial port (115200, 8, N, 1)
1 x M12 A-coded 5-pin female connector |
| Reset Button |
< 5 sec.: System reboot
> 5 sec.: Factory default |
| Alarm & DI & DO Ports |
1 x M12 A-coded 5-pin female connector for DI/DO and alarm interface
Pin 1 for DI and Pin 2 for DO
Pin 3/4 for Alarm
Pin 5 for GND |
| Alarm |
One relay output for port breakdown and power failure.
Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
One digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
One digital output (DO)
Open collector to 24V DC, 100mA max. |
| Power Connector |
1 x M12, 5-pin K-coded male connector |
| Power Requirements |
Dual 24~110V DC |
| Power Consumption |
Max. 17.3 watts/59.06BTU (Power on without any connection)
Max. 120.8 watts/412.14BTU (Full loading) |
| Dimensions (W x D x H) |
176 x 107 x 110 mm |
| Weight |
2234g |

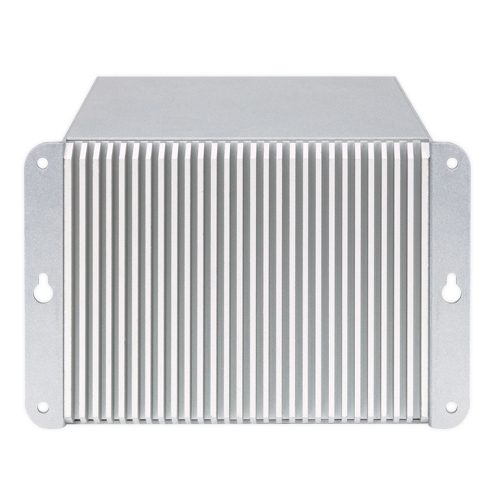

| Enclosure |
IP50 metal case |
| Installation |
Wall-mount |
| ESD Protection |
Air: 8KV
Contact: 6KV DC |
| Surge Protection |
6KV DC |
| LED |
System:
PWR1 (Green), PWR2 (Green), Alarm (Red)
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces :
1000 LNK/ACT (Green); 10/100 LNK/ACT (Amber)
PoE-in-Use (Amber) (Port-1 to Port-8) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
24Gbps/non-blocking |
| Throughput |
17.68Mpps @64 bytes |
| MAC Address Table |
32K entries |
| Shared Data Buffer |
12 megabits |
| Flow Control |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame |
12Kbytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus, Power source equipment
Backward compatible with IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type |
End-span |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Output |
Per port 54V DC, max. 36 watts (IEEE 802.3at) |
| PoE Power Budget |
80W, DC input <= 36V DC
100W, DC input > 36V DC |
| PoE Management Functions |
| PoE Management |
PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 250 meters |
| Layer 2 Management Functions |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/Both
Many-to-1 monitor
Up to 4 sessions |
| VLAN |
IEEE 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
IEEE 802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU guard, BPDU filtering and BPDU forwarding |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping
Up to 255 multicast groups |
| QoS |
8 mapping IDs to 8 level priority queues
Port Number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR |
| Bandwidth Control |
Per port bandwidth control
Ingress: 16-1,000,000Kbps
Egress: 16-1,000,000Kbps |
| Storm Control |
Per port storm control
Broadcast
Unknown Multicast
Unknown Unicast
Rate 16-1,000,000Kbps |
| Ring |
Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms |
| Layer 3 Functions |
| IP Interfaces |
Max. 64 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4/IPv6 hardware static routing |
| Security Functions |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries |
| Port Security |
IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication |
| MAC Security |
IP-MAC port binding
MAC filter
Static MAC address, Max. 256 static MAC entries |
| Enhanced Security |
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard |
| Management |
| Basic Management Interfaces |
USB to M12 RS232 Console
Web browser
Telnet
SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudNMS |
| Event Management |
Remote/Local Syslog
System log
SMTP remote alarm |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
LLDP MIB
PLANET-Aggr-MIB
PLANET-DDMI-MIB
PLANET-Firmware-MIB
PLANET-GVRP-MIB
PLANET-LACP-MIB
PLANET-SYSUTIL-MIB |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
CE:
EN55032
EN55035 |
| Stability Testing |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: -40 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
