| Hardware Specifications |

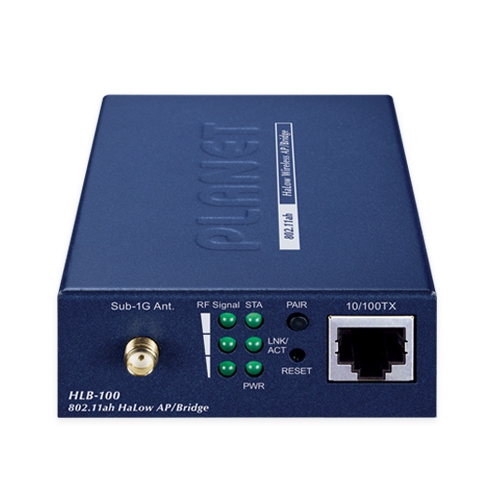

| Interfaces |
1 10/100BASE-TX RJ45 port including
1 LAN/WAN port
Supports WAN mode and LAN mode, configurable via software. |

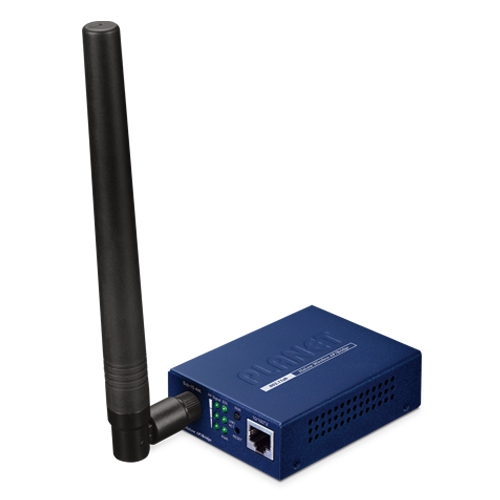

| Antenna Connector |
1 × 50 Ω SMA Connector (Center Pin: SMA Female) |

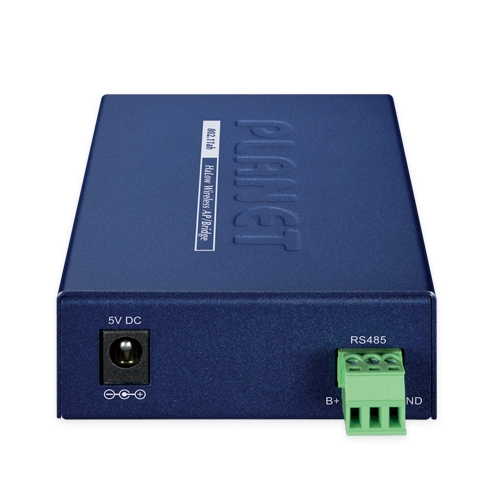

| Serial Interface |
1 x RS485 serial interface |
| Button |
1 x reset button
Press over 5 seconds to reset the device to factory default
1 x pair button |
| Dimensions (W x D x H) |
94 x 70.3 x 26.2 mm |
| Weight |
223g |
| Power Requirements |
5V 2A |
| Power Consumption |
2W |
| Installation |
Wall-mount |
| LED Indicators |
Power, station, strength signal |
| Wireless Interface Specifications |
| Standard |
IEEE 802.11ah (Wi-Fi HaLow)
Compliance with regional regulatory requirements (FCC, ETSI) |
| Band Mode |
Sub-1 GHz frequency operation |
| Frequency Range |
868 MHz: European Union |
| Operating Channels (EU) |
Sub1G:
1MHz
1, 3, 5, 7, 9 |
| Max. Transmit Power (dBm) |
| Bandwidth | MCS 0 Typ. (dBm) | MCS 7 Typ. (dBm) | MCS 0 Range (dBm) | MCS 7 Range (dBm) | | 1MHz | 21 | 17 | 20~22 | 16~18 |
|
| Bandwidth |
MCS 0 Typ. (dBm) |
| 1MHz |
21 |
| Receive Sensitivity |
| Bandwidth | MCS 0 (dBm) | MCS 1 (dBm) | MCS 2 (dBm) | MCS 3 dBm) | MCS 4 (dBm) | MCS 5 (dBm) | MCS 6 (dBm) | MCS 7 (dBm) | | 1MHz | -105 | -102 | -99 | -96 | -93 | -89 | -88 | -87 |
|
| Bandwidth |
MCS 0 (dBm) |
| 1MHz |
-105 |
| Software Features |
| LAN |
Static IP / Dynamic IP |
| Wireless Mode |
Gateway
Access Point
Station |
| Channel Width |
1MHz |
| Encryption Security |
WPA3 Personal |
| Wireless Security |
Enable/Disable SSID Broadcast |
| Status Monitoring |
Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server |
| Management |
| Basic Management Interfaces |
Web browser
SNMP v1/v2c
PLANET Smart Discovery utility and NMS controller supported |
| Secure Management Interfaces |
TLSv1.2, SNMP v3 |
| System Log |
System Event Log |
| Others |
Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot/Diagnostics
Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restore
Supports IGMP Proxy
Supports UPnP
Diagnostics |
| Central Management |
PLANET NMSViewerPro, PLANET CloudNMS |
| Environment & Certification |
| Temperature |
Operating: -20~ 60 degrees C
Storage: -40 ~ 70 degrees C |
| Humidity |
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing) |
| Regulatory |
CE, ETSI, RoHS |
| Note |
Wireless operation, including duty cycle behavior, is subject to applicable regional regulatory requirements. |
