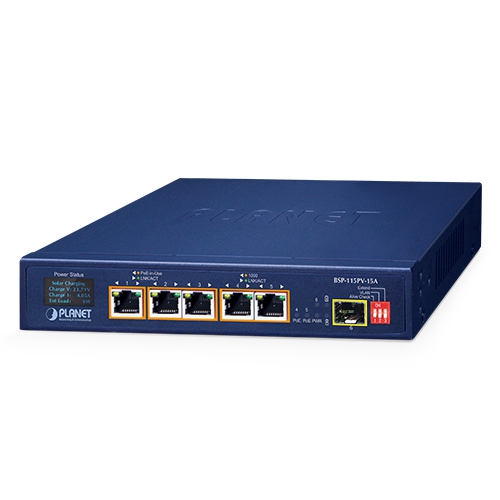

| Hardware Specifications |
| Copper Ports |
5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Port |
1 100/1000BASE-X SFP ports |
| Connector |
Removable 6-pin terminal block
Pin 1/2(+/-) , 3/4(+/-) for PV panel (In parallel);
Pin 5/6(-/+) for battery charging and discharging
The PV input is compliant with DC input but cannot be connected simultaneously with solar input to prevent damage to the device. |
| DIP Switch |

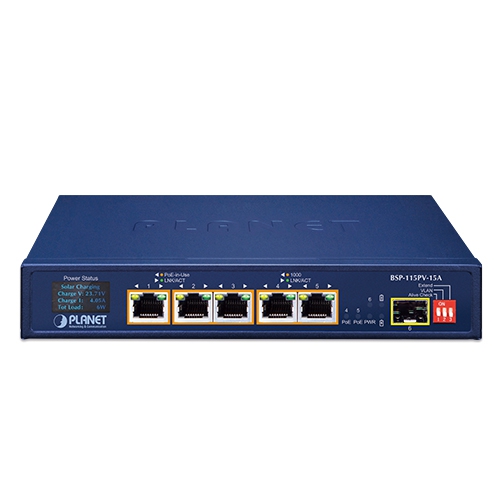

Front Panel:
Alive Check: All PoE ports enable PD Alive check function.
VLAN: Port isolation
Extend: Long distance PoE switch.

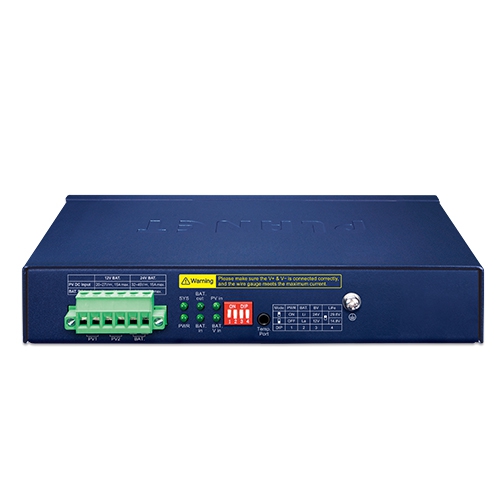

Rear Panel:
PWR: Equipment power switch
BAT: Battery type switch
BV: Battery voltage switch
LiFe: Lithium iron phosphate switch |
| Power Requirements |
Supports 20-27V solar panel input (open circuit voltage) with 12V battery, maximum solar panel input power of 405W, and maximum circuit 15A.
Supports 32-45V solar panel input (open circuit voltage) with 24V battery, maximum solar panel input power of 675W, and maximum circuit 15A. |
| Charging Function |
Integrated automatic charging and discharging, maximum efficiency 98%, maximum charging current 15A
Integrated battery protection function
Integrated battery float charging function
Supports over-temperature protection function |
| Battery Type |
Based on Full Loading power consumption:
12V / 24V lead-acid battery, maximum charging current 15A
12.6V/25. 2V lithium battery, maximum charging current 15A
14.6V/29.2V lithium iron battery, maximum charging current 15A
Note: Recommended capacity 500AH in fully power 120W usage |
| Power Consumption/ Dissipation |
3 watts, 10.2BTU (Standby without PoE function)
140 watts, 477 BTU (Full loading with PoE function) |
| Dimensions (W x D x H) |
196.72 x 141.8 x 34 mm |
| Weight |
820g |
| LCD Monitor (W x D) |
26.77 x 16 mm, 1.1-inch |
| Temperature Sensor |
Temperature Detector -20 ~ 120 degrees C
Humidity Detector 0 ~ 100 % RH |
| ESD Protection |
±8KV air gap discharge
±4KV contact discharge |
| Surge Immunity |
2KV |
| Enclosure |
IP30 metal case |
| Installation |
Desktop/Wall-mount ear |
| LED Indicators |
Front Panel:
System:
Green: PWR ,BAT.out,BAT.in
Per 10/100/1000T RJ45 Port: (Port 1~Port 3):
Green: LNK/ACT (10/100/1000Mbps)
Amer: PoE-in-use
Per 10/100/1000T RJ45 Port: (Port 4~Port 5):
Green: LNK/ACT (10/100/1000Mbps)
Amer: 1000Mbps
Green: PoE-in-use
Per SFP Port: (Port 6):
Green: LNK/ACT (100/1000Mbps)
Rear Panel:
System:
Green: SYS, PWR, PV in
Battery:
Green: BAT.out, BAT.in, BAT.V in |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
12Gbps/non-blocking |
| Switch Throughput |
8.92Mpps@64 bytes |
| MAC Address Table |
2K entries |
| Shared Data Buffer |
2.5Mb |
| Jumbo Frame |
10K bytes |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per port 48V DC, max. 35 watts |
| Power Pin Assignment |
Port 1: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-)
Ports 2~5: 1/2 (+), 3/6 (-) |
| PoE Power Budget |
Maximum 120W (depending on power input) |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet |
| Environment |
| Operating |
Temperature: -20 ~ 65 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -40 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing) |
