| Hardware Specifications |
| Optic Interfaces |

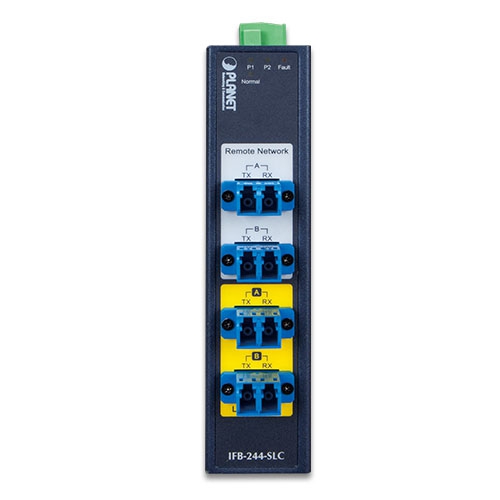

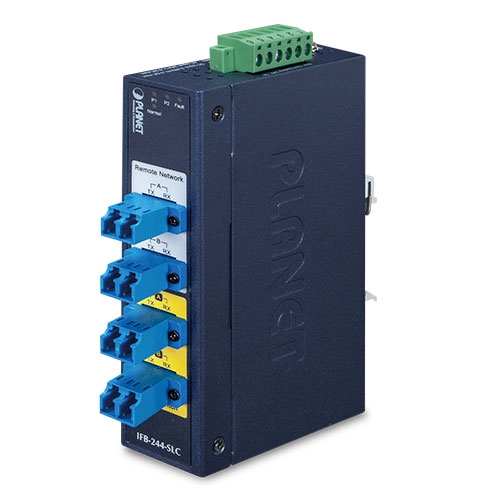

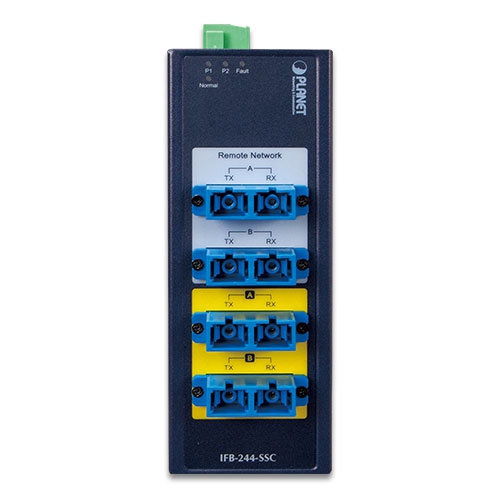

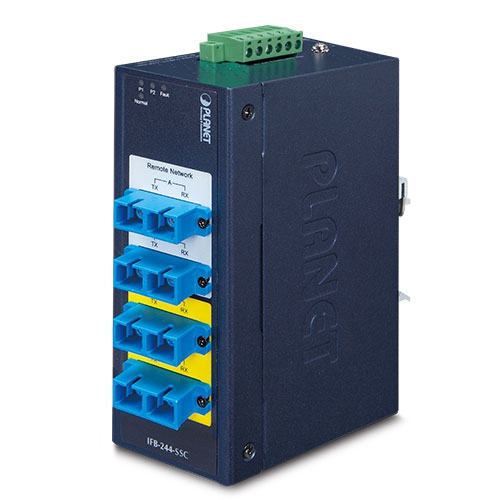

IFB-244-SLC: 4 x Duplex LC
IFB-244-SSC: 4 x Duplex SC

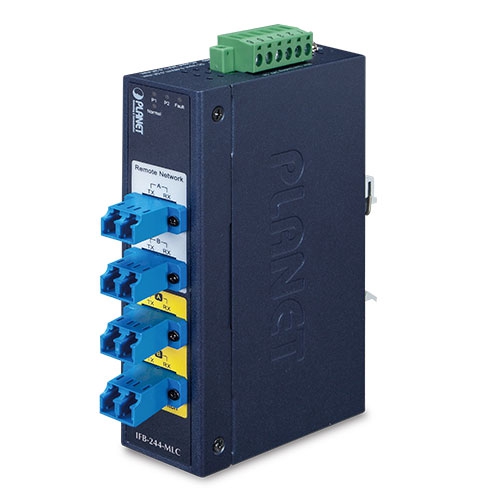

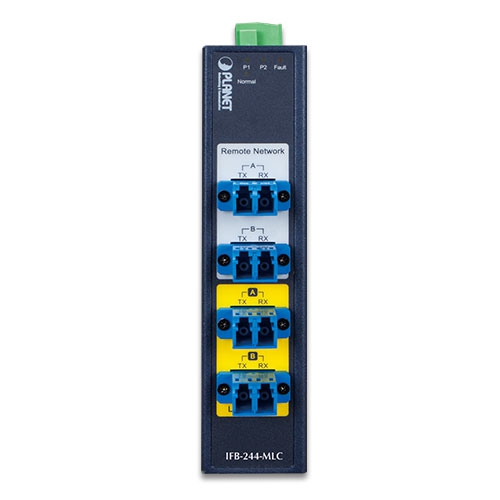

IFB-244-MLC: 4 x Duplex LC

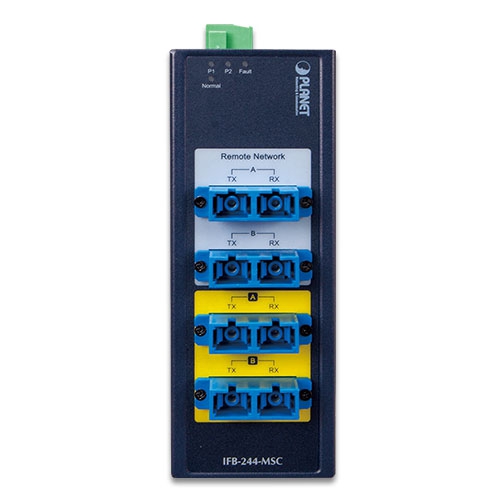

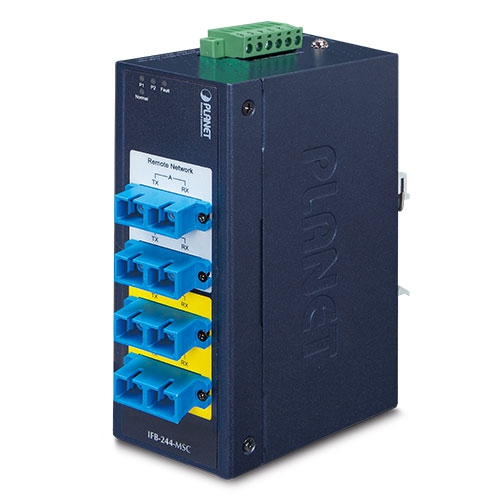

IFB-244-MSC: 4 x Duplex SC |
| Optic Mode |
IFB-244-SLC/SSC: Single Mode
IFB-244-MLC/MSC: Multimode |
| Optic Wavelength |
IFB-244-SLC/SSC: 1310nm & 1550nm
IFB-244-MLC/MSC: 850nm & 1300nm |
| Operating Wavelength |
IFB-244-SLC/SSC: 1260~1620nm
IFB-244-MLC/MSC: 850nm±40 / 1300nm±40 |
| Bypass Return Loss |
IFB-244-SLC/SSC: >50dB
IFB-244-MLC/MSC: >35dB |
| Bypass Insertion Loss |
Typical: 1.0dB
Max: 1.5dB |
| Bypass Switching Time |
< 8ms |
| Speed |
100Gbps/40Gbps/10Gbps/1Gbps/100Mbps |
| ESD Protection |
Air 8kV, Contact 6kV |
| Enclosure |
IP30 metal case |
| Installation |
DIN-rail kit and wall-mount kit |
| Connector |

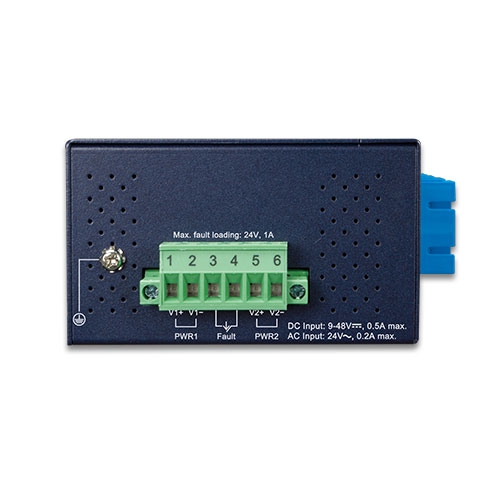

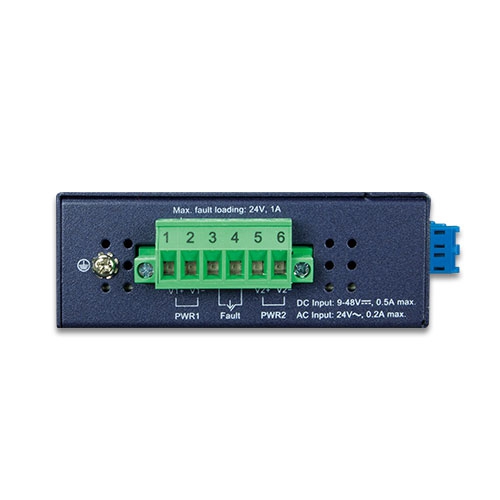

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure.
Alarm relay current carry ability:1A@24V DC |
| LED Indicator |
System:
Power 1 (Green), Power 2 (Green), Fault (Red)
Normal operation (Green) |
| Dimensions (W x D x H) |
IFB-244-SLC/MLC: 32 x 87.8 x 135 mm
IFB-244-SSC/MSC: 50 x 87.8 x 135 mm |
| Weight |
IFB-244-SLC: 390g
IFB-244-SSC: 485g
IFB-244-MLC: 390g
IFB-244-MSC: 485g |
| Power Requirements |
Dual 9-48V DC with reverse polarity protection
24V AC |
| Power Consumption |
0.54 watts/1.84BTU |
| Cabling |
IFB-244-SLC/SSC: 9/125µm
IFB-244-MLC/MSC: 50/125µm |
| Standards Conformance |
| Regulatory Compliance |
FCC Part 15 Class A
CE |
| Stability Testing |
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Environment |
| Operating Temperature |
-40~75 degrees C |
| Storage Temperature |
-40~85 degrees C |
| Humidity |
5~95% (non-condensing) |
