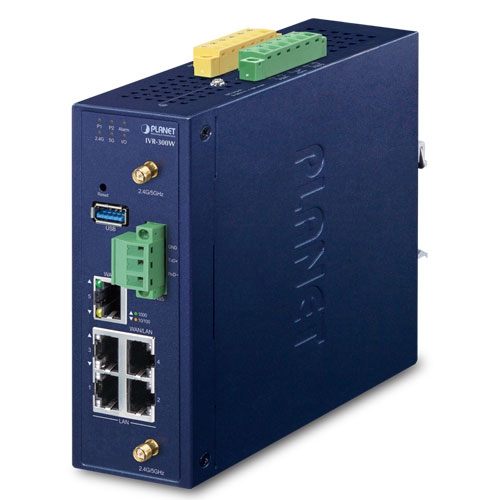

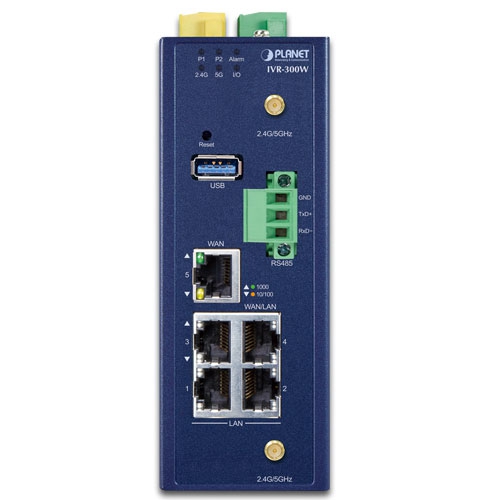

| Hardware Specifications |
| Copper Ports |
5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5) |
| Serial Interface |
1 x 3-pin terminal block for RS485 |
| USB Port |
1 USB 3.0 port |
| DI & DO Interfaces |
2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO):
Open collector to 24V DC, 100mA max. |
| Connector |

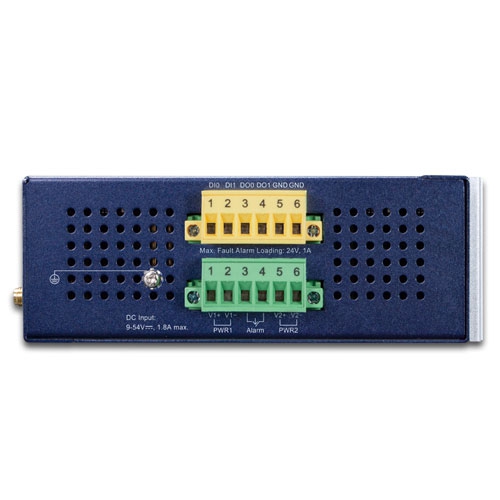

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Enclosure |
IP30 metal case |
| Installation |
DIN-rail, desktop, wall-mounting |
| LED Indicators |
System:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)
Ethernet Interfaces (Ports 1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Wi-Fi:
2.4G (Green)
5G (Green) |
| Dimensions (W x D x H) |
50 x 135 x 135 mm |
| Weight |
773g |
| Power Requirements – DC |
9~54V DC, 1.8A |
| Power Consumption |
Max. 3.8 watts/12.95 BTU (No Loading)
Max.15.6 watts/53.19 BTU (Full loading) |
| Wireless |
| Standard |
IEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11g/b/n/ax 2.4GHz |
| Band Mode |
2.4G & 5G concurrent mode |
| Antenna |
5 dBi external antennas with SMA connectors for Wi-Fi |
| Frequency Range |
2.4GHz
America FCC: 2.412~2.462GHz
Europe ETSI: 2.412GHz~2.472GHz
5GHz
5.15GHz ~5.875GHz |
| Operating Channels |
2.4GHz
America FCC: 1~11
Europe ETSI: 1~13
5GHz
America FCC:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140
Europe ETSI:
Non-DFS: 36, 40, 44, 48
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
5GHz channel list may vary in different countries according to their regulations. |
| Channel Width |
20MHz, 40MHz, 80MHz |
| Data Transmission Rates |
Transmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
*The estimated transmission distance is based on the theory. The actual distance may vary in different environments. |
| Transmission Power |
11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11 |
| Encryption Security |
WEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES) / WPA3-PSK (TKIP/AES)
802.1x Authenticator |
| Wireless Advanced |
Wi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering |
| Advanced Functions |
| VPN |
IPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN) |
| VPN Tunnels |
Max. 60 |
| VPN Throughput |
Max. 108Mbps |
| Encryption Methods |
DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods |
MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management |
| Basic Management Interfaces |
Web browser
SNMP v1, v2c
PLANET Smart Discovery utility and NMS controller supported |
| Secure Management Interfaces |
TLSv1.2, SNMP v3 |
| System Log |
System Event Log |
| Others |
Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics |
| Standards Conformance |
| Regulatory Compliance |
CE, FCC |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
