| Hardware Specifications |

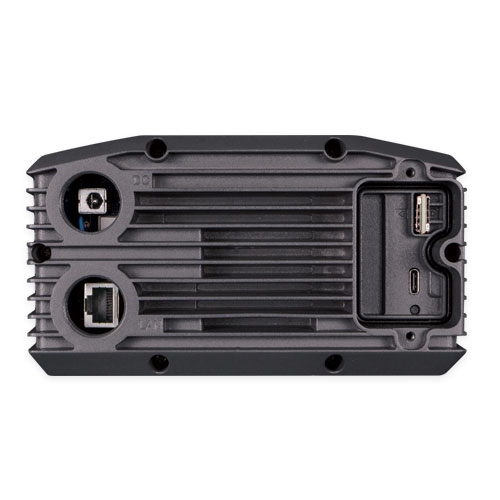

| Ethernet |
1 10/100/1000BASE-T RJ45 Ethernet LAN port |
| SIM Interface |
2 Nano SIM card slots |
| Cellular Antenna |
3 dBi internal antennas |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Enclosure |
IP68 rating |

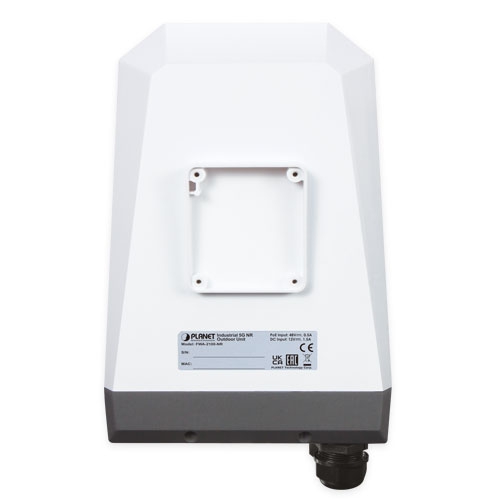

| Installation |
Wall hanging / pole mounting |
| LED Indicators |
System:
PWR (Blue)
Ethernet LNK/ACK (Blue)
Wi-Fi (Blue)
4G/5G
5G (Blue)
4G LTE/ 3G (Amber)
Cellular Signal
Excellent/Good (Blue)
Normal/bad (Amber) |
| Dimensions (W x D x H) |
150 x 100 x 240 mm |
| Weight |
1020 g |
| Power Requirements – DC |
48V DC IN, 0.5A, IEEE 802.3at PoE+ or
12V DC IN, 1.5A |
| Power Consumption |
18 W / 61.42 BTU |
| Multi Band Support |
| 5G NR Module |
EAU:
Sub-6: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78/n79
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-FDD: B38/B40/B41/B42/B43
WCDMA: B1/B5/B8
NA:
Sub-6: n2/n5/n7/n12/n14/n25/n30/n48/n41/n70/n66/n71/n77/n78
LTE FDD: B2/B4/B5/B7/B12/B13/B29/B30/B66/B71
LTE TDD: B41/B46(LAA)/B48 |
| GNSS |
GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS |
| Data Transmission Throughput |
2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Wireless |
| Standard |
IEEE 802.11g/b/n 2.4GHz |
| Band Mode |
2.4G Only |
| Frequency Range |
2.4GHz
America FCC: 2.412~2.462GHz
Europe ETSI: 2.412GHz~2.472GHz |
| Operating Channels |
2.4GHz
America FCC: 1~11
Europe ETSI: 1~13 |
| Channel Width |
20MHz |
| Data Transmission Rates |
Transmit: 72 Mbps*
Receive: 72 Mbps*
*The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Transmission Power |
11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 |
| Encryption Security |
WEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES)
WPA3 presonal
802.1x Authenticator |
| Wireless Advanced |
Wi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering |
| Wireless AP Management |
| Maximum Managed APs |
128 |
| Maximum AP Groups |
10 |
| Maximum APs per AP Group |
128 |
| Wireless Encryption/Security |
WEP encryption security
WPA Personal / Enterprise (TKIP / AES)
WPA2 Personal / Enterprise (TKIP / AES)
WPA3 Personal
Enterprise Class 802.1x |
| AP Auto Discovery |
Supports AP auto discovery |
| SSID/RF Profile |
Allows multiple wireless profiles creation and maintenance |

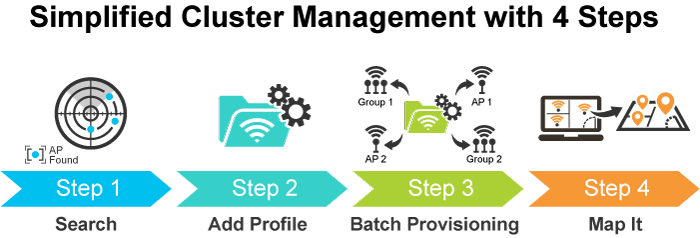

| Cluster Management |
Allows AP grouping for bulk provisioning and batch upgrading |
| Bulk AP Provisioning |
Supports bulk AP provisioning with user-defined profiles |
| Bulk AP Firmware Upgrade |
Supports bulk AP firmware upgrade |
| Coverage Heat Map |
Enables real signal coverage of managed AP reflecting on the uploaded zone maps |
| Status Monitoring |
Real-time traffic statistics reporting of AP and activated clients |
| Graphical Statistics |
Real-time and historical visibility of traffic flow [2] |
| Profile Backup/Restoration |
Provides SSID, radio profile backup/restoration |
| SSIDs-to-VLANs Mapping |
Allows to configure SSIDs-to-VLANs mapping in supported APs |
| Supported Access Point Models[1] |
| Indoor AP |
IAP-1800AX
IAP-2400AX
WDAP-C3000AX [2]
WDAP-C7210E(V2)
WDAP-C1800AX(V2)
WDAP-W1800AXU
WDAP-C7210E
WDAP-W1200E
WDAP-C7200E
WDAP-W750E
WNAP-C3220E
WNAP-W2200UE |
| Outdoor AP |
WDAP-3000AX [2]
WDAP-1800AX
WDAP-850AC
WDAP-802AC
WBS-512AC
WBS-502N
WBS-202N
WAP-552N
WAP-252N
WDAP-702AC
WBS-502AC
WBS-500N
WBS-200N
WAP-500N
WAP-200N |
| Remarks |
[1] The supported AP models may be changed after a firmware upgrade.
[2] The AP model will be support after a firmware update in the future. |
| Advanced Functions |
| VPN |
IPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN) |
| VPN Tunnels |
Max. 30 |
| VPN Throughput |
Max. 50 Mbps |
| Encryption Methods |
DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods |
MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management |
| Basic Management Interfaces |
Web browser
SNMP v1, v2c
PLANET Smart Discovery utility and NMS controller supported |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMP v3 |
| System Log |
System Event Log |
| Others |
Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics |
| Standards Conformance |
| Regulatory Compliance |
CE |
| Environment |
| Operating |
Temperature: -20 ~ 60 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
