| Hardware Specifications |

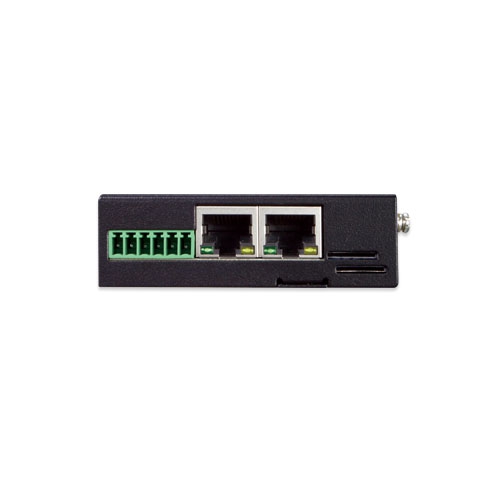

| Ethernet |
2 10/100/1000BASE-T RJ45 Ethernet ports including
1 LAN port
1 WAN/LAN port |
| Serial Interface |
1 RS232 and 1 RS485 |

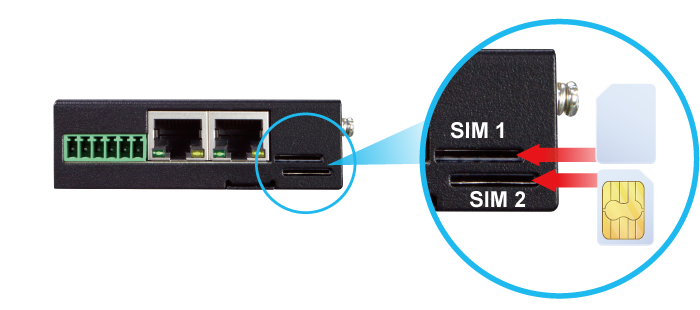

| SIM Interface |
2 micro SIM card slots |

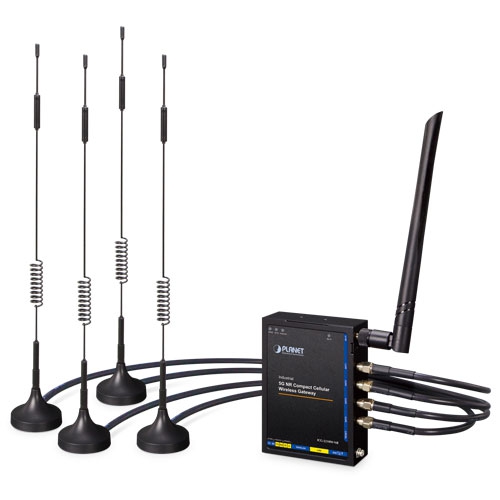

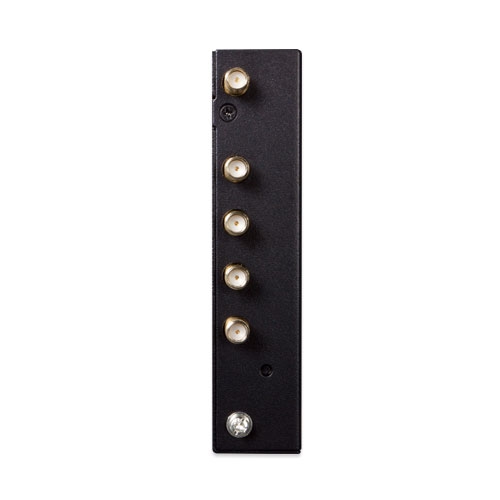

| Cellular Antenna |
5 dBi external antennas with SMA connectors for 5G-NR |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Enclosure |
IP30 metal case |
| Installation |
DIN rail, wall-mounting |

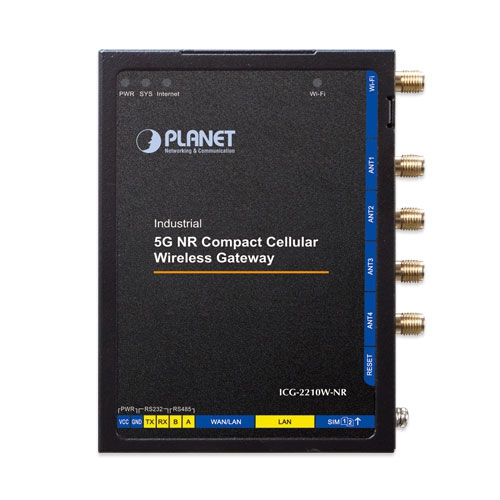

| LED Indicators |
System:
PWR (Green)
SYS (Green)
Internet LNK/ACK(Green)
Wi-Fi (Green) |
| Dimensions (W x D x H) |
76 x 23.5 x 106 mm |
| Weight |
285 g |
| Power Requirements – DC |
9~36V DC DC IN |
| Power Consumption |
5.72 W / 19.51 BTU |
| Multi Band Support |
| 5G NR Module |
EAU:
Sub-6: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78/n79
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-FDD: B38/B40/B41/B42/B43
WCDMA: B1/B5/B8
NA:
Sub-6: n2/n5/n7/n12/n14/n25/n30/n48/n41/n70/n66/n71/n77/n78
LTE FDD: B2/B4/B5/B7/B12/B13/B29/B30/B66/B71
LTE TDD: B41/B46(LAA)/B48 |
| Data Transmission Throughput |
2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Wireless |
| Standard |
IEEE 802.11a/n/ac 5GHz
IEEE 802.11g/b/n 2.4GHz |
| Band Mode |
2.4G & 5G concurrent mode |
| Frequency Range |
2.4GHz
America FCC: 2.412~2.462GHz
Europe ETSI: 2.412GHz~2.472GHz
5GHz
5.15GHz ~5.875GHz |
| Operating Channels |
2.4GHz
America FCC: 1~11
Europe ETSI: 1~13
5GHz
America FCC:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
Europe ETSI:
Non-DFS: 36, 40, 44, 48
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
5GHz channel list may vary in different countries according to their regulations. |
| Channel Width |
20MHz, 40MHz |
| Data Transmission Rates |
Transmit: 150 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz
Receive: 150 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz
*The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Transmission Power |
11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9 |
| Encryption Security |
WEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES)
802.1x Authenticator |
| Wireless Advanced |
Wi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering |
| Advanced Functions |

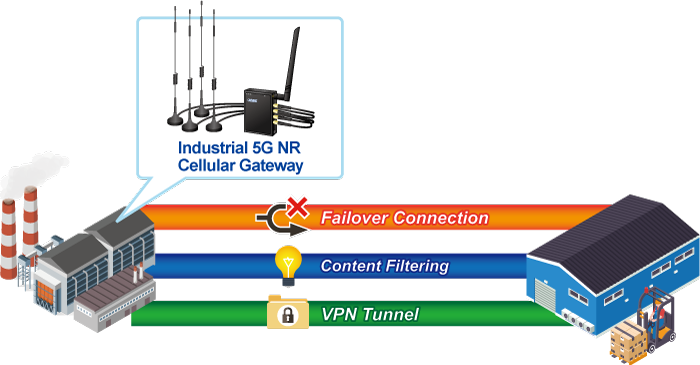

| VPN |
IPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN) |
| VPN Tunnels |
Max. 30 |
| VPN Throughput |
Max. 50Mbps |
| Encryption Methods |
DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods |
MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management |
| Basic Management Interfaces |
Web browser
SNMP v1, v2c
PLANET Smart Discovery utility |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMP v3 |
| System Log |
System Event Log |
| Others |
Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics |
| Standards Conformance |
| Regulatory Compliance |
CE |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
