| Hardware Specifications |
| Ethernet |
4 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4) |
| Fiber |
1 1000BASE-X SFP slot
1 LAN/WAN port (Port 5) |
| Serial Interface |
RJ45 serial port |
| SIM Interface |
2 SIM card slots with mini SIM card tray |

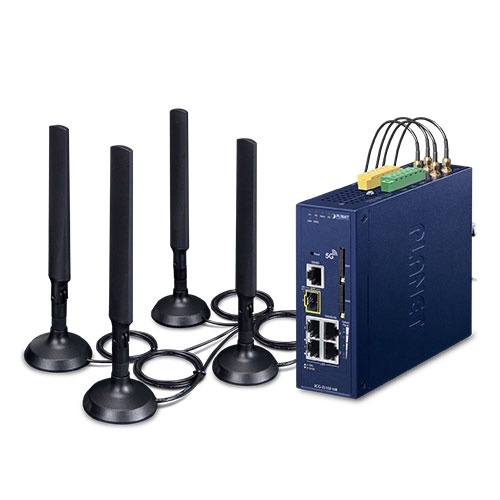

| Cellular Antenna |
5 dBi external antennas with SMA connectors for 5G-NR |
| DI & DO Interfaces |
2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO):
Open collector to 24V DC, 100mA max. |

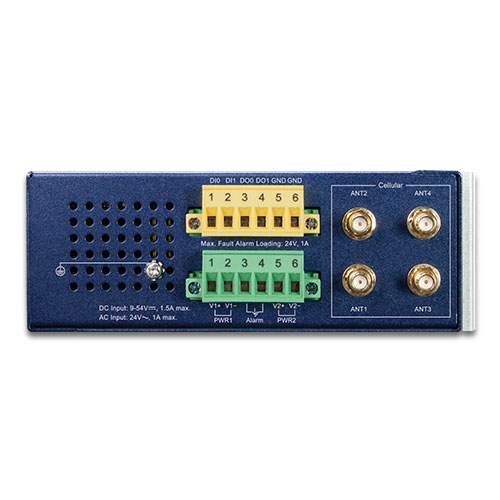

| Connector |
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Reset Button |
< 5 sec: System reboot
> 5 sec: Factory default |
| Enclosure |
IP30 metal case |
| Installation |
DIN rail, desktop, wall-mounting |

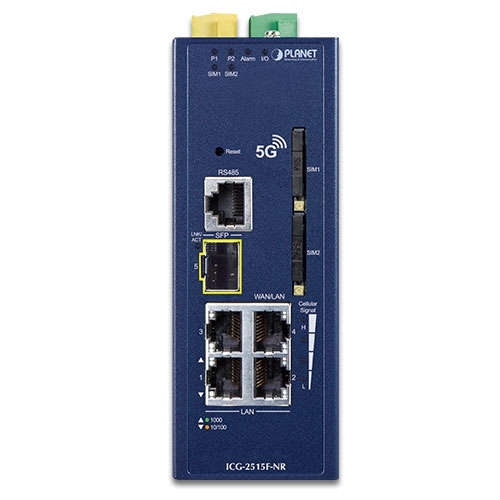

| LED Indicators |
System:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)
Ethernet Interfaces (Ports 1-4):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Fiber Interfaces (Port 5):
1000 LNK/ACT (Green)
Cellular SIM:
SIM1 and SIM2 (Green)
Cellular signal:
4 levels (Green) |
| Dimensions (W x D x H) |
50 x 135 x 135 mm |
| Weight |
0.8 kg |
| Power Requirements – DC |
9~54V DC, 1.5A |
| Power Consumption |
7.02W/ 23.94 BTU |
| Multi Band Supports |
| 5G NR |
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/
B32/B46/B66/B71 |
| LTE TDD |
B34/B38/B39/B40/B41/B42/B43/B48 |
| WCDMA |
B1/B2/B3/B4/B5/B8 |
| GNSS |
GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS |
| Data Transmission Throughput |
2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Advanced Functions |
| VPN |
IPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN) |
| VPN Tunnels |
Max. 60 |
| VPN Throughput |
Max. 60Mbps |
| Encryption Methods |
DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods |
MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management |
| Basic Management Interfaces |
Web browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMP v3 |
| System Log |
System Event Log |
| Others |
Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics |
| Standards Conformance |
| Regulatory Compliance |
CE, FCC |
| Environment |
| Operating |
Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing) |
