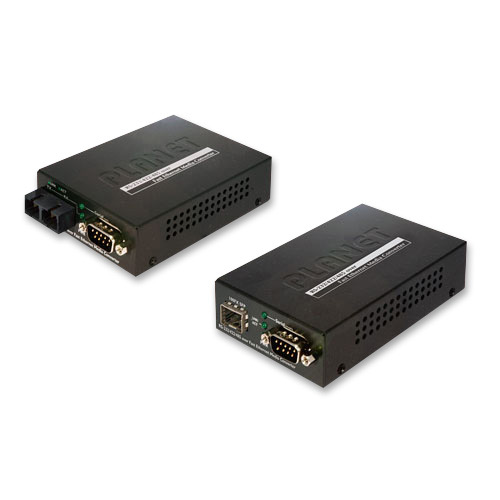

| Serial Port |
| Interface |
RS-232 / RS-422 / RS-485 |
| Connector |
3-in-1 DB9 |
| Baud rate (Data Rate) |
300bps to 921600bps |
| Character Bits |
5,6,7,8 |
| Stop Bit |
1, 1.5/2 |
| Parity Type |
Odd, Even, None, Space, Mark |
| Flow Control |
H/W, None |
| Signals |
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-
RS-485(2-wire): Data+, Data-
RS-485(4-wire): Tx+, Tx-, Rx+, Rx-
|
| Fast Ethernet Port |
| Standard |
100Base-FX |
| Connector |
ST Interface : ICS-101
SC Interface : ICS-102 / ICS-102S15
LC Interface : ICS-105A |
| Mode |
ICS-101: Multi-Mode
ICS-102: Multi-Mode
ICS-102S15: Single Mode
ICS-105A : Vary on SFP Module |
| Distance |
ICS-101: 2km
ICS-102: 2km
ICS-102S15: 15km
ICS-105A : Vary on SFP Module |
| Optical Wavelength |
ICS-101: 1300nm
ICS-102: 1300nm
ICS-102S15: 1310nm
ICS-105A : Vary on SFP Module |
| Cable |
ICS-102: 50/125?m or 62.5/125?m multi-mode fiber cable
ICS-102S15: 9/125?m single-mode cable
ICS-105A : Vary on SFP Module |
| Protection |
Built-in 1.5KV magnetic isolation |
| Hardware |
| LED Indicators |
System: Power
Fiber Port: Link / Active
Serial Port: Serial port mode, RS-232, RS-422 or RS-485
|
| Management |
Web Management
PLANET Smart Discovery Utility
|
| Virtual COM Utility Platform Supports |
Windows Base Only:
Windows XP
Windows Server 2003
Windows 7
Windows Server 2008
Windows 8 (Must install latest version of WinPcap)
Windows Server 2012 (Must install latest version of WinPcap)
|
| Operation Mode |

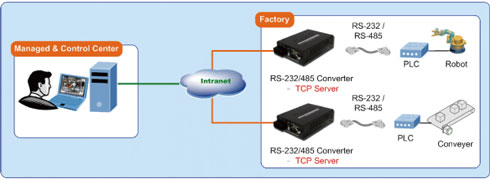

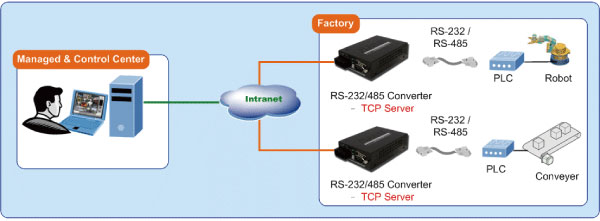

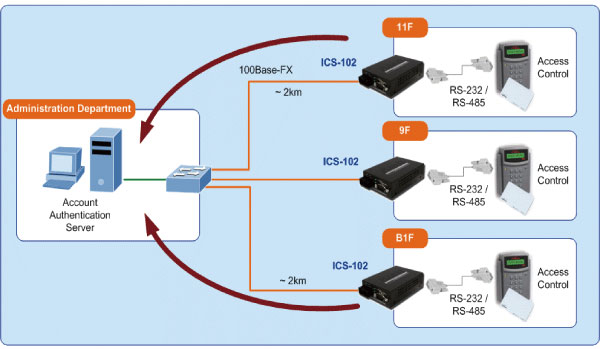

TCP Server
TCP Client
UDP Client
Virtual COM
Telnet Sever

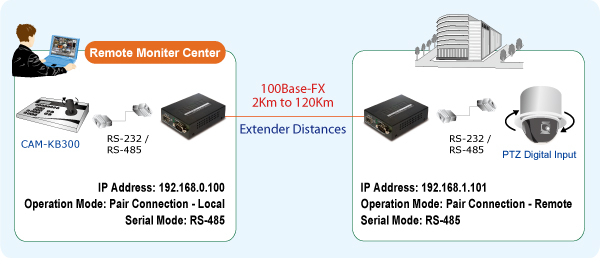

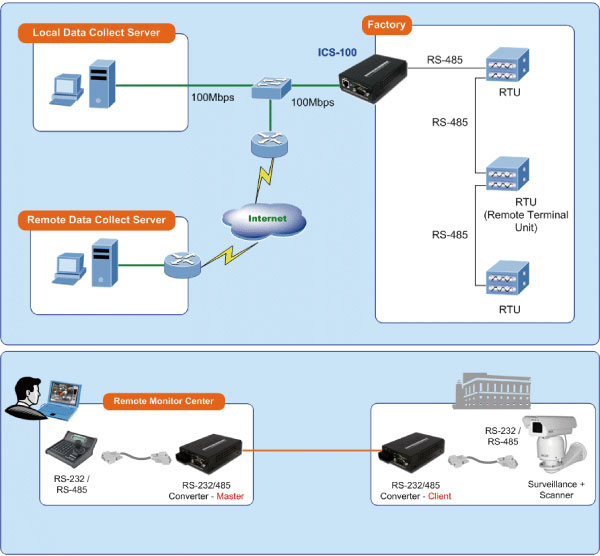

Pair Connection-Local(Master)
Pair Connection-Pemote(Slave) |
| Dimensions (W x D x H) |
97 x 70 x 26 mm |
| Weight |
200g |
| Power Supply |
External Power Adaptor 5V DC / 2A max. |
| Power Consumption |
5.5 watts (max) |
| Mechanical |
Metal |
| Environment |
Operating Temperature: 0~50 degrees C
Storage Temperature: -10~70 degrees C
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
|
| Emissions |
FCC Class A, CE Certification |
| Standards |
IEEE 802.3 10Base-T,
IEEE 802.3u 100Base-FX
EIA / TIA RS-232 / 422 / 485
|
| Regulatory Approval |
RoHS |
| Compatible Media Converter Chassis |
MC-700 / 1500 / 1500R |
| Note |
Reset Button on the rear panel for reset to factory default |
