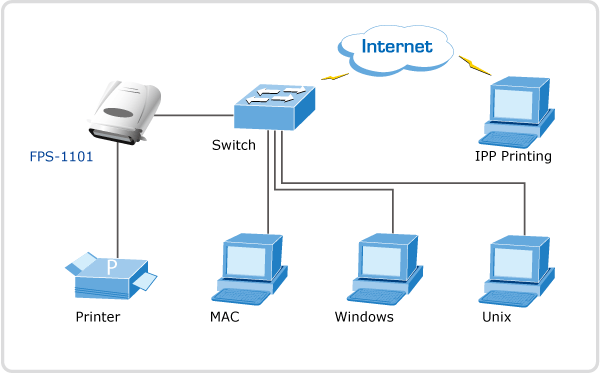

Equipped with the parallel printing interfaces, the FPS-1101 makes your printer available to be shared in the most popular network environment.
With the embedded web server, the FPS-1101 is configurable through your network PC's web browser. Moreover, PLANET also provides a utility of management for Microsoft Windows systems. With various network printing methods including Windows Peer-to-Peer printing, NetWare and Windows server based queues printing, LPR printing, Internet Printing Protocol (IPP) and AppleTalk for Macintosh, the FPS-1101 can be applied to any network easily.
With auto-MDI/MDI-X function, users do not need to be concerned about the cable type while they connect to different LAN devices. It is capable to detect the signal and to change its transfer/receive order on the cable automatically. Moreover, the FPS-1101 LAN port can auto-sense and adjust the current network speed, thus eliminating the requirements for manually switching.
| | |
All users who work with different OSs, such as Windows, Linux, Mac OS and Novell, can use the printer via the FPS-1101 at the same time.
Secondly, while the FPS-1101 is assigned with a legal IP address, local Internet users can use the attached printer through Internet with IPP printing functions.
| | | | | |
Support for most popular NOS
?Supports Windows 98/2000/Me/NT/XP/Server 2003, Linux, Unix, Novell and Mac OS
Auto-Sensing
?Supports 10/100Mbps Auto-Nway, automatically negotiates optimal mode, 10/20Mbps, 100/200Mbps Ethernet 802.2, Ethernet 802.3, SNAP auto-detect
Auto-MDI/MDI-X
?It automatically detects the connected cable type while it connects to different LAN devices. It is capable of detecting the signal and to change its transfer/receive order on the cable automatically
Compatible with popular network utility
?Unix, TCP/IP: LPD, TFTP
?Windows: LPR, PTP driver, IPP, SMB (NetBEUI)
?Apple: Ether Talk Chooser
?Novell: IPX/SPX, TCP/IP (5.x and later)
Easy Management
?Intuitive utility of management supports Windows 98/2000//Me/NT/XP and Server 2003
?Web-based Management
?HP Web JetAdmin
| | |
| 产品 |
| 媒体接口 |
1-Port RJ-45 UTP
|
| 标准 |
IEEE 802.3, 10Base-T; IEEE 802.3u, 100Base-TX
|
| 布线 |
Category 5/5e or above, 2-pair
|
| 打印机端口 |
1 x 36 Pin
|
| 协议 |
TCP/IP, IPX/SPX, AppleTalk, Bi-Directional
|
| 支持NOS |
Windows 95/98/Me/2000/NT/XP/Server 2003, Novell, Linux, Unix, and MAC OS
|
| 打印方式 |
PTP (Peer-to-Peer), Windows LPR printing, SMB, IPP (Internet Printing Protocol), LaserWriter Chooser (AppleTalk)
|
| 管理工具 |
PS-Admin (Windows Application), Web-based management (HTTP), HP Web JetAdmin
|
尺寸
(W x D x H) |
52 x 59.5 x 22 mm
|
| 重量 |
52g
|
| 电源 |
3.3V DC, 2A
|
| 认证 |
FCC CE
|
技术参数
| 日期 |
版本 |
描述 |
下载 |
| 2007-11-19 |
1.0 |
FPS-1101 |
 |
安装版本
| 日期 |
版本 |
描述 |
下载 |
| 2013-04-08 |
8.03.30A 0023 |
1. Added MAC Protect Function
2. Compatible with WIN7/8 |
 |
| 2009-06-25 |
8.03.30A-0013 |
Fixed E-Mail Alert function caused TCP/IP connects error and unit crash. |
|
快速安装指南
| 日期 |
版本 |
描述 |
下载 |
| 2008-04-16 |
|
Quick Install Guide |
|
用户手册
| 日期 |
版本 |
描述 |
下载 |
| 2007-12-28 |
|
User's Manual |
|
实用工具
| 日期 |
版本 |
描述 |
下载 |
| 2006-12-19 |
0.95.1.14 |
PSWizard MFC Application |
|
产品证书
| 日期 |
版本 |
描述 |
下载 |
| 2008-01-28 |
|
EC Declaration |
| |
|
