VC-234

4-Port Ethernet over VDSL2 Bridge (Profile 30a)

概述
应用场景
功能特性
产品规格
下载
相关产品

100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution

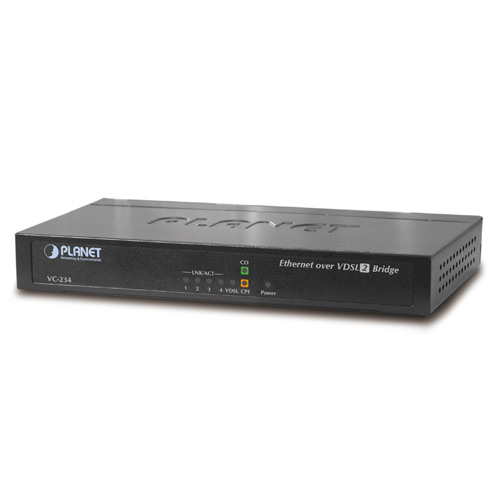

PLANET VC-234 is an Ethernet-over-VDSL2 Bridge with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-234 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 20/4Mbps for 1.4km long range connections.

Implementing with Existing Telephone Copper Wires
The VC-234 is also a Long Reach Ethernet (LRE) Bridge providing four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-234 has built-in POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-234 into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-234 is ideal to be used as an Ethernet extender to an existing Ethernet network.

Delivering High-Demand Service Connectivity for ISP / Triple Play Devices

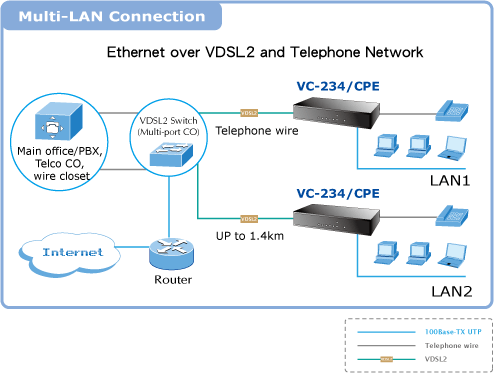

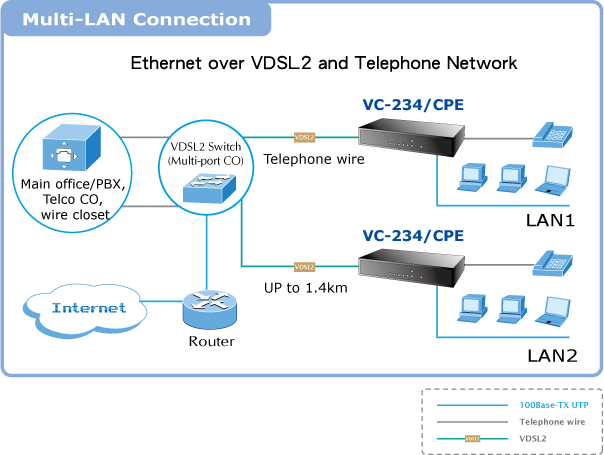

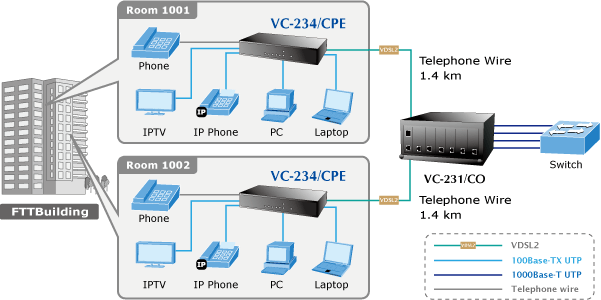

The VC-234 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-234 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.

Easy & Flexible Installation

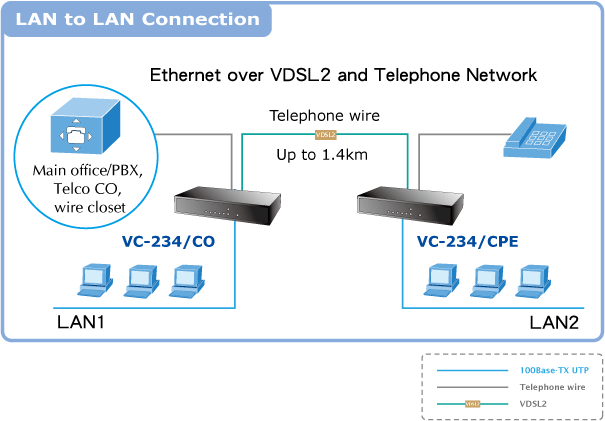

The Ethernet-over-VDSL2 Bridge comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-234 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-234 and a CO mode VC-234 must be setup as one pair of converters to perform the connection.

Providing Superior Upstream and Downstream Transmission Performance
The VC-234 also defines symmetric band plan for the transmission of upstream and downstream signals; the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-234 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-234 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.

High Performance VDSL2 Solution

Hardware Specifications
Ports	10/100Base-TX? 4 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL?1 RJ-11, female Phone Jack PHONE?1 RJ-11, Built-in splitters for POTS connection
DIP Switch	4 position DIP switch
Functionality	� CO / CPE mode select � Selectable fast and interleaved mode � Selectable target 17a / 30a profiles � Selectable target SNR mode
Encoding	� VDSL-DMT ?- ITU-T G.993.1 VDSL ?- ITU-T G.997.1 ?- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
LED Indicators	� One Power � 4 for RJ-11/VDSL2 � 1 for per RJ-45 10/100Base-TX port
Cabling	Ethernet ??10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) ??100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) VDSL ??Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Performance* (Downstream / Upstream)	� 17a profile ?300m -> 99/70Mbps ?400m -> 99/60Mbps ?600m -> 90/45Mbps ?800m -> 50/28Mbps ?1000m -> 40/12Mbps ?1200m -> 20/7Mbps ?1400m -> 20/4Mbps � 30a profile ?300m -> 100/100Mbps ?400m -> 90/90Mbps ?600m -> 69/55Mbps ?800m -> 48/9Mbps
Power Requirements	5V DC, 2A
Power Consumption	7.2 Watts/ 24 BTU
Dimensions (W x D x H)	155 x 86 x 26 mm
Weight	368g
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 10 ~ 90% (non-condensing)
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Switch fabric	0.8Gbps
Throughput (packet per second)	0.59Mpps
Network cables	10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T ?- G.993.1 (VDSL) ?- G.997.1 ?- G.993.2 VDSL2 (Profile 17a/30a)
* The actual data rate will vary on the quality of the copper wire and environment factors.

订购信息
VC-234	Ethernet over VDSL2 Converter (1 x RJ45, 1 x VDSL2/RJ11,17a/30a)
