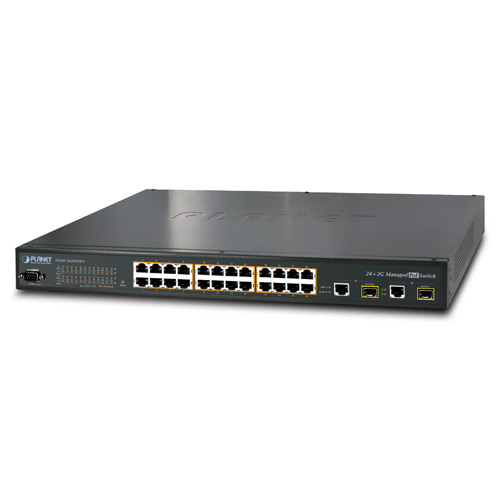

Cost-effective Managed PoE Switch for SMB Networking
PLANET FGSW-2620VMP4 Switch features IEEE 802.3af Power over Ethernet (PoE) function which optimizes the installation and safe power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones and IP surveillance cameras. IEEE 802.3af PoE capabilities reduce installation costs of add-in network productivity devices. It frees the network device deployment from restrictions of power outlet locations. With PoE features, power and data switching are integrated into one unit and delivered over a single cable, which eliminates costs for additional AC wiring and reduces time for installation. It provides a compact, affordable, safe and reliable power solution for small to medium enterprises.
For catering to the need of easy management and centralized SNMP application to monitor the status of the switch and traffic per port, the cost-effective Managed PoE Switch, FGSW-2620VMP4, offers the following key features:
380W PoE Power Budget IGMP Snooping Access Control List WEB / SSL / Telnet | 802.1w Rapid Spanning Tree 802.1X Authentication / RADIUS 802.3af Power over Ethernet UL and cUL certificate | TOS/DSCP QoS 802.1Q / Q-in-Q VLAN SNMP and SNMP Trap |
Full PoE Power Budget, Easy Cabling Installation
The FGSW-2620VMP4 PoE Managed Switch offers totally 380-watt PoE power budget. The PoE in-line power following IEEE 802.3af standard makes the FGSW-2620VMP4 able to power on 24 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire. With data and power over Ethernet from one unit, the FGSW-2620VMP4 will reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. An Ethernet wire carries both data and power bringing the benefits of lower installation costs, fewer installation effort and less need for electricians or extension cords. And the key feature of the solution is energy saving. With more efficient switching power supply, the efficiency of the FGSW-2620VMP4 would be much better than four linear power adapters in a long run.
Centralized Power Distribution with Remote Management
The remote PoE management functions of the FGSW-2620VMP4 make it easy to survey and control the PoE power provision to the devices and ensure interoperability with equipment from other vendors. Via Web interface, SNMP trap and SNMP monitoring, the network manager can get the PoE device status and alert immediately. The over-temperature protection of the PoE Switch offers a safe and stable PoE operating by limiting the output power according to detected temperature in order to avoid destructive breakdown due to unexpected overheating.
High Performance Wire-Speed Switching
PLANET FGSW-2620VMP4 offers 24 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP combo ports. The two Gigabit TP/SFP combo ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. The FGSW-2620VMP4 boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 8.8Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Efficient Management
To meet the growing network, PLANET FGSW-2620VMP4 provides console and telnet command line interface, advanced WEB and SNMP management interface. With its built-in Web-based management, the FGSW-2620VMP4 offers an easy-to-use, platform-independent management and configuration facility. The FGSW-2620VMP4 supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. For text-based management, the FGSW-2620VMP4 can also be accessed via Telnet and the console port. Moreover, the FGSW-2620VMP4 offers secure remote management by supporting Secure Socket Layer (SSL) connection which encrypts the packet content at each session.
Robust Layer 2 Features
For efficient management, via Web interface the FGSW-2620VMP4 can be programmed for basic switch management functions such as port speed configuration, Port Link Aggregation, IEEE 802.1Q VLAN and Q-in-Q VLAN, Port Mirroring, Rapid Spanning Tree and ACL security. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and Bandwidth Control to enhance bandwidth utilization.
Advanced Security and Quality of Service
The FGSW-2620VMP4 offers comprehensive Layer 3 and Layer 4 Access Control List (ACL) to filter out unwanted traffic. Its protection mechanisms comprises RADIUS and Port-based 802.1x user and device authentication. Moreover, the Switch provides MAC filter, Static MAC, IP/MAC binding and Port Security for enforcing security policies to the edge. The administrators can now construct highly secured corporate networks with considerably less time and effort than before.
To ensure IP voice and video communication get the quality of service needed, the FGSW-2620VMP4 classifies traffic and prioritizes Layer 2 802.1p or Layer 3 IP DSCP traffic into four hardware queues that support strict or Weighted Round Robin (WRR) queuing algorithms. It also empowers the SMB IP office to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission. | |

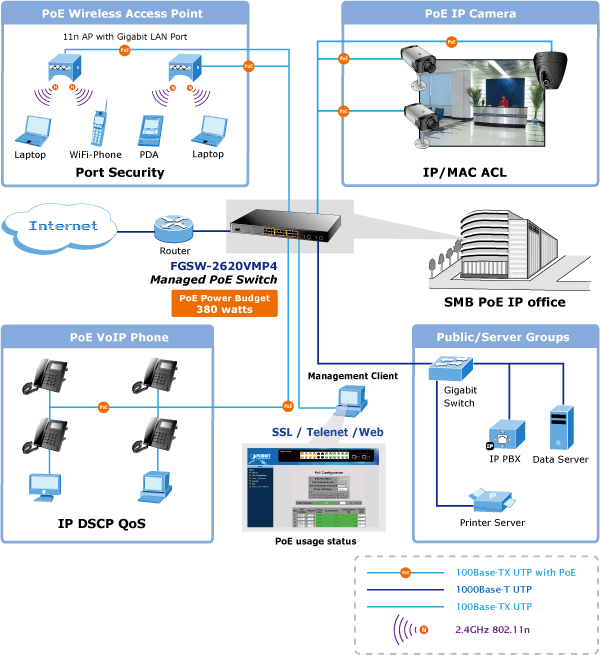

PoE IP Telephony Office
With the business office expansion, the additional telephones required can be installed at less cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. PLANET FGSW-2620VMP4 Managed PoE Switch helps SMBs to create an integrated data, voice, and powered network. PLANET IEEE 802.3af compliant IP phones can be installed without the need of an additional power cables because the power can be provided from the standard Ethernet cable connecting to the FGSW-2620VMP4. PoE IP phones and analog Telephony adapter work perfectly with the FGSW-2620VMP4 which injects power through the Ethernet cables and the IP DSCP priority of QoS feature improves the voice communicating. With the FGSW-2620VMP4, IP Telephony deployment becomes more reliable and cost effective which helps SMBs save tremendous cost when upgrading from the traditional telephony to IP Telephony communications infrastructure. | | | | Department / Workgroup PoE Switch

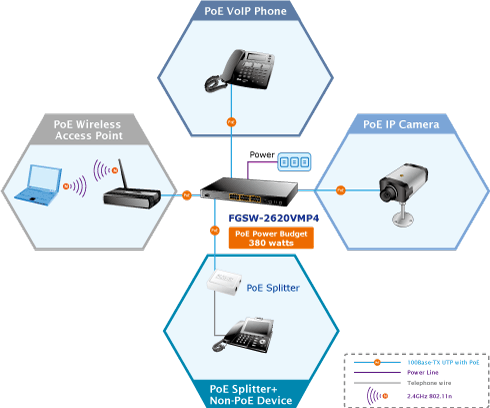

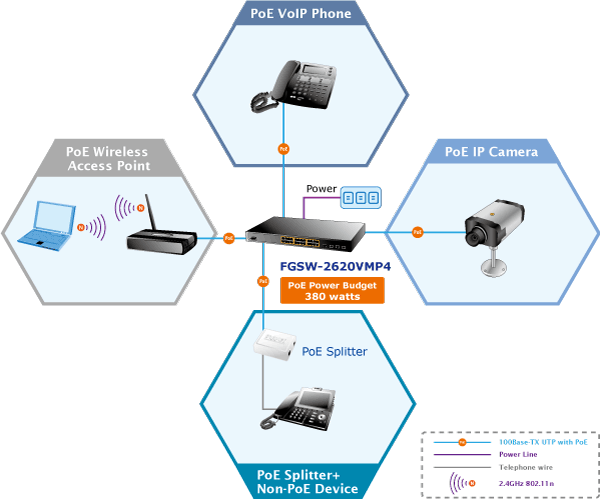

Providing up to 24 PoE, in-line power interface, the FGSW-2620VMP4 Managed PoE Switch can easily build a central power controlled IP phone system, IP camera system, or wireless AP group for the enterprises. For instance, PoE IP cameras can be easily installed in the company for surveillance demands or PoE wireless APs be installed to build a wireless roaming environment in the office. Without the power-socket limitation, the PoE Switch makes the installation of IP cameras or WLAN APs easier and more efficient. | | Factory / Warehouse Applications
While video surveillance system becomes more and more important for visible security in the factory and warehouse, the IP cameras with PoE function would be a lot helpful for the surveillance deployment when the power outlet is not easily found on the ceiling or in the outdoors. For example, in the factory operation or in the warehouse storage security, the PoE IP cameras can be installed anywhere when needed regardless of the restrictions of power outlet location. With the PoE Switch as the central control manager and offering remote power monitoring via Web interface or SNMP trap and SNMP monitoring, the network manager can get the status and alert of PoE devices immediately. The PoE IP cameras can also be controlled remotely, which increases the administrator management efficiency and improves the productivity. | | | |
Physical Port
24 10/100Mbps Fast Ethernet ports with PoE Injector function
2 10/100/1000Mbps TP and 1000Mpbs SFP shared combo interfaces
Reset button for system management
1 RS-232 male DB9 console interface for basic Switch management and setup
Power over Ethernet
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Provides 380-watt power (maximum) to 24 IEEE 802.3af devices
Supports PoE Power up to 15.4 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between each port
Remote power feeding up to 100m
PoE Management
?Total PoE power budget control
?Per port PoE function enable/disable
?PoE Port Power feeding priority
?Per PoE port power limit
?PD classification detection
Layer 2 Features
Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
Supports auto-negotiation and full-duplex / half-duplex modes for all 10Base-T/100Base-TX and
?1000Base-T ports
Auto-MDI/MDI-X detection for each RJ-45 port
Prevents packet loss flow control
?IEEE 802.3x pause frame flow control for full-duplex mode
?Back-pressure flow Control in half-duplex mode
High performance Store-and-Forward architecture, runt / CRC filtering eliminate erroneous packets to
?optimize the network bandwidth
Broadcast / Multicast / Unicast storm control
8K MAC address table, automatic source address learning and ageing
2Mbit embedded memory for packet buffers
Supports VLAN
?IEEE 802.1Q Tag-based VLAN
?Port-based VLAN
?Q-in-Q tunneling
?Up to 255 VLANs groups, out of 4041 VLAN IDs
Supports Link Aggregation
?up to 13 trunk groups
?up to 8 ports per trunk group with 1.6Gbps bandwidth (full-duplex mode)
?IEEE 802.3ad LACP (Link Aggregation Control Protocol)
?Cisco ether-channel (Static Trunk)
Spanning Tree Protocol
?STP, IEEE 802.1D (Classic Spanning Tree Protocol)
?RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Quality of Service
4 priority queues on all switch ports
Traffic classification
?IEEE 802.1p CoS
?IP TOS / DSCP to 802.1p priority mapping
?Port-based priority
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Multicast
Supports IGMP Snooping v1 and v2
IGMP Snooping v2 fast leave
Querier mode support
Security
IEEE 802.1x Port-based network access control protocol
RADIUS users access authentication
L3 / L4 Access Control List (ACL)
MAC Filtering and Source IP-MAC / Port-Binding
Port Security for Source MAC address entries filtering
Management
Switch Management Interface
?Telnet Command Line Interface
?Web switch management
?SNMP v1, v2c switch management
?SSL switch management
DHCP client for IP address assignment
Built-in Trivial File Transfer Protocol (TFTP) client
Firmware upgrade via TFTP or HTTP
Configuration upload/download via TFTP or HTTP
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
SNMP trap for interface Link Up and Link Down notification
Supports Ping function | |
硬件特性 |
百兆电口 |
24 10/100Base-TX RJ-45 auto-MDI / MDI-X ports |
千兆电口 |
2 10/100/1000Mbps RJ-45 auto-MDI / MDI-X ports |
千兆光口 |
2 1000Base-SX/LX/BX, shared with Port-25~Port-26 |
交换方式 |
Store-and-Forward |
背板带宽 |
8.8Gbps / non-blocking |
吞吐量 |
6.547Mpps @64Bytes |
MAC地址表 |
8K entries |
Share Data Buffer |
512Kbytes |
最大数据帧大小 |
9K Bytes |
流量控制 |
Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
|
LED指示灯 |
Power, Fan Alarm
Link / Activity (Green)
PoE In-Use (Amber)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Green)
|
尺寸 (W x D x H) |
440 x 300 x 44 mm, 1U height |
重量 |
4.2kg |
重置按钮 |
< 5 secs: System reboot
> 10 secs: Factory default
|
电源输入 |
100 ~ 240V AC, 50 / 60Hz, Auto-sensing |
功率/损耗 |
400 watts / 1372.4 BTU |
以太网供电(PoE) |
PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
PoE Power Supply Type |
End-span |
Power Pin Assignment |
1/2(+), 3/6(-) |
PoE Power Output |
Per Port 48V DC, 350mA . Max. 15.4 watts |
PoE Power Budget |
380 watts |
Max. number of Class 2 PD |
24 |
Max. number of Class 3 PD |
24 |
2层特性 |
管理方式 |
Console, Telnet, Web Browser, SSL, SNMPv1, v2c |
端口设定 |
Port disable / enable
Auto negotiation
10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
|
端口状态 |
Display each ports speed duplex mode, link status and flow control status
Auto negotiation status, trunk status
|
端口镜像 |
TX / RX / Both
1 to 1 monitor
|
带宽控制 |
Ingress / Egress Rate Control
Allow to configure per 128Kbps
|
VLAN |
IEEE 802.1Q Tag-based VLAN
Port-based VLAN
Q-in-Q tunneling
Up to 255 VLANs groups, out of 4041 VLAN IDs
|
链路聚合 |
Supports 13 groups of 8-port trunk, IEEE 802.3ad LACP |
QoS |
Traffic classification based on Port priority, 802.1p priority, DSCP / TOS field in IP Packet |
IGMP Snooping |
IGMP (v1/v2) Snooping, up to 256 multicast groups |
访问控制列表(ACL) |
IP-based ACL / MAC-based ACL
Up to 220 ACL rule entries
|
SNMP MIBs |
RFC-1213 MIB-II
RFC-2863 Interface MIB
RFC-2665 EtherLike MIB
RFC-1493 Bridge MIB
RFC-2819 RMON MIB (Group 1, 2, 3,9)
Power-over-Ethernet-MIB |
标准一致性 |
遵从规则 |
FCC Part 15 Class A, CE |
安全 |
UL, cUL |
标准一致性 |
IEEE 802.3?10Base-T
IEEE 802.3u?100Base-TX
IEEE 802.3z?1000Base- SX/LX
IEEE 802.3ab?1000Base-T
IEEE 802.3x?Flow control and back Pressure
IEEE 802.3ad?Port trunk with LACP
IEEE 802.1D?Spanning Tree Protocol
IEEE 802.1w?Rapid Spanning Tree Protocol
IEEE 802.1p?Class of Service
IEEE 802.1Q?VLAN Tagging
IEEE 802.1x?Port Authentication Network Control
RFC 768?UDP??
RFC 793?TFTP?
RFC 791?IP
RFC 792?ICMP?
RFC 2068?HTTP
RFC 1112?IGMP version 1
RFC 2236?IGMP version 2 |
环境 |
工作 |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
|
存储 |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 20 ~ 95% (non-condensing) |
技术参数
日期 |
版本 |
描述 |
下载 |
2014-02-27 |
1.0 |
FGSW-2620VMP4 |
![](/images/icon_pdf.png) |
安装版本
日期 |
版本 |
描述 |
下载 |
2012-04-13 |
1.23 |
Bug Fixed- 1.Change PoE mode name from Priority to Classification. 2.Fix the Switch offering class 3 devcie to 16Watts PoE power budget... Function Added- 1.SMTP Alarm. 2.Per port Remote ping... |
