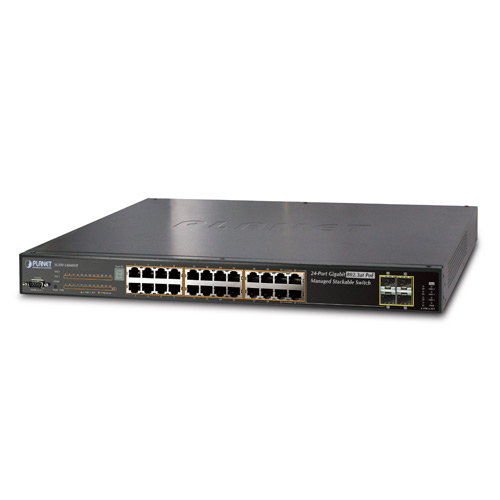

Centralized Power Management for Gigabit Ethernet Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, PLANET SGSW-24040HP is the 24-Port Gigabit High Power over Ethernet Managed Switch which features high performance Gigabit IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at High-Power PoE (Up to 30.8W) on all ports. By supporting reliable stacking technology and advanced networking features, the SGSW-24040HP also provides high scalability for current and future network infrastructure as it can flexibly work with PLANET SGSW series Gigabit Switch to meet the various networking requirements and simplify the network deployment and management.
30-watt Power over Ethernet
A maximum of 30.8 watts is available on the Gigabit ports of the SGSW-24040HP for powering PDs (Powered Devices), with a maximum PoE delivery of 360 watts for all ports to per device in order to satisfy the increasing needs of power consumption by powered devices. Providing Gigabit throughput and high power supply, the SGSW-24040HP optimizes the installation and power management of network devices such as 11n wireless access points (AP) with Gigabit PoE LAN port, security PTZ (Speed Dome) network video cameras, large screen PoE video phones, thin-clients and more.
E-Mail / SNMP Trap Alarm
The SGSW-24040HP provides built-in SMTP and SNMP Trap alarm function that can send instant alarm to the administrators by email when errors happen. The errors like when the connected PD devices such as IP cameras or wireless access point were changed or when the Ethernet cable was broken or loosened, the SGSW-24040HP would detect it and spontaneously send the error alarm to the assigned receiver or network management center. It also records when the error and the recovery status happen.

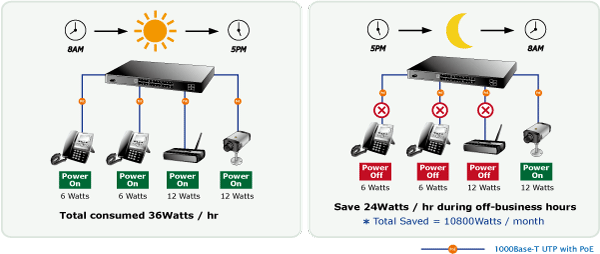

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environment protection on the Earth, the SGSW-24040HP can effectively control the power supply besides its capability of giving high watts power. The PoE schedule function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. | | | | | | IPv6 Management
The SGSW-24040HP works with original network structure (IPv4) and also supports the new network structure (IPv6) in the future. With easy and friendly management interfaces and plenty of management functions included, the SGSW-24040HP is the best choice for System Integrators to build the large wireless service and for SMBs to connect with the IPv6 network.
Flexible Stacking Capability for Growing Networking
The SGSW-24040HP provides 2 dedicated high-speed HDMI-like interfaces for stacking management. By applying the SGSW-24040HP, up to 16 units of stacking, 384 Gigabit PoE ports can be managed by a stacking group and additional ports and functionality can be added as needed. The 2 built-in stacking ports provide 5Gbps bandwidth and up to 20Gbps bi-directional speed. It can handle an extremely large amount of data in a secure topology linking for backbone or high capacity network server with 68Gbps switching fabric per unit. The stacking technology also enables the chassis-based switches to be integrated into SGSW-24040 series Managed Switch at an inexpensive cost.
Robust Layer 2 Features
The SGSW-24040HP can be programmed for advanced switch management functions such as dynamic Port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP Snooping. The SGSW-24040HP provides 802.1Q Tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the SGSW-24040HP allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of up to 12 groups of 16 ports for port link aggregation and supports fail-over as well.
Efficient and Secure Management
For efficient management, the SGSW-24040HP is equipped with console, WEB and SNMP management interfaces. With the built-in Web-based management interface, the SGSW-24040HP offers an easy-to-use, platform-independent management and configuration facility. The SGSW-24040HP supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGSW-24040HP can be accessed via Telnet and the console port. Moreover, the SGSW-24040HP offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.
Enhanced Security
The SGSW-24040HP offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communications between edge ports can be protected to ensure user privacy. The SGSW-24040HP Net Security also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.
Flexibility and Extension Solution
The four mini-GBIC slots built in the SGSW-24040HP support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Easy Deployment
High power and high speed data switching are integrated into one unit and delivered over a single cable. The Gigabit PoE Switch also lowers the need for dedicated electrical outlets on the wall, ceiling or any unreachable place and eliminates costs and time for additional AC wiring. | | |

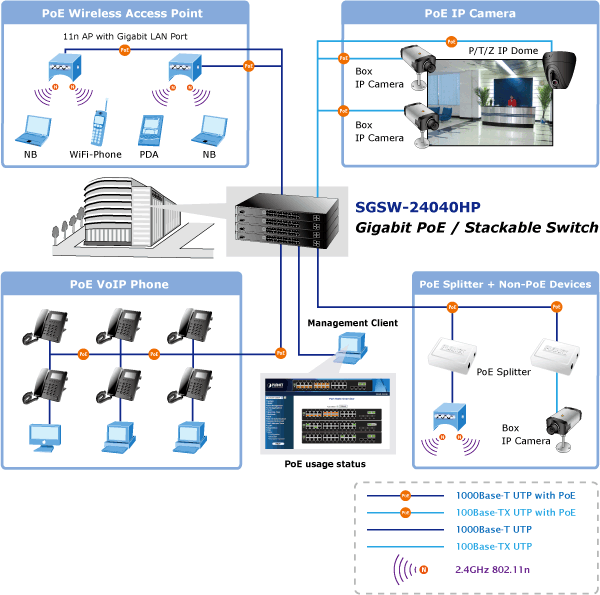

Department / Workgroup High-power PoE Switch
Providing up to 24-Port Gigabit high-power PoE, in-line power interface, the SGSW-24040HP High-Power PoE Switch can easily build a central-controlled power network with wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises. For instance, 24 IP cameras and wireless APs can be easily installed around the corner in the company for surveillance demands or a wireless roaming environment in the office. Without the power-socket limitation, the stackable PoE Switch makes the deployment of IP cameras or WLAN AP more easier and efficient. | | | | | | | While video surveillance system becomes more and more important for visible security in the factory, warehouse, and public places, the IP cameras with PoE function would be a lot helpful for the surveillance deployment when the power outlet is not easily found in the ceiling or in the outdoor. For example, in the factory operation or in the warehouse storage security, the PoE IP camera can be installed anywhere regardless of the restrictions of power outlet location. With the PoE Switch SGSW-24040HP acting as the central control manager and offering remote power monitoring via Web interface or SNMP trap and SNMP monitoring, the manager can get the PoE devices status and alert immediately. The PoE IP cameras can also be controlled remotely, which increases the administrator management efficiency and improve the productivity. | | |
Physical Port
??24-Port 10/100/1000Base-T Gigabit RJ-45 with IEEE 802.3af / 802.3at PoE Injector
??4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-21 to Port-24
??2 HDMI-like 5GbE Stacking interfaces
??RS-232 DB9 console interface for Switch basic management and setup
Power over Ethernet
??Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
??Up to 23 IEEE 802.3af devices powered
??Up to 11 IEEE 802.3at devices powered
??Supports PoE Power up to 30.8 watts for each PoE port
??Auto detect powered device (PD)
??Circuit protection prevents power interference between ports
??Remote power feeding up to 100m
??PoE Management
???Total PoE power budget control
???Per Port PoE function enable/disable
???PoE Port Power feeding priority
???Per PoE port power limit
???PD classification detection
Stacking
??Hardware stack up to 16 units and 384 Gigabit ports
??Single IP address stack management
??Stacking architecture supports Chain and Ring mode
??Plug and Play connectivity
??Mirror across stack
??Link Aggregation groups spanning multiple switches in a stack
??Hardware learning with MAC table synchronization across stack
Layer 2 Features
??Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
??High performance of Store-and-Forward architecture, broadcast storm control and runt/CRC
? ? filtering eliminates erroneous packets to optimize the network bandwidth
??Supports VLAN
???IEEE 802.1Q Tagged VLAN
???Up to 255 VLANs groups, out of 4041 VLAN IDs
???Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
???Private VLAN Edge (PVE)
??Supports Spanning Tree Protocol
???STP, IEEE 802.1D (Spanning Tree Protocol)
???RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
???MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol), spanning tree by VLAN
???BPDU Guard
??Supports Link Aggregation
???802.3ad Link Aggregation Control Protocol (LACP)
???Cisco ether-channel (static trunk)
???Maximum 12 trunk groups, up to 16 ports per trunk group
???Up to 32Gbps bandwidth (Duplex Mode)
??Provides port mirror (many-to-1)
??Port mirroring to monitor the incoming or outgoing traffic on a particular port
Quality of Service
??Ingress Shaper and Egress Rate Limit per port bandwidth control
??4 priority queues on all switch ports
??Traffic classification:
???IEEE 802.1p CoS
???TOS / DSCP / IP Precedence of IPv4/IPv6 packets
???IP TCP/UDP port number
???Typical network application
??Strict priority and Weighted Round Robin (WRR) CoS policies
??Supports QoS and In/Out bandwidth control on each port
??Traffic-policing policies on the switch port
??QoS Control List Wizard makes QoS creation and configuration easier and more quickly
??DSCP remarking
??Voice VLAN
Multicast
??Supports IGMP Snooping v1, v2 and v3
??Querier mode support
??IGMP Snooping port filtering and throttling
??Multicast VLAN Registration (MVR)
Security
??IEEE 802.1X Port-based / MAC-based network access authentication
??Built-in RADIUS client to co-operate with the RADIUS servers
??TACACS+ login users access authentication
??RADIUS / TACACS+ users access authentication
??IP-based Access Control List (ACL)
??MAC-based Access Control List
??Source MAC / IP address binding
??DHCP Snooping to filter un-trusted DHCP messages
??Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
??IP Source Guard prevents IP spoofing attacks
??Auto DoS rule to defend DoS attack
??IP address access management to prevent unauthorized intruder
Management
??Switch Management Interfaces
???Console / Telnet Command Line Interface
???Web switch management
???SNMP v1, v2c, and v3 switch management
???SSH / SSL secure access
??Four RMON groups (history, statistics, alarms, and events)
??IPv6 IP Address / NTP / DNS management
??Built-in Trivial File Transfer Protocol (TFTP) client
??BOOTP and DHCP for IP address assignment
??Firmware upload/download via HTTP / TFTP
??DHCP Relay and Relay Option 82
??User Privilege levels control
??NTP (Network Time Protocol)
??Link Layer Discovery Protocol (LLDP) Protocol
??Cable Diagnostic technology provides the mechanism to detect and report suspicious cabling issues
??Reset button for system reboot or reset to factory default
??PLANET Smart Discovery Utility for deploy management
??ICMPv6 | | |
| 硬件特性 |
| 电口 |
24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports with IEEE 802.3at PoE injector |
| 光口 |
4 1000Base-SX/LX/BX SFP interfaces, shared with Port-21 to Port-24
100Base-FX SFP transceiver compatible
|
| Console端口 |
1 x RS-232 DB9 serial port (115200, 8, N, 1) |
| 交换方式 |
Store-and-Forward |
| 背板带宽 |
68Gbps |
| MAC地址表 |
8K entries |
| Share Data Buffer |
1392 kilobytes |
| 流量控制 |
IEEE 802.3x pause frame for full-fuplex
Back pressure for half-duplex
|
| 巨型帧 |
10Kbytes |
| LED指示灯 |
System:
Power, Master, FAN Alert, PoE Power Alert
Ports:
10/100/1000 Link/Act, PoE In-Use, SFP Link, Stack Port Link
|
| 重置按钮 |
< 5 sec: System reboot
> 10 sec: Factory Default
|
| 尺寸 (W x D x H) |
440 x 300 x 44.5 mm, 1U height |
| 重量 |
4.5kg |
| 功率/损耗 |
Max. 432 Watts / 1473 BTU |
| 电源要求 |
AC 100~240V, 50/60Hz |
| ESD 保护 |
6KV DC |
| 以太网供电（PoE） |
| POE 标准 |
IEEE 802.3af / 802.3at Power over Ethernet / PSE |
| PoE Power Supply |
End-Span |
| PoE Power Output |
Per Port 56V DC. Max. 30.8 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE总输出功率 |
360 watts |
| PoE Ability |
Number of PD @7 watts:24
Number of PD @15.4 watts:23
Number of PD @30.8 watts:11 |
| 堆叠 |
| Stacking Ports |
Two 5Gbps HDMI-Like interface |
| Stacking Numbers |
16 |
| Stacking Bandwidth |
10Gbps (Full-Duplex) |
| Stack ID Display |
7-Segment LED Display (1~9, A~F,0) |
| Stack Topology |
Ring / Chain / Back-to-Back stack |
| 2层特性 |
| 管理方式 |
Console, Telnet, Web Browser, SNMPv1, v2c |
| 安全管理 |
SSH, SSL, SNMP v3 |
| 端口设定 |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port
|
| VLAN |
802.1Q Tagged Based VLAN
Port-based VLAN
Q-in-Q
Private VLAN Edge (PVE)
Up to 256 VLAN groups, out of 4094 VLAN IDs
|
| 生成树协议（STP） |
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
Up to 8 MST instances
|
| 链路聚合 |
IEEE 802.3ad LACP / static trunk
Supports 12 groups of 16-Port trunk support
|
| QoS |
Traffic classification based, Strict priority and WRR
4-Level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
DSCP/TOS field in IP Packet Policy-based QoS
|
| IGMP Snooping |
IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
|
| 访问控制列表（ACL） |
IP-based ACL / MAC-based ACL
Up to 256 entries
|
| SNMP MIBs |
RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet
|
| 标准一致性 |
| 遵从规则 |
FCC Part 15 Class A, CE |
| 国际标准 |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet |
| 环境 |
| 工作 |
Temperature:0 ~ 50 degrees C
Relative Humidity:20 ~ 95% (non-condensing)
|
| 存储 |
Temperature:-40 ~ 70 degrees C
Relative Humidity:20 ~ 95% (non-condensing)
|
技术参数
| 日期 |
版本 |
描述 |
下载 |
| 2011-05-06 |
1.0 |
SGSW-24040HP |
 |
安装版本
| 日期 |
版本 |
描述 |
下载 |
| 2012-10-31 |
1.8b121023 |
Bug Fixed-
(1) Fix PoE Status display error.
(2) Fix combo port can not auto switch.
Function Added-
(1) Support IPv6 Management function.
(2) Add user's privilege level function. |
 |
快速安装指南
| 日期 |
版本 |
描述 |
下载 |
| 2011-05-06 |
1.2 |
Initial Release |
|
用户手册
产品证书
| 日期 |
版本 |
描述 |
下载 |
| 2014-03-07 |
1.1 |
EC Declaration |
| |
