| Hardware Specifications |
| Hardware Version |
2 |
| Network Connector |
8-Port RJ45 for 10/100Base-TX |
| PoE Inject Port |
8-Port with 802.3af PoE injector function |

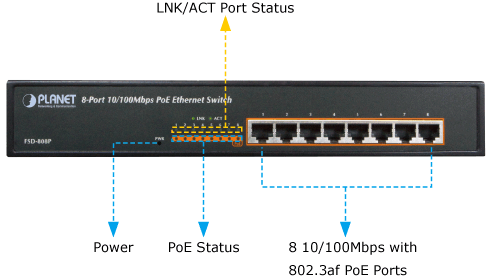

| LED Display |
System: Power (Green)
Per port : PoE (Green)
???? LNK/ACT (Green)
|
| Switch Architecture |
Store and Forward switch architecture |
| MAC Address |
2K MAC address table with auto learning function |
| Switch Fabric |
1.6Gbps |
| Switch Throughput |
1.19Mpps@64Bytes |
| Power Requirements |
100~240V AC, 50/60Hz, 1.5A (max.) |
| Power Consumption |
135 watts (max.) / 460 BTU |
| Dimensions (W x D x H) |
280 x 180 x 43 mm |
| Weight |
1.65kg |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per Port 48V DC, 350mA, 15.4 watts (max.) |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
125 watts |
| Standard Conformance |
| EMI Safety |
FCC Class A, CE |
| Standard Compliance |
IEEE 802.3 : Ethernet
IEEE 802.3u : Fast Ethernet
IEEE 802.3x : Flow Control
IEEE 802.3af : Power over Ethernet
|
| Environment |
| Operating Temperature |
0 ~ 50 degrees C |
| Storage Temperature |
-40 ~ 70 degrees C |
| Operating Humidity |
5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, relative humidity, non-condensing |
