| 硬件特性 |
| Network Connector |
8-Port RJ-45 for 10/100Base-TX (Port 1 to Port 8)
1-Port RJ-45 for 10/100/1000Base-T (Port 9)
|
| PoE Inject Port |
8-Port with 802.3af PoE injector function |

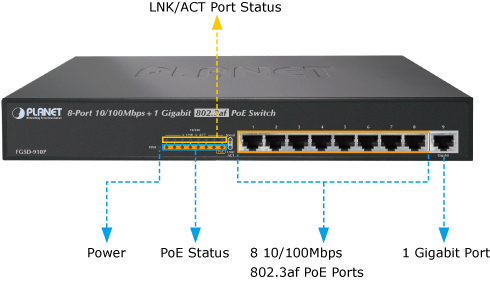

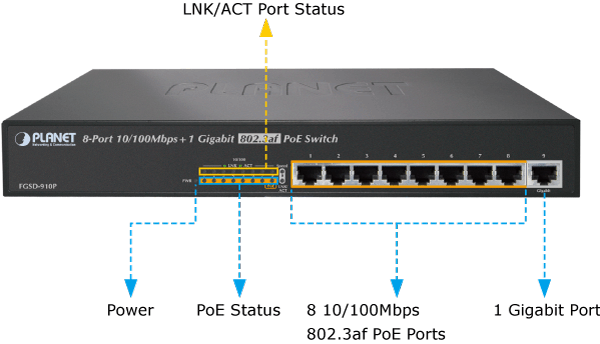

| LED Display |
System: Power (Green)
Per PoE port:
?PoE (Orange)
?LNK/ACT (Green)
Gigabit port:
?Speed (Green)
?LNK/ACT (Green)
|
| Switch Architecture |
Store and Forward switch architecture |
| MAC Address Table |
4K MAC address table with Auto learning function |
| Switch Fabric |
3.6Gbps |
| Switch Throughput |
2.67Mpps@64Bytes |
| Flow Control |
Back pressure for Half-Duplex. IEEE 802.3x pause frame for full-duplex |
| Power Requirements |
AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption |
130 watts / 443BTU |
| Dimensions (W x D x H) |
280 x 180 x 43 mm, 1U height |
| Weight |
1.7kg |
| 以太网供电（Power over Ethernet） |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. max. 15.4 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
120 watts (at room temperature) |
| Max. number of Class 1 PD |
8 |
| Max. number of Class 2 PD |
8 |
| Max. number of Class 3 PD |
8 |
| 标准一致性 |
| EMI Safety |
FCC Class A, CE |
| Standard Compliance |
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
| Ethernet
Fast Ethernet
Gigabit Ethernet
Flow Control
Power over Ethernet
|
|
| 环境 |
| Operating Environment |
0 ~ 50 degrees C |
| Storage Environment |
-10 ~ 70 degrees C |
| Operating Humidity |
5 ~ 95%, Relative Humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, Relative Humidity, non-condensing |
