WPG-130N

802.11n Pocket Presentation Gateway

概述
应用场景
功能特性
产品规格
下载

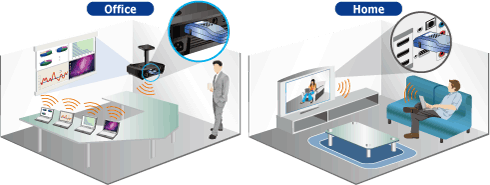

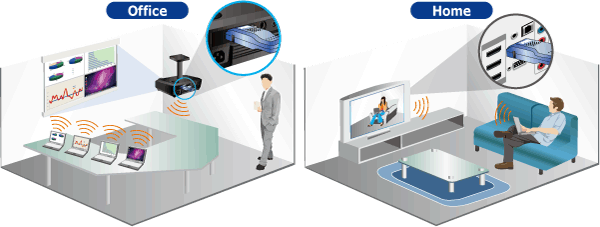

Delivering High Smooth Presentations Wirelessly
PLANET WPG-130N is a portable wireless presentation gateway that applies IEEE 802.11n technology. It is designed with a VGA video output interface in handy size and ultra lightweight. You can easily take the WPG-130N to anywhere you want for wireless presentation at any time. With the hardware decoding capability, the WPG-130N can project high-definition video on the screen through wireless connection. It facilitates multiple users to freely display the presentations, images and videos wirelessly without swapping lots of cables to connect to a projector or LCD TV.

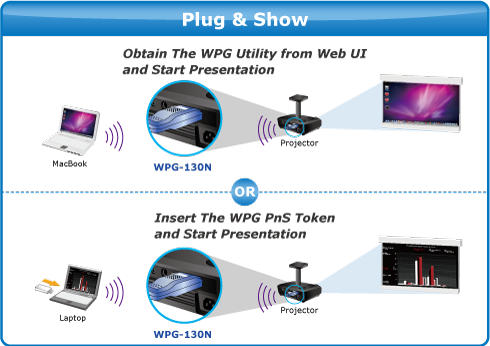

Easy to Use, Plug and Show
The connected users can directly download the embedded windows-based utility from the WPG-130N web UI or simply execute the utility from created USB token. It offers the most convenient way for the new user to project the presentation in seconds. Just link the PC / Laptop to the WPG-130N wirelessly and the presentation content will be projected to the connected projector easily.

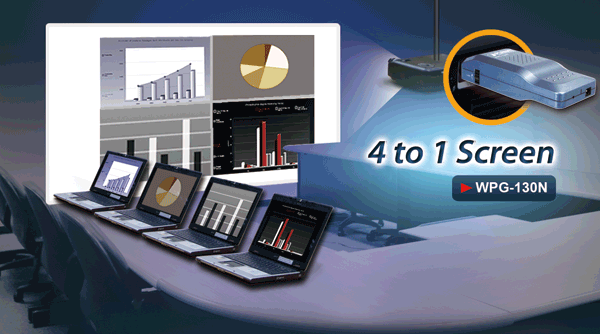

4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, the WPG-130N supports up to four PC / Laptop screens that can be projected through one projector at the same time. Therefore, the meeting participants can easily process synchronous content comparison from four PCs / Laptops to increase meeting efficiency.

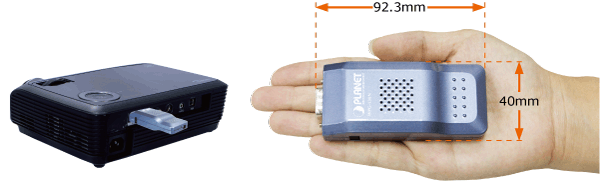

Pocket-size Design and Power over VGA (PoVGA)
PLANET WPG-130N is a wireless presentation gateway designed in pocket size, and it weighs only 52g. The compact design is convenient for users to connect with any projector and hidden very well once it is plugged into the VGA port of the projector. Furthermore, the WPG-130N supports PoVGA (Power over VGA) so that it can be fed power from the VGA connector of the compatible projectors. Even the last cable on the device, the power cord, will also become unnecessary.

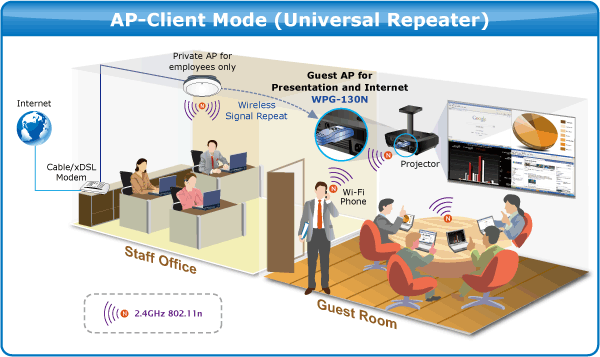

AP Client Mode
You can enable the AP Client Mode function to make the WPG-130N join the existing Access Point through Wi-Fi. This feature provides flexibility of wireless network deployment in enterprise environment. The participants in the meeting are able to surf the Internet and access to Intranet all the time, even when wireless presentations are projecting.

硬件特性

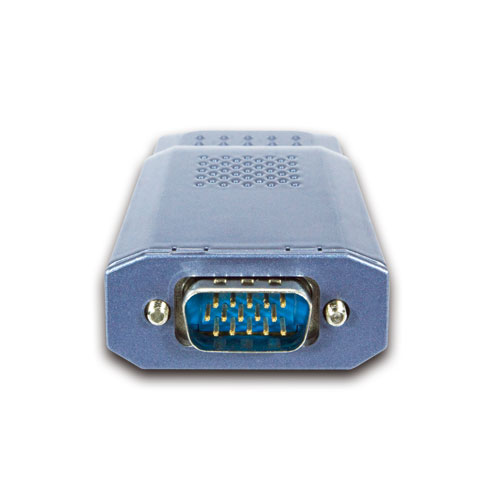

端口	Video: VGA Port: D-Sub 15-Pin female port WLAN: 802.11n 150Mbps
天线	Gain: 2dBi Dual PIFA Antenna
LED指示灯	Power

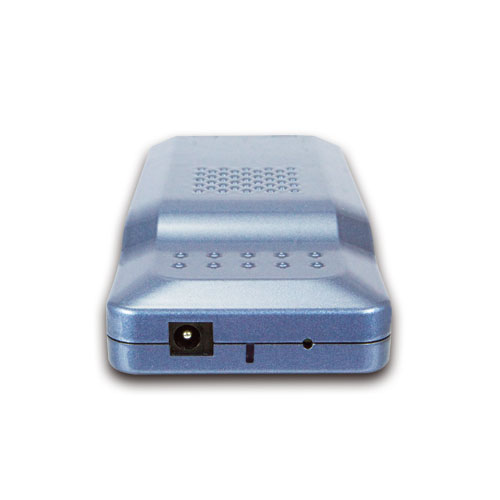

功率	External Power adaptor 5V DC input 1.2A Supports PoVGA (Power over VGA)
支持兼容放映机PoVGA	Optoma EX542 Optoma EX612 Optoma EX615 Optoma EX762 Optoma EH1020
材质	Plastic
尺寸	92.3 x 40 x 22 mm
重量	52.2g
无线端口特性
标准	IEEE 802.11n Backward compatible with IEEE 802.11b/g
频段	2.4~2.4835 GHz
无线传输数据速率	Up to 150Mbps*
无线信道	America / FCC: 2.414~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels)
无线输出功率	802.11b: 16 dBm +/-1.5dBm (11Mbps) 802.11g: 14 dBm +/-1.5dBm (54Mbps) 802.11n: 13 dBm +/-1.5dBm (HT 20 MCS7)
接收灵敏度	802.11b:11M -76 dBm 802.11g:54M -67dBm 802.11n:65M HT20 -64dBm ????150M HT40 -61dBm
无线链路覆盖	Up to 300 feet/100 meters, depending on environment
无线安全	IEEE Standard 64/128 bit WEP/WPA/WPA2-PSK
操作模式	AP-Client (Universal Repeater)
视频显示
PC / 解决方案	SVGA (800x600) / XGA (1024x768) SXGA (1280x1024) / WXGA (1280x768) WSXGA (1440x900, 1600x1024) / UXGA (1600x1200) WUXGA (1920x1200) / QXGA (2048x1536) / Others
输出分辨率	VGA: SVGA (800x600) / XGA (1024x768) / WXGA(1280x768) / WXGA+(1280x800)
系统管理
协议	TCP/IP
IP 配置	Automatic: DHCP Manual: Static IP address
管理	Web-based configuration
Windows 版本权	Administrators Limited User Guest
操作系统	Windows XP / Vista / 7 / 8 / 8.1 Windows Mobile 5/6 Mac OS X 10.4 or later
标准一致性
IEEE 标准	IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
环境与认证
温度	Operating: 0 ~ 40 degrees C Storage: -10 ~ 60 degrees C
湿度	Operating: 10 ~ 90% (non-condensing) Storage: 10 ~ 80% (non-condensing)
法规	CE / FCC / RoHS
* For best performance and wireless connection, sincerely advise to match the above related products

订购信息
WPG-130N	802.11n Pocket Presentation Gateway
