3 Mega-pixel H.264 Box IP Camera

首页 > 产品 > IP监控 > 盒式枪型IP摄像机 > ICA-HM127

Print Version

ICA-HM127

3 Mega-pixel H.264 Box IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

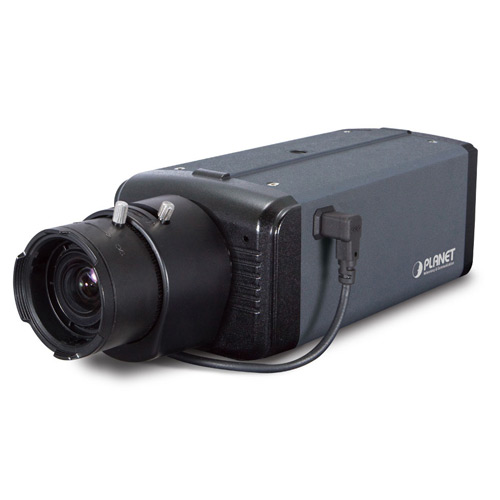

PLANET ICA-HM127 3 Mega-pixel IP Camera supports Full HD (2048 x 1536) resolution and efficient H.264 video compression to bring the best solution for Internet video surveillance. It is perfect for indoor and outdoor surveillance to secure the locations such as campuses; government, business and industrial buildings; stores; airports; railway stations; and more.

Multi-Profile Streaming
Supporting the Multi-Profile Streaming function, the ICA-HM127 can generate H.264, MPEG-4, and M-JPEG streaming simultaneously to differentiate users in different resolutions and frame rates. This state-of-the-art design is considerable to fit in various network environments.

2-way Audio

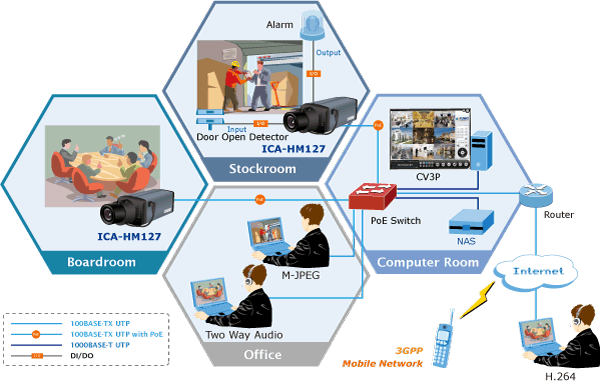

The ICA-HM127 provides 2-way audio function for real-time video communication. It enables the administrator to remotely talk to anyone at the ICA-HM127 site with an additional speaker connected. Users can also easily communicate to each other between two ICA-HM127 sites, even just for chat.

PoE Makes Flexible Installation Anywhere
Compliant with IEEE 802.3af PoE interface, the ICA-HM127 can be flexibly located in any place where there is no power outlet. Moreover, through Power over Ethernet support, the administrators can be fearless of the power breakdown because the ICA-HM127 can receive power via Ethernet cable from UPS which is installed in the surveillance control center or in any specific place.

Day & Night Operations
The ICA-HM127 offers high flexibility in various kinds of IP surveillance environments as it has built-in ICR (IR-cut filter removable) for day and night surveillance applications. It supports low light surveillance as low as 0.5 lux illumination.

ONVIF Certified / Professional Software
The ICA-HM127 follows the ONVIF v1.01 and v1.02 standard SDK for user to easily integrate with the third party software. It can work with PLANET Cam Viewer 3 Lite/Pro Management software and Network Video Recorder products for video surveillance application and provides enhanced monitoring, recording and event management functions to secure your property and life.

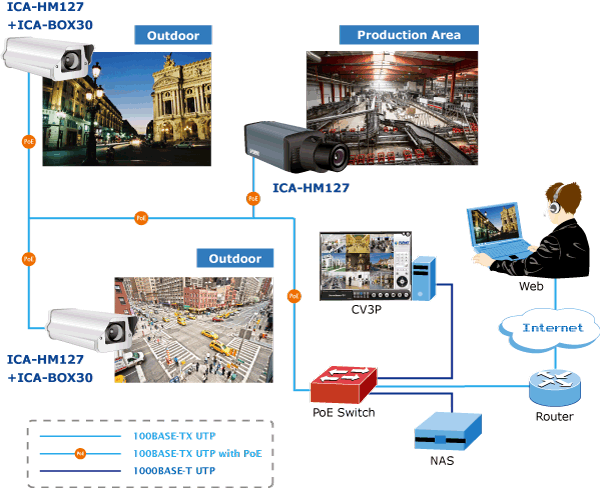

*Work with the ICA-BOX30 for Outdoor day and night vision surveillance.

*This device supports Android APP. Download Now!

Camera Specifications
Image Device	1/2.5" Progressive CMOS
Sensitivity	Color: 0.05 Lux @ 30 IRE B/W: 0 Lux @ IR ON
Lens	Focal length 3.1-8mm , F1.2 varifocal l;ens,
Lens Mounting	CS mount
Auto Iris	1 x auto iris connector, DC Drive
Night Vision Function	Built-in removable IR cut filter
Viewing Angle(4:3)	H: 38.7~95.9 degrees V: 29.1~71.0 degrees
Storage Interface	SD, SDHC support
Video Specifications
Video Compression	H.264 / MPEG4 / M-JPEG
High Resolution mode	H.264@QXGA / 1080P MPEG4@1080P MJPEG@720P
Video Resolution	QXGA (2048 x1536): 20 fps 1080p (1920 x 1080): 30 fps Quad-VGA (1280 x 960): 30 fps 720p (1280 x 720): 30 fps VGA (640 x 480): 30 fps QVGA (320 x 240): 30 fps
Multi-stream mode	H.264 @720p / D1 / VGA / QVGA / QCIF MPEG4@720p / D1 / VGA / QVGA and 3GPP MJPEG@720p / D1 / VGA / QVGA / QCIF
Auto Exposure Control	Yes
Auto White Balance	Yes
Auto Gain Control	Yes
Text Overlay	Text and Date-time
Image Overlay	Supports JPG and Bitmap image format
Audio/Video Specifications
Audio Input	Internal Omni-directional Microphone Sensitivity: more than -42Db +/- 3dB Freq Response: 100~10000Hz External Mic. In
Audio Output	Line level out, 1 Vrms, 3.5mm phone jack, Mono
Compression method	PCM / AMR
Audio S/N ratio	More than 60dB
Operation mode	2-way audio
Composite	CVBS / 1 Vp-p�0.2 / 75 Ohms ; BNC connecter
Network and Configuration
Network Interface	One RJ-45 port, IEEE 802.3u compliant 10/100 Mbps Fast Ethernet with auto-MDIX
Network Protocol	TCP/IP, IPv4/v6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP and RTCP
General
Power Supply	DC 12V / 1A
PoE	IEEE 802.3af
PoE Consumption	Max. 8W
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 85%
Weight	390g (Camera only, excluding lens)
Dimensions (W x D x H)	72.15 x 130.40 x 58.30 mm
Viewing System
OS	Windows� XP, 2000/2003/2008 Server, Vista, Win 7
best View System	CPU: Intel� Core2 Duo E5300 2.6GHz RAM: 1 GB Graphic card: 128MB Display resolution: 1024 x 768 24 bits Note: Best viewed with high bandwidth and PC performance.
Browser	IE 6.0 or later
Search & Installation	PLANET IPFinder
Bundled Monitor/Recording/Management	PLANET CV3P (4-Ch Cam Viewer Three Pro Trial Version) PLANET CV3L (64-Ch Cam Viewer Three Lite Bundled Version)

订购信息
ICA-HM127	3 Mega-pixel H.264 Box IP Camera

附件
ICA-BOX30	30 meter IR Outdoor Housing
