| 硬件特性 |
| 10/100Base-TX 端口 |
4 x 10/100Base-TX auto-negotiation
Auto MDI / MDI-X |
| IEEE 802.3af PoE Ports |
4 x PSE (Port 1-4 ) |
| 天线 |
2 x Detachable RP-SMA connector
2 x 5dBi SMA omni-directional antenna included in the package |
| 附件 |
IP30 metal case |
| LED 指示灯 |
P1, P2, PWR, FAL, WPS, WLAN, SEC, LAN1~4, PoE |
| 按钮 |
WPS button
Reset button |
| 外形尺寸 (W x D x H) |
135 x 87.8 x 56 mm |
| 重量 |
871g |
| 电源要求 |
DC 24 / 48V
AC 24V |
| 安装 |
DIN rail kit and wall mount ear |
| 无线特性 |
| 标准 |
Compliant with IEEE 802.11b/g/n |
| 频宽 |
2.4 to 2.4835GHz (Industrial Scientific Medical Band) |
| 调制类型 |
DSS with DBPSK, DQPSK, QPSK and CCK
OFDM with BPSK, QPSK, 16-QAM and 64-QAM |
| 无线速率 |
IEEE 802.11b: 1/2/5.5/11Mbps
IEEE 802.11g: 6/9/12/18/24/36/48/54Mbps
IEEE 802.11n: 14/29/43/58/87/116/130/144Mps in 20MHz
30/60/90/120/180/240/270/300Mbps in 40MHz
|
| 可选频道 |
America / FCC: 2.414~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels) |
| RF输出功率 |
IEEE 802.11b: 18 dBm
IEEE 802.11g: 15 dBm
IEEE 802.11n: 15 dBm |
| 接收灵敏度 |
IEEE 802.11b CCK 1.0Mbps: -94dbm
11b CCK 11.0Mbps: -91dbm
IEEE 802.11g OFDM 6Mbps: -92dbm
11g OFDM 54Mbps: -76dbm
IEEE 802.11n 20MHz MCS7: -72dbm
11n 40MHz MCS7: -70dbm
|
| 管理功能 |
| 无线模式 |
Access point |
| 频道频宽 |
20MHz / 40MHz |
| 数据加密安全性 |
64 bit / 128 bit WEP
WPA / WPA2
WPA-PSK / WPA2 / WPA2-PSK
IEEE 802.1x network access control |
| 管理 |
基于web配置 |
| 无线隔离 |
Yes |
| 以太网供电 |
| PoE 标准 |
IEEE 802.3af power over Ethernet / PSE |
| PoE 支持类型 |
End-Span |
| PoE 电源输出 |
Per Port 48V DC, 350mA. max. 15.4 watts |
| 电源针脚分配 |
1/2(+), 3/6(-) |
| 协议 |
| 协议/特性 |

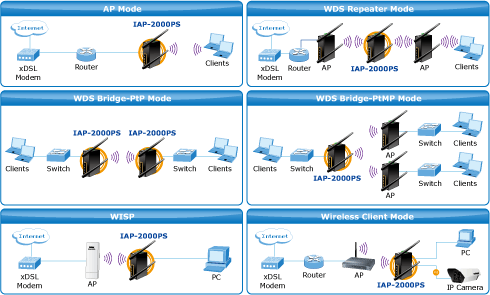

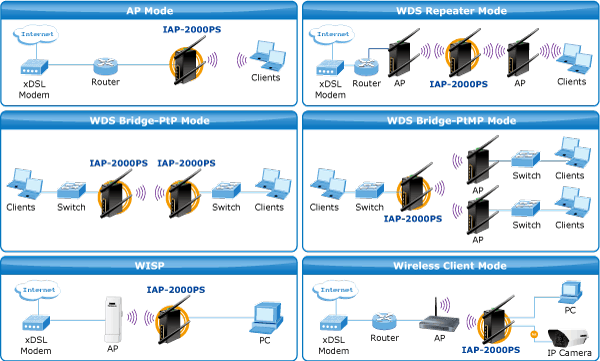

Bridge and WISP mode
WDS and WPS
Static Routing and RIPv1/2
DMZ and Virtual Server
IEEE 802.1D
IEEE 802.1Q VLAN
QoS
SNTP
WMM
DHCP Server / Client
IGMP Proxy and DNS Proxy
UPnP and DDNS
SNMP |
| 管理 |
Web-based configuration |
| 标准一致性 |
| 标准一致性 |
IEEE 802.11b/g and 802.11n Wireless LAN
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN |
| 环境 |
| 温度/湿度 |
Operating: -10~60 degrees C, 5~ 90% (non-condensing)
Storage: -20~70 degrees C, 0~95% (non-condensing) |
| 发行 |
FCC, CE |
| 稳定性 |
IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration) |
