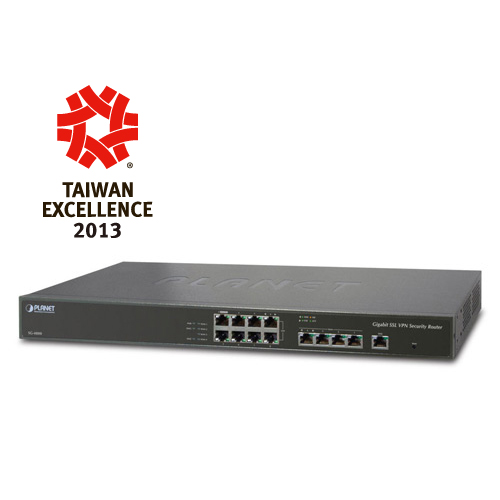

SG-4800

Gigabit SSL VPN Security Router

概述

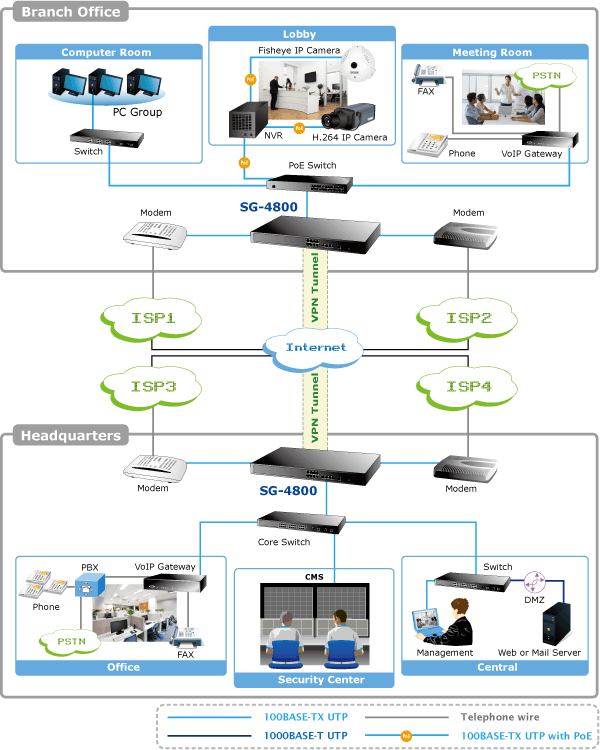

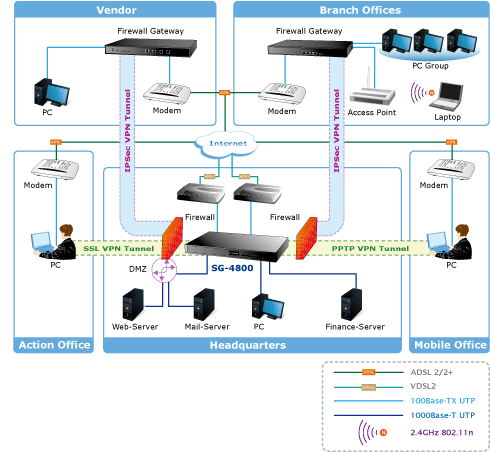

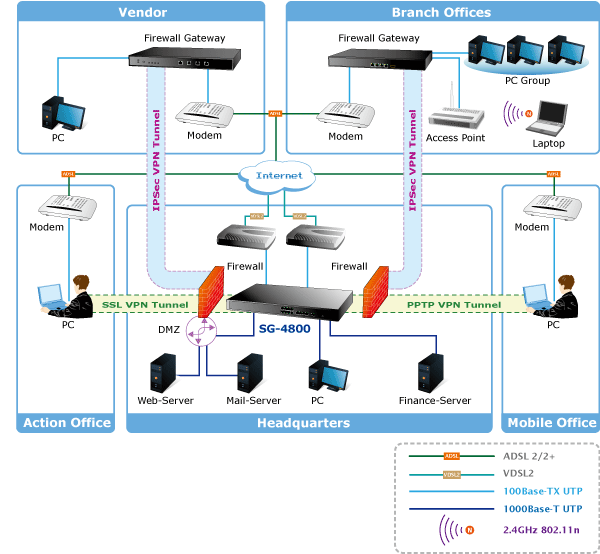

应用场景
功能特性
产品规格
下载
相关产品

As Internet becomes essential for business, the crucial solution to prevent your Internet connection from failure is to have more than one connection. PLANET SG-4800 is a Gigabit SSL VPN Security Router ideal to help the SMBs increase the broadband network performance and reduce the risks of potential shutdown if one of the Internet connections fails. The SG-4800 can monitor each WAN link status and automatically activate backup links when a failure is detected. The detection is based on the configurable target Internet addresses.

Network Efficiency Improvement with Load-Balancing
The SG-4800 allows you to perform load-balancing by distributing the traffic through three or four WAN connections. In Outbound Load Balancing, the network sessions are assigned based on the user configurable load balancing mode, including "Auto Load Balance", "Unbinding WAN Balance" and "Strategy Routing". Users can also configure which IP or TCP / UDP type of traffic use for WAN port to connect. The Inbound Load Balancing is for enterprise�s internal server to reduce the server loading and the risks of system crash so that the SG-4800 helps to improve the server working efficiency.

Strong Protection for Network Security
In addition to providing Multi-Homing functions, the SG-4800 Gigabit SSL VPN Security Router integrates a complete security solution in one box. It provides the policy-based firewall, content filtering function and VPN connectivity including SSL, IPSec, and PPTP VPN. The SSL VPN function supports up to 60 SSL VPN connection tunnels. The IPSec VPN feature provides 3DES and AES encryptions to make it a perfect product for your network security. By applying the SG-4800, there is no need of integrating different security products on the network and worrying about complicated connections and settings.

QoS Bandwidth Management
Besides offering easy yet powerful bandwidth management functions, the SG-4800 features Smart QoS with dynamic bandwidth management to automatically control P2P, video downloading and other bandwidth hogging in order to avoid bandwidth insufficiency. It helps the network administrators better allocate network resources based on business priorities, as well as to shape and control bandwidth usage by prioritizing different persons/groups or applications.

Easy Remote Management
The SG-4800 provides embedded Mirror Port to connect with the monitoring devices for online behavior monitoring. It also supports secure remote management via web browser with protection of user authentication.

Physical Port
� 8 x 10/100/1000 Base-T RJ-45, configurable with LAN 1 (Mirror Port)
� 4 x 10/100/1000 Base-T RJ-45 WAN port
� 1 x 10/100/1000 Base-T RJ-45 DMZ port

Multi-WAN Function
� Inbound / Outbound Load Balance: by session and by IP
� Bandwidth expansion with 4 Gigabit WAN ports
� Multi-WAN auto line backup

IP Routing feature
� Dynamic Route RIP v1 / v2
� Static Route
� Strategy Routing

Bandwidth Management
� Guaranteed Bandwidth
� Max. Bandwidth
� Session Limit
� Port-Based QoS

Firewall Security
� Stateful Packet Inspection (SPI) Firewall
� Denial of Service (DoS) prevention
� IP & Port filtering
� Block Website by Keyword, Content Filter
� Firewall detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing
� Prevents ARP Attack on LAN

VPN Feature
� Configure Concurrent Tunnels: 200 IPSec + 60 PPTP + 60 SSL VPN or other combinations within the memory�s limitation
� IPSec, PPTP and L2TP Pass through
� Supports IPSec
-IPSec Hardware acceleration
-IPSec Encryption DES / 3DES / AES128 / AES192 / AES256
-IPSec Authentication MD5 / SHA1
-VPN Hub
� Supports SSL VPN
-10 full set SSL VPN tunnel / 50 Virtual Passage SSL VPN Client
-Remote Desktop Access
-Terminal Access: Telnet, SSH
-Authentication: Radius, LDAP, Microsoft Active Directory and NT Domain Name
-SSL Encryptions: 128bit SHA1 (DES-CBC-SHA)
-Certificate Server: RSA, PKI, Digital Certificate
-Host Check: Virus Scan, Personal Firewalls, OS Patch
-Logging and monitoring: Syslog logging of SSL VPN events by user, service and type of event

Networking
� DHCP Server (supports class C), client, dynamic IP, static IP, IP Grouping support
� Multiple DHCP Servers support multiple Subnet (supports 4 sets of Class C)
� PPPoE / Static IP / DHCP Client
� Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6
� NAT with port forwarding (Virtual Server)
� DNS Relay
� DDNS: supports DynDNS, 3322
� Password protected configuration or management sessions for web access
� Port Management � Speed / Duplex / Auto Negotiation / VLAN
� Transparent Bridge

Network Management
� Comprehensive web based management and policy setting
� SNMP v1 / v2c
� Monitoring, Logging, and Alarms of system activities
� Firmware upgrade through Web browser

硬件
接口	� LAN:8 x 10/100/1000 Mbps RJ-45 � WAN:4 x 10/100/1000 Mbps RJ-45 � DMZ:1 x 10/100/1000 Mbps RJ-45
按钮	� Reset:1 x Reset button for factory default settings � Power:1 x Power on / off switch
操作环境	� Temperature:0 ~ 50 degrees C � Relative Humidity:10~85% (non-condensing)
尺寸 (W x D x H)	440 x 254 x 43.5 mm
电源	100~240V AC, 50~60 Hz, max 0.8A
监管	FCC Class A, CE
软件
多WAN功能	� Inbound / Outbound Load Balance: by session and by IP � Protocol Binding � Network Service Detection
路由	� Dynamic Route RIP v1 / v2 � Static Route
系统性能	� Concurrent session: 50000 � Firewall performance: 1Gbps � Corporation Size: SMB (clients 200~250) � 3DES performance: 270Mbps
带宽管理	� Guaranteed Bandwidth � Max Bandwidth � Session Limit � Port-based QoS
防火墙安全	� NAT � One-to-One NAT � Multiple-to-One NAT � Stateful Packet Inspection (SPI) Firewall � Denial of Service (DoS) prevention � IP & Port filtering � Block Website by Keyword, Content Filter � Firewall detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing � Email Alert for Hacker Attack � IP&MAC Binding � Supports DMZ Host to protect your network � Prevents ARP Attack on LAN
网络	� Configurable DMZ � DHCP Server (supports class C), client, dynamic IP, static IP, IP Grouping support � Multiple DHCP Server (supports 4 sets of Class C) � PPPoE / Static IP / DHCP Client � Multiple Subnet � Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6 � NAT with port forwarding (Virtual Server) � DNS Relay � DDNS: Supports DynDNS, 3322 � Password protected configuration or management sessions for web access � Port Management � Speed / Duplex / Auto Negotiation / VLAN � Transparent Bridge
网络管理	� Comprehensive web based management and policy setting � SNMP v1 / v2c � Monitoring, Logging, and Alarms of system activities � Firmware upgrade through Web browser
支持VPN	� PPTP VPN -60 PPTP VPN Tunnels � IPSec VPN: -200 IPSec VPN Tunnels -IPSec Hardware acceleration -Up to 2 Group VPNs support -Friendly VPN Tunnel Management -IKE: Pre-Shared keys -IPSec Encryption DES / 3DES / AES128 / AES192 / AES256 -IPSec Authentication MD5 / SHA1 -Supports PMTU -NAT Traversal -Connects on Demand -DPD detection -VPN Hub -IP by DNS Resolved -View Log � SSL VPN -10 full set SSL VPN tunnel / 50 Virtual Passage SSL VPN Client -SSL Hardware acceleration -Remote Desktop Access -HTTP and HTTPs Proxy -FTP and Windows Network File Sharing -Terminal Access: Telnet, SSH -Authentication: Radius, LDAP, Microsoft Active Directory and NT Domain Name -Platform supports Windows / Linux / MAC -SSL Encryptions: 128bit SHA1 (DES-CBC-SHA) -Encrypted cookies -Web cache cleaner -Certificate Server: RSA, PKI, Digital Certificate -Host Check: Virus Scan, Personal Firewalls, OS Patch -Role based management -Access Policy Management -Logging and monitoring: Syslog logging of SSL VPN events by user, service and type of event -Customized User Portal: Allows Portal Layout, Available Services to be customized -Single sign-on: Allows Single Sign-On for accessing multiple private network resources -Group and Global Bookmark Support: Enables users to access resources without needing to remember hostnames or IP addresses -Tunnel quantity upgrade mechanism � VPN Pass through -IPSec, PPTP, L2TP Pass through

订购信息
SG-4800	Gigabit SSL VPN Security Router
