Remotely reboot anything from anywhere
PLANET is glad to introduce the IPM-1200x 12-port IP Power Management device. The IPM-1200x series provides the useful function of managing power for any combination to connect with itself. With the innovative IP-based technology, PLANET has made the traditional power management equipment true networking devices. | | | | | | Intelligent Power Management
With 12 power outlets, each of them can be controlled or monitored individually. You can control those power outlets via the console or web interfaces. You can also use the front panel to operate the power outlets. Providing 7-segment LED and port status indicators, users can know easily the status of the IPM-1200x series immediately, without logging in configure interface. | | | Easy Maintenance and Configuration
In addition to manual remote control, the IPM-1200x series provides event-triggered or schedule-based control to turn connected equipment on or off or to reboot systems. The IPM-1200x series is easily configured with its Plug-and-Play ability. The IPM-1200x series keeps a detailed log of all connected devices so that in case of severe errors from some devices, the status or failures can easily be solved.

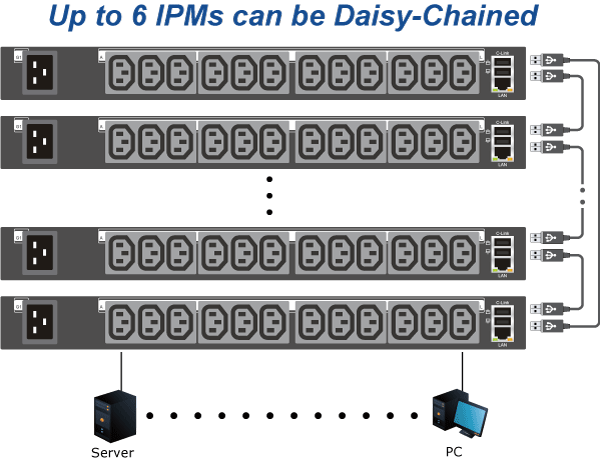

Cascade controls up to 6 IPM from single console
The IPM-1200x series can be daisy-chained to manage even more devices, so your server room management can expand in step with your company's growth. For ease of management, this allows IT administrators to completely control an IT device from a single user interface. | | | | | | EMD (Environmental Monitoring Device)

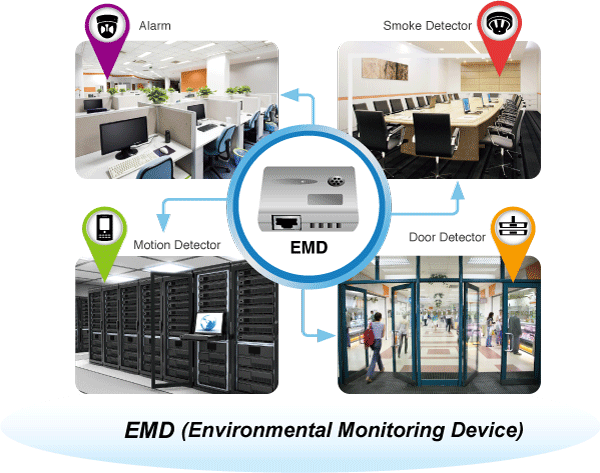

The IPM-1200x series has equipped with a console port for connecting an EMD (Environmental Monitoring Device) for sensing temperature and humidity along with two alarms that can be activated when the sensors show unusual values. The IPM-1200x series provides two digital outputs for connecting status indicators or digital switches. When users create a new server room or the environment has been monitoring, the IPM-1200x series is the best choice for the requirements. | | | | | |

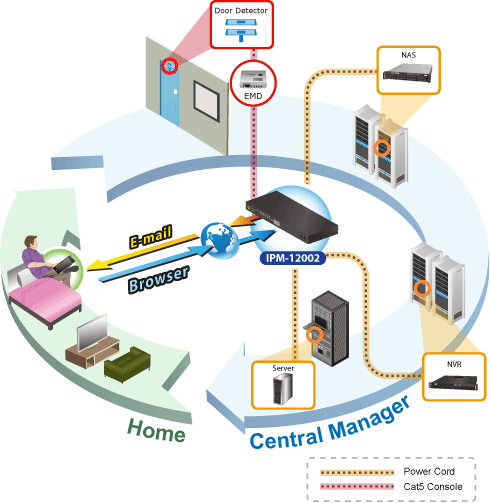

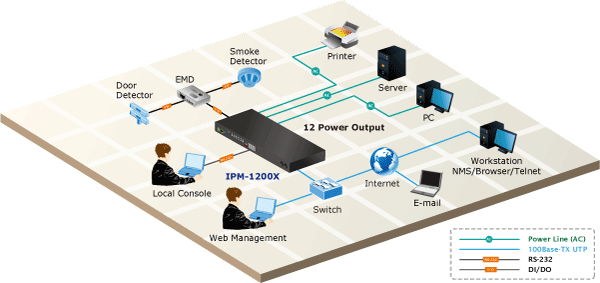

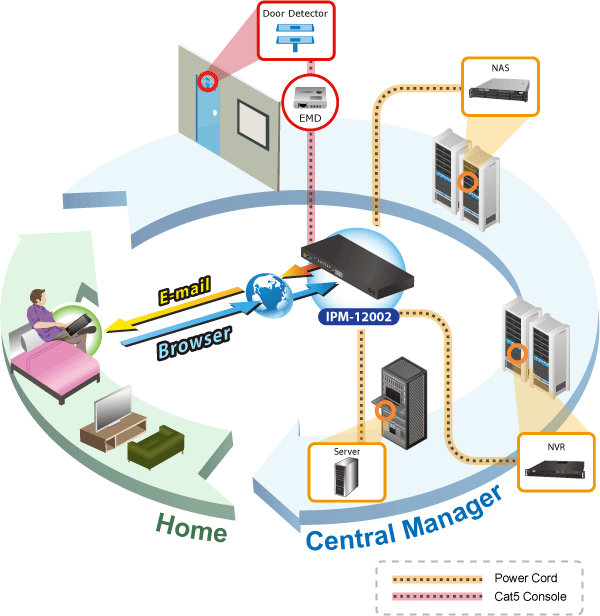

Remote management via network
With PLANET IP power management device, users can control and monitor a server room locally or remotely through Internet. When EMD is attached, the IPM-1200x series can also be in the environment condition; meanwhile, users can monitor the status of special environment for security and safety issue. PLANET IPM-1200x series is not only for monitoring and managing power consumption, but also useful applications for your life. | | | | | |
Hardware- 19" rack mount 1U size design
- Cascode controls up to 72 outlets from Daisy-chaining port
- 12 LEDs shows power status for each power outlet
- 7 segment LED shows current, voltage or frequency, error code and the number of Daisy-chaining
- Twelve power outlets that can be turned on or off in multiple ways, with easy monitoring of current consumption
- Activate extended devices via digital outputs
- Versatile sensors supported through EMD (Environmental Monitoring Device) inputs
Power Distribution- Maximum Amps/Inlet: IEC 16A / 1 inlet
- Maximum Amps/Outlet: IEC 10A / 12 outlets
- Supports multiple power control methods Wake on LAN, System After AC Back, Kill the Power
Remote Access - Remote power control via TCP/IP and a built in 10/100 Mbps Ethernet port
- Comprehensive power management and flexible configuration through web browser, NMS, Telnet, SNMP, or HyperTerminal (console)
- Multi browser support (IE, Google, Firefox, Safari, Opera, Netscape)
Management- To calculate the power consumption on hourly basis, and have an accumulation of daily
- Provide detail data-logging for statistical analysis and diagnostic then auto email daily history report
- Event notification by pop-up/Sending Trap or E-Mail for events notification
- Set over-current watchdog for each outlet
- Power-on sequencing -Intelligently turn on/off devices based on event occurrence or planned schedule
- Supports Management Information Base (MIB) files for SNMP
- Upgrade utility for easy firmware upgrade
Security- Support Secure Socket Layer V3 and Secure Shell V1 protocols
- Administrator and multiple users with password protection for double-layer security
- IP Filter -Address-specific IP security masks to prevent unauthorized access
| | |
| IPM-12002 |
| 硬件规格 |
| 输出电源端口 |
12 |
| 电源输入端口 |
1 |
| 网络连接器 |
1 x RJ-45 port for 10/100Base-TX |
| 控制台端口 |
1 x RS-232 RJ-45 serial port |
| 数字输出 |
2 |
| Daisy chaining 端口 |
2 x USB 2.0 |
| Daisy chaining 模式 |
Auto / Manual |
| 按钮 |
Reset |
| LED |
Output Power : ON / OFF
Input status indicator : Volts/Amps/Hz/Error code and daisy chained IPM
|
| 电源分配 |
| AC 输入 |
200~240V, 16A, 50~60Hz |
| AC 输出 |
200~240V, 50~60Hz |
| 负载 |
Max. 10Amp each outlet or max. 10Amp total for Outlet A~C. Same as D~F, G~I, J~L |
| 入口连接 |
1 x IEC320 C20
|
| 出口连接 |
12 x IEC320 C13 |
| 管理 |
| 用户帐户 |
10 |
| 管理工具 |
Web Browser, SNMP software, Windows base utility, Telnet, Hyper Terminal (via console) |
| 安全 |
IP filter / Secure 128-bit SSL encryption |
| 标准 |
| 计算机接口 |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
|
| 符合规定 |
CE, FCC |
| 系统单元 |
| 工作温度 |
0 ~ 40 degrees C |
| 工作湿度 |
10% ~ 80% |
| 尺寸 (W x D x H) |
436 x 300 x 44 mm |
| 重量 |
4.2kg |
| 高度 |
1U |
| IPM-EMD |
| 硬件规格 |
| 数字输入 |
2 |
| LED 指示灯 |
Power / Status |
| Console端口 |
1 x RS-232 RJ-45 serial port |
| 温度监控 |
0 ~ 80 degrees C |
| 监测湿度 |
10 ~ 90% |
| 尺寸 (W x D x H) |
57.4 x 37.6 x 29.2mm |
| 重量 |
35g |
