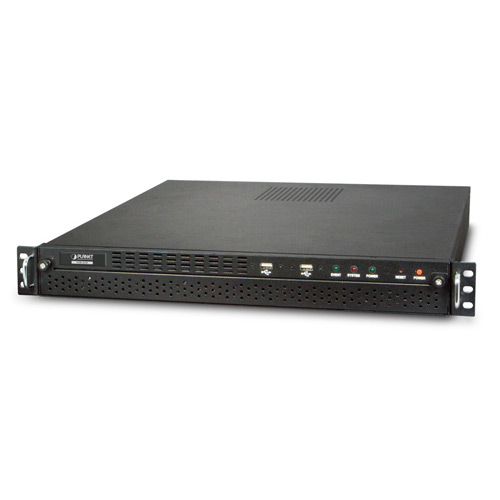

PLANET NVR-3250 is a Rack-Mount Network Video Recorder designed as 19" 1U standard which optimizes your space utilization by controlling your systems in just 1U space on the rack. It is the new model designed for IP surveillance system; users can just turn on the cameras and the NVR can easily protect their lives and property under the IP network. The recorded video files can be directly saved in the NVR-3250 and theres no need of using an additional PC for file storage, which brings users a secure surveillance system with a lower total cost.
The NVR-3250 provides powerful central surveillance management capability with its bundled central management software (CMS). One NVR-3250 can manage up to 32 IP cameras via a connected IP network. With the bundled CMS, the NVR system is expandable for multi-sites management of up to 1024 channels simultaneously*. With the NVR-3250, users can view remote surveillance in real time and play back recorded videos via the bundled CMS software or the web browser. The multi-monitor and e-Map functions are also provided by the NVR-3250 to help the administrators to monitor the surveillance system more efficiently.
The NVR-3250 not only supports PLANET IP cameras but also is compatible with most of major IP camera brands in the market. Furthermore, the NVR-3250 can automatically search and find the available cameras in the network and provide smart setup wizard program, so it greatly reduces users effort when setting up the system.
The NVR-3250 is suitable to fit in various network environments. Besides for small scale applications in retail stores and SMB, the NVR-3250 offers 4 SATA HDD supporting RAID 0 / 1 / 5 / 10 function and able to be applied in large scale surveillance such as banks, enterprises, transportation, campuses and more.
*The full version of CMS software (CMS-M1024) can be purchased additionally, that shall help to manage up to 1024-ch of IP Camera with PLANET NVR series product.
For more information, view product video on Youtube.

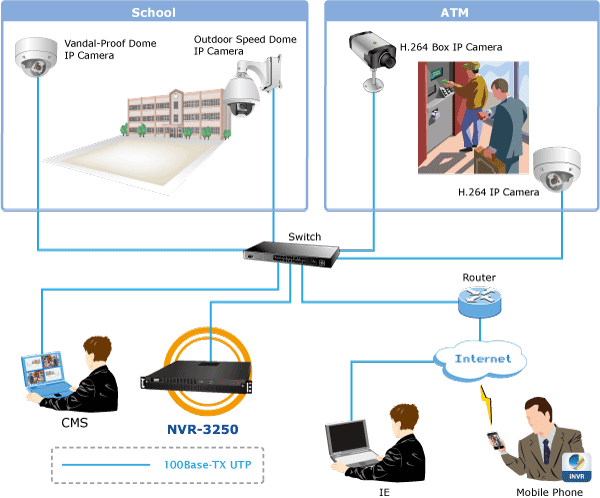

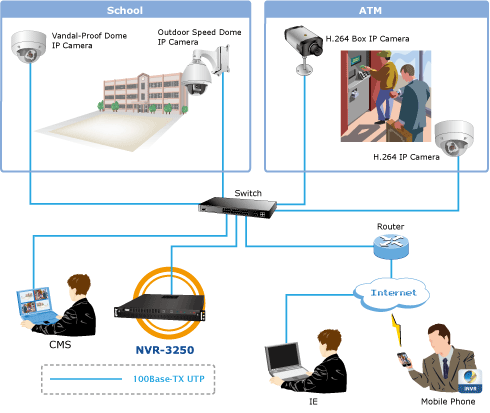

The NVR-3250 can be controlled and monitored both in the local LAN and the remote site via Internet. For example, it helps to enhance the security of the bank ATM and school environment through remote monitoring and management. Users can also login from their mobile phones to check the monitoring screen when there is no PC available.
The NVR-3250 enables the administrators to simultaneously monitor the multisite surveillance up to 1024 channels* via its bundled CMS software, multi-monitor and e-Map functions.
*The full version of CMS software (CMS-M1024) can be purchased additionally, that shall help to manage up to 1024-ch of IP Camera with PLANET NVR series product.
Manual / Schedule / Event recording of 32 IP cameras simultaneously
Video recycle function makes the video recording in 24/7
960fps at 1.3 mega-pixel, H.264
Supports 4 SATA HDD (RAID 0 / 1 / 5 / 10), up to 3TB per HDD
1 x E-SATA (Max 8TB)
Exports record video file to AVI format
System
Web, Local and management utility for easy configuration
E-Map interface in Web, Local and utility configuration
Auto discover by management software
Smart IP camera search
DI / DO port for external sensor and alarm
Multiple languages support
Supports remote view by mobile phone with Android, WinMo, Symbian S60, iPhone,?Blackberry 4.6
Manages up to 32 NVRs (max. 1024 IP camera channels) with the management software
Supports real-time Clock (RTC)
Network
1 x RJ-45, 10/100/1000Base-T
TCP/IP, DHCP, DNS, HTTP, FTP, NTP, SMTP, UPnP

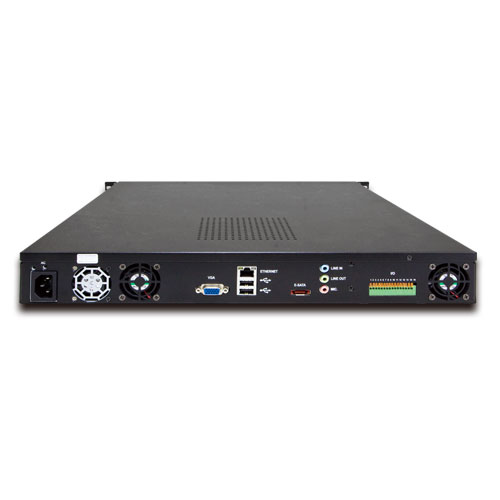

Hardware
1U standard 19" rack-mount design
Gigabit Ethernet port
E-SATA / VGA / USB interfaces supported
Audio line-in, line out, mic. port
Supports external UPS
Auto power-on and recording after power recovery
Video / Audio
Video Input
32-channel IP Cameras
Video output
VGA local display, Web Interface
Resolution
5MP / Full HD / Mega Pixel / FD1 / CIF / QCIF
Local video display
Video Streaming: H.264 / MPEG4
VGA Output
Snapshot: MJPEG
Audio
Yes (G.711 / G.726)
2-way at Local / Web Interface
Record
Recording Mode
Manual, Schedule, Event
Frame Rate / Resolution
960fps @ 1.3mega-pixel, H.264
Export File Format
AVI
Storage Device
4 x 3.5" SATA hard disk connectors
Max. capacity: 12TB (3TB per HDD)
1 x E-SATA (Max. 8TB)
System
Management
Web-based administration
USB mouse / keyboard at local control
Network Time Protocol
Multiple Users Account
E-mail Notification
System Log
Firmware Upgrade
User Interface
Web Browser
CMS Utility
Local Display Interface
E-Map
Web Browser
CMS Utility
Local Display Interface
USB Interface
4 x USB Port, Firmware Upgrade, USB Mouse / Keyboard
Fixed: 1. Audio volume is too small on new module. 2. Joystick cannot work from 2.5.0.62188. Added: 1. Added restart camera function.
2014-02-06
2.5.1.67116
Fix 1. When users go to disk status or disk setup page, MDB recording will hang. 2. When NTP server sync fail, it will set system time to RTC time.
2013-12-13
2.5.1.65808
Bug 7765 fixed, After disabled the HTTPS connection, the state of External port(Both HTTP and HTTPS) won't be error and unstable.(Both Web and Local UI)
2012-10-24
2.2.2.53803
Fix random disappear in local display.
2012-10-18
2.2.2.53257
1. Fix DI event issue of ICA-HM227W 2. Fix USB joystick of local VGA out 3. Fix unable use hostname in NTP 4. Fix DDNS issue
2012-08-16
2.2.1.52225
1. Add USB joystick support 2. Add auto setup function 3. Refer to release note for more
