High Power Outdoor Wireless Coverage
PLANET has come out with the latest high power outdoor wireless LAN solution the WNAP-6350 300Mbps PoE wireless outdoor AP. It provides higher transmit power, better performance, wider coverage and more stable connection than standard wireless outdoor AP. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6350 is able to give stable and efficient wireless performance for long distance application. Adopting IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-6350 is possible to deliver six times faster data rate up to 300Mbps than the normal 802.11g wireless device. It also features adjustable output power up to 500mW to extend broader coverage in outdoor long range application. | | | | Multiple Operating and Wireless Modes

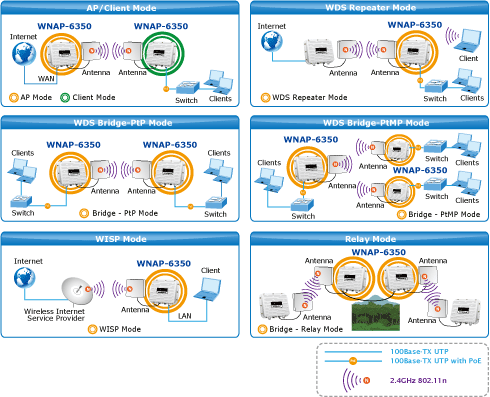

The WNAP-6350 supports multiple types of wireless communication connectivity (AP, Client CPE, WDS PtP, WDS PtMP, Repeater) allowing to meet various application requirements and thus it gives users more comprehensive experience when accessing through Wireless LAN. It helps users to easily build a wireless network and extend the wireless range of the existing wireless network.
The WNAP-6350 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network. | | | | Advanced Security and Management
In terms of security, besides 64/128- bit WEP encryption, the WNAP-6350 is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. To meet the demand for enterprise and various applications, the WNAP-6350 enhances security and management features such as multiple SSIDs support. | | Perfect Solution for Outdoor Environment

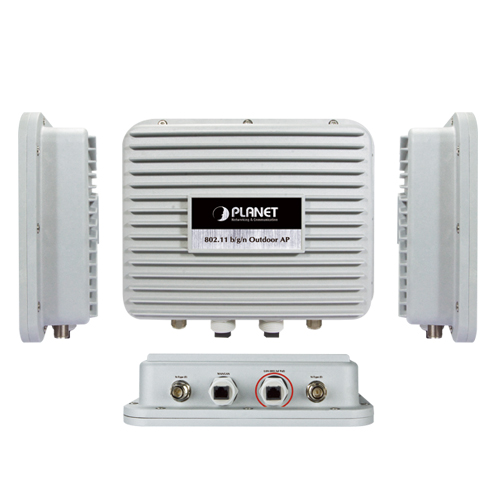

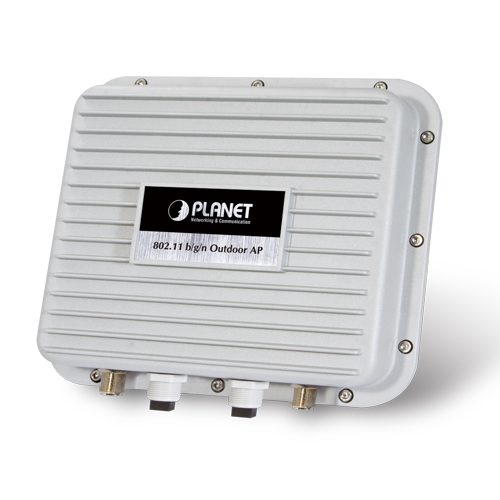

The WNAP-6350 is perfectly suitable for outdoor environments and exposed locations. With IP67 and aluminum rugged housing, the WNAP-6350 can perform normally under rigorous weather conditions including heavy rain, wind and snow. Moreover, the WNAP-6350 is rated to operate at the temperature from -30 to 75 degrees C and thus it can operate more stably than general outdoor equipment. It is the best way to use the WNAP-6350 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more. | | | | Flexible Deployment with PoE Feature

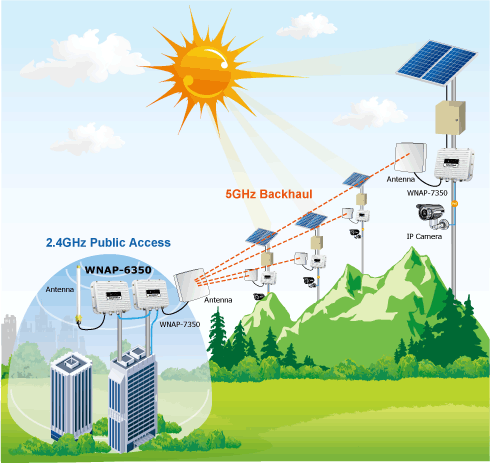

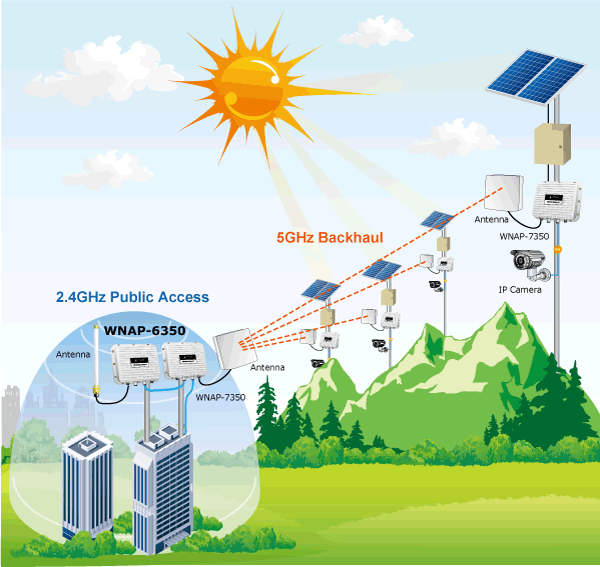

Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-6350 can be powered by PSE (Power Sourcing Equipment) via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place that is difficult to reach. Furthermore, the WNAP-6350 is also suitable to be integrated with PoE Solar Power System to offer farther wireless service in remote areas. It enables the wireless LAN deployment to become more flexible and frees you from worry about power locations. | | | | Easy Installation & Management
With user-friendly Web UI and step by step Setup Wizard, the WNAP-6350 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-6350 is convenient to be managed and configured remotely. | |

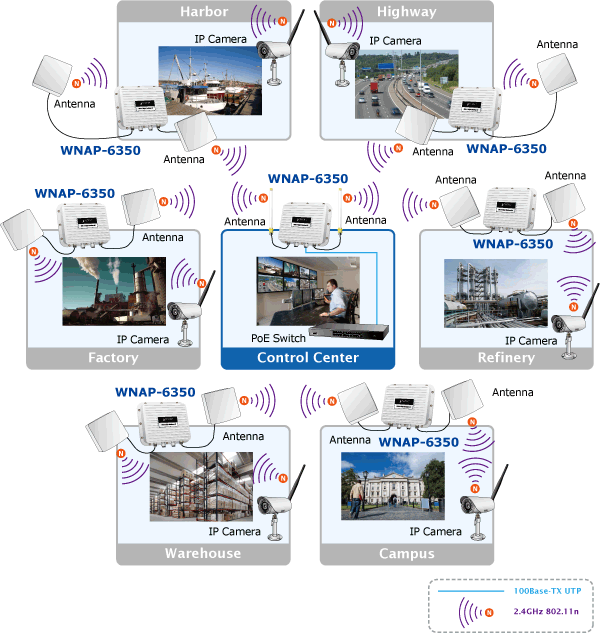

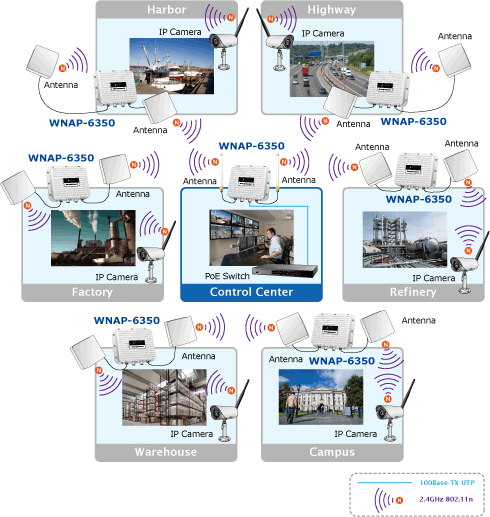

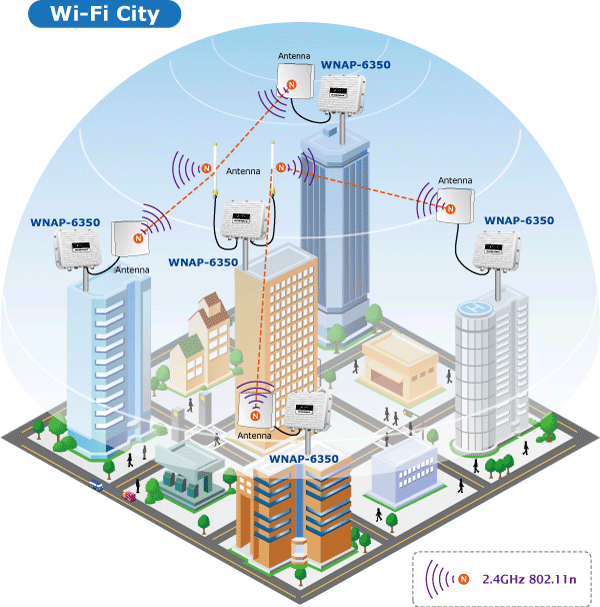

Longer Distance Coverage between LAN Connections
The WNAP-6350 is a cost-effective outdoor wireless solution for widely open space applications. It is ideal for outdoor wireless connections between buildings.
With two built-in N-type antenna connectors, the WNAP-6350 brings longer coverage of wireless connection. The WNAP-6350 provides high output power with multiple adjustable Tx controller, which allows CPE users to easily install and adjust the suitable value in appropriate locations. The WISP mode supported in the WNAP-6350 also enables CPE users to connect to Internet via local WISP provider conveniently. | | | | **Sincerely suggest you match the same model in outdoor wireless bridge application for getting the best performance.
| |
Industrial Compliant Wireless LAN & LAN- Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate
- Backward compatible with 802.11b/g standard
- Equipped with 10/100Mbps RJ-45 Ports for LAN & WAN, Auto MDI / MDI-X supported
Fixed-network Broadband Router- Supported connection types: Dynamic IP / Static IP / PPPoE / PPTP / L2TP / IPSec
- Supports Virtual Server, DMZ for various networking applications
- Supports DHCP Server, UPnP, Dynamic DNS

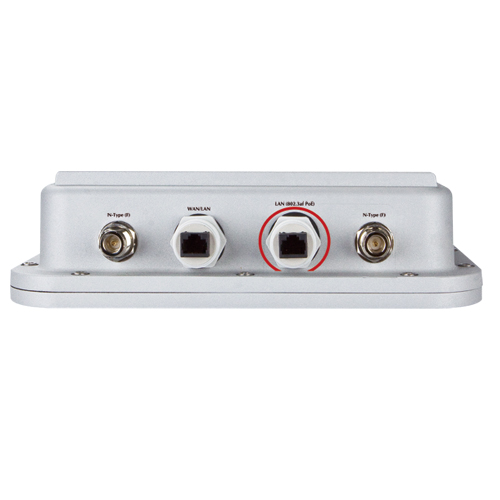

RF Interface Characteristics- 2 built-in N-type female antenna connectors
- High Output Power up to 500mW with multiple adjustable transmit power control
Outdoor Environmental Characteristics- Aluminum Housing, IP67 Protection
- IEEE 802.3af/at Power over Ethernet design
- Operating Temperature: -30~75 Degree C
Multiple Operation & Wireless Mode- Multiple Operation Modes: Bridge, Gateway, WISP
- Multiple Wireless Modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP, Repeater
- Supports Dual-SSID allowing users to access different networks through one single AP
- Supports WMM (Wi-Fi Multimedia)
Secure Network Connection- Supports Software Wi-Fi Protected Setup (WPS)
- Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES), and 802.1x authentication
- Supports NAT firewall features, with SPI function to protect against DoS attacks
- Supports IP / Protocol-Based access control and MAC filtering
Easy Installation & Management- Web-Based UI and Quick Setup Wizard for easy configuration
- Remote Management allows configuration from a remote site
- SNMP-Based management interface
- System status monitoring includes DHCP Client, System Log
| |
硬件特性 |
标准 |
IEEE 802.11b/g/n Wireless LAN
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control |
Memory |
32 Mbytes DDR SDRAM
8 Mbytes Flash |
PoE |
802.3 af/at PoE |
端口 |
Wireless IEEE 802.11b/g/n, 2T2R
LAN: 1 x 10/100Base-TX, Auto-MDI / MDIX
WAN: 1 x 10/100Base-TX, Auto-MDI / MDIX |
天线 |
N-Type female connectors x 2 |
无线RF特性 |
数据传输速率 |
IEEE 802.11b: 11, 5.5, 2 and 1Mbps
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbp |
Media Access Control |
CSMA / CA |
调制 |
Transmission / Emission Type: OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM |
频段 |
2.412GHz ~ 2.484GHz |
操作信道 |
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels) |
RF Output Power |
IEEE 802.11b/g: 29 1dBm
IEEE 802.11n: 25 1.5dBm |
接收灵敏度 |
IEEE 802.11b: -95/ -94/ -92/ -90dBm (1/ 2/ 5.5/ 11Mbps)
IEEE 802.11g: -90/ -82/ -80/ -75dBm (6/ 24/ 36/ 54Mbps)
IEEE 802.11n: -91/ -83/ -74/ -89/ -80/ -72dBm (MCS 0/ 3/ 6/ 9/ 12/ 15) |
输出功率控制 |
3~29dBm |
功率损耗 |
7.68W |
电源要求 |
AP: IEEE 802.3af/at PoE / 48VDC input (PoE Injector included)
PoE Injector: 100~240VAC
|
环境与认证 |
工作温度 |
-30~75 degrees C |
工作湿度 |
10~95% non-condensing |
IP Level |
IP67 |
法规 |
CE / RoHS |
软件特性 |
LAN端口 |
Built-in DHCP server supports static IP address distributing
Supports 802.1d STP (Spanning Tree) |
WAN |
Static IP
Dynamic IP
PPPoE
PPTP
L2TP
IPSec |
操作模式 |
Bridge
Gateway
WISP |
防火墙 |
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supports Virtual Server and DMZ
Built-in firewall with Port / IP address / MAC / URL filtering |
无线模式 |
AP
Client
WDS PTP
WDS PTMP
WDS Repeater (AP+WDS) |
信道频宽 |
20MHz / 40MHz |
无线技术 |
Enables it to isolate each connected wireless client so as to unable them to access mutually. |
频段 |
64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
无线安全 |
Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (WIFI Protected Setup)
Enable / Disable SSID Broadcast |
Multiple SSID |
Up to 2 |
最大 无线客户端 |
40 |
Max. WDS AP |
8 |
最大.有线客户端 |
60 |
WMM |
Supports Wi-Fi Multimedia |
QoS |
Supports Quality of Service for bandwidth control |
NTP |
Network Time Management |
管理 |
Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP |
诊断工具 |
System Log, Ping Watchdog |
配件 |
标准配件 |
- 48VDC IEEE 802.3af/at PoE injector & Power cord x 1
- Mounting Kit x 1
- Waterproof RJ-45 Connector Kit x 2
- Quick Installation Guide x 1
- CD (User�s Manual, Quick Installation Guide) x 1
|
