2.4G and 5G Dual Band Wireless Connectivity

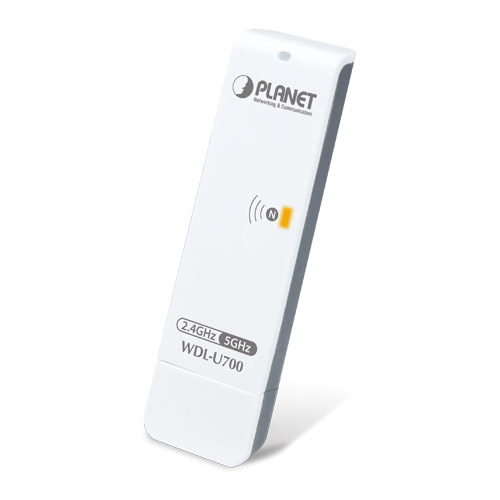

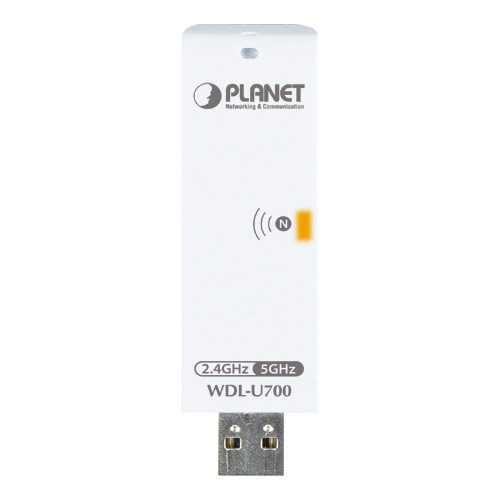

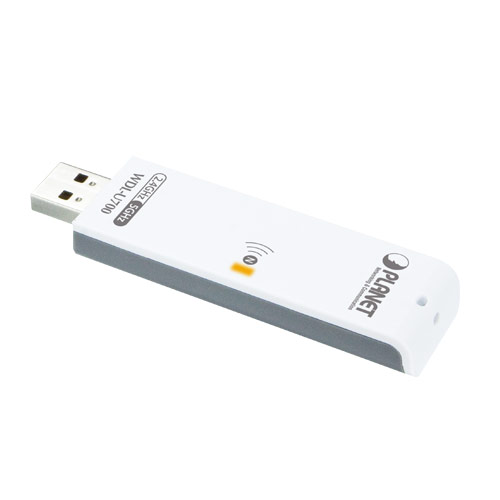

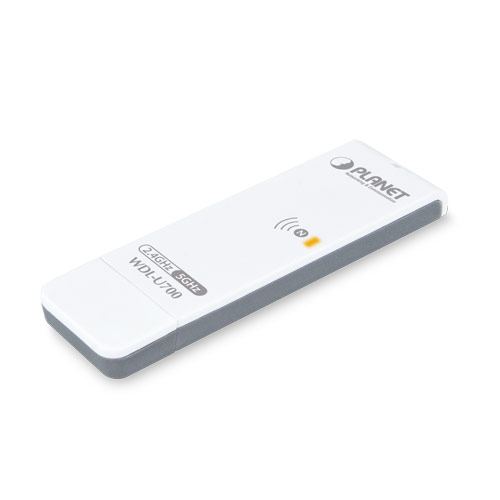

PLANET WDL-U700 is a cost-effective, highly integrated USB Wireless Adapter containing the dual band technology that supports 2.4GHz or 5GHz wireless signals on a Wireless Adapter. It supports up to 300Mbps data rate and fully complies with 802.11a/b/g/n specifications, providing feature-rich wireless connectivity at high standards, and delivering reliable throughput from an extended distance. Designed in the optimized RF architecture and baseband algorithms, the WDL-U700 provides superb performance with low power consumption. The WDL-U700 Wireless USB Adapter complies with standard based features in the areas of security, quality of service and international regulation, and therefore it gives end users the greatest performance anytime in any circumstance. | | | | Benefits of High Speed 5GHz Signal

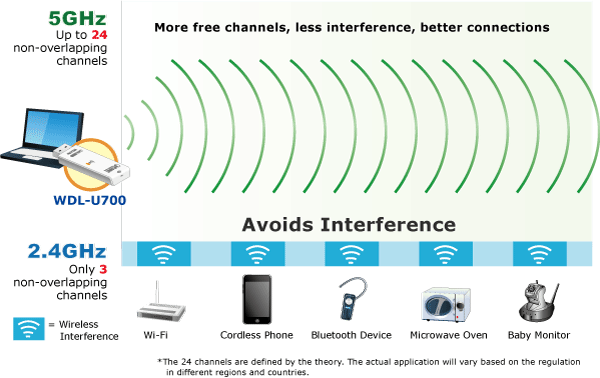

Since there are more and more wireless applications and electric devices using the radio frequency of 2.4GHz, the wireless channel of 2.4GHz has been already too crowded for clients to enjoy the high-speed wireless connection. In order to avoid the wireless interference between each other, the WDL-U700 provides users with the radio frequency of 5GHz for watching HD videos or playing online games. This function makes the WDL-U700 more suitable for multimedia applications requiring wider bandwidth. | | | | High Speed 802.11n Wireless Experience

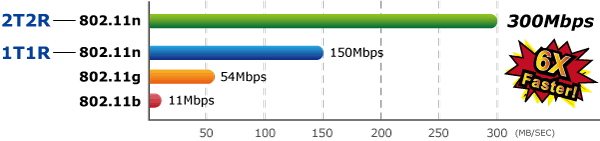

The WDL-U700 offers a reliable and cost effective wireless extending solution. It adopts IEEE 802.11n standard with 2T2R antenna technology and is backward compatible with IEEE 802.11b and 802.11g. The WDL-U700 supports USB 2.0 interface that integrates with one transmit channel and one concurrent receive channel to enable the speed up to 300Mbps for both data upload and download. | | | | Advanced Wireless Security

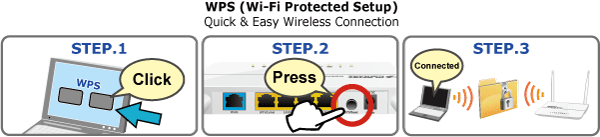

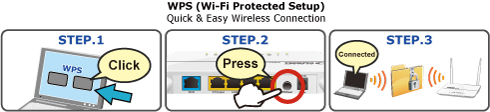

The WDL-U700 provides advanced security features including 64/128-bit WEP, WPA / WPA2 and WPA-PSK / WPA2-PSK with TKIP/AES encryption. Furthermore, in order to simplify the security configurations, WPS (Wi-Fi Protected Setup) function is included to offer a convenient and fast connection method for users as well. | | | | Multiple OS ComplianceS
Enabling convenient application, the WDL-U700 supports the most popular operating systems including Windows 2000, XP, Vista, Win7, Linux, and MAC OS X. With high speed capability, users can have higher wireless transmission speed anywhere, anytime.

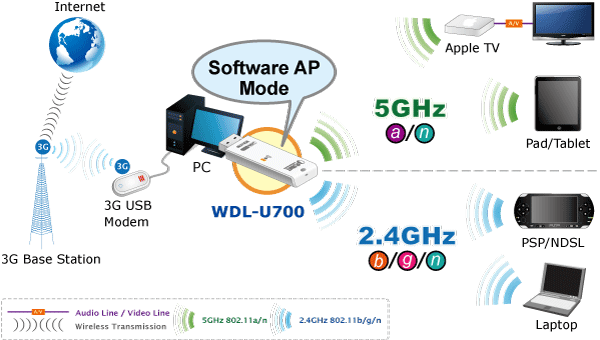

Software Access Point Function for Wireless Connection Sharing
More than just being an adapter for PC and laptop connecting to high speed wireless network, the WDL-U700 can also become a wireless access point. With the USB Wireless LAN Utility included in the package, users can switch the WDL-U700 operation mode between Station mode and Access Point mode. When the WDL-U700 is in the Access Point mode, it turns to a Wi-Fi Hotspot. The Wi-Fi supported devices such as iPhone / Android / Windows Phone / iPad / NDS / PSP can connect to it and share the wireless access easily. Therefore, travelers would then be worry-free to connect to Internet wirelessly via the WDL-U700 when there is only wired Internet available. | | | |

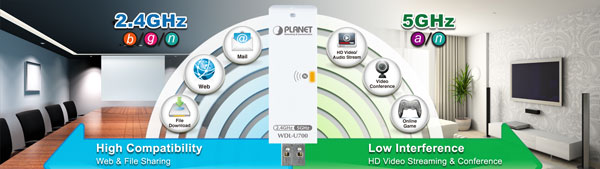

Flexible Dual Band WiFi Connection

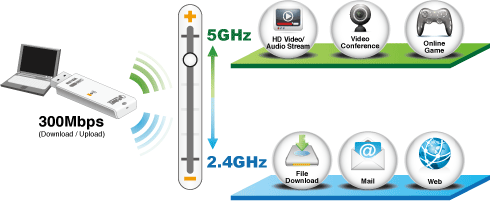

By simply inserting the WDL-U700 Dual Band Wireless USB Adapter into your PC, MAC or laptop, you can easily connect to various 2.4GHz or 5GHz wireless network with high-speed and stable wireless quality. To avoid signal interference and ensure the best Wi-Fi performance, the WDL-U700 delivers the Dual Band technology to provide users with flexible options to connect to the wireless network with either 2.4GHz or 5GHz frequency band. Users can check e-mail, surf the Internet and transmit data via the 2.4GHz band; on the other hand, watching High-Definition (HD) video or playing on-line gaming via the 5GHz band. With outstanding stable high-speed wireless transmission, the WDL-U700 can provide users with excellent multimedia streaming. | | | | Easy and User-friendly Installation
The WDL-U700 is a perfect choice for wireless connectivity. It takes advantage of flexibility and convenience of USB2.0 interface, and offers full mobility and high availability by easy installation and true "Plug & Play" operation. | |
- 2.4GHz & 5GHz Dual Band Wireless Connectivity
- Complies with IEEE 802.11a/n & IEEE 802.11/b/g/n Standard
- 5GHz band supports to optimize HD video streaming and online gaming
- Built-in internal antennas with 2T2R MIMO technology
- Maximal speed up to 300Mbps upload and download
- USB 2.0 / 1.1 attached interface
- Supports Software AP mode
- Supports WEP 64/128-bit, WPA, WPA-PSK, WPA2, WPA2-PSK (TKIP/AES encryption)
- Wi-Fi Protected Setup (WPS) support
- Supports QoS-WMM (WiFi Multi-Media) function / WMM-PS
- Easy Wireless configuration utility
- Easy to install using the multi-language setup wizard
- Windows XP, Win7, Win 8, Linux, and MAC OS X ready
- Low Power usage with Advanced Power Management
| |
硬件特性 |
Interface |
USB 2.0, Type-A |
Antenna Type |
Internal antenna |
LED |
1 x Link / Active (Amber) |
Operation Voltage |
5V DC, power input from USB port |
Dimensions (W x D x H) |
24 x 86 x 10 mm with USB cap
24 x 83 x 10 mm without USB cap |
无线管理特性 |
标准一致性 |
IEEE 802.11n standard compliant
IEEE 802.11b/g backwards compatible
IEEE 802.11a backwards compatible |
RF调制 |
BPSK, QPSK, CCK
OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
频段 |
2.4GHz & 5GHz |
数据传输速率 |
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
802.11n (20MHz): up to 144.4Mbps
802.11n (40MHz): up to 300Mbp |
无线发射功率 (EIRP) |
20dBm (max) |
接收灵敏度 |
IEEE 802.11n HT40: -61dBm@10% PER
IEEE 802.11n HT20: -64dBm@10% PER
IEEE 802.11g: -65dBm@10% PER
IEEE 802.11b: -85dBm@8% PER
IEEE 802.11a: -65dBm@10% PER |
操作模式 |
Ad-Hoc / Infrastructure, Soft AP |
加密安全 |
WEP 64/128-bit
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES) |
无线高级功能 |
Supports 802.11e WMM (Wi-Fi Multimedia)
Supports Software WPS (Wi-Fi Protected Setup) |
管理 |
The utility included in the package or Windows XP Zero Configuration utility |
操作系统 |
Windows 2000/XP (x86/x64) / VISTA (x86/x64) / Win7 (x86/x64)
Linux Kernel 2.4 /2.6
Macintosh 10.4/10.5/10.6/10.7/10.8 |
认证 |
辐射 |
CE, FCC |
环境 |
工作温度 |
0 ~ 40 degrees C (32 ~ 104 degrees F) |
湿度 |
10 ~ 90%, non condensing |
包装 |
包装清单 |
?WDL-U700 (300Mbps 802.11n Wireless USB adapter)
?Quick Installation Guide
?CD (including driver, utility, user�s manual)
|
