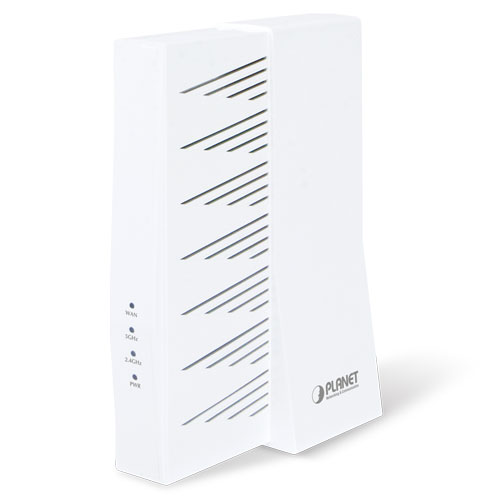

WDRT-750AC

750Mbps 802.11ac Wireless Broadband Router

概述
应用场景
功能特性
产品规格
下载
相关产品

Amazing, Next-Generation Wireless High-Speed Connection

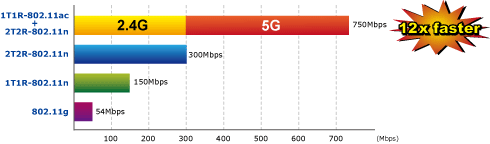

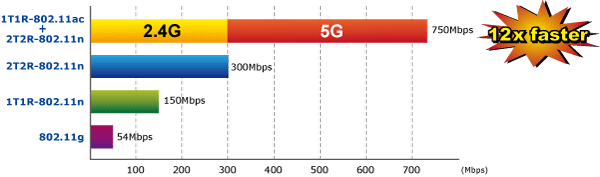

PLANET WDRT-750AC Wireless Broadband Router supports IEEE 802.11a/b/g/n/ac standard and dual band technology, meaning it can provide the wireless speed up to 433Mbps in the 5GHz frequency band and 300Mbps in the 2.4GHz frequency band at the same time, which is 12 times faster than that of the traditional 11g access point. Compared with the general wireless routers, the WDRT-750AC offers faster transmission speed and more convenient method to enable or disable wireless signal.

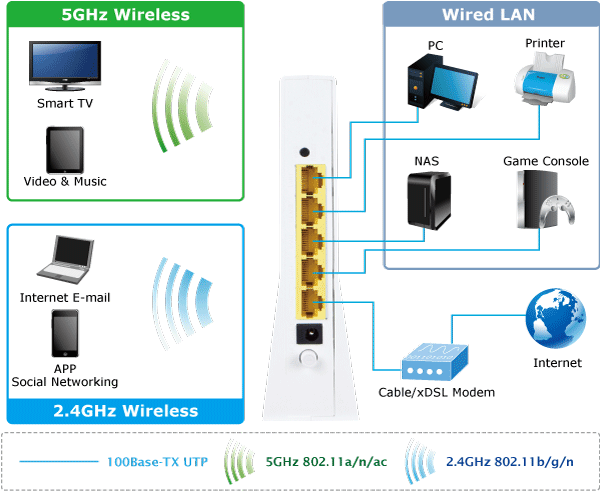

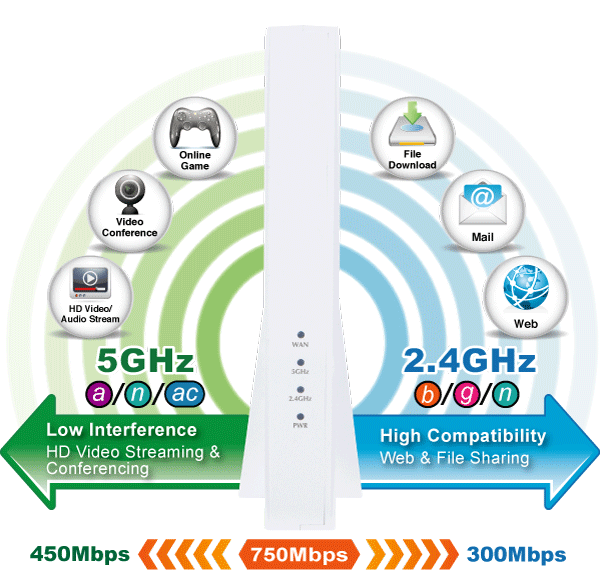

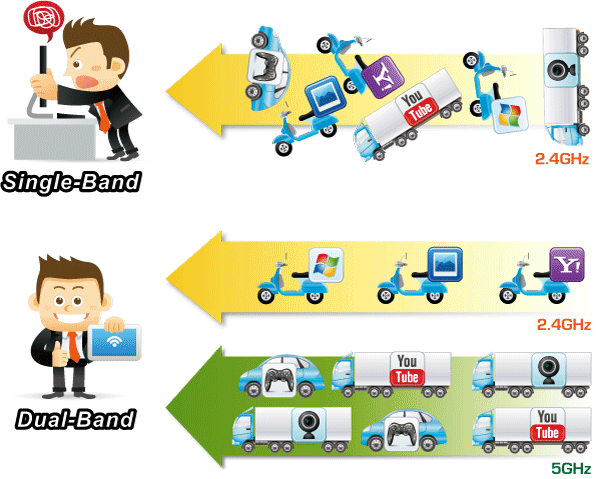

2.4G and 5G Simultaneous Dual-Band Wireless Connectivity
Since there are more and more wireless applications and electric devices using the radio frequency of 2.4GHz, the wireless channel of 2.4GHz has been already too crowded for clients to enjoy the high-speed wireless connection. In order to avoid the wireless interference between each other, the WDRT-750AC provides users with the radio frequency of 5GHz for watching HD videos or playing online games additionally. Meanwhile, it enables other users to surf the Internet via the original radio frequency of 2.4 GHz. The WDRT-750AC is just like 2 totally independent access points in one device for you.

Powerful Firewall and Complete Access Control Functions
The WDRT-750AC supports NAT function allowing multiple users to access Internet via a single legal IP. It also provides Virtual Server for the specific LAN PC to act as an application server and offer certain service to the clients on the Internet. In addition, the powerful firewall offered by the WDRT-750AC protects your Intranet clients from unauthorized accesses and various kinds of DoS attacks from the Internet. In the aspect of firewall, the WDRT-750AC supplies IP-based and MAC-based access control to prevent possible hackers attack.

Full Support of Wireless Security Encryption

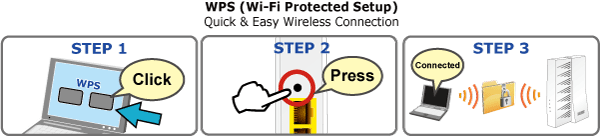

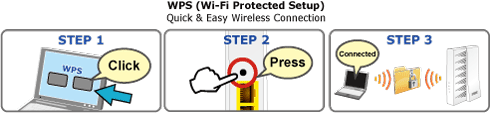

To secure the wireless communication, the WDRT-750AC supports up-to-date encryption technology, WPA / WPA2 and WPA-PSK / WPA2-PSK with TKIP/AES. The WDRT-750AC supports Wi-Fi Protected Setup (WPS) configuration with PBC/PIN methods to simplify the wireless security settings. By just clicking the WPS button, the secure connection between the wireless AP and wireless client will be built immediately

硬件特性

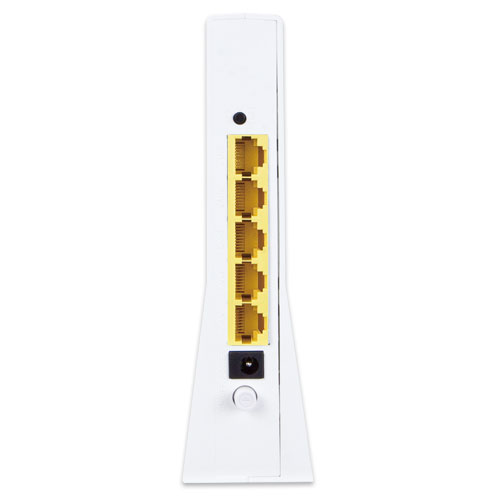

端口

WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ-45 port
LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ-45 ports (LAN1~4)

天线增益

2.4GHz: 2 x 2.5dBi PCB Antenna
5GHz: 1 x 3.8dBi Internal Antenna

重置/WPS 按钮

Reset / WPS button at rear panel
Press for about 10 seconds to reset the device to factory default
Press for 1 second to activate WPS function

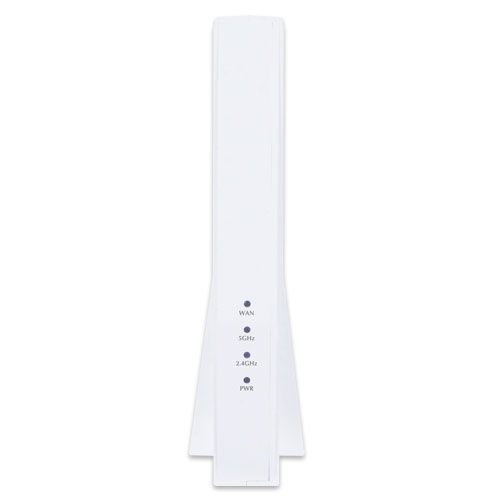

LED指示灯

PWR x 1
WLAN (2.4G & 5G) x 2
WAN x 1

材质

Plastic

尺寸

163 x 100 x 43 mm

重量

146g

功率需求

12V DC, 0.5A

功率消耗

Maximum of 4 watts

无线端口特性

标准

Compliant with IEEE 802.11a/b/g/n/ac

频段

Simultaneous 2.4 GHz and 5 GHz

调制类型

DSSS (DBPSK / DQPSK / CCK)
OFDM (BPSK / QPSK / 16QAM / 64QAM)
MIMO

数据传输速率

2.4GHz / 11n:Up to 300Mbps
5GHz / 11ac:Up to 433Mbps

信道

2.4GHz
??America / FCC: 2.412~2.462GHz (11 Channels)
??Europe / ETSI: 2.412~2.472GHz (13 Channels)
??Japan / TELEC: 2.412~2.484GHz (14 Channels)
5GHz
??5.180~5.240GHz, 5.745~5.825GHz (Up to 9 channels)
??The actual channels in application will vary depends on the regulation in
??different regions and countries.

信道频宽

20/ 40/ 80 MHz

RF功率/ EIRP

2.4GHz

	11b: 17�1dBm
	11g: 14�1.5dBm
	11n: 14�1.5dBm

5GHz

	11a: 14�1.5dBm
	11n: 14�1.5dBm
	11ac: 13�1.5dBm

接收灵敏度

2.4GHz

	11b (11Mbps): -79dBm
	11g (54Mbps): -72dBm
	11n (20MHz) mode: -69dBm
	11n (40MHz) mode: -65dBm

5GHz

	11a(54Mbps): -72dBm
	11n (20MHz) mode: -69dBm
	11n (40MHz) mode: -65dBm
	11ac (20MHz) mode: -57dBm
	11ac (40MHz) mode: -54dBm
	11ac (80MHz) mode: -51dBm

管理功能

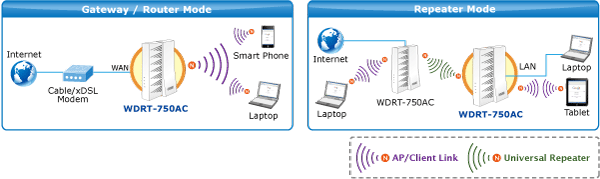

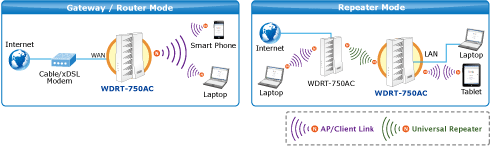

无线工作模式

? Gateway
? Repeater

加密安全

WEP (64/128-bit)
WPA / WPA2
WPA-PSK / WPA2-PSK encryption

无线安全

Provides Wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (WiFi Protected Setup )

高级无线功能

Supports Dual-SSID (2.4G & 5G)

大用户接入

Wire: 254
Wireless: 32

路由功能

WAN端口设定

Shares data and Internet access with users, supporting the following internet accesses:
? DHCP
? Static IP
? PPPoE
? PPTP
? L2TP

防火墙

NAT firewall
Built-in NAT server which supports Virtual Server and DMZ
Built-in firewall with IP address filtering, port filtering, URL filtering, and MAC address filtering

LAN端口

Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports Packets Statistics
IP-based Bandwidth Control
Session Number: Max. 1500

系统管理

Web-based (HTTP) management interface
Remote management (WAN Access Control)
SNTP time synchronize
System Log

IEEE 标准

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

其他协议与标准

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP

系统兼容性

Windows 7
Windows Vista
Windows XP
Mac OS X 10.4 and higher

标准一致性

温度

Operating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C

湿度
