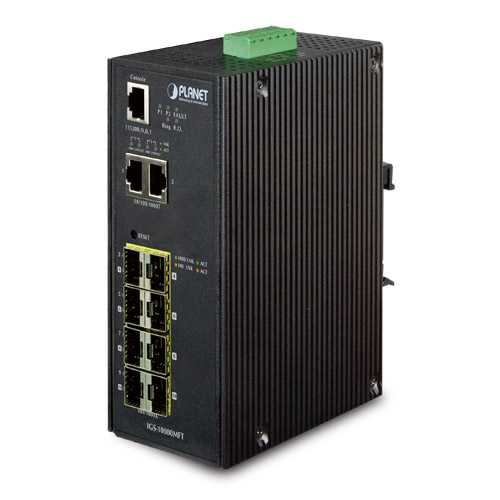

IGS-10080MFT

Industrial 8 100/1000X SFP + 2-Port 10/100/1000T管理型交换机(-40~75 degrees C)

概述
应用场景
功能特性
产品规格
下载
相关产品

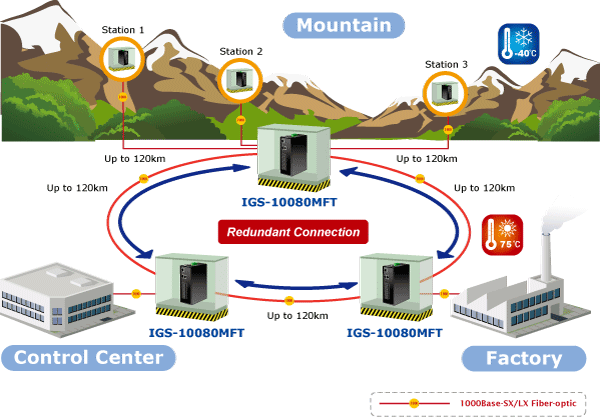

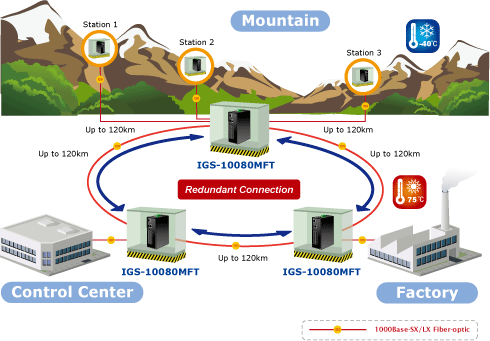

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Industry and Telecom

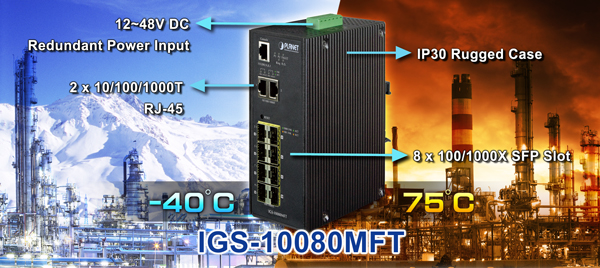

PLANET IGS-10080MFT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable, high speed data in heavy industrial demanding environments and also can forward data to remote network through fiber optic. It provides 8-Port 100/1000Base-X SFP fiber optic interface and 2 extra 10/100/1000Base-T copper interfaces delivered in an IP30 rugged strong case with redundant power system, being able to operate under the temperature range from -40 to 75 Degree C, the IGS-10080MFT can be placed in almost any difficult environment.

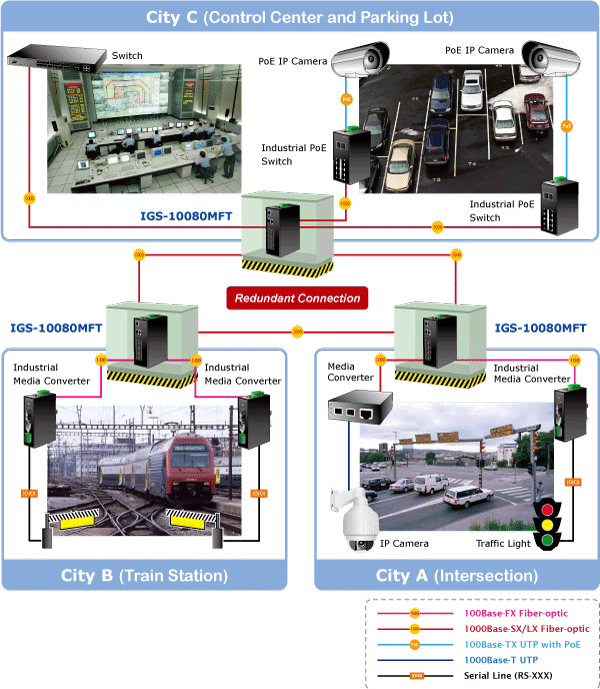

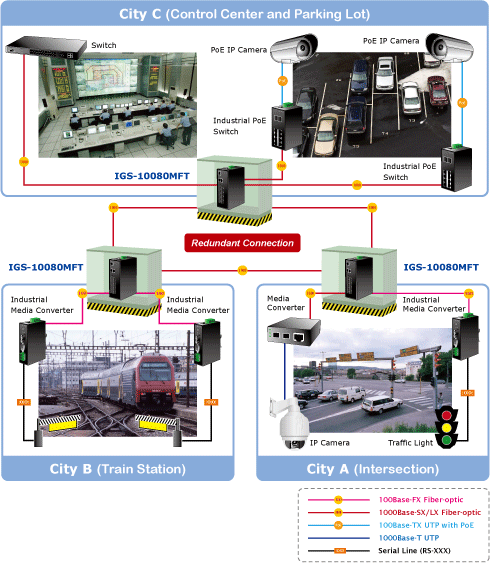

IPv6 / IPv4 Full-Functioned Managed Switch for Building Automation Networking
The IGS-10080MFT is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. The IGS-10080MFT provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer�s industrial and automation network connectivity.

Fast Recovery to a Redundant Ethernet Network
The IGS-10080MFT features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (RSTP), Multiple Spanning Tree (MSTP) as well as the Loop protection function that will shutdown specific Ethernet interfaces when system detects a loop. The dynamic port Link Aggregation and Redundant Power System are provided into customers� industrial automation network to enhance system reliability and uptime in the harsh factory environments. It greatly protects customer�s industrial network with switching recovery capability that is used for implementing fault tolerant ring architectures.

Flexible and Extendable Solution

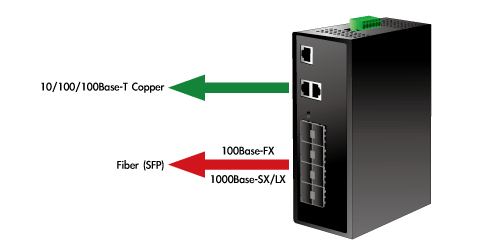

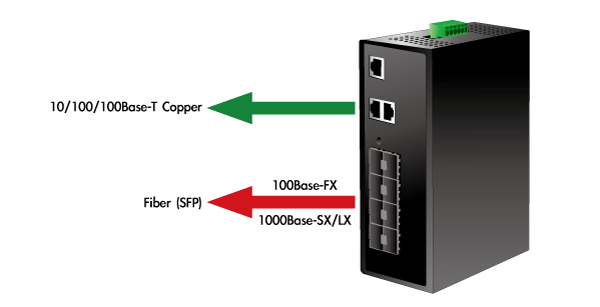

The 8 mini-GBIC slots built in the IGS-10080MFT support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, that means, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Physical Port

8 100/1000Base-SX/LX mini-GBIC SFP slots
2 10/100/1000Base-T Ethernet interface

Industrial Case / Installation

IP30 Aluminum case protection
DIN-Rail and Wall Mount Design
Redundant Power Design

- 12 to 48V DC, redundant power with polarity reverse protect function

- AC 24V power adapter acceptable

Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 Degree C operation temperature

Layer 2 Features

Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Storm Control support

- Multicast / Unknown-Unicast

Supports VLAN

- IEEE 802.1Q Tagged VLAN

- Up to 255 VLANs groups, out of 4095 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN

- Protocol-Based VLAN

- MAC-Based VLAN

- Voice VLAN

Supports Spanning Tree Protocol

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 5 trunk groups, up to 10 ports per trunk group

- Up to 20Gbps bandwidth(Duplex Mode)

Provides Port Mirror (many-to-1)
Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Supports E.R.P.S. (Ethernet Ring Protection Switching, *Function to expect in future)

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification

- IEEE 802.1p CoS

- IP TOS / DSCP / IP Precedence

- IP TCP/UDP port number

- Typical network application

Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
MVR (Multicast VLAN Registration)

Security

IEEE 802.1x Port-Based / MAC-Based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
TACACS+ login users access authentication
RADIUS / TACACS+ users access authentication
IP-Based Access Control List (ACL)
MAC-Based Access Control List
Source MAC / IP address binding
DHCP Snooping to filter un-trusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Loop Protection
IP address access management to prevent unauthorized intruder

Management

Switch /Management Interfaces

- Web switch management

- Remote Telnet management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

Four RMON groups (history, statistics, alarms, and events)
IPv6 IP Address / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP / TFTP
DHCP Relay
DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
PTP (Precision Time Protocol)
Link Layer Discovery Protocol (LLDP) Protocol
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deploy management

硬件特性

光口

8 100/1000Base-SX/LX mini-GBIC SFP slots

电口

2 10/100/1000Base-T Ethernet interface

处理方式

Store-and-Forward

背板带宽

20Gbps / non-blocking

吞吐量

14.8Mpps

地址表

8K entries, automatic source address learning and ageing

流控

IEEE 802.3x Pause Frame for Full-Duplex. Back pressure for Half-Duplex

巨型帧

9Kbytes

重置按钮

< 5 sec: System reboot
> 5 sec: Factory Default

ESD保护

6KV DC

EFT保护

6KV DC

材质

IP30 Aluminum Metal Case

安装方式

DIN Rail Kit and Wall Mount Kit

报警功能

One relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V

LED指示灯

System:
?Power 1 (Green)
?Power 2 (Green)
?Fault Alarm (Green)
?Ring (Green) *
?R.O. (Green) *
Per 10/100/1000T RJ-45 Ports:
?1000 (Green)
?10/100, LNK/ACT (Orange)
Per SFP Interface:
?1000 LNK/ACT(Green)
?100 LNK/ACT (Orange)

尺寸

152 x 107x 72mm

重量

1036g

电源要求

DC 12 to 48V, AC 24V Power Adapter

功率/损耗

13.92 Watts / 47.76BTU (Full loading)

2层特性

管理特性

Web Browser, Remote Telnet, SNMP v1, v2c

安全管理

SSH, SSL, SNMP v3

端口设定

Port disable/enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Auto-Detection / Forced 100/1000Mbps SFP Fiber transceiver speed
Flow Control disable / enable
Power saving mode control

端口状态

Display each port�s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status

端口镜像

TX / RX / Both
Many to 1 monitor

E.R.P.S. Ring *

Recovery time <20ms

VLAN

802.1Q Tagged Based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs

链路聚合

IEEE 802.3ad LACP / Static Trunk
Supports 5 groups of 10-Port trunk

QoS

Traffic classification based, Strict priority and WRR
8-Level priority for switching
?- Port Number
?- 802.1p priority
?- 802.1Q VLAN tag
?- DSCP field in IP Packet

IGMP Snooping

IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode support

MLD Snooping

MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support

访问控制列表（ACL)

IP-Based ACL / MAC-Based ACL
Up to 256 entries

带宽控制

Per port bandwidth control
?Ingress: 500Kb~1000Mbps
?Egress: 500Kb~1000Mbps

SNMP MIBs

RFC-1213 MIB-II
RFC-2236 IGMPv2
RFC-2710 MLDv1
RFC-3376 IGMPv3
RFC-2879 RMON 1, 2, 3, 9
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
IF-MIB
LLDP
MAU-MIB

标准一致性

遵从法规

FCC Part 15 Class A, CE

稳定性测试

IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

国际标准

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP

环境

工作

Temperature:	-40 ~ 75 degree C
Relative Humidity:	5 ~ 95 % (non-condensing)

存储

Temperature:	-40 ~ 75 degree C
Relative Humidity:	5 ~ 95 % (non-condensing)

* Remark: function to expect in future

订购信息
IGS-10080MFT	Industrial 8 100/1000X SFP + 2-Port 10/100/1000T Managed Switch (-40 ~ 75 Degree C)
