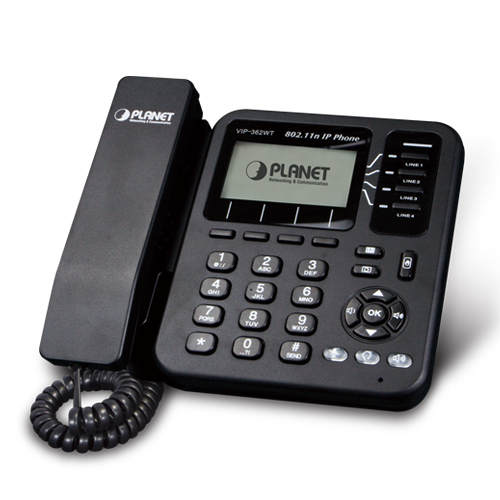

Continuously providing customers with the VoIP total solutions with quality and affordability, PLANET has come out with the new desktop IP phone with wireless feature, the VIP-362WT. It supports the latest VoIP protocols and allows users to take phone calls anywhere via the wireless LAN. The VIP-362WT wireless IP phone helps to improve productivity of organization by bringing convenience and user-friendliness to business communication through converged voice and wireless networks.
802.11n Wireless SIP IP Phone Provides More Flexibility in VoIP
Based on years of VoIP networking R&D experience, PLANET integrates IEEE 802.11 b/g/n wireless features with the SIP compliant IP Phone to present the desktop phone model -- VIP-362WT. The VIP-362WT is a cost-effective, easy-to-install and simple-to-use desktop IP phone that unleashes your voice communications free from wires limitation and offers more flexibility in VoIP deployment. It is ideal for the enterprises and SOHO users to enjoy toll-quality voice communication services via the existing wireless network and Internet access in daily routine communications.
| | | | | | Toll-quality Communication over Wi-Fi
In addition to being applied through standard RJ-45 cable, the VIP-362WT can function with PLANET wireless access points to form a perfect solution for voice over wireless applications. With flexible support by PLANET IP PBX and the existing VoIP systems, the VIP-362WT allows users to make or receive phone calls in the coverage of 802.11n high speed wireless environment and offers toll-quality voice communication services via SIP-based call servers and various VoIP client devices.
| | | | Highly Efficient VoIP Management in New Age
The VIP-362WT not only performs traditional phone functions but also enhances data and voice services by providing the SNMP and TR069 features which facilitate the central management of voice over IP system in large scale user environment. The system administrator can monitor each phones status in the control room and increase the management efficiency.
| | | |

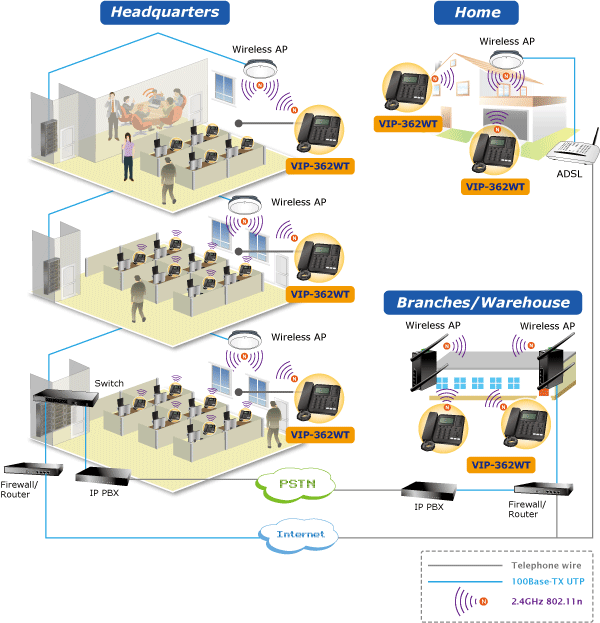

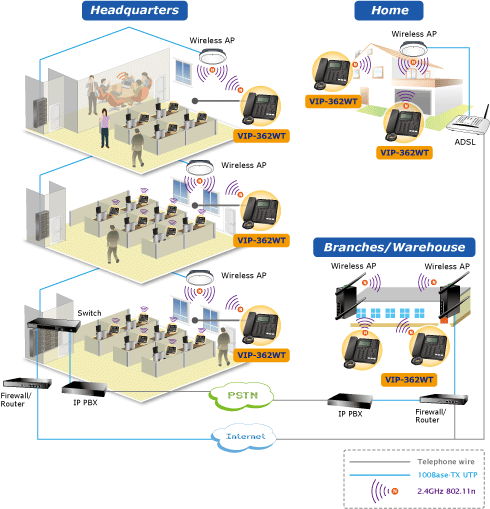

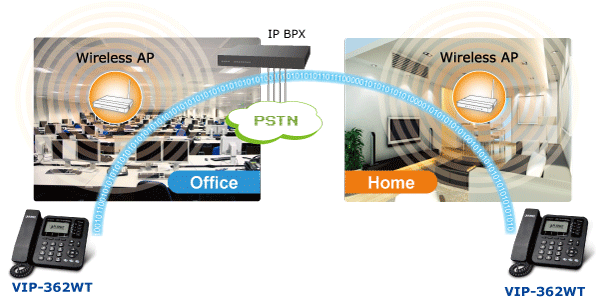

Companies with wireless access points can benefit from using the VIP-362WT in their work environment for voice communication with less effort. Just plug and talk, the mobile worker can make the calls anywhere in the office, warehouse or factory. When functioning with PLANET access point such as 802.11n ceiling mount AP (model WNAP-C3220) and Unified Office Gateway series as the IP PBX / Firewall Gateway, the VIP-362WT guarantees the true secured communication for the enterprise.

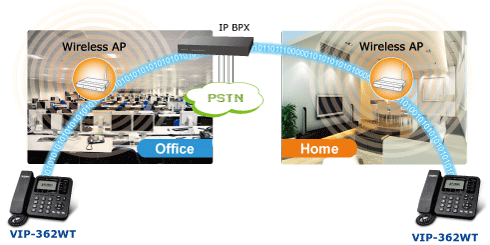

At home, the VIP-362WT also provides the flexibility in installation like no wires at all. Home users can make calls easily. With PLANET wireless ADSL router such as the ADN-4100, the VIP-362WT enables the toll-free calls to the Internet or to the office with toll-quality through wireless transmission.
| | | |
Product Features- IEEE 802.11 b/g/n compliant wireless desktop IP phone
- 128 x 64 Graphic LCD with white backlight
- Efficient deployment with IP PBX solution
- Cost effective, field proven compatibility, and stability

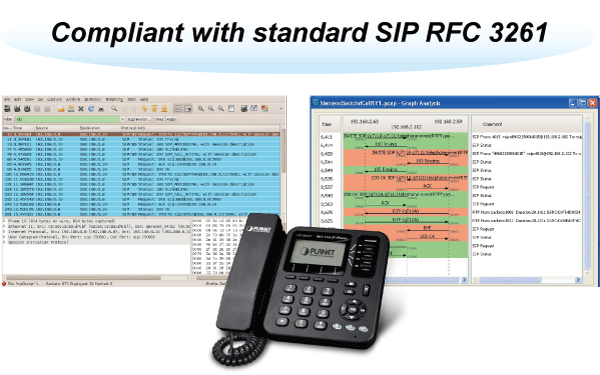

Supports Protocol- SIP v2 (RFC 3261, 3262, 3263, 3264)
- Backward Compatible with RFC2543
- Session Timer (RFC4028)
- SDP (RFC2327)
- RTP/RTCP (RFC1889 and RFC1890)
- NAPTR for SIP URI Lookup (RFC2915)
- STUN (RFC 3489)
- ARP / RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP server and client
- HTTP Server for Web Management
- TFTP / HTTP / HTTPS for Auto Provisioning
- Message Waiting Indicator (RFC 3842)
- DHCP Option Codes for SIP (RFC 3361)
- DNS / DNS SRV (RFC 1706 and RFC 2782)
- IEEE 802.1Q VLAN, 802.1p and IP TOS
Call Features- 4 lines
- Auto Answer, 3-Way Conference, Music on hold
- Call Hold, Call Forwarding, Call Mute, Call Transfer, Call Waiting, Call Pickup
- CID and CWCID
- DTMF Relay: In-band, Out-band (RFC 2833) and SIP Info
- Full-Duplex Speakerphone
- Hotline, Redial, Dial Plan
- Message Waiting Indicator (MWI)
Management- Firmware Upgradeable
- Web Management Interface
- Password Management
- Local and Remote Syslog (RFC 3164)
- Auto Provisioning: TFTP, HTTP and HTTPS
- SNTP Time Synchronization
- Multi User Level
- SNMPv2
- TR069
| |

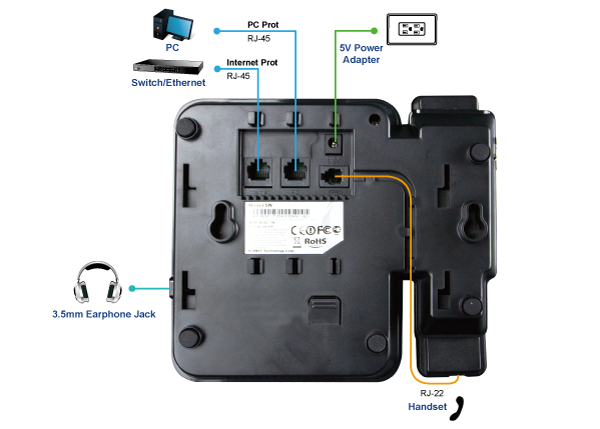

硬件特性 |
电脑端口 |
10/100Mbps, half or full duplex, auto-negotiation |
LAN 端口 |
10/100Mbps, half or full duplex, auto-negotiation |
10/100Mbps 端口,半双工或全双工,自动协商 |
128�64 Graphic LCD with white backlight |
耳机插孔 |
3.5mm earphone jack |
电话按键 |
4 soft keys
4 Line keys with red-green dual color LED for indication
MENU, DND, HOLD
Volume +, Volume -, Mute and navigate key
Headphone, Hands free
12 Dialing Buttons (0~9, *, #)
|
协议与标准 |
国际标准 |
SIP V2 (RFC 3261, 3262, 3263, 3264)
Backward compatible with RFC 2543
Session Timer (RFC 4028)
SDP (RFC 2327)
RTP / RTCP (RFC1889 and RFC 1890)
NAPTR for SIP URI Lookup (RFC 2915)
STUN (RFC 3489)
ARP / RARP (RFC 826 and RFC 903)
SNTP (RFC 2030)
DHCP server and client
HTTP Server for Web Management
TFTP / HTTP / HTTPS for Auto Provisioning
Message Waiting Indicator (RFC 3842)
DHCP Option Codes for SIP (RFC 3361)
DNS / DNS SRV (RFC1706 and RFC 2782)
IEEE 802.1Q VLAN / 802.1p and IP TOS
|
VPN网络 |
PPTP and L2TP |
语音编码 |
G.711 (A-Law, ?-Law), G.729, G.723, G.722 |
语音标准 |
Adaptive Jitter Buffer Management
Voice Activity Detection
Comfort Noise Generation
Echo Cancellation
|
无线特性 |
频率 |
2.4GHz ~ 2.4835GHz |
操作模式 |
AP Client mode, allows connection to Internet via either Wired or Wireless LAN |
安全 |
WEP, WPA, WPA2, WPA/WPA2-PSK |
RF 发射功率 |
802.11b mode: 17.5+/-2dBm
802.11g mode: 14+2/-1dBm
802.11n mode: 14+2/-1dBm
|
接收器灵敏度 |
11M : -90dBm
54M : -79dBm
300M : -68dBm
|
天线 |
Internal 2dBi dipole antenna |
功能特性 |
呼叫功能 |
4 Lines
Auto Answer
3-way Conference
Music on hold, Call Hold, Call Forwarding, Call Mute, Call Transfer, Call Waiting, Call Pickup
Message Waiting Indicator (MWI)
CID and CWCID
DTMF Relay: In-band, Out-band (RFC2833) and SIP Info
Full-Duplex Speakerphone
Delayed Hotline
Redial, Dial Plan
Volume Adjustment |
应用 |
SMS Function
MAC Address Cloning
SIP proxy redundancy: dynamic via DNS SRV, A records
Direct IP to IP calling
Alarm Clock
Day Light Saving
NAT Traversal: Traversal by STUN
Built-in NAT Router (wired mode)
VPN
QoS with Layer 2 and Layer 3
DHCP Server and Client
IP Conflict Detection
|
网络设定 |
互联网连接类型 |
Fixed IP, DHCP, PPPoE |
管理 |
LCD / Keypad UI
Web (HTTP)
Auto Provision (TFTP / HTTP / HTTPS)
|
尺寸 (W x D x H) |
220 x 187 x 97 mm |
操作环境 |
0~50 degrees C, 10~90% humidity |
电源要求 |
5V DC 1A |
EMC/EMI |
FCC, CE |
