| Hardware Specifications |
| 端口 |

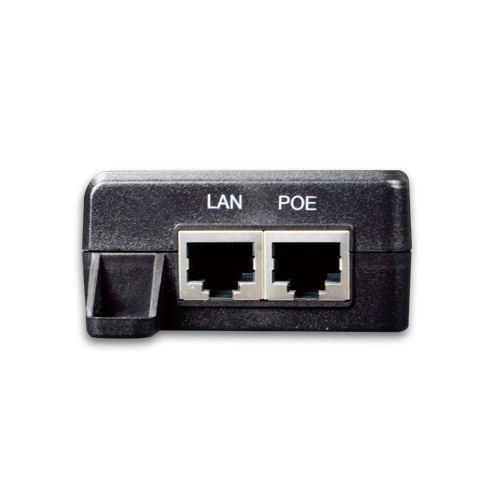

LAN 1 x RJ-45 STP, “Data” Input Port
PoE 1 x RJ-45 STP, “Data + Power” Output Port

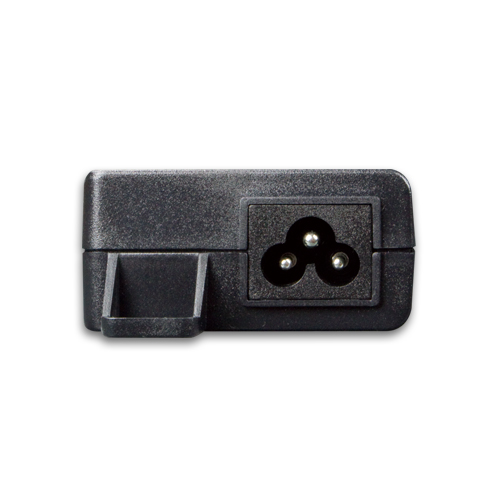

AC Connector 1 x AC Input power socket, IEC-320 C6
|
| 线缆 |
Ultra PoE (60W) 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3af/at PoE
(15W / 30W) 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
|

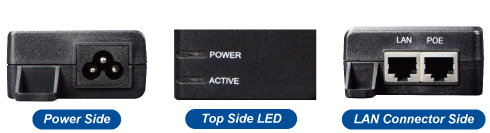

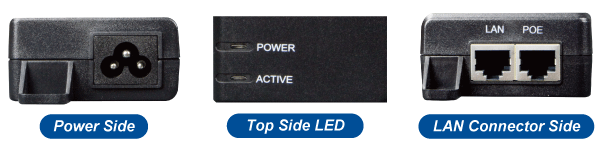

| LED指示灯 |

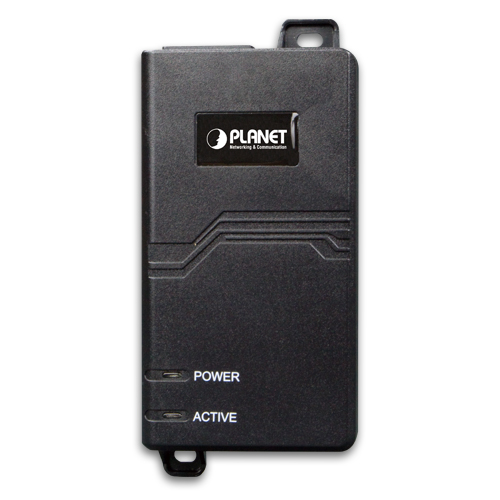

System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green) |
| 数据速率 |
10/100/1000Mbps |
| 尺寸 (W x D x H) |
115 x 62.5 x 31 mm |
| 重量 |
177g |
| 输出电压 |
DC 50V, 1.2A |
| 电源要求 |
100-240V AC @50/60Hz, 1.5A max. |
| 功率 |
60 watts max. |
| Power over Ethernet |
| PoE 标准 |
Ultra PoE over 4-pairs UTP,
IEEE 802.3at High Power over Ethernet End-Span / Mid-Span PSE
|
| PoE供电类型 |
End-Span + Mid-Span |
| PoE供电针脚 |

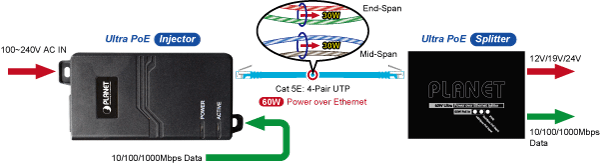

Pair 1 End-Span: 1/2(+), 3/6(-)
Pair 2 Mid-Span: 4/5(+), 7/8(-) |
| PoE输出功率 |
DC 50V / 60-watt PoE via 4-pairs
DC 50V / 30-watt PoE via 2-pairs
|
| Standards Conformance |
| 国际标准 |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet |
| 法规遵从 |
FCC Part 15 Class B, CE |
| Environment |
| 工作温度 |
0 ~ 50 degrees C |
| 存储温度 |
-10 ~ 70 degrees C |
| 工作湿度 |
5 ~ 95%, Relative Humidity, non-condensing |
| 存储湿度 |
5 ~ 95%, Relative Humidity, non-condensing |
