| 硬件规格 |
| PC端口 |
8 |
| PC端口连接器（均为母头） |
3-in-1 HDDB 15-pin Female (include Keyboard, Mouse & Monitor) |
| Console 连接 |
Keyboard
Mini DIN 6-pin Female
Mouse
Mini DIN 6-pin Female
Monitor
HDDB 15-pin Female
Mouse USB (Female)
USB (Type A)
Keyboard USB (Female)
USB (Type A)
|
| 键盘鼠标 |
104-key keyboard with touch pad |
| 触摸板 |
1000 points/inch (40 points/mm) graphics tablet mode |
| 鼠标分辨率 |
300 DPI |
| 控制功能 |
| PC连接数 |

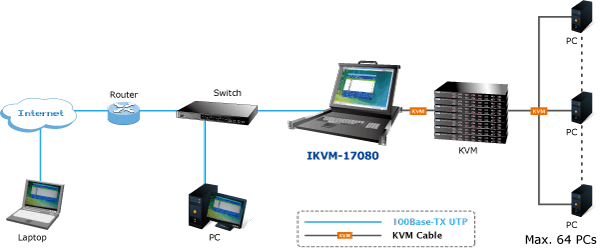

64 (by cascade 8 KVM-810) |
| 端口选择按键 |
8 |
| PC选择 |
On Screen Display Menu / Hot Key / Button |
| KVM视频分辨率 |
Local console: 1280 x 1024 @ 75Hz
Remote console: 1600 x 1200 @ 60Hz
|
| 硬件规格与环境 |
| 显示屏尺寸 |
17 inches |
| 面板类型 |
2CCFL LCD panel |
| LCD的分辨能力 |
Maximum resolution up to 1280 x 1024 (SXGA) |
| 点距 |
0.264 (H) x 0.264 (V)
0.294 (H) x 0.294 (V)
|
| 背光寿命 |
50,000 hours |
| 操作系统 |
Windows 2000 / XP / 2003 / Vista / Win7, Linux, Mac OS9 / OSX and Sun Microsystems |
| 底盘结构 |
Heavy duty steel materials |
| 导轨滑块尺寸 |
51 cm (extended length 30cm) |
| 尺寸 (W x D x H) |
440 x 450 x 44 mm |
| 重量 |
10.5 Kg |
| 温度 |
Operating Temperature: 5 ~ 40 degrees C (41 ~ 104 degrees F)
Storage: -20 ~ 60 degrees C ( -4 ~ 140 degrees F)
|
| 湿度 |
0 ~ 80% (non-condensing) |
| 电源要求 |
Universal 100~240V AC input |
| 认证 |
CE / FCC |
