Providing Better Lens for Clearer and Sharper Surveillance Image

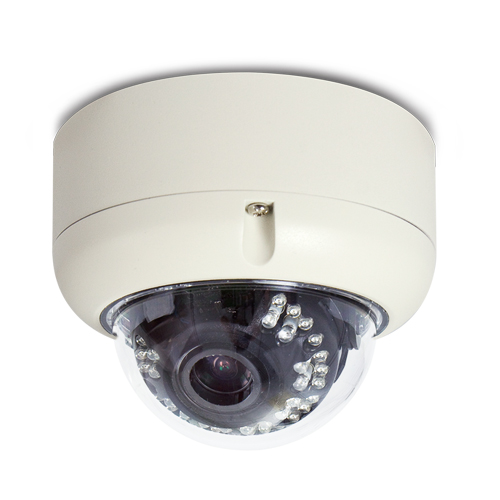

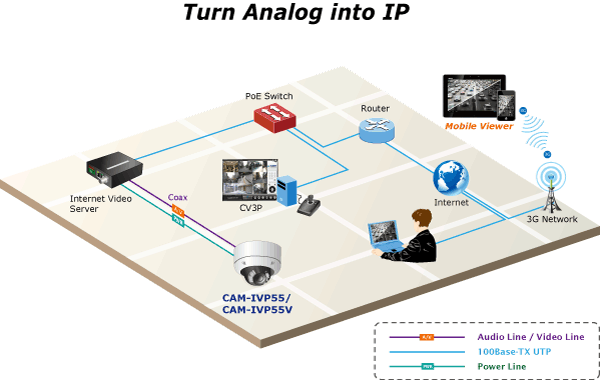

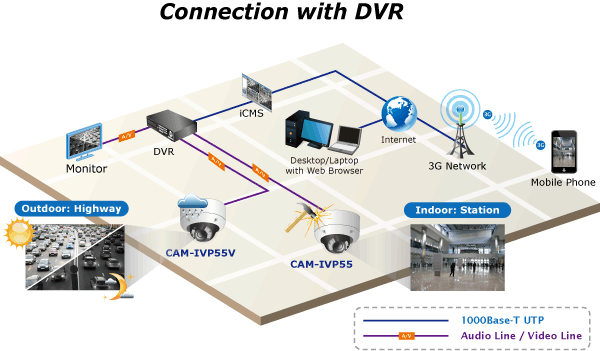

PLANET has launched the CAM-IVP55V, a Clearer and Sharper 25-meter Infrared Vari-focal Vandalproof Camera. When working with PLANET Digital Video Recorders or Internet Video Servers, it helps users to easily create a secure protection system in their daily lives.

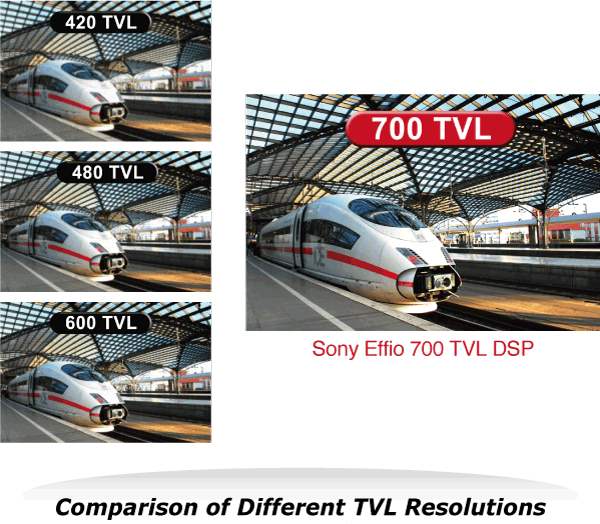

The CAM-IVP55V is integrated with the latest, highly-sensitive color Sony Effio-E DSP 960H EXview 1/3" interline transfer charge coupled device (CCD) image sensor, producing pictures reaching a horizontal resolution of 700TV lines (TVL). Its auto-iris lens will then adjust the amount of light that passes through the lens automatically.

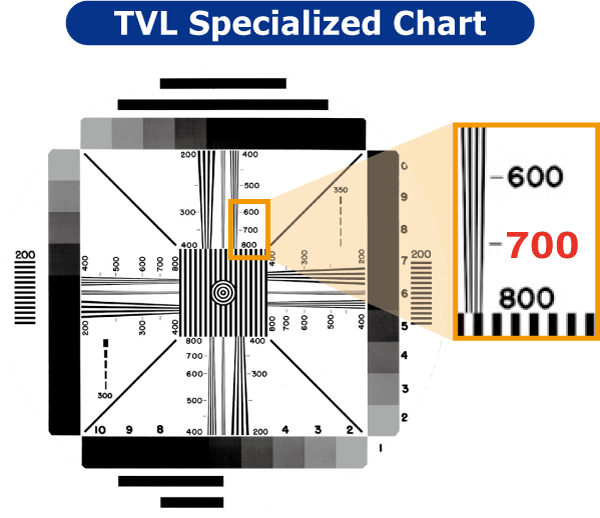

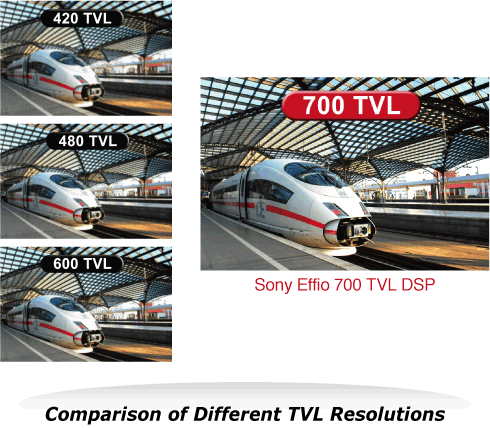

TV lines are a measure of horizontal resolution. The human eye cannot detect the number of TV lines that a camera can produce. This must be measured using a specialized chart like the one shown below.
|
| |
|
| |
|
| |
Sony Effio-E DSP EXview 1/3" CCD Sensor
What is Effio? It stands for Enhanced Features and Fine Image Processor. The "Effio" series realizes a horizontal resolution of maximum 700 TVL in combination with Sony's newly-developed 960H CCD image sensor. It draws upon Sony's extensive know-how and technology to further pursue the high resolution, S/N ratio and color reproducibility demanded of security cameras. This enables to provide clearer pictures with higher sensitivity compared to conventional CCTV cameras.
"EXview HAD CCD II" is a trademark of Sony Corporation.
The "EXview HAD CCD II" is a CCD image sensor that realizes sensitivity (typical) of 1000mV or more per 1m2 (Color: F5.6 / BW: F8 in 1 s accumulation equivalent) and improves light efficiency by including near infrared light region as a basic structure of Sony's "EXview HAD CCD".
|
| |
|
| |

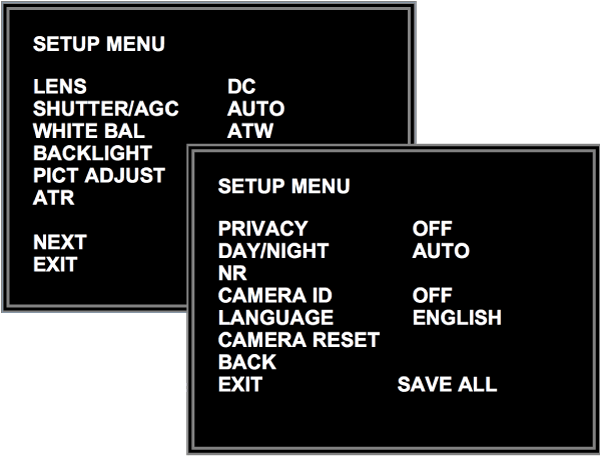

External OSD (On Screen Display) Setup Menu Interface
It's possible to control menu displayed on-screen for adjusting diverse image quality of camera. All functions can be operated from OSD: SHUTTER/AGC, HLC, ATR, WB (White Balance), BLC (Back Light compensation), day & night mode and provides Noise Reduction function. All these make it easy for user to use. |
| |
|
| |
High Tech, High Quality, High Protection

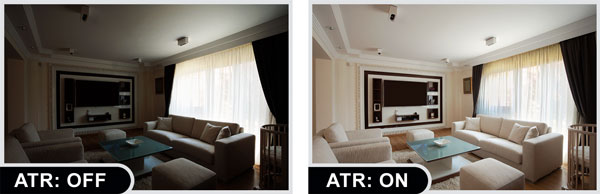

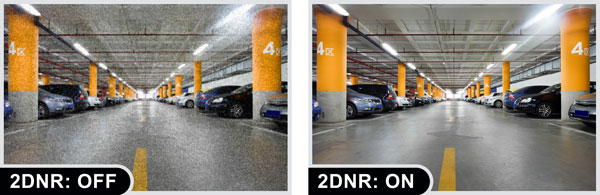

ATR technology improves the visibility of the entire picture by providing the optimum gradation compensation for the image in one field based on the luminance information. Adopting the 2-DNR technology and automatically-reduced noises at low light environment, it brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.
|
| |
|
| |
|
| |

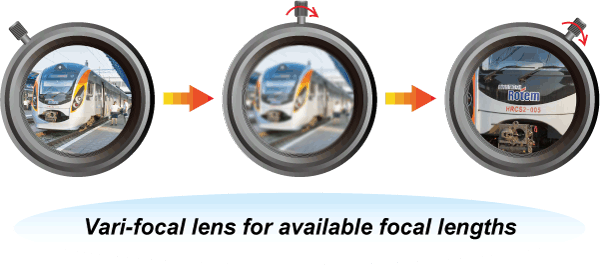

Vari-focal Lens Offers the Best Recording Flexibility
The CAM-IVP55V's built-in vari-focal lens with ICR 2.8~12mm / F1.4 provides a range of focal lengths allowing users to zoom in/out the image with one lens, which has the option of selecting a high millimeter setting for narrow viewing fields or a low millimeter setting for wider viewing fields. The CAM-IVP55V provides high quality images under all lighting conditions.
|
| |
|
| |

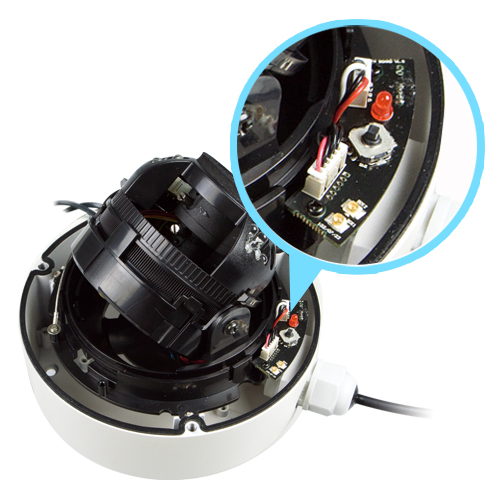

Day & Night Functionality and 3-Axis Mechanism Design
For a clear surveillance image both in the day and night, the CAM-IVP55V can prevent the annoying halo issue that always accompanies with the IR dome camera. A display resolution of 700TV lines makes the still image clear even at night. Special headlight design of blocking the refracted IR ray into the lens makes the CAM-IVP55V bring the clearest vision and average irradiation. With 3-axis movement for free lens rotation, users could adjust the lens to any angle desired by the users. Thus, the CAM-IVP55V is able to maintain clear images 24 hours a day.
|
| |
|
| |

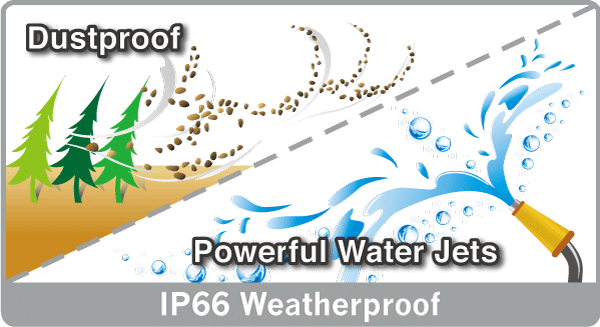

Vandalproof Design and IP66 Certified
The CAM-IVP55V also has vandalproof design that can shield 10 pounds of impact. It is the perfect choice for outdoor surveillance system by providing IP66 weatherproof certified protection, 700 TVL high-quality images and Infrared LED solutions.
|
| |
|
| |
