| Image |
| Video Compression |
H.264 / MPEG-4 / M-JPEG |

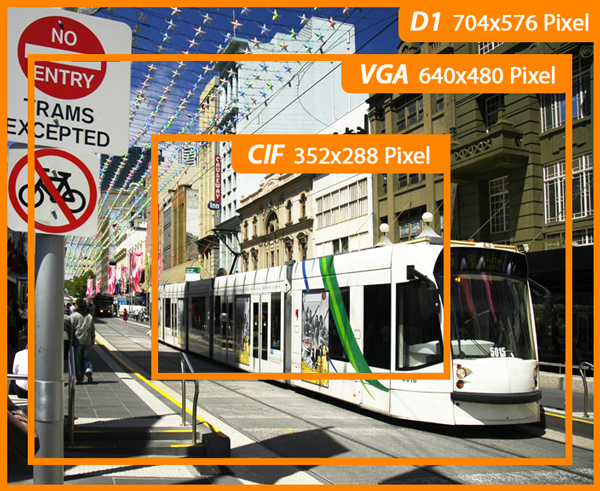

| Video Resolution |
4CIF (D1), CIF, QCIF |
| Frame Rate |
30/25 (NTSC/PAL) fps in all resolutions |
| Image Setting |
AE, AWB
3D noise reduction
Color, brightness, sharpness, contrast
Mirror / Flip
8 Privacy Masks
Text, time and date overlay
|
| Streaming |
Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP / HTTPS
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
ROI
|
| Audio |
| Audio Streaming |
Two-way audio |
| Audio Compression |
RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR
|
| Microphone |
External microphone input |
| Audio Output |
Adjustable audio output gain |
| Network and Configuration |
| Standard |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af PoE
|
| Protocol |
IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba |
| Security |
Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
| Users |
20 clients on-line monitoring at the same time |
| System Integration |
| Application Programming Interface |
Open API for software integration
ONVIF Compliant
|
| Alarm Triggers |
Intelligent video motion detection, audio detection and external input |
| Alarm Events |
File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alert output
Pre- and post-alarm buffering
|
| Environment Specifications |
| Power Requirements |
48VDC, 0.3A over IEEE802.3af Class 3 |
| Power Consumption |
4W (max.) |
| Operating Temperature |
0 ~ 40 degrees C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Weight (including lens) |
215g |
| Dimensions (W x D x H) |
94 x 70 x 26 mm |
| Emission |
CE, FCC |
| Connectors |
10/100Mbps Ethernet, RJ-45
BNC connector, 75 ohm impedance
DC power jack, 12VDC, 0.4A out (for analog camera only)

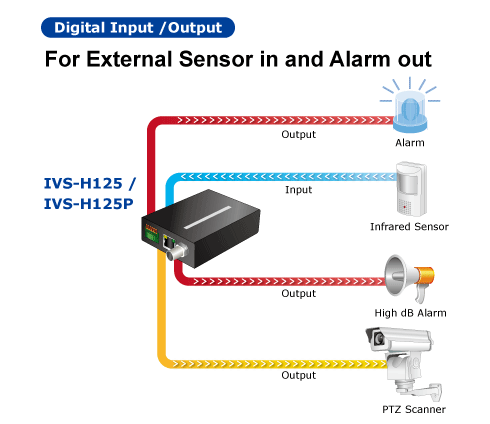

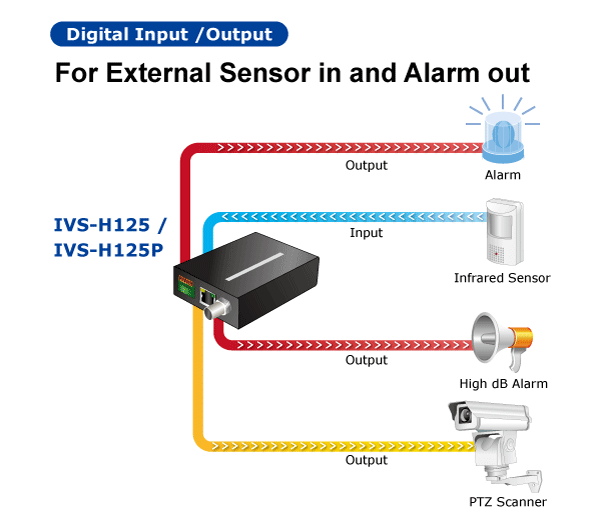

Terminal block for 1 alarm input and 1 output
RS-485 interface for pan/tilt scanners control
External mic input
Composite video / audio output
Micro SD/SDHC card (max 32GB, Class 6)
Factory default reset
|
