Perfectly Designed for FTTx Last Mile Applications

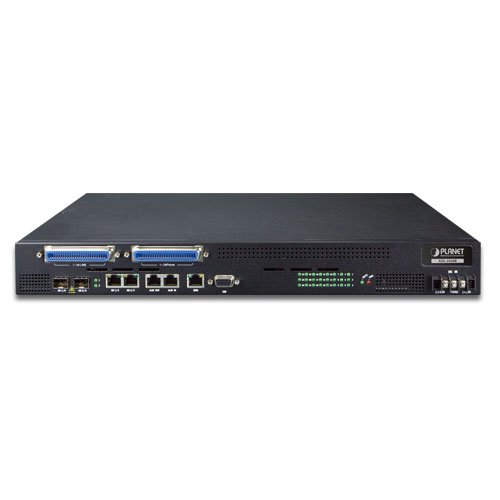

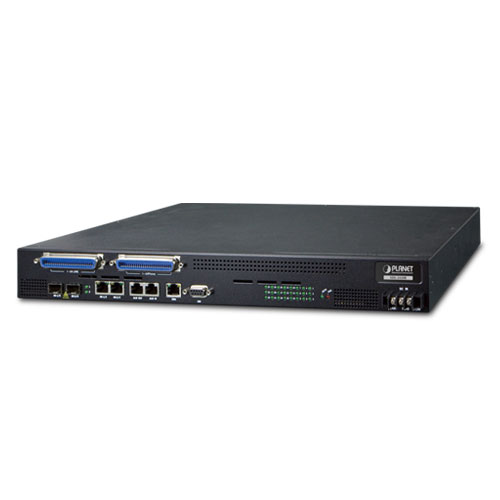

PLANET XDL-2420R is a telecom-level, high-performance IP-DSLAM (Digital Subscriber Line Access Multiplexer) with 24-port VDSL2 / ADSL2+ and 2-port Gigabit TP / SFP combo interfaces, and AC plus DC Redundant Power System. The XDL-2420R is fully compliant with ITU-T G.993.2 VDSL2 standard band plan up to profile 30a. It offers maximum download and upload line rate up to 100/100Mbps on the existing twisted pair lines. For ADSL connectivity, the XDL-2420R supports high interoperability and backward compatibility with ATU-R, and ADSL2 / ADSL2+ line mode. It is an ideal CO solution for FTTx last mile applications of broadband access by ISPs and Telecoms.
| | | | Delivering High-demand Service Connectivity for ISP/Triple Play Devices
The XDL-2420R provides excellent bandwidth to meet the requirement of the triple play devices for home entertainment and communications. With the capability of 100/100Mbps symmetric data transmission, the XDL-2420R enables many multi-media services to work on the Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.
ADSL2+ Fallback
For those ISPs that still provide ADSL broadband service, the XDL-2420R supports transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL 2+ technology. The XDL-2420R supports PPPoE relay to establish connection with ISP, and it is switched over to VDSL2 after the network upgrade.
Comprehensive and Advanced VDSL2/ADSL2+ Configuration
For the bandwidth and distance of broadband access, the XDL-2420R IP-DSLAM supports multiple selective VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a), 997/998 band plan and ADSL/ADSL2/ADSL2+ ITU-T G.993.1, ITU-T G.992.3, ITU-T G.992.5, Annex A/B/L/M transmit modes to each subscriber line. Furthermore, it can be configured on a per-link basis for transmission mode, rate limitation, INP (impulse noise protection) and SNR (signal-to-noise) margin. These advanced xDSL functionalities help service providers to adjust the line performance and build a stable and reliable IP-DSLAM solution.
Extremely-reliable Design to Ensure Continuous Operation
The XDL-2420R supports the SELT (Single-end Loop Testing) and dual power inputs system for continuous network operation. SELT simplifies the testing of a DSL loop from one end to the line to be completed easily from the central office (CO) without having to require a technician or any equipment to be employed at the subscriber site. SELT makes line maintenance easily and reduces device shutdown time. The XDL-2420R is also equipped with one 90~240V AC unit and one DC -48V power supply unit for power redundancy. The Redundant Power System offers more reliability and reduces the possibility of device shutdown. The -48V DC power supply implemented makes the XDL-2420R IP-DSLAM as a telecom level device that can be located at the electronic room. | |

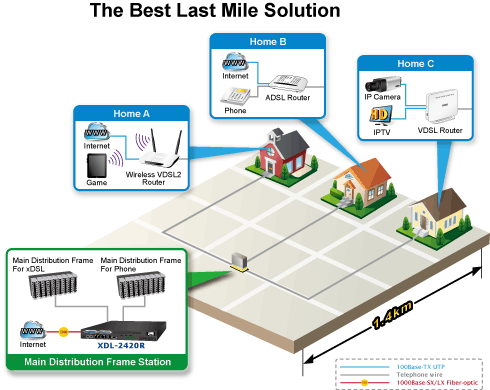

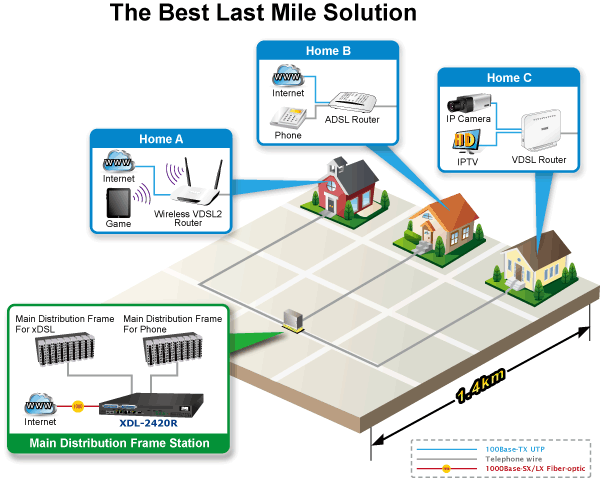

High-speed Broadband Communications for Home Triple Play Application
Nowadays, higher speed home broadband connections are in great demand, but most of the last mile solutions in the market are not easily to be deployed or cost very much. The XDL-2420R will be the perfect solution to the last mile deployment for ISP and Telecom service providers as it applies the EoVDSL (Ethernet over VDSL) to providing up to 100Mbps speed transmission capability with the current telephone wire (RJ11), and thus it does not cost too much for re-wiring and can make many multi-media services come true. The XDL-2420R not only gives the excellent bandwidth for the triple-play home entertainment and communications, but also supports ADSL2 / ADSL2+ technology for users to conveniently utilize the current ADSL / ADSL2+ device.

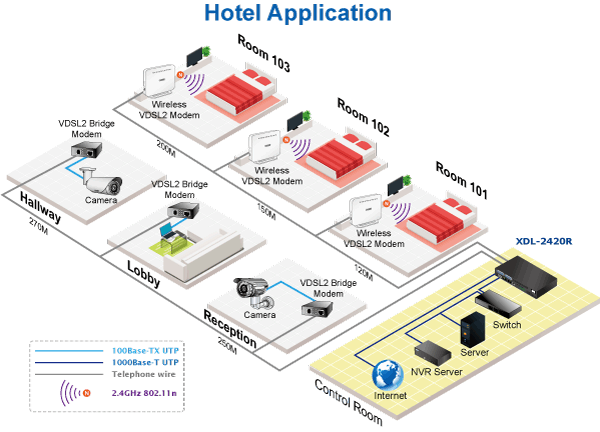

| | | | VDSL2 in Hotel Deployment
The XDL-2420R can support the ISP and Telecom service providers in long-distance network deployment. By Ethernet standard, the length of cable can only reach up to 100 meters, and thus, the Ethernet network cannot meet the requirement when the deployment needs a longer cable. To solve this issue, the XDL-2420R complies with the VDSL2 / ADSL2+ standard where up to 1.4km in cable length through existing phone wires can be supported. Thus, in the Hotel network, for example, the IPTV, Internet and wireless facilities can be installed in each room even though the central office or control room is over 100 meters away.
| | | |

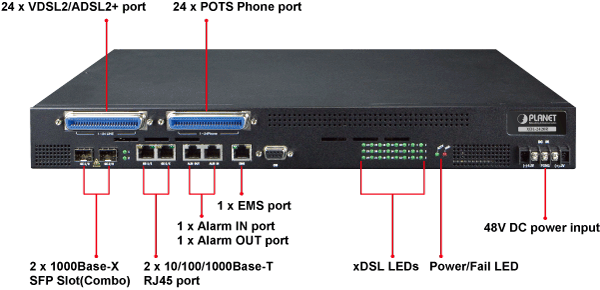

DSL Interfaces- 24 full-duplex VDSL2 / ADSL2+ links via RJ21 (Telco-50) connector
- 24 corresponding POTS lines via RJ21 (Telco-50) connector
- Built-in POTS splitter for each VDSL / ADSL port
- Compatible with PLANETs VDSL2 CPE devices: VC-231, VC-234, VDR-300NU
- Compatible with PLANETs ADSL2/2+ router: ADN-4101, ADE-3400, ADE-3410, ADE-4400, VDR-300NU
- Auto-speed function for DSL link (by distance and cable quality)
Ethernet Interfaces- 2 10/100/1000Mbps TP and 2 1000Mbps SFP shared combo interfaces
- 1 alarm in and 1 alarm out copper ports
- Auto-MDI/MDI-X detection on Gigabit RJ-45 port
VDSL2 Features- Cost-effective VDSL2 link and central management solution
- Compliant with ITU-T G.993.2 VDSL2 standard (8a,8b,8c,8d,12a,12b,17a and 30a Profiles)
- Configurable xDSL line profile and alarm profile
- DMT (discrete multi-tone) line coding VDSL
- Up to profile 30a 100/100Mbps symmetric data rate for VDSL2vSelectable target data rate and target SNR margin
- Built-in surge protection against surge damage from high energy spike
- Voice and data communication can be shared on the existing telephone wire simultaneously
- Supports downstream / upstream rate control on each port
- UPBO/DPBO supported
ADSL2/2+ Features- Compliant with ADSL2/2+ standard
- - ITU-T G.992.1 Annex A/B
- - ITU-T G.992.3 Annex A/B, Annex L mode1 and mode2
- - ITU-T G.992.5 Annex A/B/M
- Configurable xDSL line profile and alarm profile
- Supports upstream 3.5Mbps and downstream 24Mbps at the maximum
- Supports PPPoE relay
Layer 2 Features- Destination Lookup Fail (DLF) / Broadcast Rate Limit
- Q-in-Q VLAN
- Supports Redundancy / Static Link Aggregation / Daisy Chain uplink application mode
- 8 queues priority for SP-priority and WRR-weight QoS
- ToS to VLAN priority remark mapping
Quality of Service- 8 queues priority for all xDSL ports
- SP-priority / WRR-weight QoS
- ToS to VLAN priority remark mapping
Multicast
Security- 8 groups Layer2/3/4 Access Control List
- DHCP Option82
Management- System date and time control
- Single-end loop testing
- Lamp test
- User management account
- Out-band management
- Remote management control
- SNMP trap

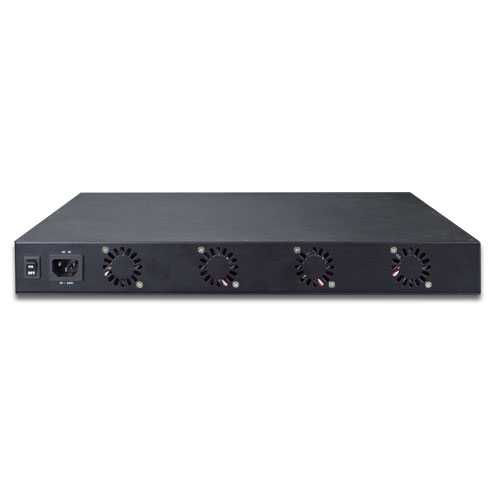

Power System- 90~240V AC and -48V DC dual power input interfaces
- Supports power redundancy
| |
硬件规格 |
DSL |
24-Port VDSL2 / ADSL2+ Line via 1 RJ-21 (Telco-50) connector
24-Port POTS/Telephone via 1 RJ-21 (Telco-50) connector
|
1000Mbps Copper 端口 |
2-port 10/100/1000Mbps RJ45 auto-negotiation, auto MDI/MDI-X |
SFP/mini-GBIC 端口 |
2 1000Base-SX/LX/BX, shared with GE1 and GE2 port |
Totally Fabric |
8.8Gbps / non-blocking maximum |
吞吐量 |
6.547Mpps @64Bytes maximum |
MAC 地址表 |
16K entries |
LED |
System:
??ACTV (Power LED, Green)
Alarm:
??FAIL (Red)
??VDSL2 / ADSL2+ Link/Sync
Gigabit Port:
??1000 Link/Active (Green)
??100 Link/Active (Orange)
|
尺寸 (W x D x H) |
436 x 320 x 50.5 mm |
重量 |
4.8kg |
电源要求AC输入 |
90~240V AC, 50-60 Hz, 1.3A |
电源要求DC输入 |
-48V DC, 1.62A |
功耗/损耗 |
75 watts maximum or 257 BTU/hr maximum |
标准附件 |
? 1.4 meter Telco-50 cable x 2
? 19� rack mount kit x 1
? AC power cord x 1
|
xDSL |
VDSL2 Standard |
ITU-T G.993.2 |
Encoding |
VDSL-DMT |
VDSL2 Profile |
8a,8b,8c,8d,12a,12b,17a and 30a
8a,8b,8c,8d and 12a,12b
25K to 138K Hz (U0) optional band used
Dynamic rate adaptation
|
Band Plan |
Selectable band plan for each VDSL line on a per port basis
Band plan A:
?- Profile 998, Annex A of G.993.2; Optimized for symmetric services
Band plan B:
?- Profile 997, Annex B of G.993.2; Optimized for asymmetric services
|
ADSL2 Standard |
ANSI T1.413 Issue 2
ITU-T G.992.1, Annex A/B
ITU-T G.992.3 (ADSL2) Annex A/B, Annex L mode 1 and mode 2
ITU-T G.992.5 (ADSL2+) Annex A/B/M
|
PPPoE |
PPPoE relay |
xDSL Features |
Selectable rate limit control
Selectable target SNR (signal to noise ratio) mode
POTS voices pass-through
UPBO/DPBO supported (VDSL2 only) |
POTS Splitter |
Compliant with ETSI TS 101 952-1-1 option A for European deployment
The splitter is a passive element.
|
2层功能 |
管理方式 |
Web browser, Telnet |
IGMP |
IGMP v2, Fast Leave |
组播 |
Supports up to 256 multicast groups |
VLAN |
IEEE 802.1ad QinQ VLAN |
链路聚合 |
Static port trunk with 1 groups of 2-port trunk |
QoS |
8 priority queue
Traffic classification based on
?- Port priority
?- TOS to QinQ VLAN priority
|
访问控制列表 |
Layer 2/3/4 ACL |
安全 |
User Management
DHCP Option82
|
SNMP MIBs |
Private SNMP MIBs |
标准 |
符合规定 |
FCC Part 15 Class A, CE |
国际标准 |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3z 1000Base- SX / LX
IEEE 802.3ab 1000Base-T
IEEE 802.1ad QinQ VLAN tagging
ITU-T G.993.2 VDSL2 (Profile 30a support), Annex A/B
ITU-T G.992.1 ADSL
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
RFC 768 TFTP
RFC 783 IP
RFC 791 ICMP
RFC 792 Telnet
RFC 854 HTTP
RFC 2236 IGMP v2
|
布线 |
? VDSL2: twisted-pair telephone wires (AWG24 or better) up to 1.4km
? 10/100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
? 1000Base-T: 4-pair UTP Cat.5E, up to 100m
? 1000Base-SX: 50/125�m and 62.5/125�m fiber-optic cable, up to 550m
? 1000Base-LX: 9/125�m fiber-optic cable, up to 10km 50/125�m and
????????62.5/125�m fiber-optic cable, up to 550m
|
环境 |
温度 |
0~50 degrees C |
湿度 |
5~90% (non-condensing) |
