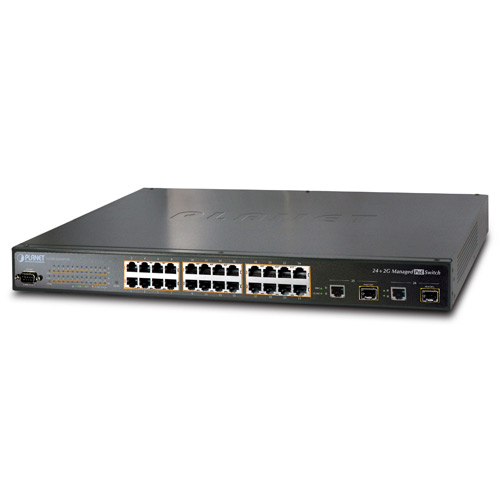

Cost-effective 24-port PoE Switch for SMB PoE Networking
PLANET FGSW-2620PVM PoE Switch features 802.3af Power over Ethernet (PoE) function, which optimizes the installation and safe power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones and IP surveillance cameras. 802.3af PoE capabilities reduce installation costs of add-in network productivity devices. It frees the wireless AP deployment from restrictions of power outlet locations. With PoE features, power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time. It provides a compact, affordable, safe and reliable power solution for small to medium enterprises.
Power over Ethernet, Easy Cabling Installation
The PoE in-line power following the standard IEEE 802.3af makes the FGSW-2620PVM able to power on 24 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire. With data and power over Ethernet, the FGSW-2620PVM can reduce cable deployment and eliminate the need for electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power, thus lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. The key feature of the deployment is energy saving. With more efficient switching power supply, the efficiency of the FGSW-2620PVM would be much better than four linear power adapters in the long run.
Centralized Power Distribution with Remote Management
The remote PoE management functions of the FGSW-2620PVM make it easy to survey and control the PoE power provision to the devices and ensure interoperability with equipment from other vendors. Via Web interface, SNMP trap and SNMP monitoring, the manager can get the PoE devices status and alert immediately. The over-temperature detection of the PoE switch offers a safe and stable PoE operation by limiting the output power according to detected temperature to prevent destructive breakdown caused by un-expected overheating.
High Performance Wire-Speed Switching
PLANET FGSW-2620PVM offers 24 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP combo ports. The two Gigabit TP/SFP combo ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PLANET FGSW-2620PVM boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 8.8Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the core switch or servers.
Efficient Management
To further expand the current network, PLANET FGSW-2620PVM provides console and telnet command line interface, and advanced Web and SNMP management interfaces to fill this kind of demand. With its built-in Web-based management, the FGSW-2620PVM offers an easy-to-use, platform-independent management and configuration facility. The FGSW-2620PVM supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. For text-based management, the FGSW-2620PVM can also be accessed via Telnet and the console port. Moreover, the FGSW-2620PVM offers secure remote management by supporting Secure Socket Layer (SSL) connection which encrypts the packet content at each session.
Robust Layer 2 Features
For efficient management, via Web interface, the FGSW-2620PVM can be programmed for basic switch management functions such as port speed configuration, Port link aggregation, IEEE 802.1Q VLAN and Q-in-Q VLAN, Port Mirroring, Rapid Spanning Tree and ACL security. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization.
Advanced Security and Quality of Service
PLANET FGSW-2620PVM offers comprehensive Layer 2, Layer 3 and Layer 4 Access Control List (ACL) to filter out unwanted traffic. Its protection mechanism comprises RADIUS and Port-based 802.1X user and device authentication. Moreover, the switch provides MAC filter, Static MAC, IP/MAC binding and Port Security for enforcing security policies to the edge. The administrators can now construct highly secured corporate networks with considerably less time and effort than before.
To ensure IP voice and video communication get the quality of service needed, the FGSW-2620PVM classifies traffic and prioritizes Layer 2 802.1p or Layer 3 IP DSCP traffic into four hardware queues that support strict or Weighted Round Robin (WRR) queuing algorithms. It also empowers the SMB IP office to take full advantages of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission. | |

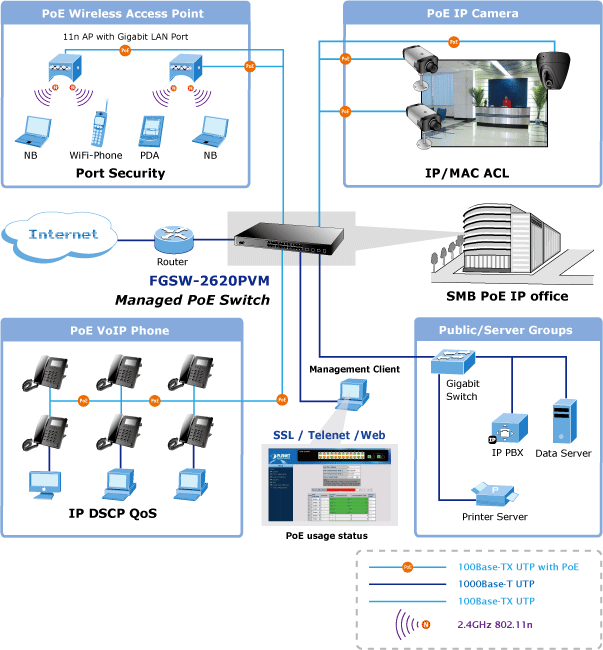

PoE IP Telephony Office
With the expansion of business office, the additional telephones required could be installed in less cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. PLANET FGSW-2620PVM PoE Managed Switch helps SMBs to create an integrated data, voice, and powered network. PLANET 802.3af compliant IP phones can be installed without the need of additional power cables because the power can be provided from the standard Ethernet cable connecting to the FGSW-2620PVM. PoE IP phones and analog Telephony adapter work perfectly with the FGSW-2620PVM which injects power through the Ethernet cables and the IP DSCP priority of QoS feature improves the voice communicating. With the FGSW-2620PVM, IP Telephony deployment becomes more reliable and cost effective, which helps SMBs save tremendous cost when upgrading from the traditional telephony to IP Telephony communications infrastructure. | | | | Department / Workgroup PoE Switch

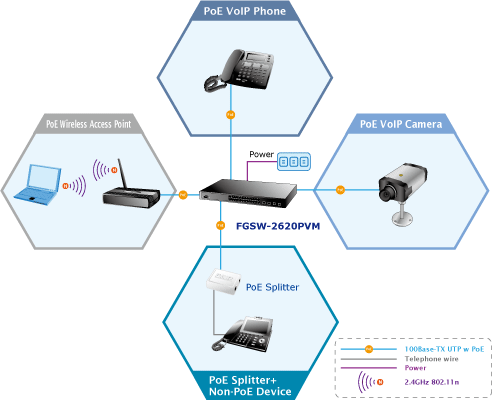

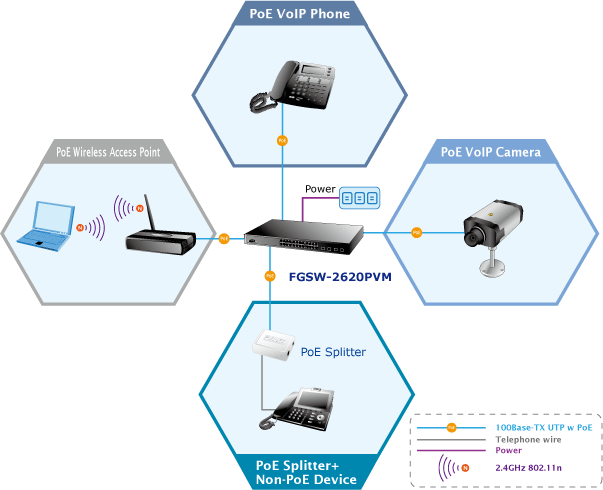

Providing up to 24 PoE, in-line power interface, the FGSW-2620PVM Managed PoE Switch can easily build a power centrally-controlled IP phone system, IP camera system, or wireless AP group for the enterprises. For instance, 24 cameras or APs can be easily installed in the company for surveillance demands or building a wireless roaming environment in the office. Without the power-socket limitation, the PoE Switch makes the installation of cameras or WLAN AP easier and more efficient. | | | | Factory / Warehouse Applications
While video surveillance system becomes more and more important for visible security in the factory or warehouse, the IP cameras with PoE function would be a lot helpful for the surveillance deployment when the power outlet can not be easily found in the ceiling or in the outdoors. For example, in the factory operation or in the warehouse storage security, the PoE IP cameras can be installed anywhere when needed regardless of the restrictions of power outlet location. With the PoE switch as the central control manager and offering remote power monitoring via Web interface or SNMP trap and SNMP monitoring, the manager can get the PoE devices status and alert immediately. The PoE IP cameras could also be controlled remotely, which increases the administrator management efficiency and improves the productivity. | |
Physical Port
24-Port 10/100Mbps Fast Ethernet ports with PoE Injector
2 10/100/1000Mbps TP and SFP shared combo interfaces
RS-232 male DB9 console interface for switch basic management and setup
Reset button for system management
Power over Ethernet
Complies with IEEE 802.3af Power over Ethernet End-span PSE
Up to 24 IEEE 802.3af devices powered
PoE Power up to 15.4 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE Management
?Total PoE power budget control
?Per port PoE function enable/disable
?PoE port Power feeding priority
?Per PoE port power limit
?PD classification detection
Layer 2 Features
Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit
?Ethernet standard
Supports auto-negotiation and full-duplex / half-duplex modes for all 10Base-T / 100Base-TX and 1000Base-T ports
Auto-MDI/MDI-X detection for each RJ-45 port
Prevents packet loss Flow Control:
?IEEE 802.3x pause frame flow control for full-duplex mode
?Back-Pressure Flow Control in Half-Duplex mode
High performance of Store-and-Forward architecture, runt/CRC filtering eliminate?erroneous packets to optimize the network bandwidth
Broadcast / Multicast / Unicast storm control
8K MAC address table, automatic source address learning and ageing
VLANs
?IEEE 802.1Q Tag-based VLAN
?Port-based VLAN
?Q-in-Q tunneling
?Up to 255 VLANs groups, out of 4041 VLAN IDs
Link Aggregation
?up to 13 trunk groups
?up to 8 ports per trunk group with 1.6Gbps bandwidth (full duplex mode)
?IEEE 802.3ad LACP (Link Aggregation Control Protocol)
?Cisco ether-channel (static trunk)
Spanning Tree Protocol
?STP, IEEE 802.1D (Classic Spanning Tree Protocol)
?RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Quality of Service
4 priority queues on all switch ports
Traffic classification:
?IEEE 802.1p CoS
?IP TOS / DSCP to 802.1p priority mapping
?Port-Based priority
Strict priority and Weighted Round Robin (WRR) CoS policies
QoS and In / Out bandwidth control on each port
Multicast
IGMP Snooping v1 and v2
IGMP Snooping v2 fast leave
Querier mode support
Security
IEEE 802.1x Port-based network access control protocol
RADIUS users access authentication
L2 / L3 / L4 Access Control List (ACL)
MAC Filtering and Source IP-MAC / Port-Binding
Port Security for Source MAC address entries filtering
Management
Switch Management Interface
?Console / Telnet Command Line Interface
?Web switch management
?SNMP v1, v2c switch management
?SSL switch management
DHCP client for IP address assignment
Built-in Trivial File Transfer Protocol (TFTP) client
Firmware upgrade via TFTP or HTTP
Configuration upload / download via TFTP or HTTP
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
SNMP trap for interface Link Up and Link Down notification
Ping function | |
硬件特性 |
百兆电口 |
24个百兆电口 |
千兆电口 |
2个千兆电口 |
千兆光口 |
2个千兆光口 共享25~26号端口 |
处理方式 |
存储转发 |
背板带宽 |
8.8Gbps / 无阻塞 |
吞吐量 |
6.547Mpps @64Bytes |
MAC地址表 |
8K entries |
Share Data Buffer |
512Kbytes |
最大帧大小 |
9K Bytes |
流量控制 |
支持IEEE 802.3x全双工和半双工模式
|
LED指示灯 |
电源指示灯、风扇告警灯、使用状态灯 |
重置按钮 |
< 5 秒: 系统重置
> 5 秒: 恢复出厂设置
|
尺寸 (W x D x H) |
440 x 265 x 44 mm, 1U 高度 |
重量 |
3.6kg |
电源要求 |
100~240V AC, 50-60 Hz |
功率消耗 |
210瓦,其中POE功率190瓦 |
以太网供电(PoE) |
PoE 标准 |
IEEE 802.3af Power over Ethernet / PSE |
PoE供电电源类型 |
End-span |
PoE输出能力 |
每个端口48V DC, 350mA . Max. 15.4 watts |
电源针脚分配 |
1/2(+), 3/6(-) |
PoE功率预算 |
190 watts |
POE供电端口 |
24个 |
2层特性 |
管理界面 |
Console, Telnet, Web管理, SSL, SNMPv1, v2c |
端口配置 |
端口禁用/启用
自动协商
10/100/1000 Mbps全双工和半双工模式选择
流量控制禁用/启用 |
带宽控制 |
入口/出口速率控制 |
VLAN |
IEEE 802.1Q Tag-based VLAN
基于端口 VLAN
Q-in-Q tunneling
支持255个 VLANs组,4041条VLAN ID |
链路聚合 |
IEEE802.3ad的LACP(链路聚合控制协议)
支持13组,每组8个端口 |
QoS |
基于端口、802.1p、DSCP/TOS的优先级
|
IGMP Snooping |
IGMP (v1/v2) snooping, 可达到255个组播组
支持IGMP 查询模式
|
端口镜像 |
RX / TX / 两者
1-to-1 镜像 |
安全 |
基于端口的IEEE 802.1x的网络访问控制
端口安全
静态MAC
MAC过滤
MAC / IP绑定 |
访问控制列表 |
基于三层IP /四层ACL
最大达到220条ACL规则 |
SNMP MIBs |
RFC-1213 MIB-II
RFC-2863 Interface MIB
RFC-2665 EtherLike MIB
RFC-1493 Bridge MIB
RFC-2819 RMON MIB (Group 1, 2, 3,9)
POWER-ETHERNET-MIB
|
标准一致性 |
认证标准 |
FCC Part 15 Class A, CE |
遵循国际标准 |
IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3z: 1000Base- SX/LX
IEEE 802.3ab: 1000Base-T
IEEE 802.3x: Flow Control
IEEE 802.3ad: Port trunk with LACP
IEEE 802.1D: Spanning tree protocol
IEEE 802.1w: Rapid spanning tree protocol
IEEE 802.1p: Class of service
IEEE 802.1Q: VLAN Tagging
IEEE 802.1x: Port Authentication Network Control
IEEE 802.3af: Power over Ethernet |
环境 |
工作环境 |
温度: 0 ~ 50 °C
相对湿度: 20 ~ 95% (无冷凝) |
存储环境 |
温度: -10 ~ 70 °C
相对湿度: 20 ~ 95% (无冷凝) |
技术参数
日期 |
版本 |
描述 |
下载 |
2013-04-19 |
1.0 |
FGSW-2620PVM |
![](/images/icon_pdf.png) |
安装版本
日期 |
版本 |
描述 |
下载 |
2010-03-05 |
1.20 |
Bug Fixed- 1. Fix Switch panel location in Web UI 2. Fix Power Allocation could not display correct power consumption of the support POE power class PD device. |
![](/images/icon_download.png) |
快速安装指南
日期 |
版本 |
描述 |
下载 |
2009-09-14 |
1.1 |
Quick Install Guide |
![](/images/icon_pdf.png) |
2009-05-20 |
1.0 |
Quick Install Guide |
![](/images/icon_pdf.png) |
用户手册
产品证书
日期 |
版本 |
描述 |
下载 |
2009-10-30 |
1.0 |
EC Declaration |
![](/images/icon_pdf.png) | |
