Based on years of VoIP manufacturing experience, PLANET VoIP total solutions are known for advanced implementation of standard based telephony with mass deployment capability.

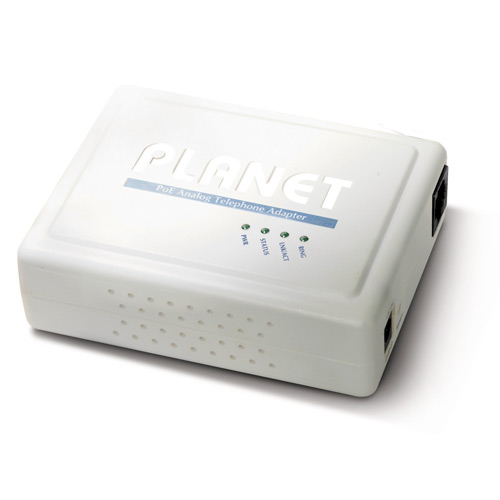

Cost-effective, easy-to-install and simple-to-use, the VIP-156PE converts standard telephones into IP-based network communication. With the 802.3af PoE integration, the VIP-156PE supports the service providers and enterprises by enhancing the traditional telephony communication services via the existing broadband connection to the Internet or corporation network.
With the VIP-156PE, home users and companies are able to save the installation cost of voice-over-IP deployment and extend their past investments in telephones, conferences and speakerphones. The VIP-156PE can be the bridge between the traditional analog systems and IP network with an extremely affordable investment.

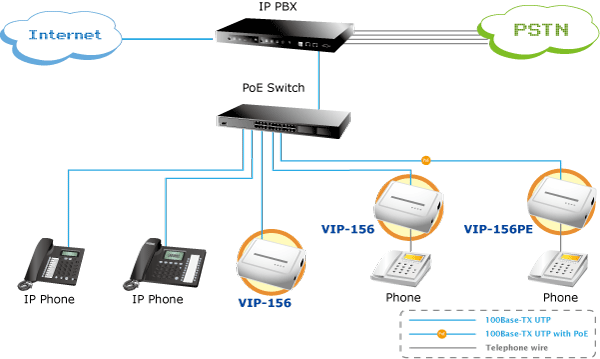

The VIP-156PE integrated with PLANET IP PBX system is the ideal application to your office daily communications. The VIP-156PE includes two alternative Ethernet interfaces for Internet (PPPoE, DHCP or Fixed IP) or office LAN connection. For the new generation of networking communication, the VIP-156PE supports IPv6 and VPN connection to provide the users with more flexible and advantaged communication service.
| | |
Product Features- Feature-rich telephone service over home or office Internet / Intranet connection
- Web-based and telephone keypad machine configuration
- 802.3af Power over Ethernet compliant
- Remote administrator authentication
- Easy access with PLANET Dynamic DNS
- Voice prompt for machine configurations
- Cost effective, field proven compatibility and stability
VoIP Features- SIP 2.0 (RFC3261) compliant
- Peer-to-Peer / SIP proxy calls
- Supports STUN, Outbound Proxy
- Up to 3 Proxy server registrations
- T.38 FAX transmission over IP network
- Call Hold / Forward / Transfer / Waiting
- Incoming / Outgoing / Miss Call record
- Local Phone book (Export /Upload)
- In band and out-of-band DTMF support
- Voice codec support: G.711, G.723.1, G.729A, G.729B
- Voice processing: Voice Active Detection, DTMF detection / generation, G.168 echo cancellation (16mSec.), Comfort noise generation
Management- Auto-provision / auto update support (FTPP, HTTP, FTP)
- DMZ and MAC clone
- IPv6 Management support
- TR-069 / VPN connection / VLAN support
- Virtual Server / QoS support
| | |
| 硬件 |
| LAN端口 |
1 x 10/100Mbps RJ-45 port (802.3af PoE) |
| PC端口 |
1 x 10/100Mbps RJ-45 port |
| FXS端口 |
1 x RJ-11 connection |
| 协议与标准 |
| 国际标准 |
SIP 2.0 (RFC3261), SIP Outbound proxy, STUN (RFC 3489) |
| 语音编码 |
G.723.1 (6.3k/5.3k), G.729A, G.729B, G.711 |
| 支持Fax |
T.38, G.711 pass-through |
| 语音标准 |
Voice activity detection (VAD)
Comfort noise generation (CNG)
Acoustic echo canceller (AEC)
G.165: Line echo canceller (LEC)
Jitter Buffer
|
| 协议 |
SIP 2.0 (RFC-3261), IPv4/IPv6 TCP/IP, UDP / RTP / RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE |
| 网络设定 |
| 接入方式 |
Static IP, PPPoE, DHCP |
| 管理 |
Web, keypad |
| 尺寸 (W x D x H) |
94 x 72 x 25 mm |
| 工作环境 |
0~50 degrees C, 10~95% Humidity |
| 电源要求 |
12V DC / 802.3af PoE |
| EMC/EMI |
CE, FCC Class B |
技术参数
| 日期 |
版本 |
描述 |
下载 |
| 2012-08-17 |
1.0 |
VIP-156PE |
 |
安装版本
快速安装指南
| 日期 |
版本 |
描述 |
下载 |
| 2012-01-21 |
5.0 |
Initial Release for VIP-156/157 Series |
|
用户手册
| 日期 |
版本 |
描述 |
下载 |
| 2013-06-26 |
1.1 |
New Style Modification for VIP-156/157 Series |
|
| 2012-03-08 |
5.0 |
Initial Release for VIP-156/157 Series |
| |
