WDAP-C7400

900Mbps Dual Band Ceiling Mount Wireless Access Point

概述
应用场景
功能特性
产品规格
下载
相关产品

Incredibly ultra high speed and perfect coverage

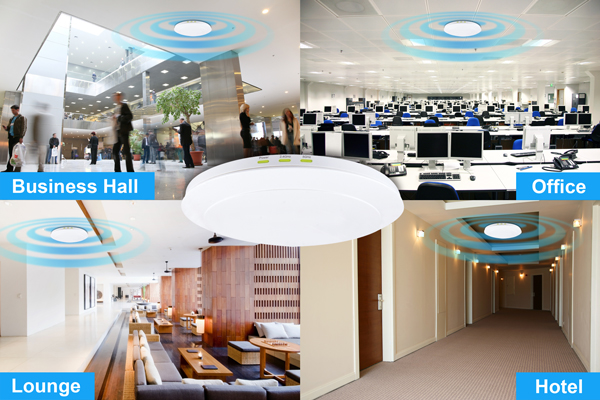

The WDAP-C7400 with 3 built-in high sensitivity dual-band antennas and the simultaneous dual-band 2.4GHz + 5GHz wireless access capability transmits power up to 500mW. It comes with an attractive flying saucer appearance and is compliant with the IEEE 802.3at PoE PD power scheme, thus making deployment easy and mounting to the ceiling and wall of villa and hotel lobbies, exhibition halls and other large rooms flexible. This brings the wireless network more innovations.

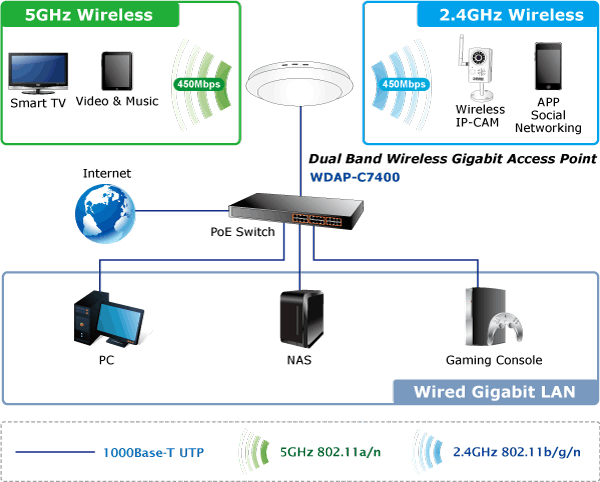

Ultra High Speed 802.11n Wireless Type

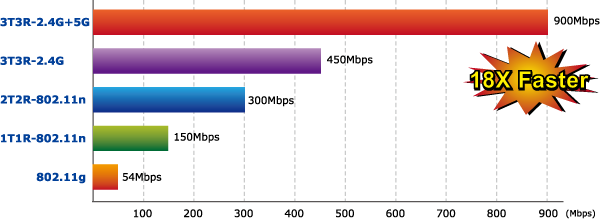

The WDAP-C7400 supports IEEE 802.11a/b/g/n dual band standards with 3T3R MIMO technology; therefore, it provides the wireless speed up to 450+450Mbps which is 18X faster than the traditional 11g access point. Moreover, the WDAP-C7400 is equipped with two Gigabit Ethernet ports. Compared with the general wireless AP, the WDAP-C7400 offers faster transmission speed for the network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high resolution on-line games, stereo music, VoIP and data streams at the same time stably and smoothly.

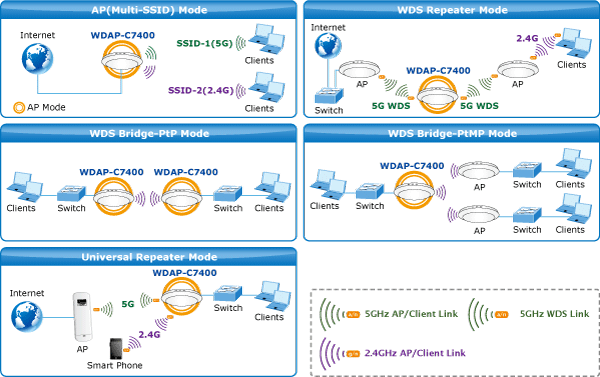

Easy Setup for Multiple Wireless Modes

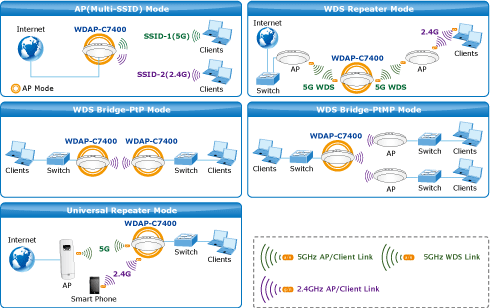

The WDAP-C7400 supports multiple wireless modes including AP, Bridge, Repeater and Universal Repeater for different network applications. The administrator can configure the WDAP-C7400 easily and quickly through a couple of simple steps. It is so easy to extend the existing wired network by the WDAP-C7400. The WDAP-C7400 definitely provides a complete network solution for the small business and SOHO users.

Full Support of Wireless Security Encryption

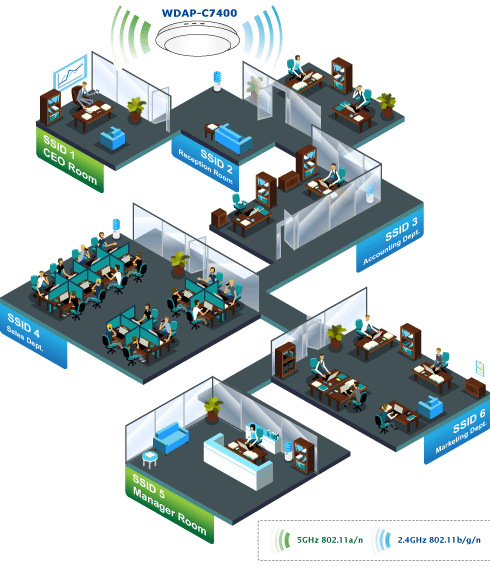

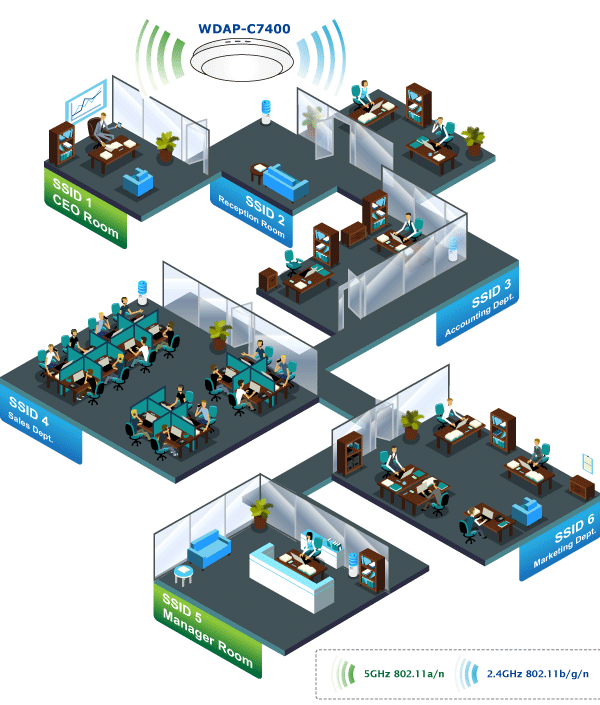

In aspect of security, besides 64/128-bit WEP encryption, the WDAP-C7400 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x Radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Made to fulfill the demands of enterprise wireless network and other applications, the WDAP-C7400 enhances security and management features such as multiple SSID. It can create up to 8 virtual standalone APs with 8 different SSIDs in 2.4GHz frequency band, and up to 2 SSIDs in 5GHz frequency band according to individual security levels and encryption scheme of various wireless devices.

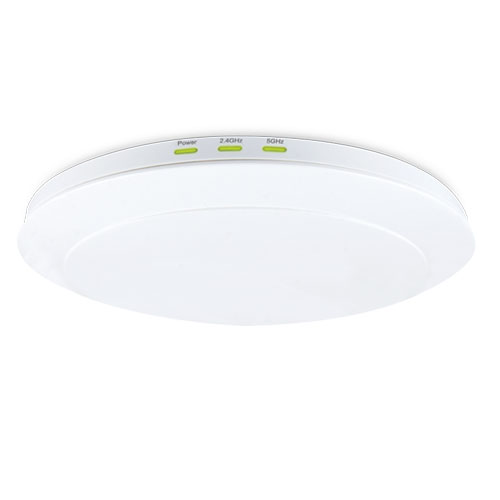

Unique Ceiling Mountable Design

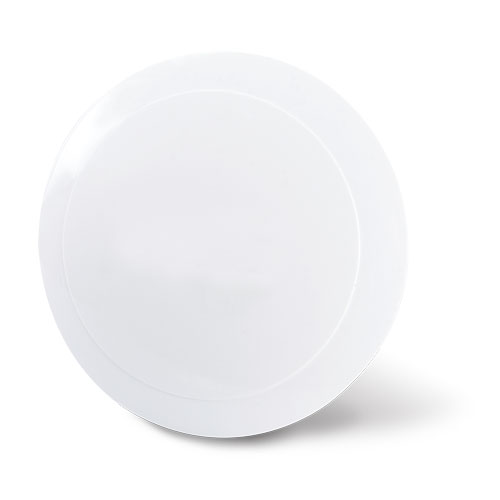

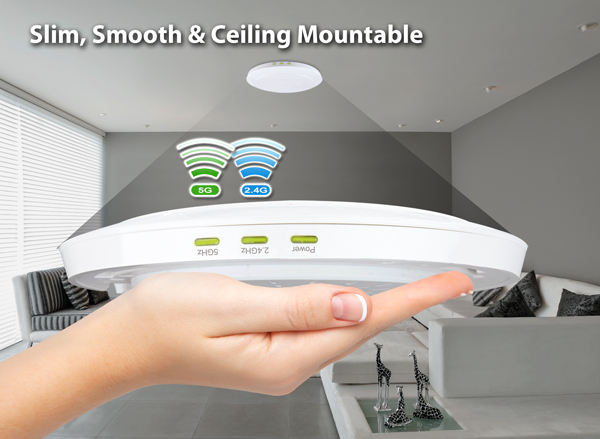

Featuring attractive flying saucer appearance and ceiling mount design, the WDAP-C7400 can be firmly installed on the ceiling or the wall, which is easy and convenient in client-side installation. The ceiling mount design smartly integrated into the environment. Its streamlined body without the protruding antennas also gives effects of embellishment in the surroundings.

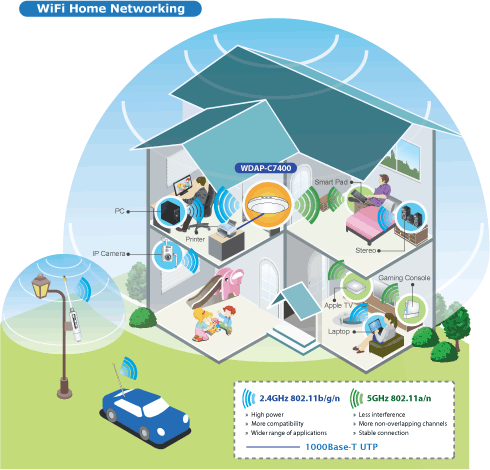

No borderline indoor wireless coverage

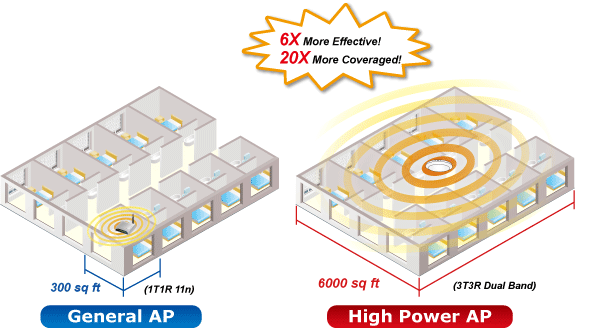

The WDAP-C7400 is built-in with high power amplifier and 3 high sensitivity dual-band antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. The WDAP-C7400 is smart and powerful wireless solution for the needs of a wireless network for a large indoor environment.

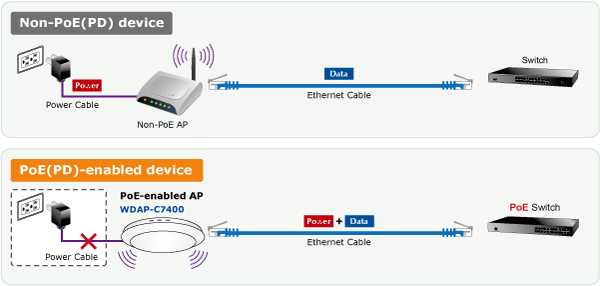

Flexible Deployment with PoE Feature
Compliant with IEEE 802.3at Power over Ethernet standard, the WDAP-C7400 can be powered and networked via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. The wireless network deployment becomes more flexible and worry-free from the power outlet locations.

Easy Installation and Management
With user-friendly Web UI and Central Management Utility, it is easy for administrator to set up the WDAP-C7400, even for a user who never experiences in setting up a wireless network. In addition, its SNMP feature allows the system administrator to remotely monitor the network devices more efficiently.

硬件特性

端口

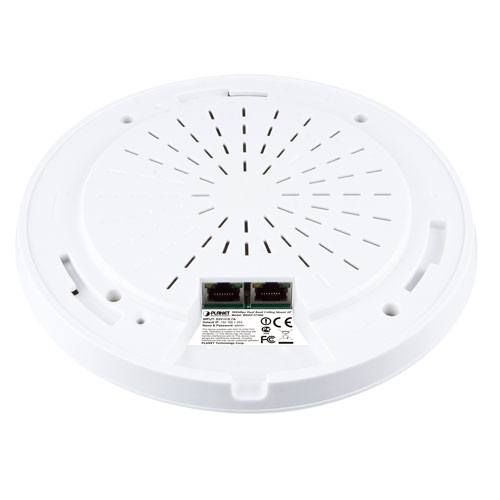

PoE Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port
?IEEE 802.3at compliant PD Port
LAN Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port

PoE供电

IEEE 802.3at

天线

Built-in 4.5dBi dual-band antenna x 3

重置按钮

Reset button at rear panel
Press over 7 seconds to reset the device to factory default

LED指示灯

PWR, 2.4GHz, 5GHz LED

材质

Plastic

尺寸

200 x 40 mm

重量

450g

电源需求

52~56V DC, 0.7A (max.), IEEE 802.3at 30W power source is required.

功率损耗

25W (max.)

无线端口特性

标准

IEEE 802.11a/b/g/n
IEEE 802.3u
IEEE802.3ab
IEEE 802.3at

调制类型

DSSS (DBPSK / DQPSK / CCK)
OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
MIMO

频段

Simultaneous 2.4 GHz and 5 GHz
2.4GHz: 2.412~2.484GHz
5GHz: 5.180~5.240GHz; 5.745~5.825GHz

运行信道

2.4GHz:
America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)

5GHz:
America/ FCC:
11a : 5.180~5.240GHz; 5.745~5.825GHz (36, 40, 44, 48, 149, 153, 157, 161, 165)
11a/n: 5.180~5.220GHz; 5.745~5.785GHz (36, 44, 149, 157)

Europe / ETSI:
11a: 5.180~5.240GHz (36, 40, 44, 48)
11a/n: 5.180~5.220GHz (36,44)

5GHz channel list may vary in different countries according to their regulations.

信道频宽

20 or 20/40MHz

数据传输速率

2.4GHz: up to 450Mbps
5GHz: up to 450Mbps

传输距离

Indoor up to 100m

RF功率

11a	1 - 54Mbps	21~22dBm
11b	1 - 11Mbps	26.5~27.5dBm
11g	6 - 9Mbps	26dBm
	12 - 18Mbps	25dBm
	24 - 36Mbps	24.5dBm
	48 - 54Mbps	23.5dBm
11n	MCS 0-7	23dBm
	MCS 8-15	23dBm
	MCS 16-23	23dBm
