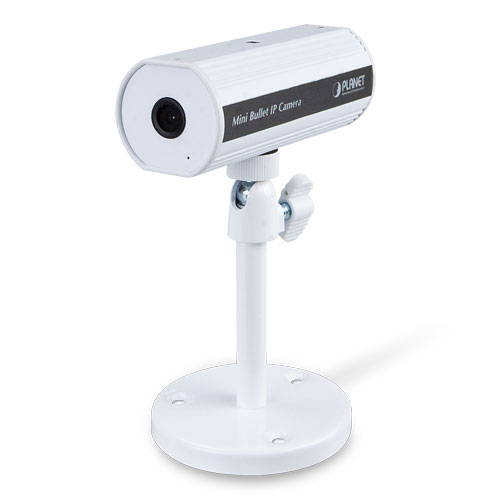

ICA-3200

Full HD Ultra-mini Bullet IP Camera

概述

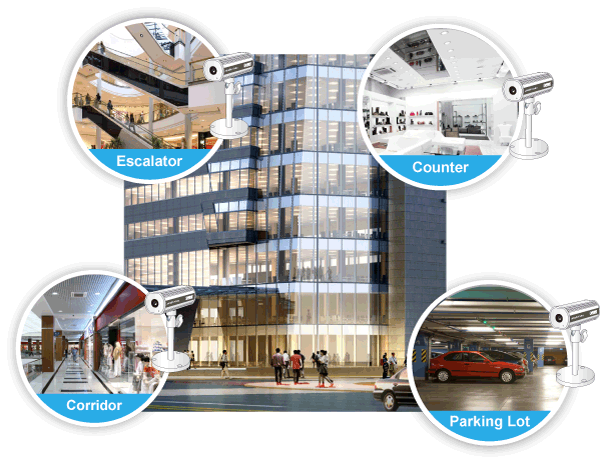

应用场景
功能特性
产品规格
下载
相关产品

Superior Full HD Grade Video Quality

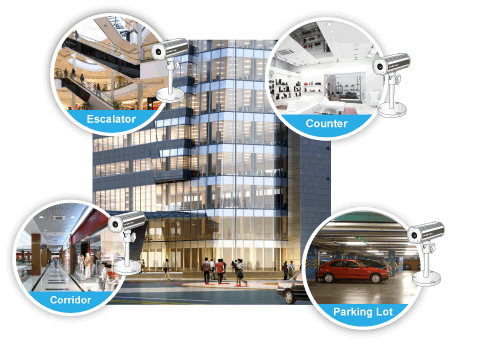

PLANET ICA-3200 PoE IP Camera provides high resolution images for round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 25 frames per second (fps). It is perfect for remote and discreet monitoring of indoor areas such as homes, small businesses, boutiques, restaurants, hotels, residences, etc.

Mini Design for Easy Installation

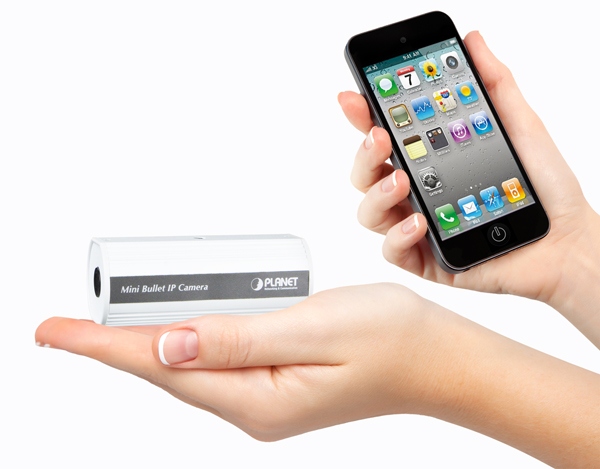

The ICA-3200 is an ultra lightweight IP camera in compact size, thus offering a quick and simple installation on the ceilings or walls inside of houses and buildings. Installation can be finished in less than 60 seconds.

Exceptional Image Quality

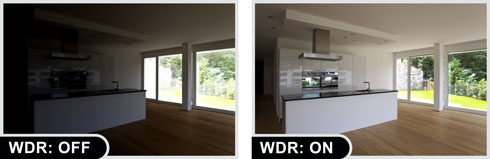

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and Dimension Noise Reduction (DNR) technology, the ICA-3200 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Advanced Event Management

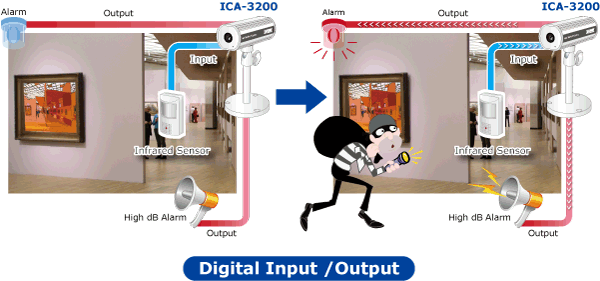

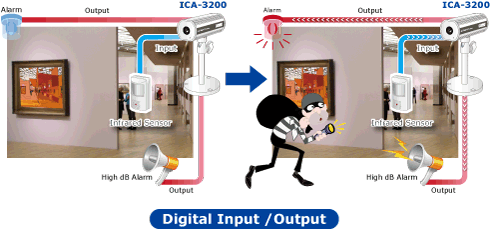

The ICA-3200 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include inputs/outputs for connecting to external devices such as door sensors and relays to activate light or closed doors.

Flexible Installation and Power Functionality

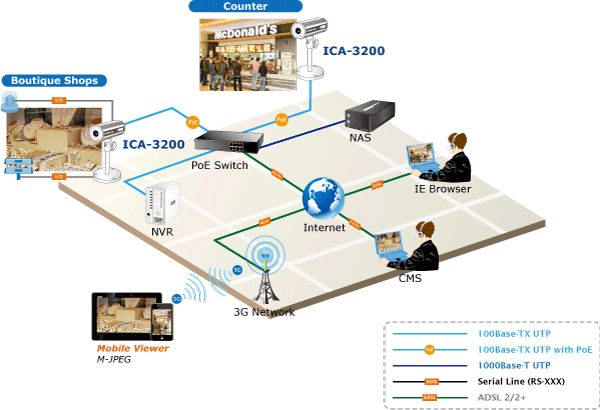

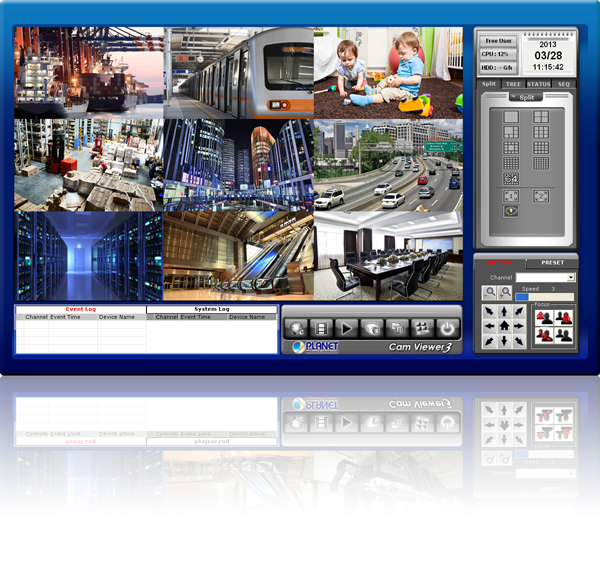

The ICA-3200 incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a PoE Switch or PoE injector via the network, which eliminates the need for power cables and reduces installation costs. The ICA-3200 is ONVIF-compliant and therefore interoperable with other brands in the market, greatly supporting users to integrate with their existing surveillance network. In addition, the ICA-3200 includes 64-CH central management software for efficient monitoring. The ICA-3200 is indisputably the top choice for reliable and high performance surveillance.

Camera
Image Device	1/3.2" progressive scan CMOS sensor
Lens	Fixed lens 3.6mm, F1.6 Angle of view: Horizontal: 53.13 degrees Vertical: 29.49 degrees
Min Illuminator	Color : 1 Lux (AGC ON) B / W: 0.5 Lux (AGC ON)
Electronic Shutter	Auto, 1 / 5 ~ 1 / 10,000 sec
Effective Pixels	1920 x 1080 pixels
Video
Video Compression	H.264 / MPEG-4 / M-JPEG
Video Resolutions	H.264: 1080P / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144 M-JPEG: 1080P / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144 MPEG-4: 1080P / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144
Frame Rate	Up to 25fps for Full HD resolution
Image Setting	Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Speed adjustable, WDR, Flip, Mirror, Dimension Noise Reduction, White Balance, Sense-Up
Streaming	Simultaneous multi-profile streaming M-JPEG streaming over HTTP Supports 3GPP mobile surveillance Controllable frame rate and bandwidth Constant and variable bit rate (MPEG-4 / H.264)
Audio
Audio Streaming	2-Way audio
Audio Compression	RTSP: G.711 24kbps, G.726 32kbps 3GPP: AMR
Microphone	Built-in microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Protocol	IPV6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP
Users	10 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration SDK
Alarm Triggers	Intelligent video motion detection and external input 3-zone video motion detection
Alarm Events	File upload via FTP, Samba, SD card or email External output activation
General
Power Requirement	IEEE 802.3af Class 3
Power Consumption	Max. 2.88W (PoE)
Operating Temperature	-10 ~ 45 degrees C
Operating Humidity	10 ~ 95% (non-condensing)
Weight	135g
Dimensions (? x L)	44 x 100 mm
Emission	CE, FCC
Connectors	10/100 Mbps Ethernet, RJ-45 Terminal block for 1 alarm input, 1 output Factory default reset Micro SD/SDHC card (Max. 32GB, Class 6)

订购信息
ICA-3200	Full HD Ultra-mini Bullet IP Camera
