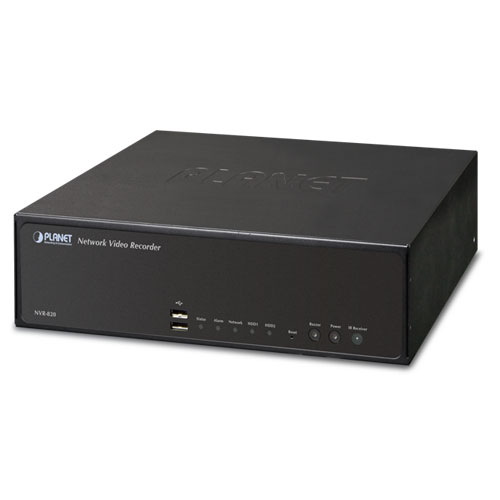

NVR-820

8-CH Network Video Recorder with HDMI

概述
应用场景
功能特性
产品规格
下载
相关产品

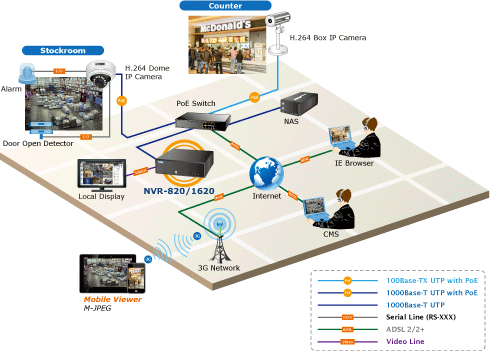

Efficient SMB Surveillance Solution
PLANET NVR-820 is suitable for introducing high-definition IP surveillance solution, and for upgrading your CCTV system to IP system without re-cabling. It is the 8-channel Linux embedded NVR with HDMI local display from PLANET, bringing stable and efficient system operation under a wide range of recording, network management, and system settings. The NVR-820 could be used as a control center to control and monitor up to 8 connected network cameras (ONVIF supported) locally or remotely, perfectly designed for intelligent IP surveillance system. Users can just turn on the cameras and the NVR-820 to easily protect their life and properties under the IP networks. It also supports image storage for evidentiary recording and data backup up to 2 hard disks. The recorded video files can be saved in the NVR without the need for an additional PC for files storage, thus bringing users a secure surveillance system at a lower total cost. It is fully compatible with iOS, Android and Internet Explorer on Windows operating system for multi-platform remote access.

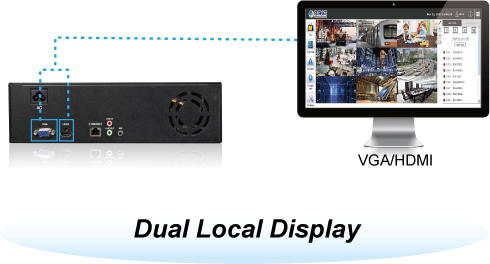

High Resolution Local Display
The NVR-820 provides an HDMI and VGA video output interface for dual local display, which can be connected to HDMI monitor or TV for doing monitoring in the full HD (1920 x 1080) resolution, and check NVR system status on VGA monitor at the same time, eliminating the need for a separate PC to view video from the unit. It also can be operated with the USB keyboard and mouse to configure and monitor all the system easily.

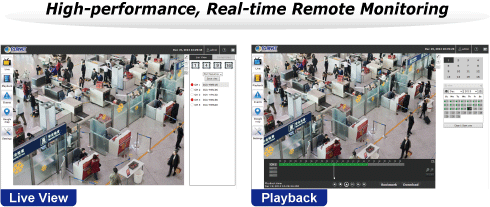

Performing Real-time Remote Monitoring
Up to 8 IP cameras can be connected to the NVR-820 via a connected IP network. With the NVR-820, it delivers high performance video recordings and smooth playbacks of multiple megapixel cameras. Users can view remote surveillance in real time and play back recorded videos via the web browser or the bundled CMS software.

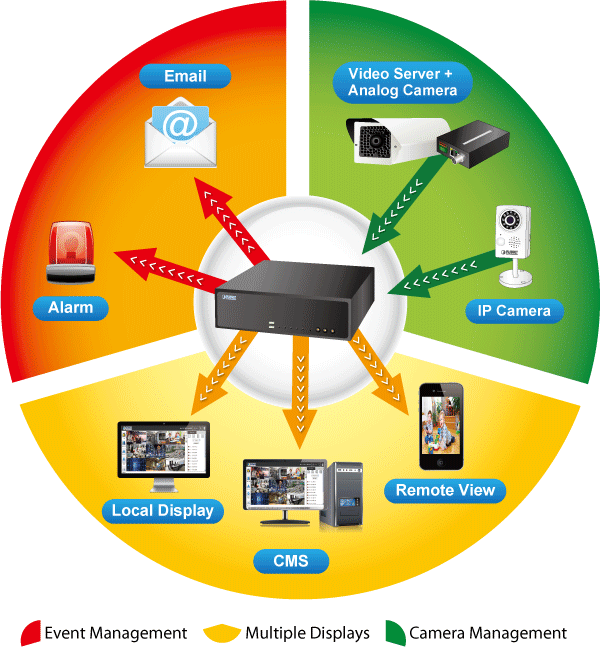

Managing and Presenting Clear and Concise Video
Not just for small scale applications such as retail stores and SMBs, the NVR system is expandable for multi-site management with the bundled CMS software. For instance, the CMS software in the NVR-820 can manage up to 16 units of NVR at the same time meaning 128 channels of IP cameras can be viewed simultaneously. With multi-monitor and E-Map functions, the NVR can help the administrators to monitor the surveillance system more efficiently and effectively.

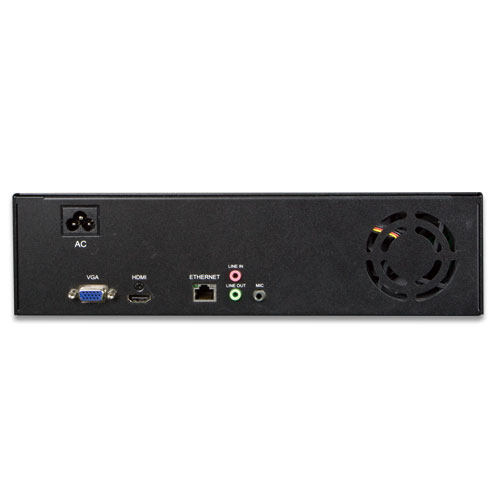

Hardware
Ethernet	1 x RJ-45, 10/100/1000Base-T
USB Interface	2 x USB 2.0 for backup device and firmware upgrade
Video Interface	VGA / HDMI video interface
Audio Interface	Mic-in, line-in and line-out
Storage Device	2 x 3.5� SATA II hard disk connectors
LED	Power, Alarm, Status, HDD
Button	Power, Reset, Buzzer stop
IR receiver	Built-in IR receiver
Camera
Max. Channels	8-channel IP cameras
Add camera	Manual / Smart Camera Search / Auto setup
Video
Compression	H.264 / MPEG-4 / M-JPEG
Resolution	5MP / 3MP / 1080P / 2MP / SXGA / 720P / FD1 / VGA / CIF / QCIF
Max. live video frame rate (Local Display)	240fps@720P30 120fps@1080P30 80fps@3MP Max. 5MP/channel *Supports Full HD 1080P60
Max. recording frame rate (Local Display)	240fps@1080P30, 4Mbps/channel, total of 8 channels 120fps@3MP, 6Mbps/channel, total 8-channel * Real performance may vary in different environments.
Audio
Audio Type	2-way
Audio format	G.711, G.726 (Camera dependent)
Live view
Display Mode	Live View / Playback / Full / Screen / Sequence view / Saved views
Split Screen	1 / 4 / 9
Full Screen	1 / 4 / 9
Sequence Mode	Sequence All / Manually Selected cameras in 1/4 split view with configurable timer
Snapshot	Video snapshot in JPEG format
PTZ Support	Digital PTZ / Auto Pan / Preset Point / Preset point Sequence view
Playback
Split Screen	1 / 4
Play Method	Play / Pause / Stop / Forward / Reverse / Speed Adjust / Frame by Frame Search by time or event only
Bookmark	Intuitive timeline interface with bookmark function for easy file export
Monitor
Dual Monitor	Main UI + Full screen live view / sequence view
Monitor Resolutions	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Network and Configuration
Network Service	TCP/UDP/HTTP/DHCP/DNS/ARP/ICMP/NTP/UPnP/FTP
Streaming Protocols	Depending on the supported cameras

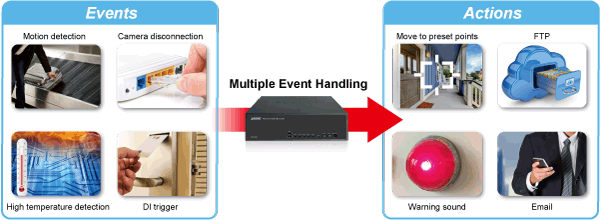

Triggers and Event
Event type	System Events � System Start / Shutdown System Settings modified Camera Settings Modified Start Recycle Disk Full Camera Events � Motion/Sensor Detection
Event Action	Display red window on video of event channel Buzzer alarm Disable / enable event action Duration of event action Recording Mail / FTP notification E-Map notification
Management
Number of Groups	7 (Administrator / Guest / User Define * 5)
Privileges	Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / Maintenance
User Interface	Graphic local user interface (Operated by mouse, keyboard, IR remote controller or USB joystick)* Web Browser (Internet Explorer 7 or above) CMS Utility
Log Type	Alert / Event / User Access
Software Utility	Search utility / media player for recording export
Environment
Power	100~240V AC, 1.4A / Max. 50/60Hz
Consumption	90W
Operating Temperature	5~40 degrees C
Storage Temperature	-40~70 degrees C
Humidity	10~90% (non-condensing)
Weight	4.6 kg
Dimensions (W x D x H)	220 x 215 x 81 mm

订购信息
NVR-820	8-CH Network Video Recorder with HDMI
