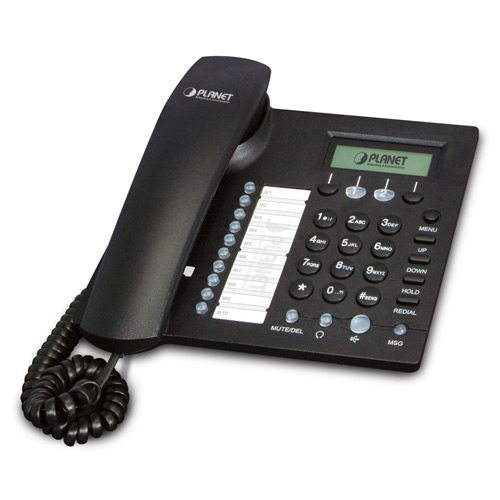

VIP-256PT

802.3af PoE SIP IP Phone

概述
应用场景
功能特性
产品规格
下载
相关产品

Cost-effective, High-performance PoE VoIP Phone

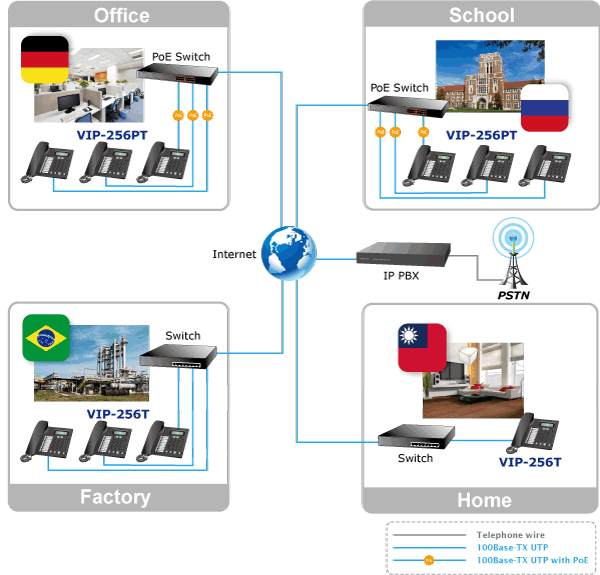

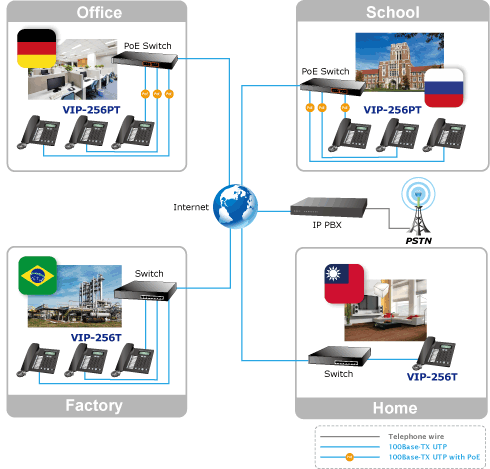

To build high-performance VoIP communications at a low cost, PLANET has launched the latest member of its IP Phone family, the VIP-256PT enterprise-class 2-line PoE IP phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-256PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps the company to save money on long distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long distance charge would occur. The VIP-256PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.

Standard Compliance

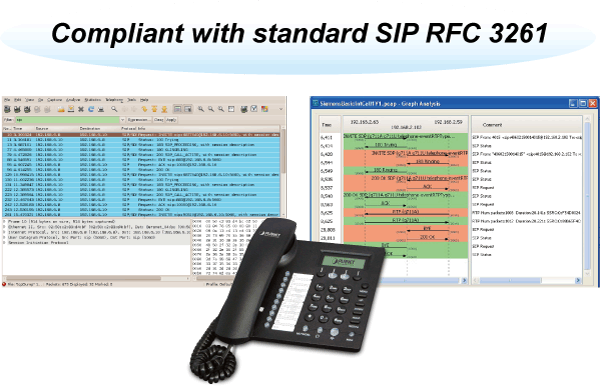

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the VIP-256PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

Enhanced, Full-Featured Business IP Phone

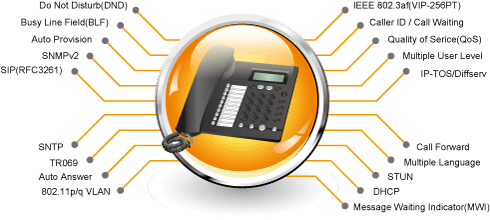

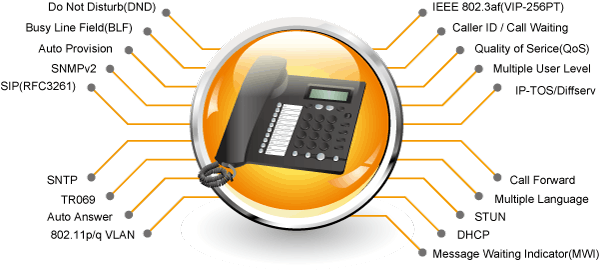

The VIP-256PT is a full-featured enhanced business IP phone that addresses the communication needs of the enterprises. It provides 2 voice lines and dual 10/100Mbps Ethernet. Furthermore, the VIP-256PT delivers user-friendly design containing a 128�32 Graphic LCD with white backlight, 2 line keys and 4 soft keys, and 10 multi-functional keys with dual-color LED. The VIP-256PT supports all kinds of SIP based phone features including Call Waiting, Auto Answer, Music on Hold, Caller ID and Call Waiting ID, 3-way Conferencing, Call Hold, Call Forwarding, Black List, Hotline, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP INFO, among others. Besides for office use, the VIP-256PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).

Secure, High-Quality VoIP Communication

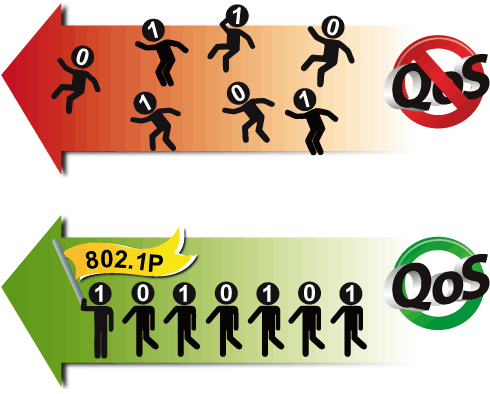

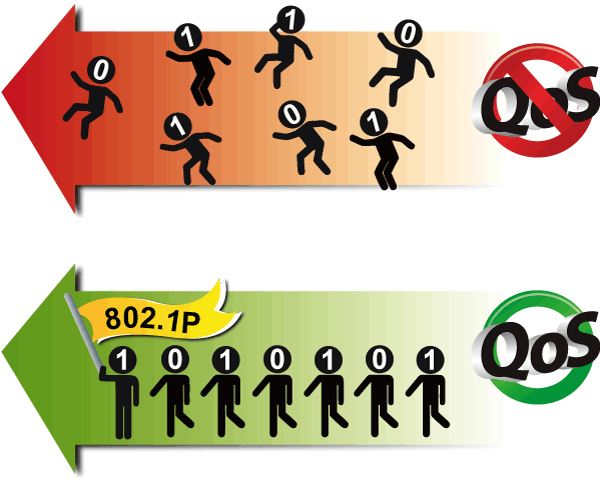

The VIP-256PT supports SIP v2 for easy integration with general voice over IP system. It can also effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service), 802.1Q VLAN tagging, and IP TOS technology.

Professional Application

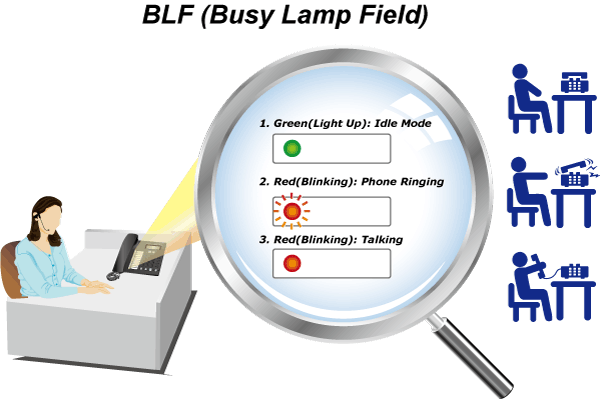

The VIP-256PT supports Busy Lamp Field (BLF) function that, via the lights on the phone, enables users to easily identify the status of other phones which connected to the same IP PBX, such as busy, idle, ringing, etc. The connected IP PBX must also support BLF feature. The BLF function is helpful for a receptionist on the front desk to route all incoming calls smoothly.

硬件特性
2线	2-Line enterprise-class IP phone

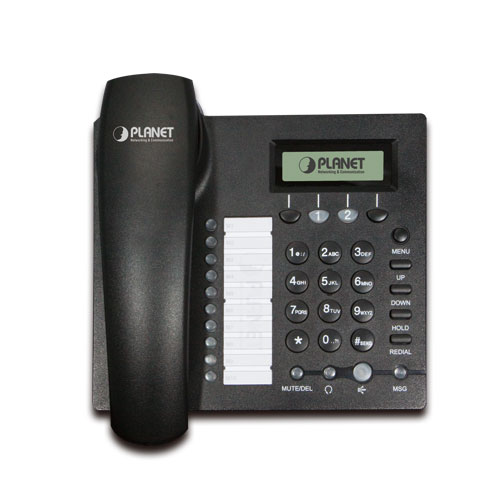

显示屏	128x32 Graphic LCD with white backlight
功能键	2 line keys and 4 soft keys 12 dialing buttons (0~9, *, #) 9 fixed function buttons 10 multi-functional key with dual-color LED

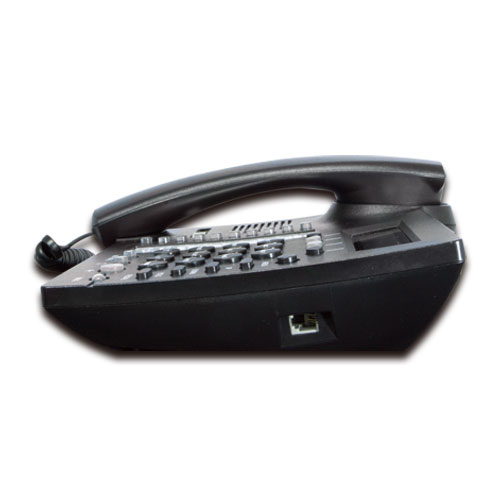

物理端口	Two 10/100BASE-T RJ-45 Ethernet ports (IEEE 802.3 / 802.3af Power over Ethernet compliant) Handset: RJ-9 connector Built-in speakerphone and microphone
协议与标准
数据网络技术	MAC Address (IEEE 802.3) IPv4 (RFC 791) Address Resolution Protocol (ARP) DNS: A record (RFC 1706), SRV record (RFC 2782) Dynamic Host Configuration Protocol (DHCP) client (RFC 2131) Internet Control Message Protocol (ICMP) (RFC 792) TCP (RFC 793) User Datagram Protocol UDP (RFC 768) Real Time Protocol RTP (RFC 1889, 1890) Real Time Control Protocol (RTCP) (RFC 1889) Differentiated Services (DiffServ) (RFC 2475) Type of service (ToS) (RFC 791, 1349) VLAN tagging 802.1p / 802.1Q: Layer 2 quality of service (QoS) Simple Network Time Protocol (SNTP) (RFC 2030) Backward compatible with RFC 2543 Session Timer (RFC 4028) SDP (RFC 2327) NAPTR for SIP URI Lookup (RFC 2915)
语音网关	SIP version 2 (RFC 3261, 3262, 3263, 3264) SIP supported in NAT networks [including STUN (RFC 3489)] Message Waiting Indicator (RFC 3842) Voice algorithms: - G.711 (A-law and ?-law) - G.726 (16/24/32/40 kbps) - G.722 - G.723 Dual-Tone Multi-Frequency (DTMF), In-Band and Out-of-Band (RFC 2833) (SIP INFO) Voice Activity Detection (VAD) with Silence Suppression Adaptive Jitter Buffer Management Comfort Noise Generation Echo Cancellation Message
配置，管理和维护	Integrated web server provides web-based administration and configuration Telephone keypad configuration via display menu/navigation Automated provisioning and upgrade via HTTPS, HTTP, TFTP User Authentication for configuration pages Local and Remote Syslog (RFC 3164) SNTP Time Synchronization Multi User Level SNMP v2 TR069
功能特性
电话特性	Two Voice Lines Call Waiting Auto Answer Music on Hold Caller ID and Call Waiting ID 3-Way Conferencing Call Hold, Call Forwarding, Call Mute Call Transfer: Blind Transfer and Attended Transfer Call Log: Redial List, Answered Calls and Missed Calls Volume Adjustment: Handset/Headset, Speaker and Ringer Delayed Hotline Redial, Speed Dial Busy Lamp Field (BLF) Pick Up, Call Park, Dial Plan Black List Message Waiting Indicator (MWI) Do Not Disturb (DND) Full-Duplex Speakerphone Customized Ring Tone SMS (100 records) Call History (100 records ) - Most Recently Missed Calls - Most Recently Received Calls - Most Recently Dialed Numbers Phone Book (100 records) Speed Dial (10 records )
环境
电源要求	5V DC, 1A IEEE 802.3af
工作温度	0 ~ 50 degrees C
工作湿度	10 ~ 90% (non-condensing)
重量	720g
尺寸(W x D x H)	191 x 205 x 75 mm
认证	CE, FCC

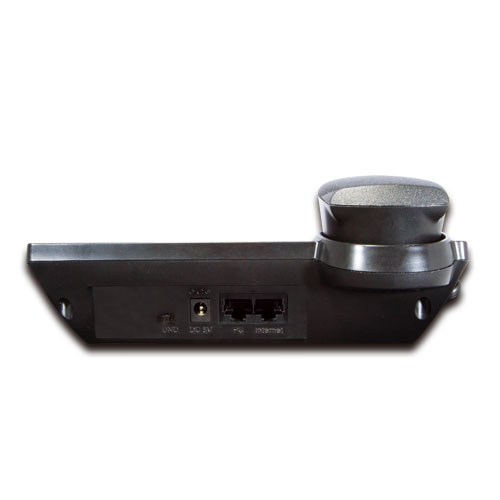

接口	Two 10/100Mbps Ethernet, RJ-45 RJ-9 handset connector DC power jack DND Switch

订购信息
VIP-256PT	802.3af PoE SIP IP Phone (2-line)
