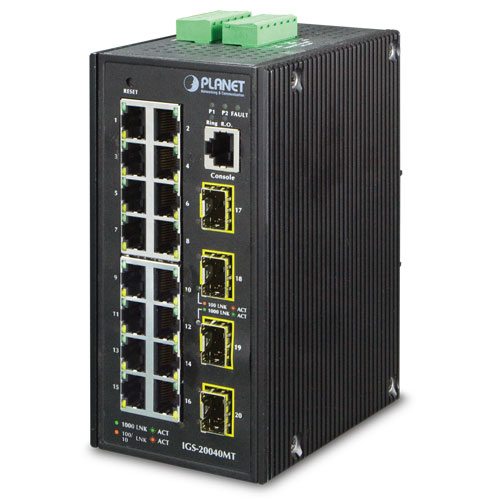

IGS-20040MT

L2+ Industrial 16-Port 10/100/1000T + 4 100/1000X SFP 管理型交换机 (-40~75 degrees C)

概述
应用场景
功能特性
产品规格
下载
相关产品

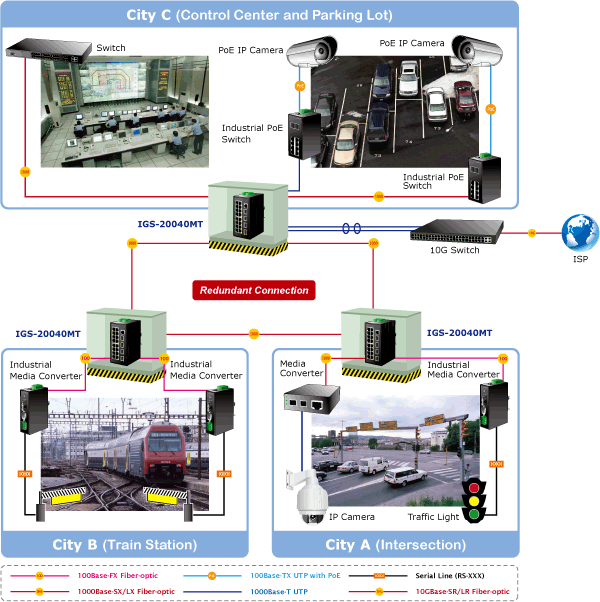

PLANET IGS-20040MT is an Industrial 20-port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable and high speed data in heavy industrial demanding environments and forward data to remote network through fiber optic. It provides 16-port 10/100/1000Base-T copper and 4 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. Besides support for 40Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-20040MT provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.

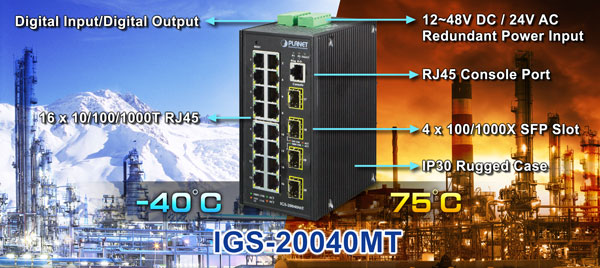

Environmentally Hardened Design
With IP30 aluminum industrial case protection, the IGS-20040MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-20040MT can be placed in almost any difficult environment.

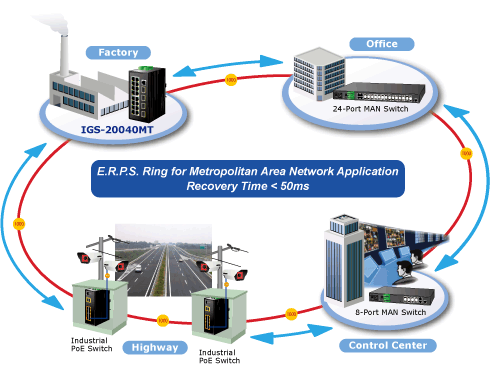

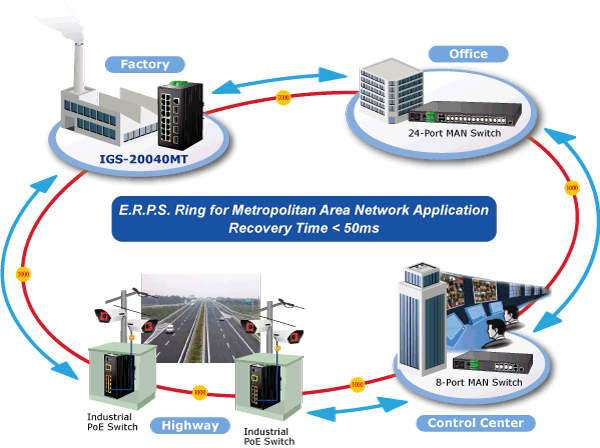

Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-20040MT supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer�s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 20ms.

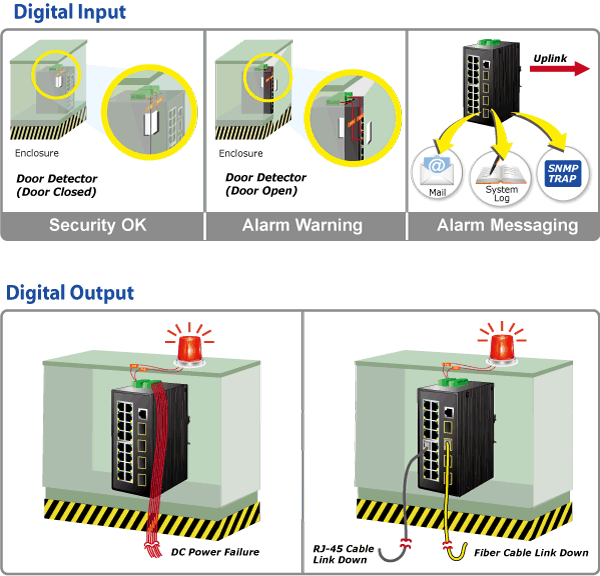

Digital Input and Digital Output for External Alarm
The IGS-20040MT supports Digital Input and Digital Output on its upper panel. The external alarm enables users to use Digital Input to detect external device�s status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-20040MT port is link-down, link-up or power-dead.

Robust Layer2 Features
The IGS-20040MT can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol(MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The IGS-20040MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 groups of 8 ports for trunking and supports connection fail-over as well.

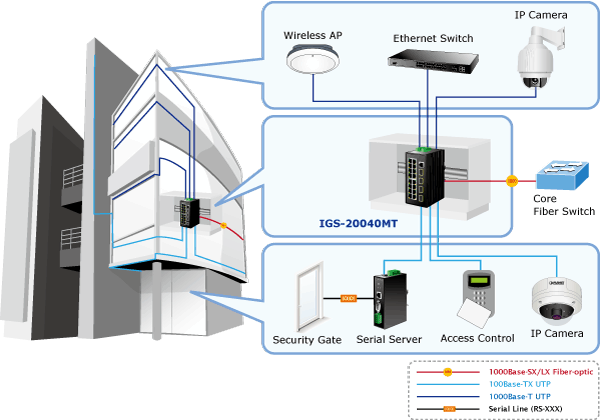

IPv6 / IPv4 Full-functioned Secure Switch for Building Automation Networking
The IGS-20040MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 protocols, advanced Layer 2 to Layer 4 data switching and redundancy, QoS traffic control, network access control and authentication, and Secure Management features to protect customer�s industrial and building automation network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
The IGS-20040MT offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.

User-friendly Secure Management
For efficient management, the IGS-20040MT is equipped with console, Web and SNMP management interfaces. With the built-in web-based management interface, the IGS-20040MT offers an easy-to-use, platform independent management and configuration facility. The IGS-20040MT supports SNMP and it can be managed via any management software based on standard of SNMP v1 and v2 protocol. For reducing product learning time, the IGS-20040MT offers Cisco-like command via Telnet or console port and customer doesn�t need to learn new command from these switches. Moreover, the IGS-20040MT offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can encrypt the packet content at each session.

Flexible and Extendable Solution
The 4 mini-GBIC slots built in the IGS-20040MT support dual-speed as it features 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

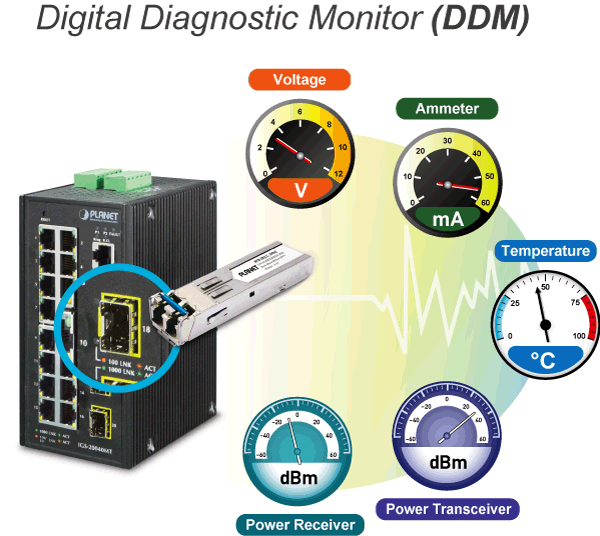

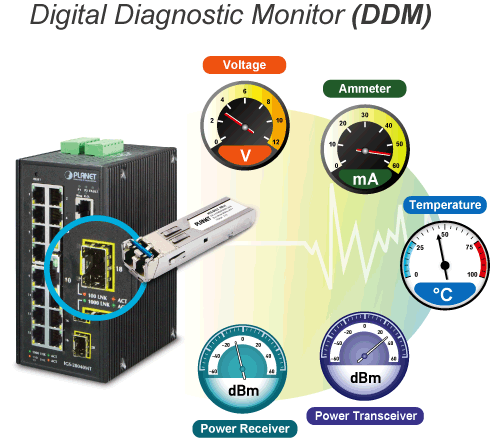

Intelligent SFP Diagnosis Mechanism
The IGS-20040MT supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

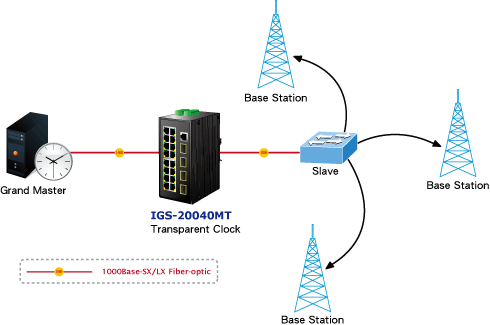

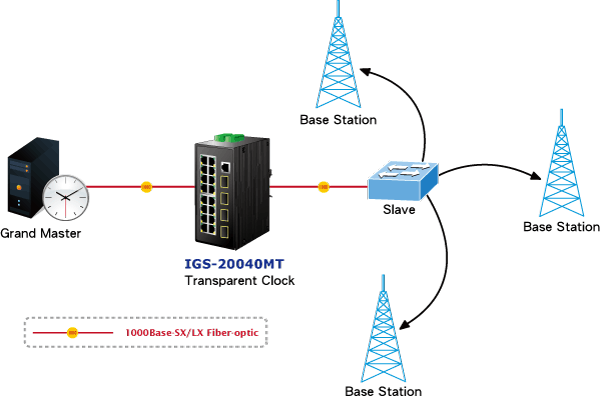

1588 Time Protocol for Industrial Computing Networks
The IGS-20040MT is intended for Telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and Synchronous Ethernet.

Physical Port

16-Port 10/100/1000Base-T RJ45 copper
4 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection
One RJ45 console interface for basic management and setup

Industrial Case / Installation

IP30 aluminum case protection
DIN-rail and wall-mount design
Redundant Power Design

- 12 to 48V DC, redundant power with polarity reverse protect function

- AC 24V power adapter acceptable

Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Digital Input / Digital Output

2 Digital Input (DI)
2 Digital Output (DO)
Integrates sensors into auto alarm system
Transfers alarm to IP network via email and SNMP trap

Layer 2 Features

High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support

- Broadcast / Multicast / Unknown Unicast

Supports VLAN

- IEEE 802.1Q tagged VLAN

- Up to 255 VLANs groups, out of 4095 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- Voice VLAN

Supports Spanning Tree Protocol

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol by VLAN

- BPDU Guard

Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 10 trunk groups, up to 8 ports per trunk group

- Up to 16Gbps bandwidth(duplex mode)

Provides port mirror (many-to-1)
Port Mirroring of the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports E.R.P.S. (Ethernet Ring Protection Switching)
IEEE 1588 and Synchronous Ethernet network timing

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification

- IEEE 802.1p CoS

- IP TOS / DSCP / IP Precedence

- IP TCP/UDP port number

- Typical network application

Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IPv4 IGMP Snooping v1, v2 and v3
Supports IPv6 MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
MVR (Multicast VLAN Registration)

Security

Authentication

- IEEE 802.1x Port-based / MAC-based network access authentication

- Built-in RADIUS client to cooperate with the RADIUS servers

- TACACS+ login users access authentication

- RADIUS / TACACS+ users access authentication

Access Control List

- IP-based Access Control List (ACL)

- MAC-based Access Control List

Source MAC / IP address binding
DHCP Snooping to filter un-trusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Layer 3 IP Routing Features

Supports maximum 32 static routes and route summarization

Management

IPv4 and IPv6 dual stack management
Switch Management Interfaces

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

IPv6 IP Address / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance

- Firmware upload/download via HTTP / TFTP

- Reset button for system reboot or reset to factory default

- Dual Images

DHCP Relay and DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) and LLDP-MED
SFP-DDM (Digital Diagnostic Monitor)
Network Diagnostic

- ICMPv6 / ICMPv4 Remote Ping

- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues

SMTP / Syslog remote alarm
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interfacing Link Up and Link Down notification
System Log
PLANET Smart Discovery Utility for deploy management

硬件特性
电口	16 10/ 100/1000Base-T RJ45 Auto-MDI/MDI-X ports
光口	4 1000Base-SX/LX/BX SFP interfaces (Port-17 to Port-20) Compatible with 100Base-FX SFP
Console端口	1 x RJ45 serial port (115200, 8, N, 1)
处理方式	Store-and-Forward
背板带宽	40Gbps / non-blocking
吞吐量	25.6Mpps
地址表	8K entries, automatic source address learning and ageing
共享数据缓冲区	4Mbits
流控	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
巨型帧	9Kbytes
重置按钮	< 5 sec: System reboot > 5 sec: Factory Default
ESD保护	6KV DC
EFT保护	6KV DC
材质	IP30 aluminum case
安装方式	DIN rail kit and wall-mount kit
Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 0 & DI 1; Pin 3/4 for DO 0 & DO 1; Pin 5/6 for GND
报警功能	One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC
DI/DO	2 Digital Input (DI): Level 0: -24V~2.1V (�0.1V) ??????????Level 1: 2.1V~24V (�0.1V) ??????????Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA (max.)
LED指示灯	System: ???Power 1 (Green) ???Power 2 (Green) ???Fault Alarm (Green) ???Ring (Green) ???R.O. (Green) Per 10/100/1000T RJ45 Port: ???1000 LNK/ACT (Green) ???10/100 LNK/ACT (Orange) Per SFP Interface: ???1000 LNK/ACT (Green) ???100 LNK/ACT (Orange)
尺寸	72 x 107 x 152 mm
重量	1043g
电源功率	12V to 48V DC 24V AC
功率/损耗	8 watts / 27BTU (System on) 17 watts / 57BTU (Full loading)
2层特性
管理方式	Web browser, Remote Telnet, SNMPv1, v2c, local console
安全管理	SSH, SSL, SNMPv3
端口设定	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Power saving mode control
端口状态	Display each port�s speed duplex mode, link status, Flow control status. Auto negotiation status, trunk status.
端口镜像	TX / RX / Both Many to 1 monitor
VLAN	802.1Q tagged-based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4095 VLAN IDs
链路聚合	IEEE 802.3ad LACP / Static Trunk Support 10 groups of 8-Port trunk support
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching ?- Port Number ?- 802.1p priority ?- 802.1Q VLAN tag ?- DSCP/TOS field in IP Packet
IGMP Snooping	IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups IGMP Querier mode support
MLD Snooping	MLD (v1/v2) Snooping, up to 255 multicast Groups MLD Querier mode support
访问控制列表（ACL)	IP-Based ACL / MAC-based ACL Up to 256 entries
带宽控制	Per port bandwidth control ??Ingress: 500Kbps~1000Mbps ??Egress: 500Kbps~1000Mbps
SNMP MIBs	RFC-1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB
3层特性
IP Interfaces	Max. 8 VLAN interfaces
路由表	Max. 32 routing entries
路由协议	IPv4 software static routing IPv6 software static routing
标准一致性
遵从法规	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
国际标准	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000Base-T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 1588v2 RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2
环境
工作	Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
存储	Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

订购信息
IGS-20040MT	L2+ Industrial 16-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Switch (-40~75 degrees C)
