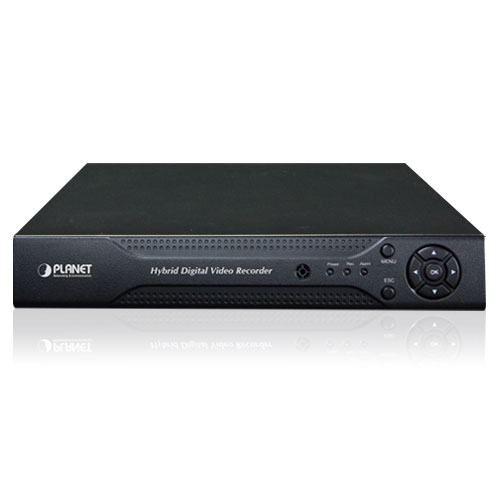

HDVR-830

8 Channel Hybrid Digital Video Recorder

概述
应用场景
功能特性
产品规格
下载
相关产品

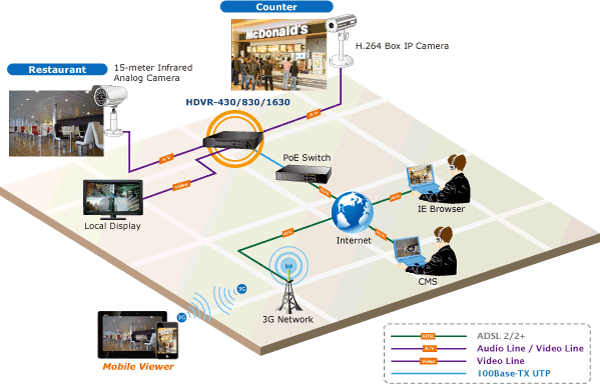

Efficient Solution for Combining IP and Analog Cameras

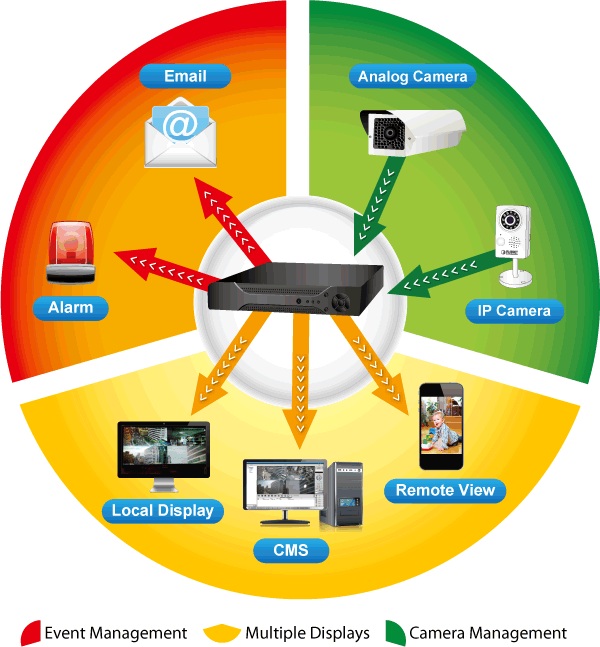

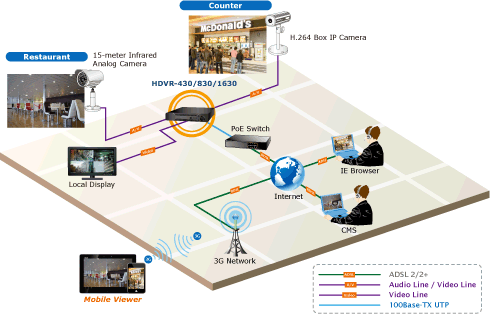

PLANET HDVR-830 is a hybrid DVR recorder which is able to record video and data from both traditional analog and network IP security cameras. The advantage of a hybrid DVR recorder is that it lets you use currently installed analog security equipment along with newer network IP technology. This enables you to upgrade your surveillance system to IP equipment at your own pace, according to your budget. The HDVR-830 is the 8-channel embedded system with HDMI local display and features recording, live view, playback and backup functions, etc. With easy-to-remember DDNS feature, the HDVR can be placed either in LAN or WAN for easy installation. Besides, designed for various surveillance applications via RS485 interface, the HDVR is capable of controlling most types of protocols. For the purpose of general monitoring, the HDVR-830 offers app viewer, Web browser and CMS (Central Management Software) for multi-platform remote access, thus making it an ideal solution for various applications, such as retail stores, communities, SMBs, supermarkets, restaurants and schools.

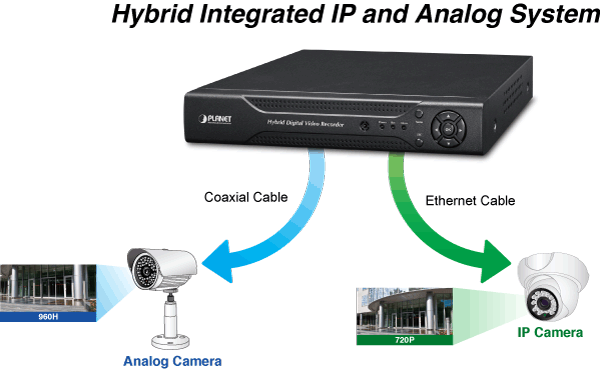

Hybrid Integration
The HDVR-830 allows each of its 8 channels to be connected to either an analog camera or an IP camera. If you already have analog cameras and want to add on a few IP cameras, the HDVR-830 is definitely your ideal choice. In addition, the HDVR complies with ONVIF and it can expand flexibility between third-party IP cameras and the HDVR. The ONVIF is the main integration method for the HDVR and allows you to add cameras and reduce compatibility issue.

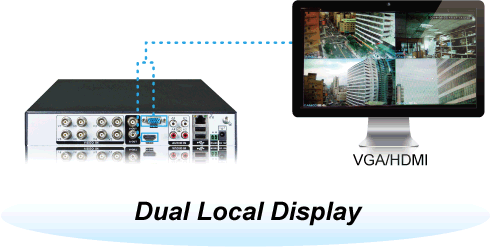

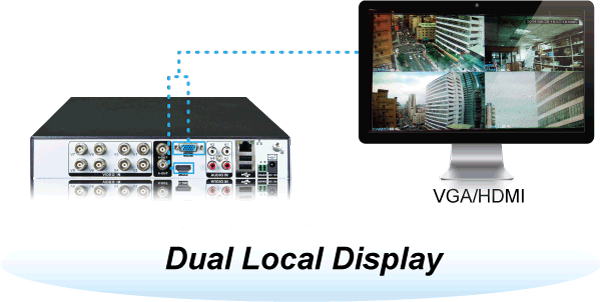

High Resolution Local Display
The HDVR-830 provides an HDMI and VGA video output interface for dual local display, which can be connected to HDMI monitor or VGA monitor for live view monitoring with video output of maximum 1280 x 720 resolutions. Due to local display, it can eliminate the need for a separate PC to view video from the unit. Besides, it also can be operated with the USB mouse to configure and monitor all the system easily.

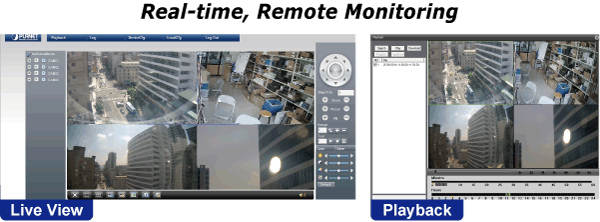

Real-time Remote Monitoring
Video from the HDVR systems can be accessed with Web browsers and Android mobile devices. With remote monitoring, you can view live and recorded video "on the go", allowing for easier monitoring of your video deployments, and the ability to react quickly to alarms and events.

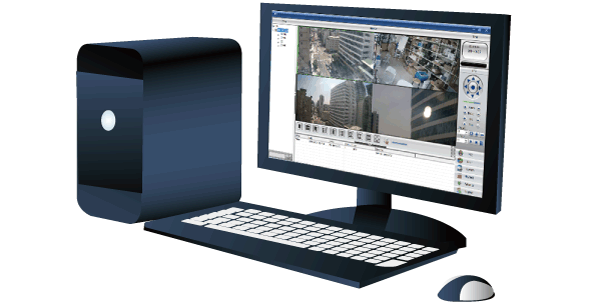

Managed via Central Management System (CMS)
Not just for small scale applications such as retails stores and SMBs, the HDVR system is expandable for multi-site management with the bundled CMS software. The CMS software is able to manage up to 256 channels of cameras simultaneously. With friendly graphic interface, users can control any cameras or HDVRs easily and make a quick response when event is triggered. With CMS support, users are able to make surveillance more efficient.

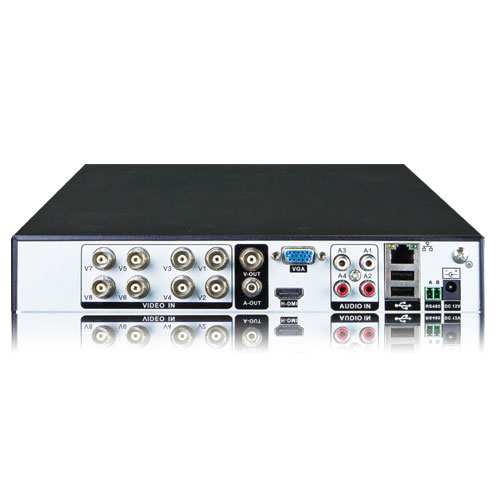

Hardware
Ethernet	1 x RJ45, 10/100BASE-TX
BNC Interface	8
USB Interface	2 x USB 2.0 for backup device and mouse
Video Interface	VGA / HDMI video interface
Audio Interface	4 x audio-in, 1 x audio-out
Storage Device	1 x 3.5" SATA hard disk connector (max. 4TB)
LED	Power, Record, Alarm
Button	Menu, ESC, Direction & Enter
Camera
Max. Channels	8-channel cameras
Add camera	Manual / Smart Camera Search
Video
Video System	PAL (625line, 50f/s); NTSC (525line, 60f/s)
Compression	H.264
Resolution	IP camera: 1080P Analog camera: D1 / HD1 / CIF
Encode Capacity	8-ch HD1 / D1 real-time
Decode Capacity	8-ch HD1 / 1-ch D1 real-time
Hybrid mode	Analog cameras: 8-ch 960H / 8-ch D1 / 8-ch HD1 Analog cameras & IP Cameras: 2-ch D1 & (1-ch 1080P + 1-ch 720P) IP Cameras: 8-ch 1080P / 8-ch 720P / 4-ch 1080P / 4-ch 720P / 1-ch 1080P
Motion Detection	Zones: 192 (16 x 12) detection zones Sensitivity: multi-level sensitivity (only local channels)
Audio
Audio Type	2-way
Audio format	G.711A
Live view
Display Division	1 / 4 / 8 / 9
Snapshot	Video snapshot in JPEG format
Playback
Record	Manual / Alarm / Motion Detection / Schedule
Local Playback	1~8ch simultaneous playback; supports up to 4 channel playback (1 x D1@25FPS) in analog mode (8-ch x D1)
Play Method	Play / Pause / Stop / Slow / Fast / Prev. Frame / Next Frame Search by time / calendar / event / channel
Download	Backup file to specific local HDD partition
Monitor
Display Quality	Monitor: D1 VGA: HD HDMI: HD
Network and Configuration
Network Service	TCP / UDP / HTTP / DHCP / DNS / DDNS / RTSP / NTP / UPnP / FTP / SMTP
Security	Password protection, IP address filtering

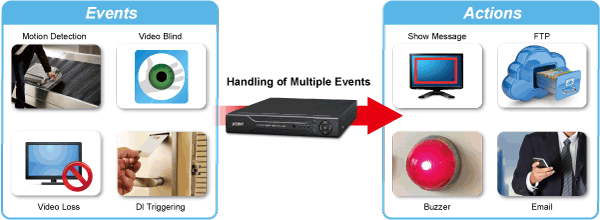

Triggers and Event
Event Type	System Events � No storage Storage Error Storage No Space Net Disconnection IP Conflict Camera Events � Motion Detection / Video Blind / Video Loss / DI / DO
Event Action	Show Message Buzzer Mobile Reported Send e-mail FTP Upload
Management
Remote Session	5
Privileges	Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / Maintenance
User Interface	Graphic local user interface (Operated by mouse ) Web Browser (IE, Chrome, Firefox, Safari) CMS Utility
Log Type	All / System / Config / Storage / Alarm Event / Week Day / Account / Playback
Software Utility	Search utility / CMS / APP
Environment
Power	12V DC, 2A
Consumption	15W (without HDD)
Operating Temperature	0~55 degrees C
Storage Temperature	0~60 degrees C
Humidity	10~90% (non-condensing)
Weight	1.7 kg
Dimensions (W x D x H)	255 x 225 x 45 mm

订购信息
HDVR-830	8 Channel Hybrid Digital Video Recorder
