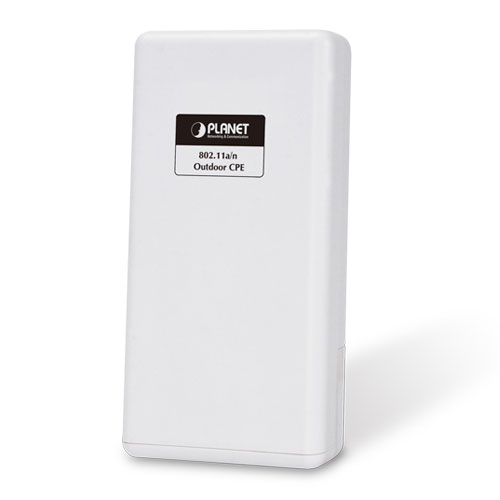

WNAP-7335

5GHz 300Mbps 802.11a/n Outdoor Wireless AP/Router (2 x RP-SMA Connector)

概述
应用场景
功能特性
产品规格
下载
相关产品

Cost-effective Wireless Solution with Superior Performance

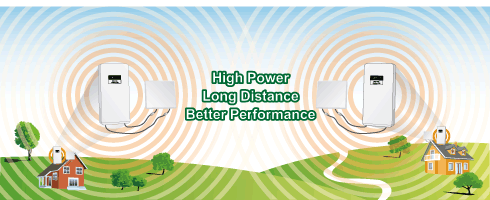

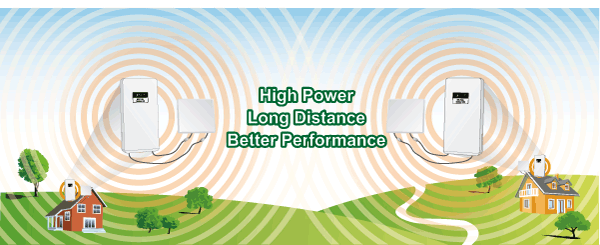

PLANET WNAP-7335 is designed to provide a highly-stable, better performance and cost-effective wireless solution in outdoor backhaul deployment. It offers significant range and excellent throughput compared to the traditional 802.11a wireless device while using the same transmission power. Via the adjustable output power which can be up to 500mW and RP-SMA antenna connectors, it can directly connect with various high gain antennas to extend wider coverage for outdoor long-ranging application and better noise immunity effect, thus increasing the real performance reaching over 100Mbps at 5km of long distance connection.

Designed for Various Requirements of Wireless LAN

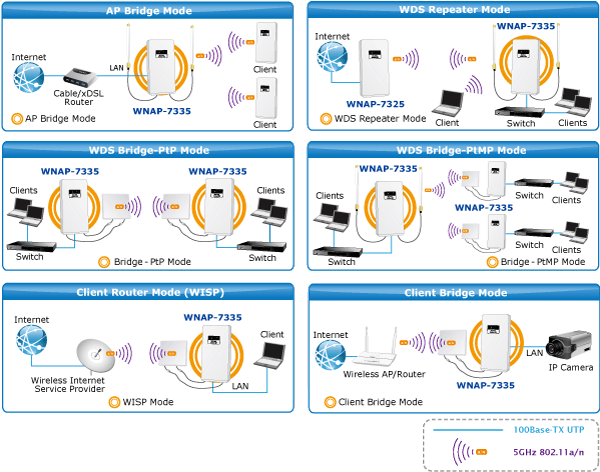

The WNAP-7335 supports multiple wireless communication connectivities, including AP/Router, WDS PtP, WDS PtMP and WISP modes, that meet various application requirements to enable users to gain more comprehensive experience. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

Advanced Security and Rigorous Authentication
The WNAP-7335 supports WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1x RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established.

Less Interference, Highly Reliable Connection

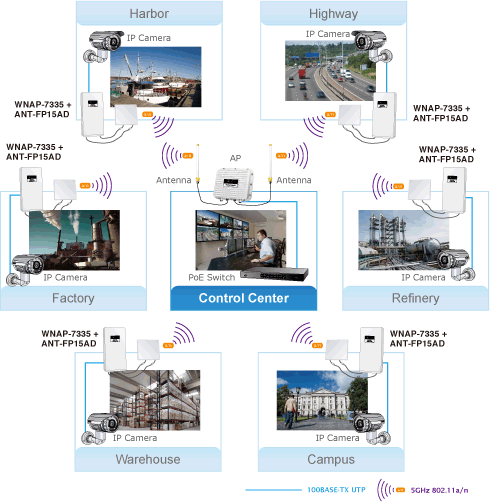

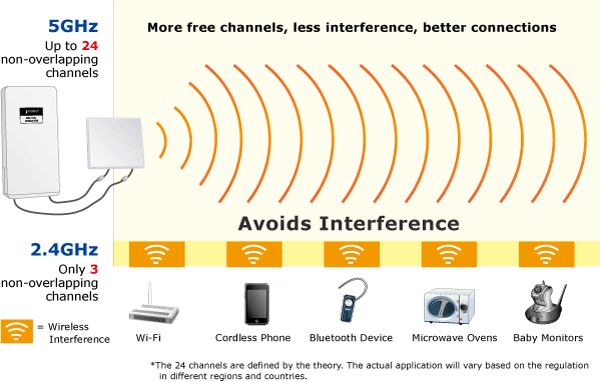

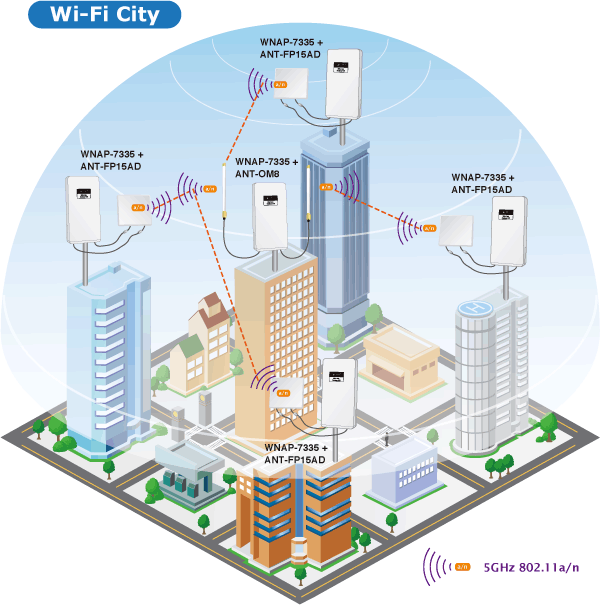

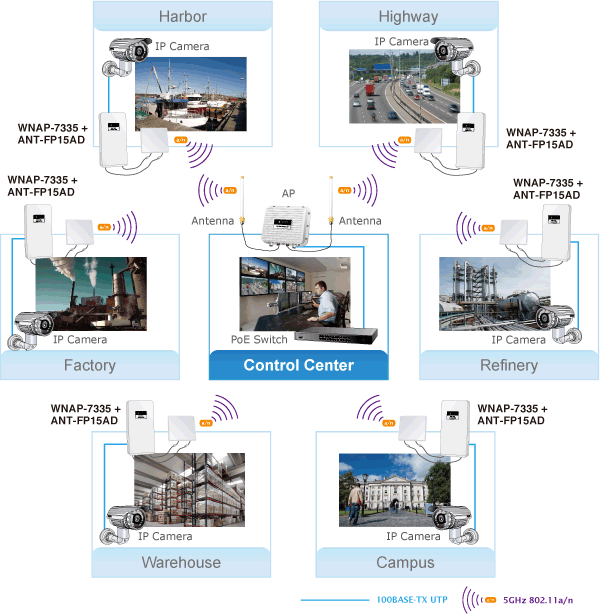

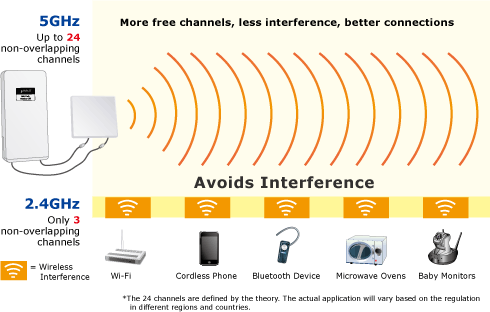

By using 5GHz frequency band, the WNAP-7335 can easily avoid much interference coming from the environment where there are a maximum of 24 non-overlapping channels. Therefore, the WNAP-7335 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing/schedule reboot capability keeps connection alive all the time.

Flexible and Reliable Outdoor Characteristics

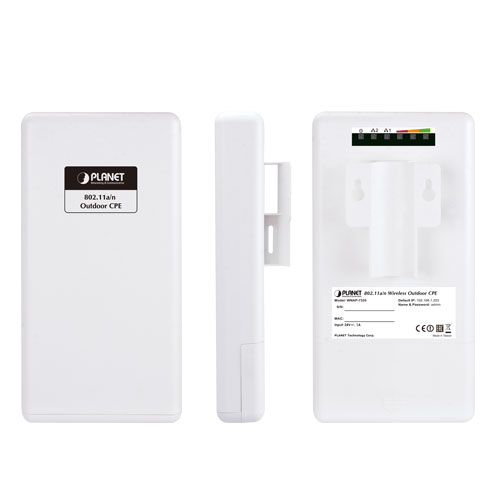

The WNAP-7335 is perfectly suitable to be installed in outdoor environments and harsh locations. With IP55 and outdoor UV resistance enclosure, the WNAP-7335 can perform normally under rigorous weather conditions. With the proprietary Power over Ethernet (PoE) design, the WNAP-7335 can be easily installed in the areas where power outlets are not available.

Easy Deployment and Management
With user-friendly Web UI and the Planet Smart Discovery Utility, the WNAP-7335 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the PLANET Dynamic DNS service and SNMP-based management interface, the WNAP-7335 is convenient to be managed and configured remotely.

硬件特性
标准支持	IEEE 802.11a/n IEEE 802.3 IEEE 802.3u IEEE 802.3x
Memory	64 Mbytes DDR SDRAM 16 Mbytes Flash
PoE	Passive PoE
端口	Wireless IEEE802.11a/n, 2T2R PoE LAN (LAN 1): 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE LAN 2: 1 x 10/100BASE-TX, auto-MDI/MDIX, passive PoE pass-through

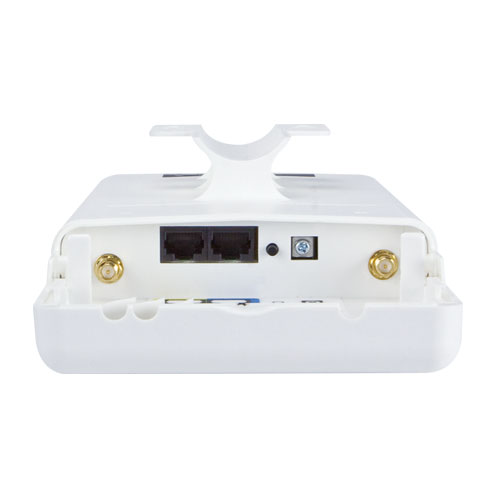

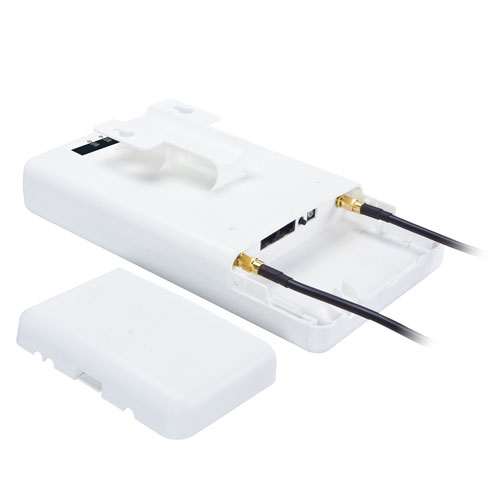

天线	Built-in RP-SMA antenna connectors
无线RF特性
无线技术	IEEE 802.11a IEEE 802.11n
数据传输速率	IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbp
Media Access Control	CSMA/CA
调制	Transmission/Emission type: OFDM Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
频段	5.180GHz ~ 5.825GHz
操作信道	5.180GHz CH36 5.580GHz CH116 5.200GHz CH40 5.600GHz CH120 5.220GHz CH44 5.620GHz CH124 5.240GHz CH48 5.640GHz CH128 5.260GHz CH52 5.660GHz CH132 5.280GHz CH56 5.680GHz CH136 5.300GHz CH60 5.700GHz CH140 5.320GHz CH64 5.745GHz CH149 5.500GHz CH100 5.765GHz CH153 5.520GHz CH104 5.785GHz CH157 5.540GHz CH108 5.805GHz CH161 5.560GHz CH112 5.825GHz CH165 *The 24 channels are defined by the theory. The actual application will vary based on the regulation in different regions and countries.
RF功率	802.11a 25 �1dBm 802.11n 24 �1dBm
接收灵敏度(dBm)	802.11a -94dBm 802.11n -93dBm
输出功率控制	12~27dBm
软件特性
LAN端口	Built-in DHCP server supporting static IP address distribution Supports 802.1d STP (Spanning Tree)
WAN端口	? Static IP ? Dynamic IP ? PPPoE
操作模式	? Bridge ? WISP
防火墙	NAT firewall with SPI (Stateful Packet Inspection) Built-in NAT server supporting virtual server and DMZ Built-in firewall with port/ IP address/ MAC/ URL filtering
无线模式	? AP/ Router ? Client ? WDS PTP ? WDS PTMP ? WISP
信道频宽	20MHz / 40MHz
无线技术	Enable to isolate each connected wireless client to let them cannot access mutually
加密类型	64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
无线安全	Wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Enable/Disable SSID Broadcast
最大无线客户端	25
Max. WDS APs	8
Max. Wired Clients	60
WMM	Supports Wi-Fi multimedia
QoS	Supports Quality of Service for bandwidth control
NTP	Network Time Management
Self Healing	Supports Schedule Reboot
管理	Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP
诊断工具	System Log, Ping Watchdog
Mechanical and Power
IP Level	IP55
Material	Outdoor UV Stabilized Enclosure
Dimensions (W x D x H)	127 x 63 x 254 mm
Weight	366g

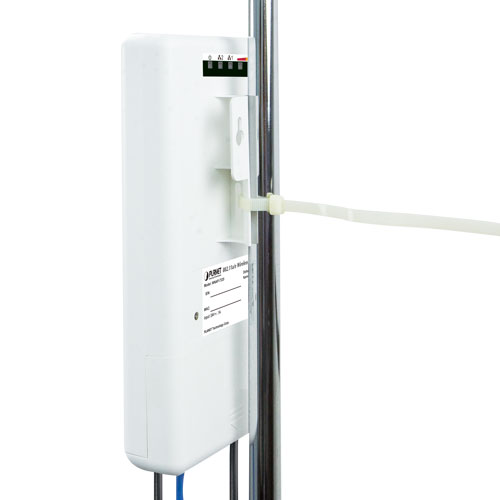

Installation	Pole mounting or wall mounting
Power Requirements	LAN1 ? 24V DC, 1A/ Passive PoE ? Pin 4,5 V DC+ ? Pin 7,8 V DC- ? Pin 3 Reset
Power Consumption	12W
环境与认证
工作温度	-20~70�C
工作湿度	10~95% non-condensing
法规	CE, FCC, RoHS
配件
标准配件	? WNAP-7335 x 1 ? 24V DC Passive PoE Injector & Power Cord x 1 ? Plastic Strap x 1 ? Quick Installation Guide x 1

订购信息
WNAP-7335	5GHz 300Mbps 802.11a/n Outdoor Wireless AP/Router (2 x RP-SMA Connector)

附件
CB-STP-25	25-meter STP Cat5 Cable
WL-SMA-0.6	0.6M RP-SMA(M) to N(M) Cable
WL-SMA-6	6M RP-SMA(M) to N(M) Cable
WL-N-10	10-meter N-male (male pin) to N-female (female pin) Extension Cable
ANT-OM10A	5GHz 10dBi Omni-directional Antenna
ANT-FP15AD	5GHz 15dBi Dual Polarity Flat-Panel Directional Antenna
ANT-FP18A	5GHz 18dBi Flat Panel Antenna
ANT-FP23A	5GHz 23dBi Flat Panel Directional Antenna
ANT-SE17A	5GHz 16.5dBi Sector Antenna
ANT-SE21A	5GHz 21dBi Sector Antenna
WL-LTNA	2.4/5GHz Lightning Arrester (N-male to N-female)
