1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point

首页 > 产品 > 无线网 > 无线网桥 > WDAP-C7200AC

Print Version

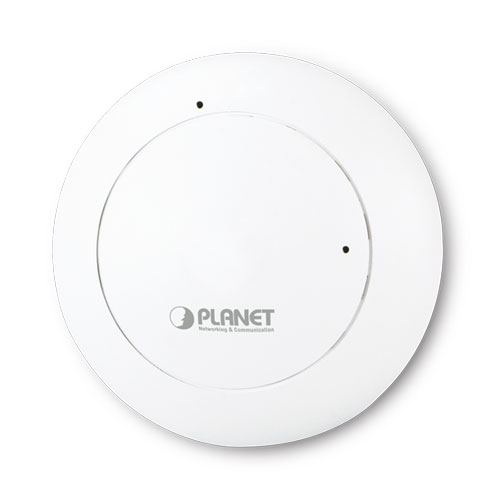

WDAP-C7200AC

1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point

概述
应用场景
功能特性
产品规格
下载
相关产品

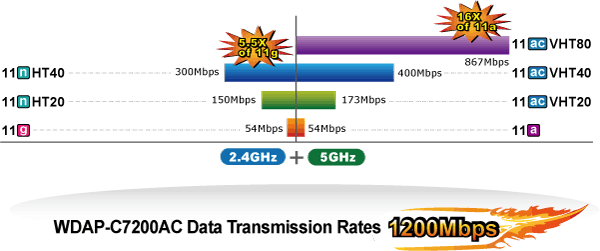

Brand-new 11ac Wireless Technology

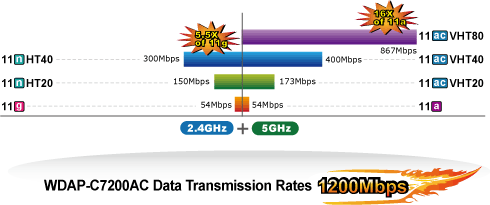

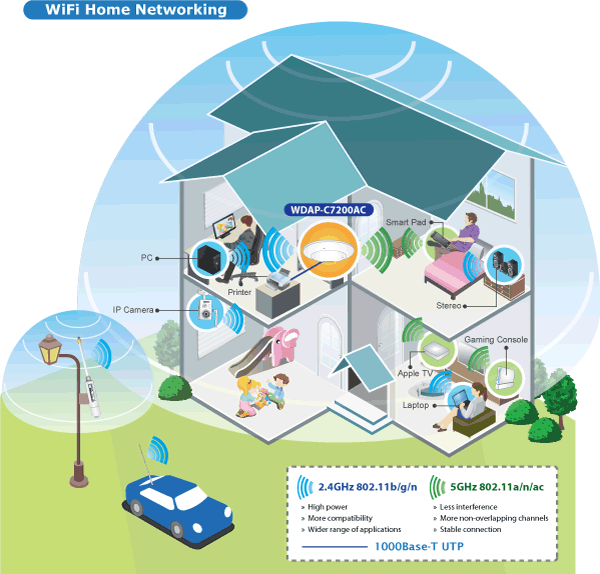

The WDAP-C7200AC supports IEEE 802.11a/b/g/n/ac dual band standards with 2T2R MIMO technology; therefore, it provides the wireless speed up to 300+867Mbps, which is 16X faster than the 11a access point at 5GHz frequency and 5.5X faster than the 11g access point at 2.4GHz frequency. Moreover, the WDAP-C7200AC is equipped with Gigabit Ethernet Port. Compared with the general wireless APs, the WDAP-C7200AC offers faster transmission speed for the network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

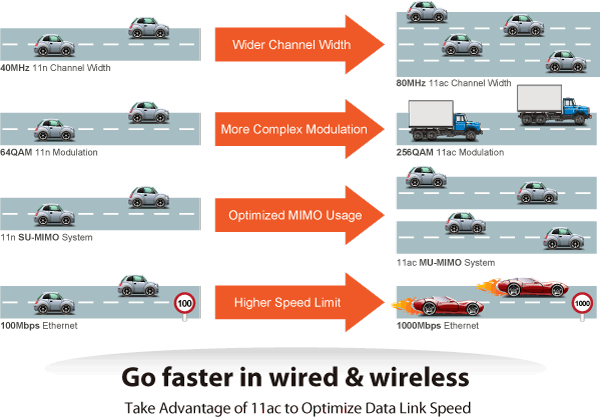

11ac Innovations Bring Excellent Data Link Speed
The WDAP-C7200AC is built-in with high power amplifier and 4 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. To provide extremely high-speed user experience, the WDAP-C7200AC adopts IEEE 802.11ac technology to extend the 802.11n 40MHz channel binding to 80MHz and the implementation of 256-QAM modulation where higher transmitting/receiving rates go up to 867Mbps in 5GHz less interference frequency band. In addition, the WDAP-C7200AC is equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ac also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

Ceiling Mount Designed for Highly-efficient Wireless Coverage

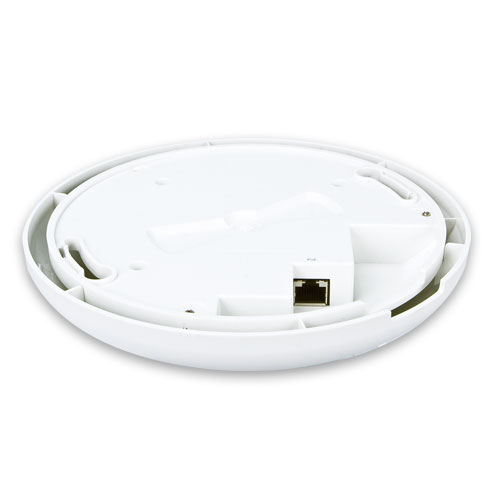

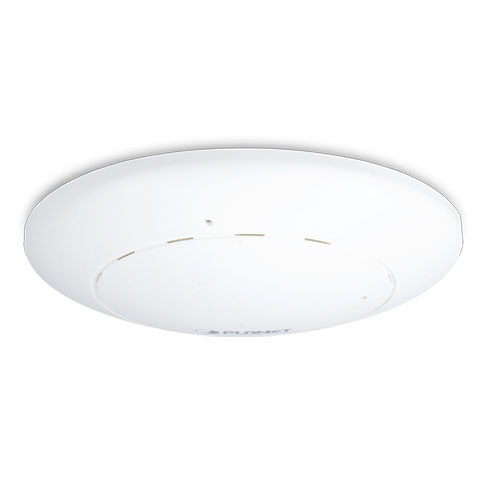

Featuring attractive flying saucer appearance and ceiling-mount design, the WDAP-C7200AC can be firmly installed on the ceiling or the wall conveniently. The ceiling-mount design is smartly integrated into the environment. Its streamlined body without the protruding antennas also gives effects of embellishment in the surroundings. Moreover, the WDAP-C7200AC is compliant with the IEEE 802.3at PoE standard, so it is easy and flexible in client-side installation. It is definitely nice to have this eye-catching access point mount on the ceilings and walls of villas, hotels, exhibit halls, and other establishments.

Full Support of Wireless Security Encryption and Wireless Value-added Features

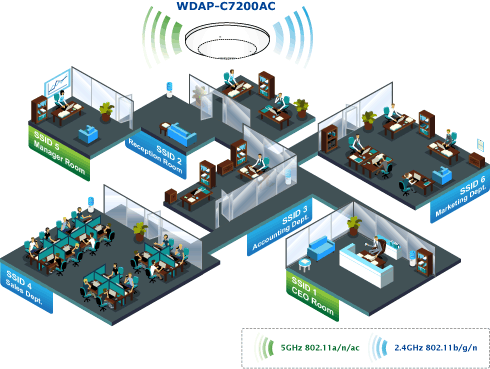

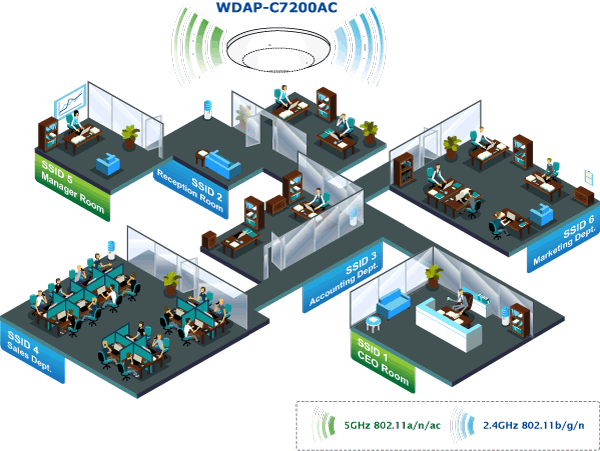

In aspect of security, besides 64/128-bit WEP encryption, the WDAP-C7200AC is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x Radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Being an access point, the WDAP-C7200AC supports the VLAN function to allow multiple SSIDs (10 sets of SSIDs) to access Internal VLAN topology. Moreover, its Wi-Fi Multimedia (WMM) mechanism provides enhanced QoS over wireless connection for better performance in multimedia transmission like on-line gaming and video streaming, which are classified as a top priority.

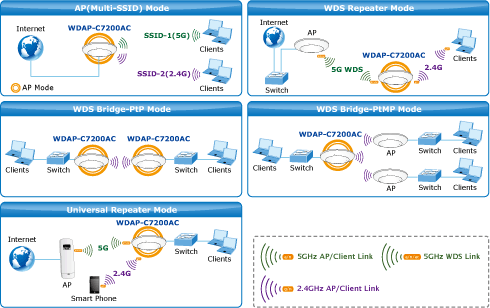

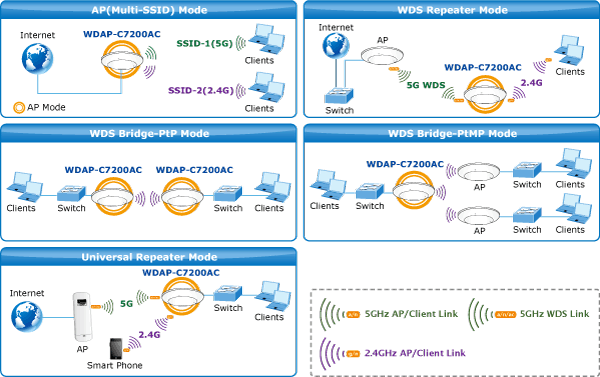

Multiple Operation Modes for Various Applications
The WDAP-C7200AC supports AP, Client, WDS Bridge, Repeater and Universal Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access point, the WDAP-C7200AC offers more powerful and flexible capability for wireless clients.

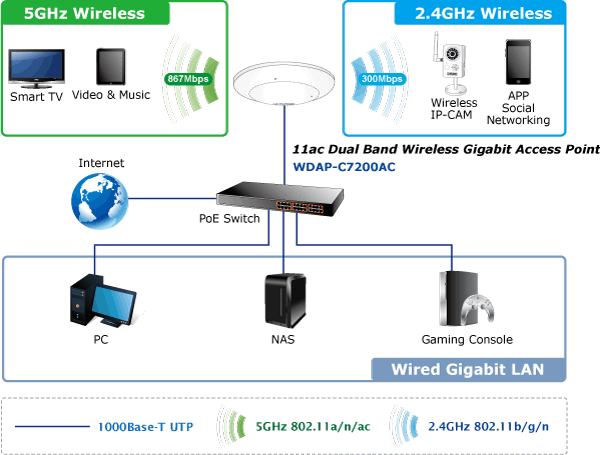

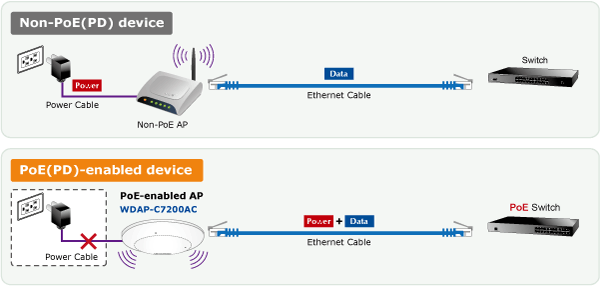

Flexible Deployment with PoE Feature
Compliant with the IEEE 802.3at Power over Ethernet standard, the WDAP-C7200AC can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place where it is difficult to reach. The wireless network deployment becomes more flexible and worry-free from the power outlet locations.

Easy Installation and Management
With user-friendly Web UI and step-by-step Quick Setup Wizard, the WDAP-C7200AC is easy to install, even for users who never experience setting up a wireless network. Furthermore, with SNMP-based management interface, the WDAP-C7200AC is convenient to be managed and configured remotely in a small business wireless network.

硬件特性
LAN接口	1 x 10/100/1000Base-T RJ45 port Auto-negotiation and Auto MDI/MDI-X
天线增益	2 x 2.4GHz 2.5dBi PCB antenna 2 x 5GHz 4dBi PCB antenna
重置按钮	Reset button on the top cover Press over 7 seconds to reset the device to factory default
LED指示灯	PWR Allow LED to turn off via software control
材质	Plastic
尺寸	194 x 49 mm
重量	300 �5g
电源要求	802.3at PoE, 48-56V DC input
功率消耗	20W (max.)
安装	Ceiling Mount
无线端口特性
标准	IEEE 802.11ac (Draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz
天线结构	802.11ac: 2T2R MU-MIMO 802.11n: 2T2R MIMO
调制	DSSS
数据调制	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
频带模式	2.4GHz / 5GHz concurrent mode
频率范围	2.4GHz: America/ FCC: 2.412~2.462GHz ??? ?Europe/ ETSI: 2.412~2.484GHz 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz ? ??Europe/ ETSI: 5.180~5.240GHz
运行信道	2.4GHz: America/ FCC: 1~11 ??? ?Europe/ ETSI: 1~13 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 ?? ?Europe/ ETSI: 36, 40, 44, 48 *5GHz channel list will vary in different countries according to their regulations.
信道频宽	802.11ac: 20/40/80MHz 802.11n: 20/40MHz
数据传输速率	802.11ac (VHT20, Nss2-MCS8): Up to 173.3Mbps 802.11ac (VHT40, Nss2-MCS9): Up to 400Mbps 802.11ac (VHT80, Nss2-MCS9): Up to 867Mbps 802.11n (HT40): 270/243/216/162/108/81/54/27Mbps ?????? ??135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic) 802.11n (HT20): 130/117/104/78/52/39/26/13Mbps ?????? ??65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic) 802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic) 802.11b: 11/5.5/2/1Mbps (dynamic)
传输距离	802.11ac (draft): up to 30m 802.11n: up to 70m 802.11g: up to 30m The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
最大. RF功率	5GHz: ???802.11ac (VHT20): 22dBm ???802.11ac (VHT40): 22dBm ???802.11ac (VHT80): 22dBm ???802.11n (HT20): 22dBm ???802.11n (HT40): 22dBm ???802.11a: 22dBm 2.4GHz: ???802.11n: 17 �2.5dBm ???802.11b/g: 20 �2.5dBm
接收灵敏度	5GHz: ???802.11ac (VHT20): -91dBm @ Nss1-MCS0, -64dBm @ Nss2-MCS8 ???802.11ac (VHT40): -89dBm @ Nss1-MCS0, -59dBm @ Nss2-MCS9 ???802.11ac (VHT80): -86dBm @ Nss1-MCS0, -56dBm @ Nss2-MCS9 ???802.11n (HT20): -92dBm @ MCS0, -71dBm @ MCS7 ???802.11n (HT40): -89dBm @ MCS0, -66dBm @ MCS15 ???802.11a: -93 @ 6Mbps, -75dBm @ 54Mbps 2.4GHz: ???802.11n 20MHz (MCS7): -69dBm @10% PER ???802.11n 40MHz (MCS15): -66dBm @10% PER ???802.11g (54Mbps): -74dBm @10% PER ???802.11b (11Mbps): -88dBm @10% PER
软件特性
无线工作模式	? Universal Repeater (AP+Client) ? Repeater (WDS+AP) ? AP (Access Point) ? WDS PTP (Point to Point) ? WDS PTMP (Point to Multipoint) ? Client
加密安全	? WEP (64/128-bit) encryption security ? WPA / WPA2 (TKIP/AES) ? WPA-PSK / WPA2-PSK (TKIP/AES)
无线安全	Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Enable/ Disable SSID Broadcast
无线高级功能	WMM (Wi-Fi Multimedia): 802.11e Wireless QoS Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming Provides Wireless Statistics
最大.客户端	Wire: 253 2.4GHz Wireless: 32 5GHz Wireless: 32
LAN端口	Built-in DHCP server supporting static IP address distributing Supports UPnP Supports 802.1d Spanning Tree
系统管理	Web-based (HTTP) management interface SNTP time synchronize Easy firmware upgrade Supports Scheduling Reboot Supports Smart Discovery Utility
标准
IEEE 标准	IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps) IEEE 802.11n (2T2R, up to 300Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control
其他协议与标准	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP
环境与认证
温度	Operating: 0 ~ 50 degrees C Storage: -40 ~ 70 degrees C
湿度	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)
法规	FCC Part 15B & 15C, IC, RoHS

订购信息
WDAP-C7200AC	1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point
