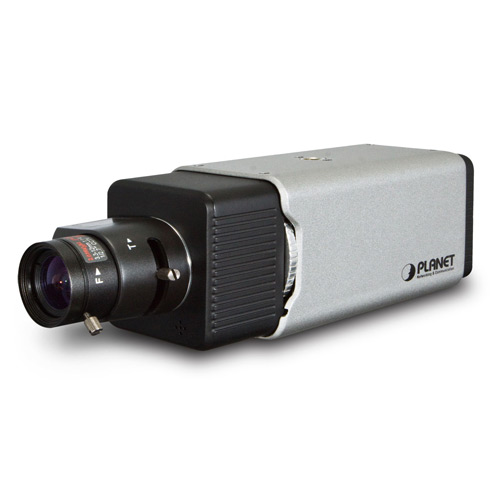

ICA-2200

Full HD PoE Box IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

PLANET ICA-2200 is a Full HD camera for a wide range of video surveillance over IP networks. It supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 1080P resolutions at 30 frames per second (fps). Superb 1080P video quality is provided with progressive scan in multiple individual streams, 16:9 aspect ratio and frame rate. The ICA-2200 offers high-performing video surveillance in both indoor and outdoor applications. It is perfect for securing locations such as buildings, roads, parking areas, garages, railway stations, airports, etc.

Day & Night Surveillance

The ICA-2200 features an automatic, removable infrared-cut filter to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-2200 is able to maintain clear images 24 hours a day.

Extraordinary Image quality

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (3DNR) technology, the ICA-2200 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Advanced Event Management

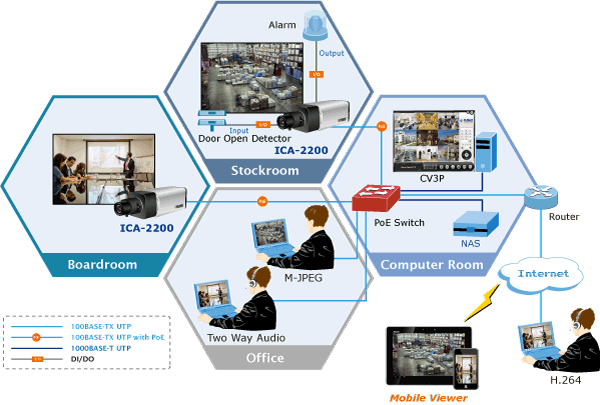

The ICA-2200 supports a number of advanced features that enhance the camera flexibility and capabilities. The auto-iris function improves the image quality and avoid over exposure. The AV output enables 2-way audio communication. The embedded micro SD/SDHC card slot facilitates the image storage locally. It also provides the RS-485 interface for an optional pan/tilt enclosure connection to effectively perform pan/tilt management. The inputs/outputs interface of the ICA-2200 can connect to external devices such as door sensors and relays to activate light or closed doors automatically.

Flexible Installation and Power Functionality

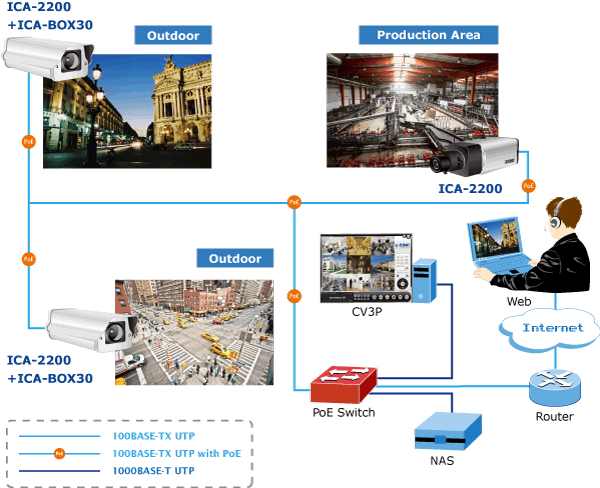

The ICA-2200 incorporates 802.3af Power over Ethernet standard so it can be powered via the network cable, eliminating the need for power cables and reducing installation costs. The ICA-2200 is ONVIF compliant and therefore is interoperable with other brands in the market. It also includes the 64 channel central management software for efficient surveillance monitoring. The ICA-2200 is indisputably the top choice for reliable and high performance surveillance.

*This device supports Android APP. Download Now!

Camera
Image Device	1/2.7" type progressive scan CMOS sensor
Lens	Vari-Focal 3.3~12mm, F1.4 DC auto-iris, CS mount Mechanical IR-cut Filter Angle of view (horizontal field): 79.3 x 29.8 degrees
Min Illumination	0.5 lux @ F1.4
Effective Pixels	1920 x 1080 pixels
Video Compression	H.264 / MPEG-4 / M-JPEG
Video Resolution	1080P mode H.264: 1080P / 640 x 360 / 320 x 180 / 160 x 90 M-JPEG: 1080P / 640 x 360 / 320 x 180 / 160 x 90 MPEG4: 640 x 360 / 320 x 180 / 160 x 90 720P mode H.264: 1280 x 720 / 640 x 360 / 160 x 90 M-JPEG: 1280 x 720 / 640 x 360 / 160 x 90 MPEG-4: 640 x 360 / 160 x 90
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB 3D noise reduction WDR Color, brightness, sharpness, contrast Mirror / Flip 8 Privacy Masks Text, time and date overlay
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) ROI
Audio
Audio Streaming	2-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggers	Intelligent video motion detection and external input
Alarm Events	File upload via FTP, Samba to NAS, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output Pre and post-alarm buffering
General
Power Requirements	12V DC, 1A IEEE 802.3af Class 3
Power Consumption	6W max.
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight (include LENS)	392g
Dimensions (W x D x H)	58 x 125 x 62 mm
Emission	CE, FCC

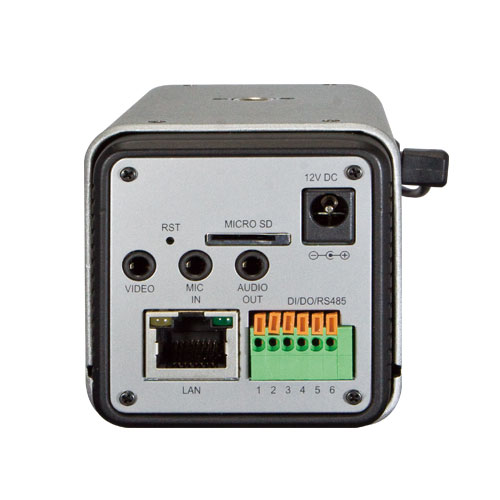

Connectors	10/100Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output RS-485 interface for pan/tilt scanners control External MIC input Audio output Composite video output Micro SD/SDHC card (max 32GB, Class 6) Factory default reset

订购信息
ICA-2200	Full HD PoE Box IP Camera

附件

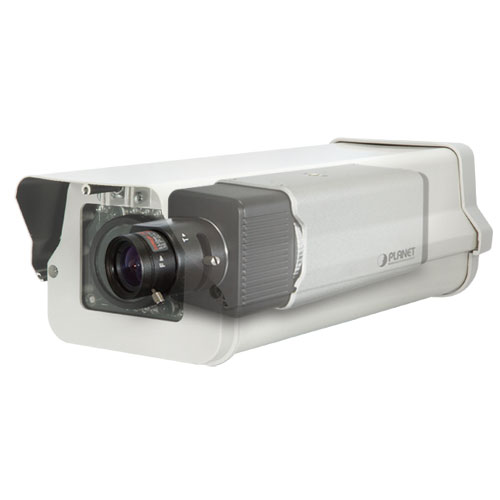

ICA-BOX30	30 meter IR Outdoor Housing
