ICA-2500

5 Mega-pixel PoE Box IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Professional, High-Resolution, Day-and-Night Network Camera
PLANET ICA-2500 is a 5 mega-pixel, high-resolution camera for the round-the-clock surveillance over IP network. It supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 5 mega-pixel resolutions at 15 frames per second (fps). Incorporating the mega-pixel vari-focal lens from TAMRON, which is specially designed for surveillance applications, the ICA-2500 provides high quality images under all lighting conditions. It is an ideal solution for indoor/outdoor surveillance applications in the buildings, roads, parking areas, garages, railway stations, airports, etc.

Day & Night Surveillance
The ICA-2500 features an automatic, removable infrared-cut filter to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-2500 is able to maintain clear images 24 hours a day.

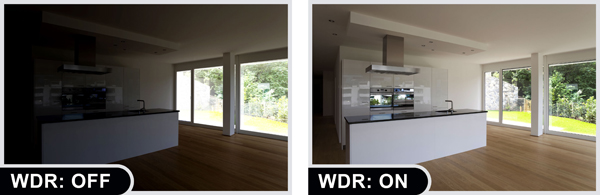

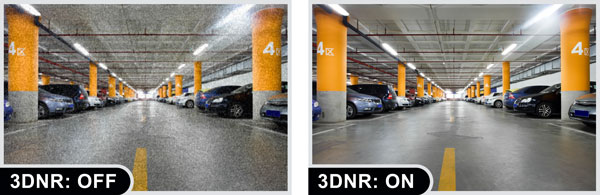

Extraordinary Image Quality
Together with the powerful image processing attributes like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (3DNR) technology, the ICA-2500 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

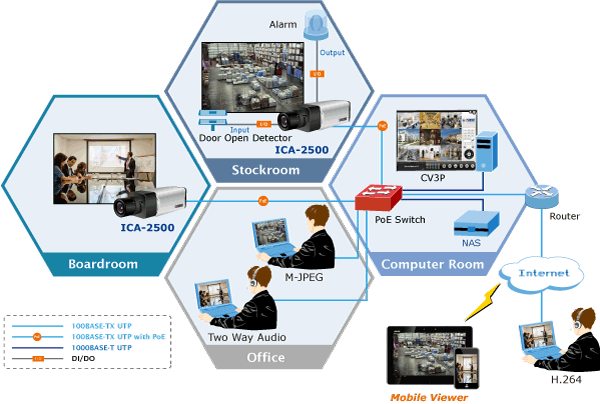

Advanced Event Management
The ICA-2500 supports a number of advanced features that enhance the camera flexibility and capabilities. The auto-iris function improves the image quality and avoid over exposure. The AV output enables 2-way audio communication. The embedded micro SD/SDHC card slot facilitates the image storage locally. It also provides the RS-485 interface for an optional pan/tilt enclosure connection to effectively perform pan/tilt management. The inputs/outputs interface of the ICA-2500 can connect to external devices such as door sensors and relays to activate light or closed doors automatically.

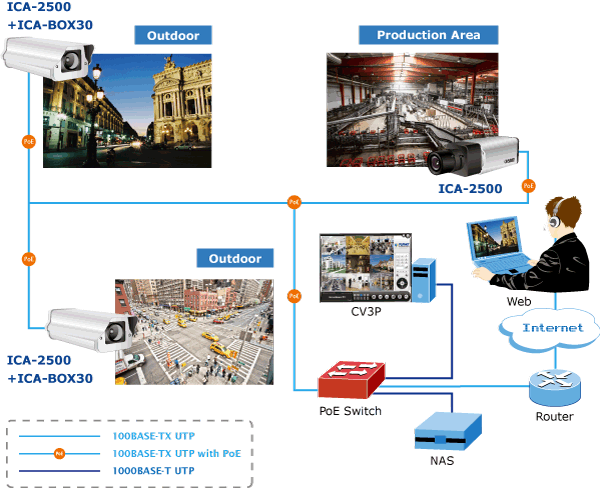

Flexible Installation and Power Functionality
The ICA-2500 incorporates 802.3af Power over Ethernet standard so it can be powered via the network cable, eliminating the need for power cables and reducing installation costs. With Gigabit Ethernet Transmission capability, the ICA-2500 gives users the utmost bandwidth flexibility and storage efficiency. The ICA-2500 is ONVIF compliant and therefore is interoperable with other brands in the market. It also includes the 64 channel central management software for efficient surveillance monitoring. The ICA-2500 is indisputably the top choice for reliable and high performance surveillance.

*This device supports Android APP. Download Now!

Camera
Image device	1/3" type progressive scan CMOS sensor
Lens	Vari-Focal 2.8~8mm, F1.0 DC auto-iris, CS mount Mechanical IR-cut filter Angle of view: Horizontal 1/3W- 100.1 x 72.9 degrees Vertical 1/3T- 35.8 x 26.8 degrees
Min Illumination	1.0 lux @ F1.4
Effective Pixels	2592 x 1944 pixels
Video Compression	H.264 / MPEG-4 / M-JPEG
Video Resolution	5M mode H.264: 2592 x 1944 / 1280 x 960 / 640 x 480 / 320 x 240 2M mode H.264: 1080P / 1280 x 720 / 640 x 360 / 320 x 180 MPEG4: 1280 x 720 / 640 x 360 / 320 x 180 M-JPEG: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
Frame Rate	15fps for 5M mode 30fps real-time for 2M mode
Image Setting	AE, AWB 3D noise reduction WDR Color, brightness, sharpness, contrast Mirror / Flip 8 Privacy Masks Text, time and date overlay
Streaming	Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP HTTPS M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) ROI
Audio
Audio Streaming	2-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T
Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggers	Intelligent video motion detection and external input
Alarm Events	File upload via FTP, Samba to NAS, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output Pre and post-alarm buffering
General
Power Requirement	12V DC, 1A IEEE 802.3af Class 3
Power Consumption	7W max.
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight (includes LENS)	404g
Dimension (W x D x H)	125 x 62 x 58 mm
Emission	CE, FCC

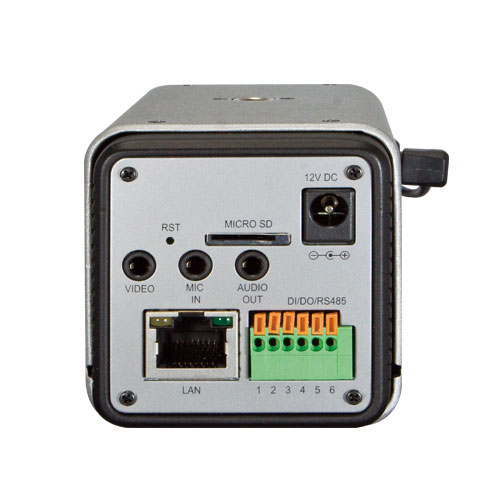

Connectors	10/100/1000Mbps Gigabit Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output RS-485 interface for pan/tilt scanners control External MIC input Audio output Composite video output (Max. resolution: D1 720 x 480 pixel) Local video output: Selectable NTSC/PAL video signaling Micro SD/SDHC card (Max 32GB, Class 6) Factory default reset

订购信息
ICA-2500	5 Mega-pixel PoE Box IP Camera

附件
ICA-BOX30	30 meter IR Outdoor Housing
