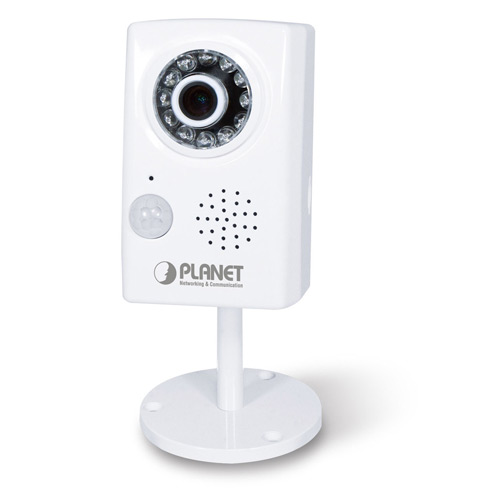

ICA-1200

Full HD PoE Cube IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Cost-effective Solution to Full HD Surveillance
PLANET ICA-1200 Cube IP Camera with IR Illuminator performs high resolution images for the round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats to deliver excellent picture quality in Full HD resolutions at 30 frames per second (fps). Incorporating the new Exmor� CMOS image sensor, the ICA-1200 provides high quality images under all lighting conditions. It is perfect for remote and discreet monitoring of indoor areas such as homes, small businesses, boutiques, restaurants, hotels, residences, etc.

Day & Night Surveillance
The ICA-1200 brings the clearest vision at night by featuring 0.5 lux illumination and the 12 red-light LEDs built around the lens. It offers color pictures both in the daytime and nighttime with the built-in CMOS sensor supporting up to 5~10 meters. The ICA-1200 also uses new High-Light LED to provide greater performance in the dark and longer life of LED.

Exceptional Image Quality

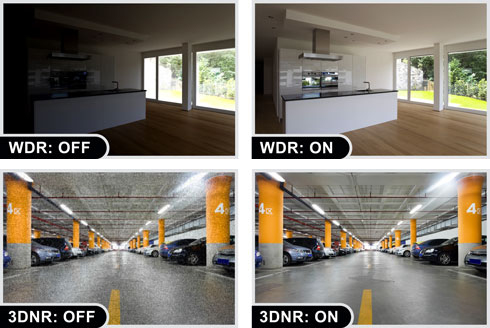

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (3DNR) technology, the ICA-1200 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, it brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

Passive InfraRed (PIR) Sensor
The ICA-1200 is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement far from 6 meters away. When people pass by or an emergency happens in the specified areas, the ICA-1200 will �detect� and start recording automatically. With the additional function of alarm notification, it can send an e-mail alert or the captured images via FTP upload to a designated storage server.

Advanced Event Management
Supporting Store-to-NAS function, the ICA-1200 can work alone and save the video file to a NAS directly, which can save the PC resource and keep monitoring the environment with motion detection at 7/24. It also offers 2-way audio surveillance; therefore, the administrator can speak to anyone at the ICA-1200 remote site with a speaker connected. In addition, the ICA-1200 supports inputs/outputs to connect with external devices such as door sensors and relays to activate light or closed doors.

Flexible Installation and Power Functionality
The ICA-1200 incorporates IEEE 802.3af Power over Ethernet standard and is able to be powered via the network cable from a PoE power sourcing equipment such as PoE Switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility. The ICA-1200 is ONVIF compliant and interoperable with other brands in the market. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-1200 is indisputably the ideal choice for reliable and high performance surveillance.

Camera
Image device	1/2.9" Sony Exmor Progressive CMOS
Lens	4.2 mm, fixed iris, fixed focus Angle of view : horizontal: 56 degrees / vertical: 43 degrees
Effective Pixels	1920 x 1080 pixels (16:9)
Min Illumination	0.5 lux @ F1.2
LED	IR LED x 12, 850nm Built-in IR illuminators, effective up to 5~10 meters
PIR Sensor	Built-in 6m/120 degrees Coverage
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	1080P mode H.264: 1080P / 640 x 360 / 672 x 352 / 320 x 180 / 160 x 90 M-JPEG: 1080P / 640 x 360 / 320 x 180 / 160 x 90 MPEG4: 1080P / 640 x 360 / 320 x 180 / 160 x 90 720P mode H.264: 1280 x 720 / 640 x 368 / 640 x 360 / 160 x 90 M-JPEG: 1280 x 720 / 640 x 360 / 160 x 90 MPEG-4: 1280 x 720 / 640 x 360 / 160 x 90
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB 3D Noise Reduction WDR Color, Brightness, Sharpness, Contrast, Hue Mirror / Flip 10 Privacy Masks Text, Time and Date Overlay
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) ROI
Audio
Audio Streaming	2-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Microphone	Built-in microphone and speaker input
Audio Output	Adjustable audio output gain
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Network Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF
Alarm Triggers	Intelligent Video Motion Detection External Input PIR detector (Human Detect) Audio detection
Alarm Events	File upload via FTP, Samba, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output
Video Buffer	Pre and post alarm buffering
Environment
Power Requirement	12V DC, 1A IEEE 802.3af (Power over Ethernet) Class 3
Power Consumption	6W (12VDC)
Operating Temperature	-10 ~ 40 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Dimension (W x D x H)	58 x 39 x 91 mm
Weight	146g
Emission	CE, FCC

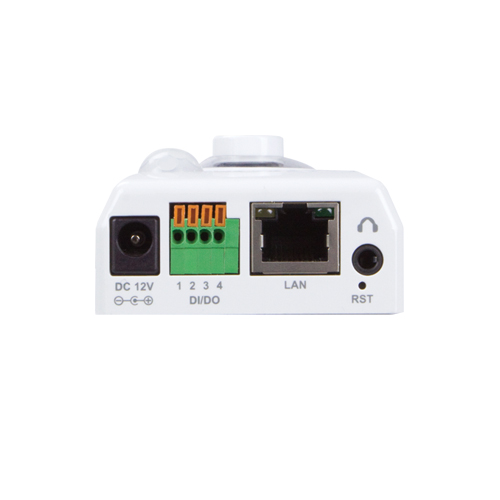

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio out TV out Micro SD/SDHC card (max 32GB, Class 6) Factory default reset

订购信息
ICA-1200	Full HD PoE Cube IP Camera
