ICA-W1200

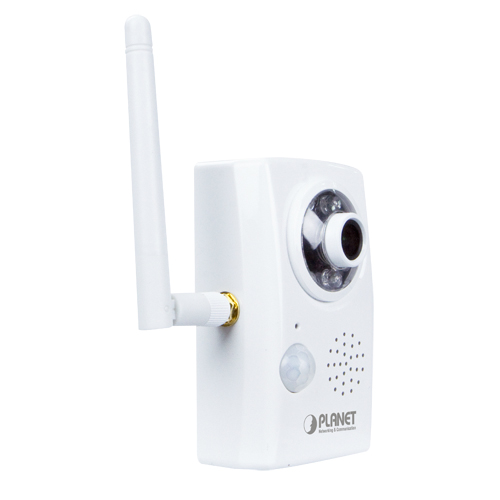

Full HD Wireless Cube IP Camera

概述
应用场景
功能特性
产品规格
下载
相关产品

Cost-effective Solution to Full HD Surveillance Wirelessly

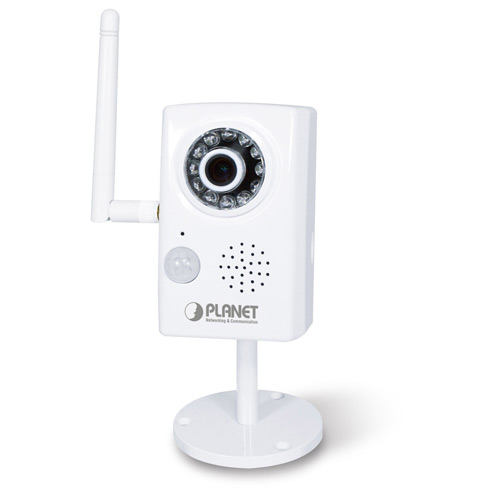

PLANET ICA-W1200 Wireless Cube IP Camera with IR Illuminator performs high resolution images for the round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats to deliver excellent picture quality in Full HD resolutions at 30 frames per second (fps). Incorporating the new Exmor� CMOS image sensor, the ICA-W1200 provides high quality images under all lighting conditions. It is perfect for remote and discreet monitoring of indoor areas such as homes, businesses, boutiques, restaurants, hotels, residences, etc.

Day & Night Surveillance
The ICA-W1200 brings the clearest vision at night by featuring 0.5 lux illumination and the 12 red-light LEDs built around the lens. It offers color pictures both in the daytime and nighttime with the built-in CMOS sensor supporting up to 10 meters. The ICA-W1200 also uses new High-Light LED to provide greater performance in the dark and longer life of LED.

Exceptional Image Quality

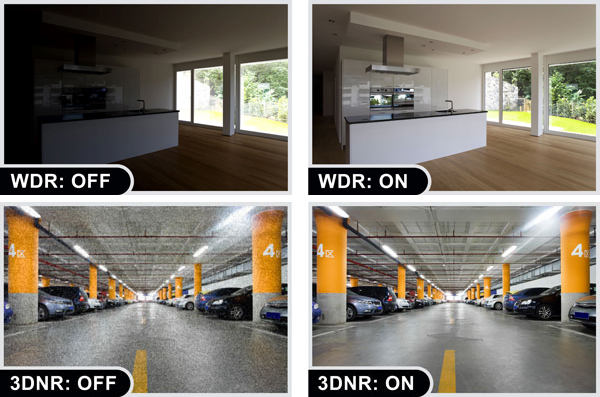

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (3DNR) technology, the ICA-W1200 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, it brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

Passive InfraRed (PIR) Sensor
The ICA-W1200 is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement far from 6 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W1200 will �detect� and start recording automatically. With the additional function of alarm notification, it can send an e-mail alert or send captured images via FTP upload to a designated storage server.

Advanced Event Management

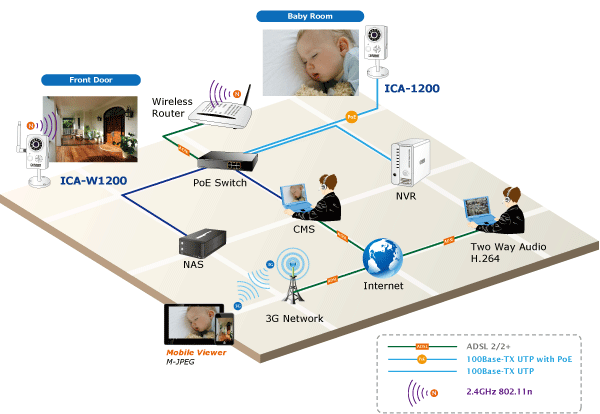

Supporting Store-to-NAS function, the ICA-W1200 can work alone and save the video file to a NAS directly, which can save the PC resource and keep monitoring the environment for motion detection at 7/24. It also offers 2-way audio surveillance; therefore, the administrator can speak to anyone at the ICA-W1200 remote site with a speaker connected. In addition, the ICA-W1200 supports inputs/outputs to connect with external devices such as door sensors and relays to activate light or closed doors.

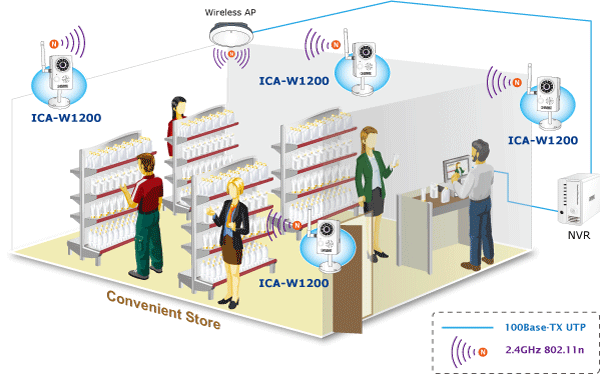

Flexible Installation with 11n Wireless Connectivity

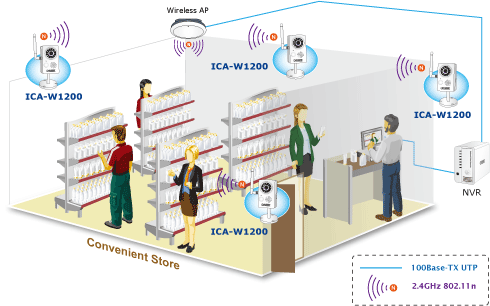

The ICA-W1200 adopts IEEE 802.11n wireless technology to communicate at up to 150Mbps wireless signal rate and ensures secure transmission with WEP and WPA encryptions. It allows you to stream high quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. Complying with ONVIF, the ICA-W1200 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-W1200 is indisputably the ideal choice for reliable and high performance surveillance.

Camera
Image device	1/2.9" Sony Exmor Progressive CMOS
Lens	4.2 mm, fixed iris, fixed focus Angle of view : horizontal: 56 degrees / vertical: 43 degrees
Effective Pixels	1920 x 1080 pixels (16:9)
Min Illumination	0.5 lux @ F1.2
LED	IR LED x 12, 850nm Built-in IR illuminators, effective up to 5~10 meters
PIR Sensor	Built-in 6m / 120 degrees Coverage
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	1080P mode H.264: 1080P / 640 x 360 / 672 x 352 / 320 x 180 / 160 x 90 M-JPEG: 1080P / 640 x 360 / 320 x 180 / 160 x 90 MPEG4: 1080P / 640 x 360 / 320 x 180 / 160 x 90 720P mode H.264: 1280 x 720 / 640 x 368 / 640 x 360 / 160 x 90 M-JPEG: 1280 x 720 / 640 x 360 / 160 x 90 MPEG-4: 1280 x 720 / 640 x 360 / 160 x 90
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB 3D Noise Reduction WDR Color, Brightness, Sharpness, Contrast, Hue Mirror / Flip 10 Privacy Masks Text, Time and Date Overlay
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) ROI
Audio
Audio Streaming	2-way Audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Microphone	Internal microphone and speaker input
Audio Output	Adjustable audio output gain
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11 b/g/n
Network Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Antenna connector	1x2 dBi (Max) dual detachable diversity antenna
Frequency	2.4GHz
RF Transmit Power	OFDM: 14 dBm CCK: 17 dBm
Receiver Sensitivity	802.11b (11Mbps): CCK@8% PER = -88dBm 802.11g (54Mbps): OFDM @ 10% PER = -72dBm 802.11n Draft 6.0: HT20 @ 10% PER = -66 dBm HT40@ 10% PER= -61dBm
Data Rate	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps 802.11n (20MHz) : up to 72Mbps 802.11n (40MHz) : up to 150Mbps
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log, WEP and WPA encryption
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF
Alarm Triggers	Intelligent Video Motion Detection External Input PIR detector (Human Detect) Audio detection
Alarm Events	File upload via FTP, Samba, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output
Video Buffer	Pre and post alarm buffering
Environment
Power Requirements	12V DC, 1A
Power Consumption	7W (12VDC)
Operating Temperature	-10 ~ 40 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Dimensions (W x D x H)	58 x 39 x 91 mm
Weight	146g
Emission	CE, FCC

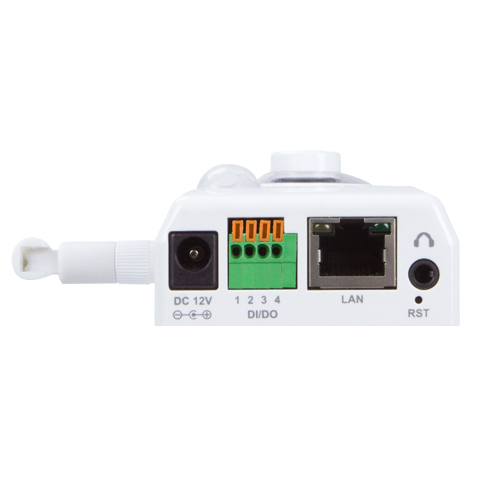

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio out TV out Micro SD/SDHC card (Max 32GB, Class 6) Factory default reset

订购信息
ICA-W1200	Full HD Wireless Cube IP Camera
