Superb Full HD Outdoor Professional Surveillance

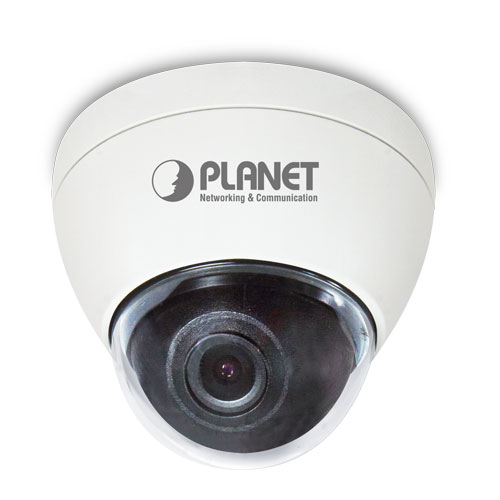

PLANET ICA-5250 PoE IP Camera provides high resolution images for round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 25 frames per second (fps). The IP66-rated and IK10 vandalproof housing protects the camera body against rain and dust and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, e.g. surveillance of buildings, roads, parking areas, garages, railway stations and airports.
Mini Design for Easy Installation
The ICA-5250 is an ultra lightweight IP camera. Its weight and size are light and compact, respectively, thus offering a quick and simple installation on the ceilings or walls inside or outside of houses and buildings. Installation can be finished in less than 60 seconds. Furthermore, it can be manually adjustable for viewing at different angles.
Exceptional Image Quality
Together with powerful image processing attributes like Wide Dynamic Range and Dimension Noise Reduction technology, the ICA-5250 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Advanced Event Management

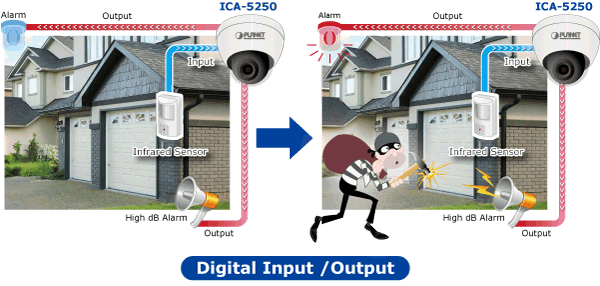

The ICA-5250 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include inputs/outputs for connecting to external devices such as door sensors and relays to activate light or closed doors.
Flexible Installation and Power Functionality
The ICA-5250 incorporates IEEE 802.3af Power over Ethernet technology and can be powered from a PoE Switch via the network, which eliminates the need for power cables and reduces installation costs. The ICA-5250 is ONVIF-compliant and therefore interoperable with other brands in the market, greatly supporting users to integrate with their existing surveillance network. In addition, the ICA-5250 includes 64-CH central management software for efficient monitoring. The ICA-5250 is indisputably the top choice for reliable and high performance surveillance.

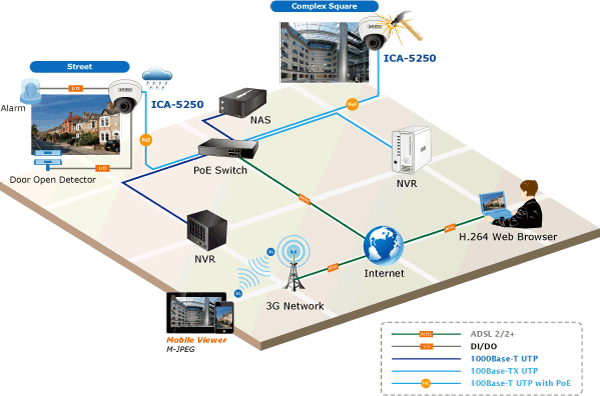

PLANET ICA-5250 can perform in various surveillance applications. With high resolution design, it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-5250 supports 802.3af PoE interface, and facilitates the outdoor surveillance applications without worrying the electric source.
1/3.2" progressive scan CMOS sensor
0.5 lux Minimum Illumination at F1.6
Maximum resolution 1920 x 1080
Easily-recessed mount design
Convenient nano-design blends in nicely with any surrounding
Video / Audio
H.264, MPEG-4 and M-JPEG video compression simultaneously
Simultaneous Multi-H.264 streams support
H.264 high profile, main profile and baseline
Max. Resolution of 1080P at 25fps
DNR to improve picture quality at low Lux
WDR Enhancement function strengthens visibility under extremely bright or dark environments
Network and Configuration
Compliant with IEEE 802.3af PoE interface for flexible deployment
Supports IPv6 in addition to IPv4
RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
ONVIF compliant for interoperability
IP66 and IK10 outdoor classifications with fan for rigorous environment
Built-in Samba client for NAS
3GPP for 3G mobile remote applications
Micro SD card local video recording supported
Digital Input/Output for integration with sensors and alarms

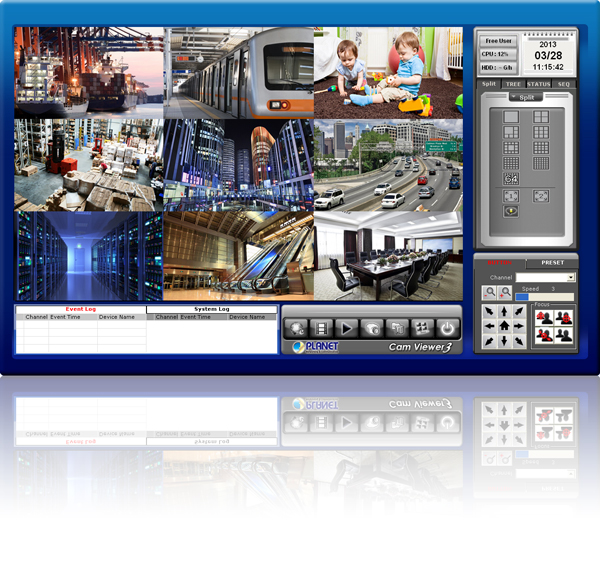

Cam Viewer 3 Central management software supported
1/3.2" progressive scan CMOS sensor
Fixed lens 3.6mm, F1.6
Angle of view:
Horizontal: 53.13 degrees
Vertical: 29.49 degrees
Color : 1 Lux (AGC ON)
B / W: 0.5 Lux (AGC ON)
Auto, 1 / 5 ~ 1 / 10,000 sec
1920 x 1080 pixels
H.264 / MPEG-4 / M-JPEG
H.264: 1080P / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144
M-JPEG: 1080P / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144
MPEG-4: 1080P / 1280 x 720 / 640 x 480 / 320 x 240 / 176 x 144
