| 硬件特性 |
| 电口 |
5 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation |
| Connector |
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| 报警 |
Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V |
| LED指示灯 |
3 x LED for System and Power:
?? Green: DC Power 1
?? Green: DC Power 2
?? Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
?? Green: 1000 LNK/ACT, Orange:100 LNK/ACT
?? Orange: PoE In-use
1 x LED for Port-5:
?? Green: 1000 LNK/ACT, Orange:100 LNK/ACT

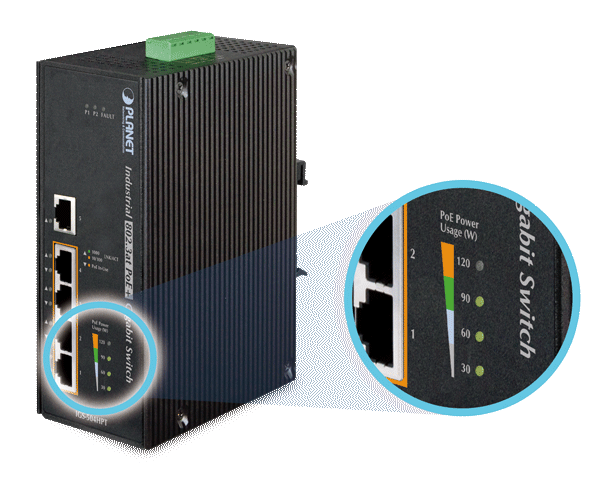

4 x LED for PoE Power Usage (W):
?? Orange: 30, 60, 90 and 120W |
| ESD保护 |
6KV DC |
| EFT保护 |
6KV DC |
| 材质 |
IP30 aluminum metal case |
| 安装方式 |
DIN rail kit or wall mount |
| 尺寸 |
152 x 107x 72 mm |
| 重量 |
1478g |
| 电源要求 |

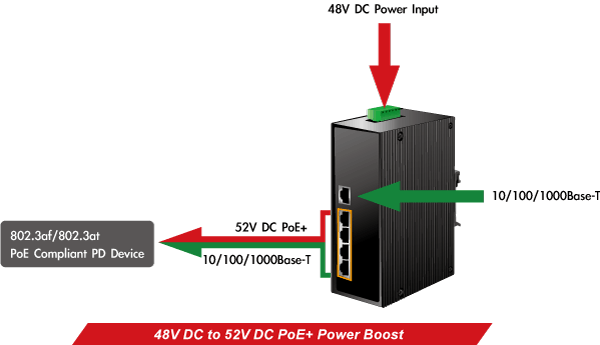

48V DC, 5A max.
Redundant power with polarity reverse protection function |
| 功率/损耗 |
14.1 watts / 48 BUT (System loading without PoE)
134.1 watts / 457 BTU (Full loading with PoE function) |
| PoE供电 |
| 供电标准 |
IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE |
| 供电类型 |
End-Span |
| 供电针脚定义 |
1/2(+), 3/6(-) |
| 端口输出功率 |

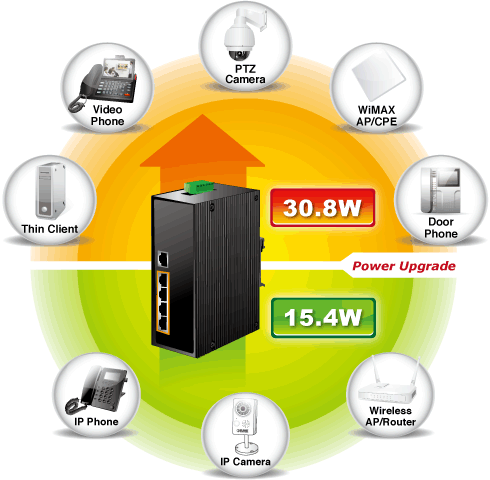

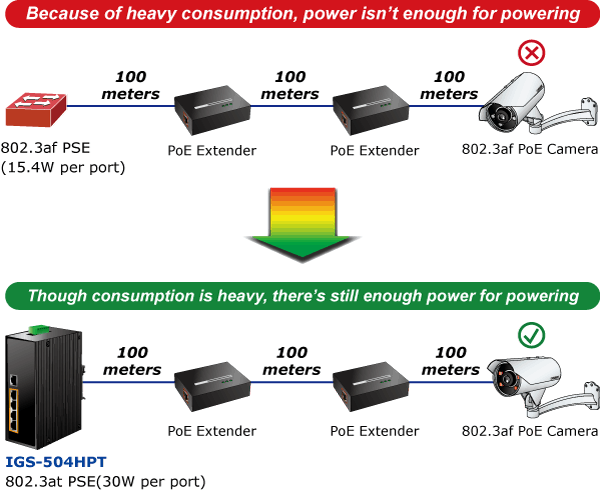

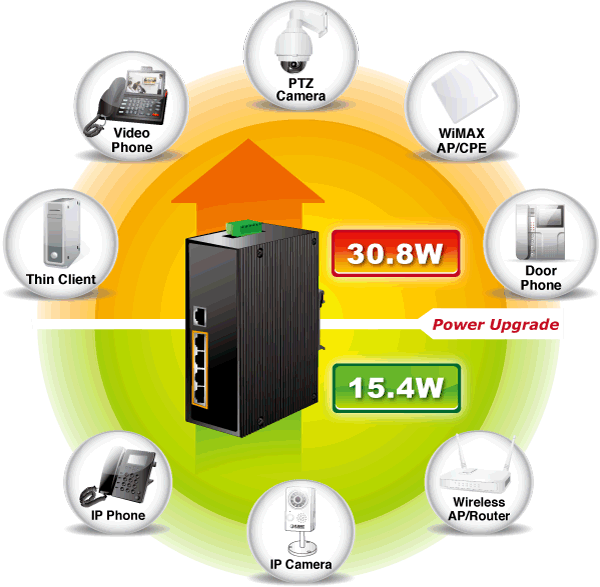

Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) |
| Max. number of Class 4 PD |
4 |
| 2层特性 |
| 处理方式 |
Store-and-Forward |
| MAC地址表 |
1K entries |
| 流控 |
Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex |
| 背板带宽 |
10Gbps |
| 吞吐量 |
7.44Mpps@64bytes |
| 最大传输单元 |
9216 bytes |
| 传输速率 |
TP: 10/20Mbps, 100/200Mbps, 2000Mbps |
| 标准一致性 |
| 国际标准 |
IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet |
| 遵从法规 |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration) |
| 环境 |
| 温度 |
| Operating: | -40~75 degree C | | Storage: | -40~75 degrees C |
|
| 湿度 |
| Operating: | 5~95% (Non-condensing) | | Storage: | 5~95% (Non-condensing) |
|
