| 硬件特性 |
| 电口 |
8-Port RJ-45 for 10/100Base-TX |
| PoE端口 |
8-Port with 802.3af / 802.3at PoE injector function |

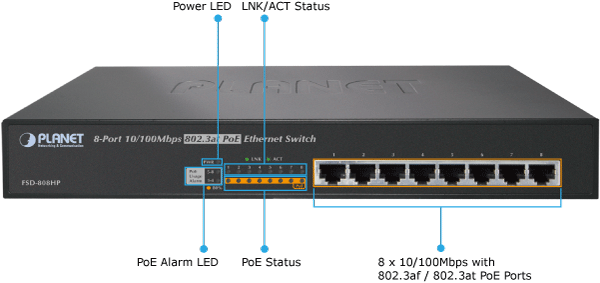

| LED指示灯 |
System: Power (Green)

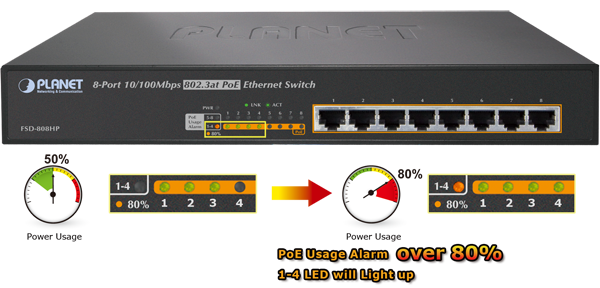

PoE Usage Alarm:
?� 1-4 (Orange)
?� 5-8 (Orange)
Per port:
?� PoE in-use (Green)
?� LNK/ACT (Green) |
| 处理方式 |
Store and Forward switch architecture |
| MAC地址表 |
2K MAC address table with auto learning function |
| 背板带宽 |
1.6Gbps |
| 吞吐量 |
1.19Mpps@64Bytes |
| 电源要求 |
AC 100~240V, 50/60Hz, 2A max. |
| 功率/损耗 |
Max.150 watts / 511 BTU |
| 尺寸(W x D x H) |
280 x 180 x 44 mm |
| 重量 |
1.65kg |
| 以太网供电（PoE） |
| PoE标准 |
IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Enhancement Power over Ethernet / PSE |
| PoE供电类型 |
End-Span |
| 电源输出 |

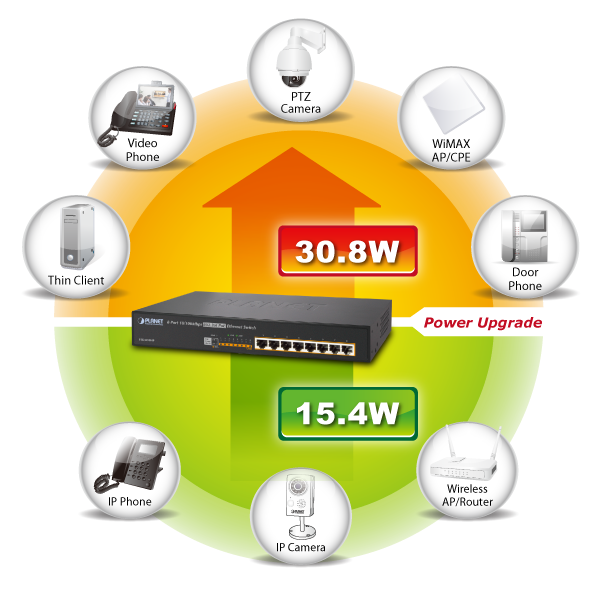

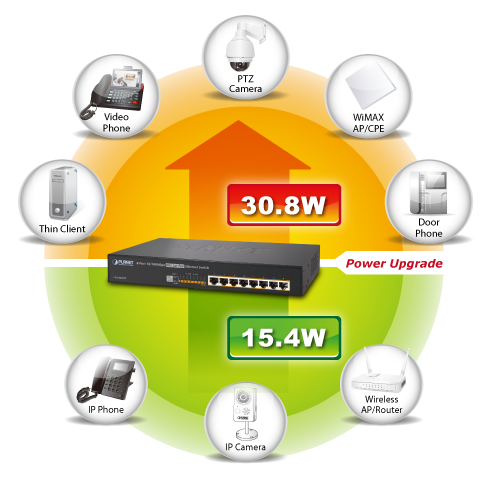

Per Port 52V DC max. 30.8 watts |
| 供电针脚定义 |
1/2(+), 3/6(-) |
| 总PoE输出功率 |
140 watts |
| 环境 |
| 工作温度 |
0 ~ 50 degrees C |
| 工作湿度 |
-40 ~ 70 degrees C |
| 存储温度 |
5 ~ 95%, relative humidity, non-condensing |
| 存储湿度 |
5 ~ 95%, relative humidity, non-condensing |
| 标准一致性 |
| 标准一致性 |
IEEE 802.3?Ethernet
IEEE 802.3u?Fast Ethernet
IEEE 802.3x?Flow Control
IEEE 802.3af?Power over Ethernet
IEEE 802.3at?Enhancement Power over Ethernet
IEEE 802.3az?Energy-Efficient Ethernet
|
| 认证 |
FCC Class B, CE |
