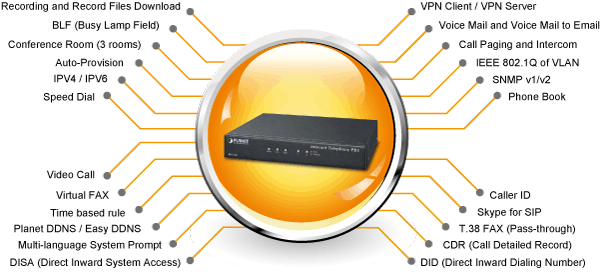

Intuitive, Ease-of-Use IP PBX Machine Management
PLANET IPX-330 IP PBX telephony system is SIP based and optimized for small and medium businesses in daily communications. The IPX-330 is able to accept 30 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages.
| | Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-330, integrated with 2 FXO ports, is a feature-rich PBX system that supports seamless communications between existing PSTN calls, analog, IP phones and SIP-based endpoints.
| | Replacing old PBX directly without any additional cable
Cost-effective, easy-to-install and simple-to-use, the IPX-330 converts standard telephones into PoE IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.
With the IPX-330, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-330 can be the bridge between traditional analog systems and IP network with an extremely affordable investment.

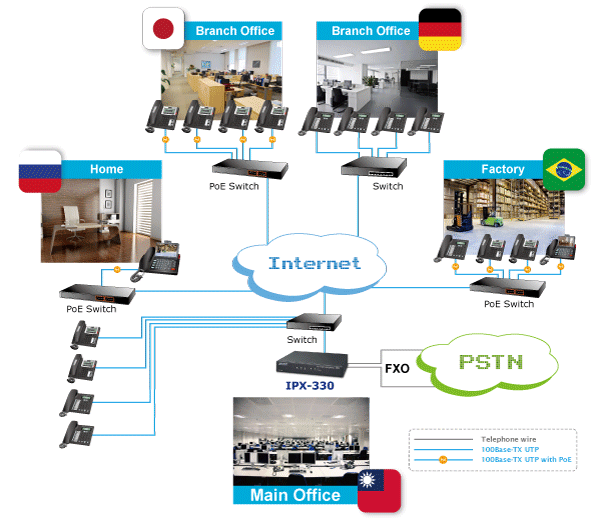

| | | | Distributed VoIP Network Infrastructure
For the new generation communication age, the IPX-330 supports IPv6 and VPN (client / server) connection to provide users with more flexible and advantage communication products. With PLANET DDNS function, the IPX-330 also helps users to apply and remember the login information easier. Moreover, its multiple language feature helps user to quickly and friendly manage the system.

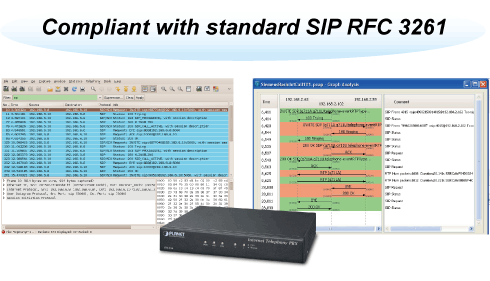

| | | | Standard Compliance

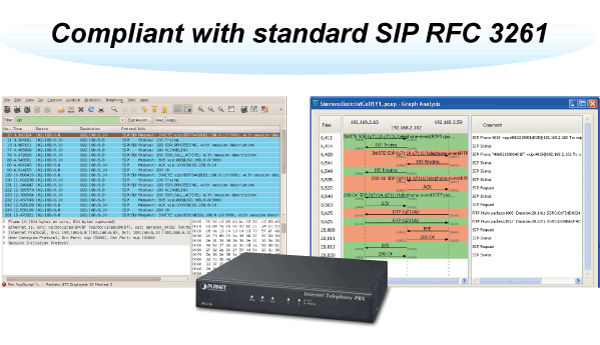

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-330 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

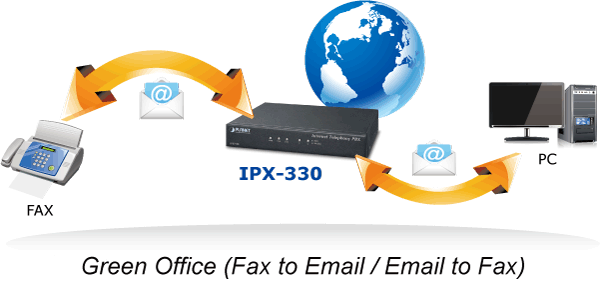

| | | | Green IP Office
The Fax to Email / Email to Fax service by the IPX-330 allows users to transfer / receive faxes directly to / from your email inbox as file attachments. Its an easy and confidential way of receiving, storing and forwarding important fax documents, thus creating a paperless green office.

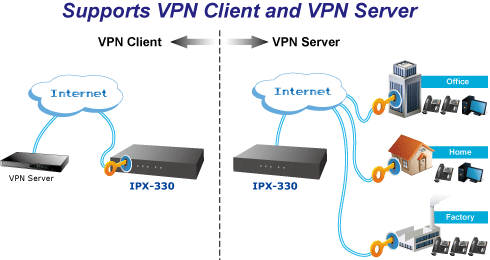

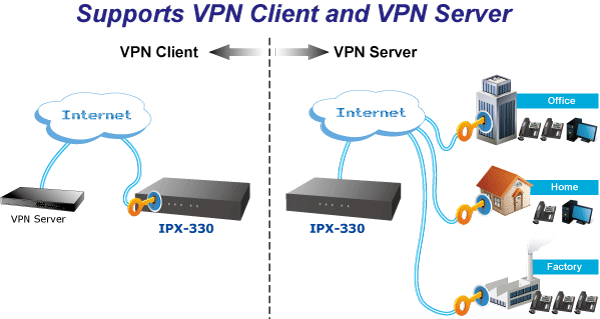

| | | | Full Security with VPN Support
The IPX-330 provides VPN to securely and cost-effectively connect geographically disparate offices of an organization, creating one cohesive virtual network. The VPN technology of the IPX-330 is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one's identity. It includes VPN server and client function that can support users full security login.
| | | |
The IPX-330 provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for medium-sized businesses with branch offices, the IPX-330 voice, conferencing, mobility, voice gateway, and IP PBX services are created on a single appliance. | | | |
System Highlights- 10 concurrent calls and up to 30 registers
- HD voice codec G.722 to perfect voice quality
- Fax to Email / Email to Fax for green office
- Voicemail to Email for not missing any important message
- Paging and intercom function strengthens work efficiency
- Built-in SIP Proxy Server following RFC 3261
- Multiple Language of GUI for international business
- Web based Control Panel for easy configuration and management of the system
- Strong security features protect your system from hacking
- Supports 2 port FXO
- IEEE 802.3af PoE compliance
Codec and Protocol- SIP 2.0 (RFC3261) / IAX2 compliant
- Audio Codec: G.722 / G.711-Ulaw / G.711-Alaw / G.726 / G.729 / GSM / SPEEX
- Video Codec: H.261 / H.263 / H.263+ / H.264
- DTMF: RFC2833, SIP INFO, In-band
Network and Security Features- DDNS Client (PLANET DDNS)
- DHCP Server / SNMP v1/v2
- IEEE 802.1Q of VLAN
- Supports IPv6 in addition to IPv4
- Manual Configuration of Static Route Table
- Troubleshooting (Ping, Traceroute)
- VPN Client (Supports N2N / L2TP / PPTP / OpenVPN)
- VPN Server ( Supports PPTP / L2TP / OpenVPN Server)
- Refuses SIP Register DoS
- Refuses Abort Invite Dos
- Refuses SSH Login DoS
- Firewall / SRTP
PBX Features- Black List
- BLF (Busy Lamp Field)
- CDR (Call Detailed Record)
- Conference Room (3 rooms)
- DID (Direct Inward Dialing Number)
- DISA (Direct Inward System Access)
- DND / Feature Codes / Flash Operation Panel
- Follow Me / Auto-Provision
- IVR (Interactive Voice Responses)
- Multi-language System Prompt
- Multiple-language GUI
- Phone Book / PIN Set
- Record Files Download
- Ring Group / SIP Trunk
- Skype for SIP / Smart DID / System Log
- T.38 Fax (Pass-through) / Time based rule
- Virtual Fax / Voicemail & Voice Mail to E-Mail
Call Features- Call Back / Call Forward / Call Group
- Call Hold / Call Paging and Intercom
- Call Park / Call Pickup / Call Queue
- Call Record / Call Route / Blind Transfer
- Attend Transfer / Call Waiting
- Caller ID / Dial by Name
- Customized IVR / on hold music / Transfer
- Three-way Conferencing / Video Call
| |

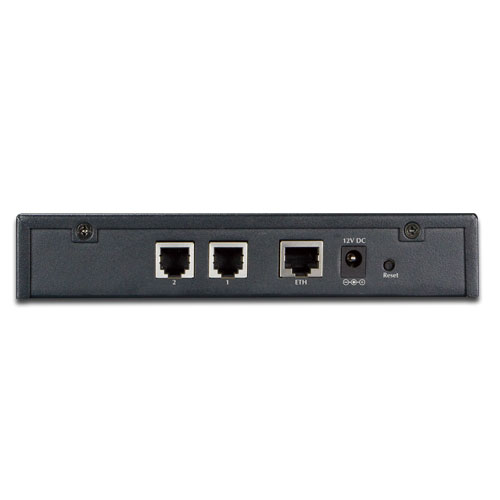

硬件特性 |
电口 |
1 x 10/100Mbps RJ-45 port |
RJ11端口 |
2 x FXO |
重置按钮 |
Reset to factory default |
协议与标准 |
国际标准 |
SIP 2.0 (RFC3261), IAX2 |
协议 |
RFC 793 TCP
RFC 826 ARP
RFC 1034, 1035 DNS
RFC 1631 NAT
RFC 2068 HTTP
RFC 2131 DHCP
RFC 2516 PPPoE
RFC 3261, RFC 3311, RFC 3515
RFC 3265, RFC 3892, RFC 3361
RFC 3842, RFC 3389, RFC 3489
RFC 3428, RFC 2327, RFC 2833
RFC 2976, RFC 3263
|
语音编码 |
G.722 / G.711-Ulaw / G.711-Alaw / G.726 / G.729 / GSM / SPEEX |
视频编码 |
H.261/ H.263 / H.263+ / H.264 |
通过IP传真邮件 |
T.38 Fax (Pass-through) |
语音处理方式 |
DTMF detection and generation
In-Band and RFC 2833, SIP INFO
|
协议 |
SIP 2.0 (RFC 3261), TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE |
互联网共享 |
网络特性 |
DDNS Client (PLANET DDNS and Easy DDNS)
DHCP Server / SNMP v1/v2
IEEE 802.1Q of VLAN
IP Assignment (PPPoE / DHCP / Static)
IPv4 / IPv6
Manual Configuration of Static Route Table
Trouble Shooting (Ping, Traceroute)
VPN Client (Supports N2N / L2TP / PPTP / OpenVPN)
VPN Server (PPTP / L2TP / OpenVPN Server)
|
安全特性 |
Refuses SIP Register DoS
Refuses Abort Invite Dos
Refuses SSH Login DoS
Firewall / SRTP
|
功能特性 |
PBX 特性 |
Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room (3 rooms)
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
DND / Feature Codes / Flash Operation Panel
Follow Me / Auto-Provision
IVR (Interactive Voice Responses)
Multi-language System Prompt
Multiple-language GUI
Phone Book / PIN Set
Record Files Download
Ring Group / SIP Trunk
Skype for SIP / Smart DID / System Log
T.38 Fax (Pass-through) / Time based rule
Virtual Fax / Voicemail & Voice Mail to Email
|
呼叫功能 |
Call Back / Call Forward / Call Group
Call Hold / Call Paging and Intercom
Call Park / Call Pickup / Call Queue
Call Record / Call Route / Blind Transfer
Attend Transfer / Call Waiting
Caller ID / Dial by Name
Customized IVR / on hold music / Transfer
Three-way Conferencing / Video Call
|
系统容量 |
系统容量 |
10 Concurrent Call Legs
Up to 30 IP Phone Registers/Extensions
Recording (GSM/ default): 21,000 minutes; Wav: 3000 minutes
Voicemail (GSM/ default): 21,000 minutes; Wav: 3000 minutes
|
网络设定 |
访问模式 |
Static IP, PPPoE, DHCP |
LED 指示灯 |
SYS: 1, LNK/Off
ETH: 1, LNK/Off
PWR: 1, LNK/Off
FXO: Red
|
尺寸 (W x D x H) |
155 � 295 � 65 mm |
操作环境 |
-10~45 degrees C, 10~80% humidity |
电源要求 |
Input: 100 ~ 240 Vac
Output: DC 12V / 1.0 A
IEEE 802.3af PoE
|
EMC/EMI |
CE, FCC Class B, RoHS |
